Mitutoyo 570-414 HDS-24CX 24in 0.0005in Digital Height Gage
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

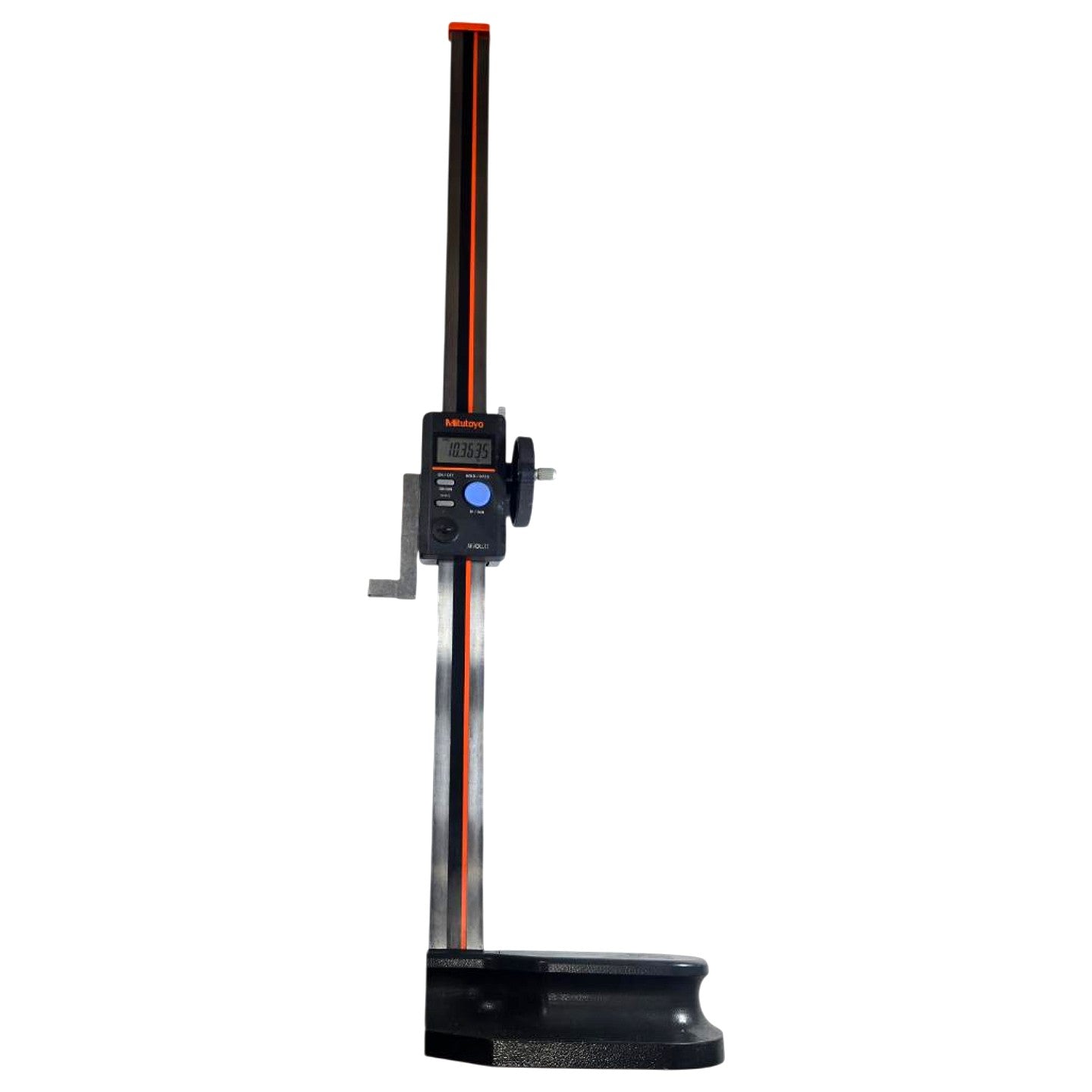

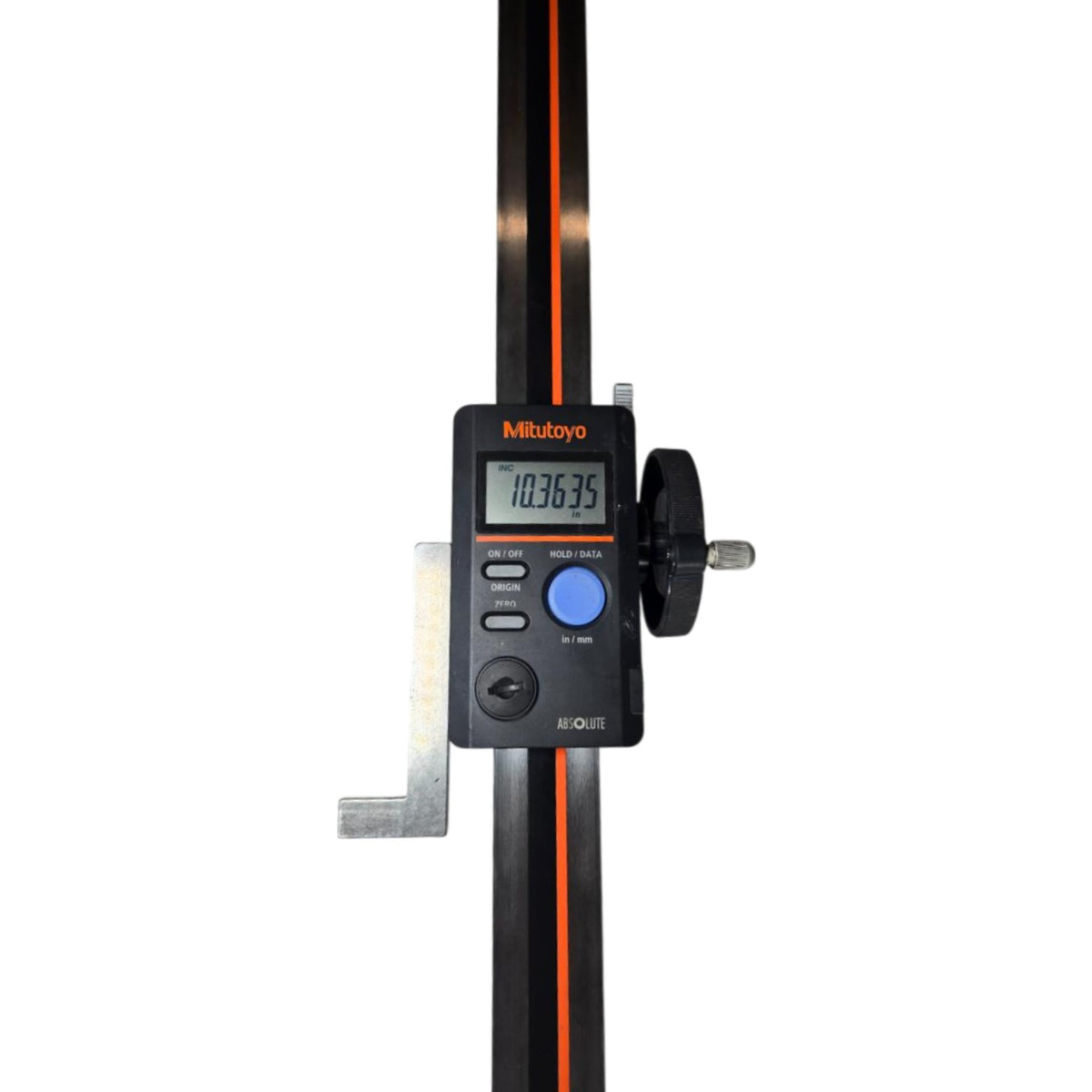

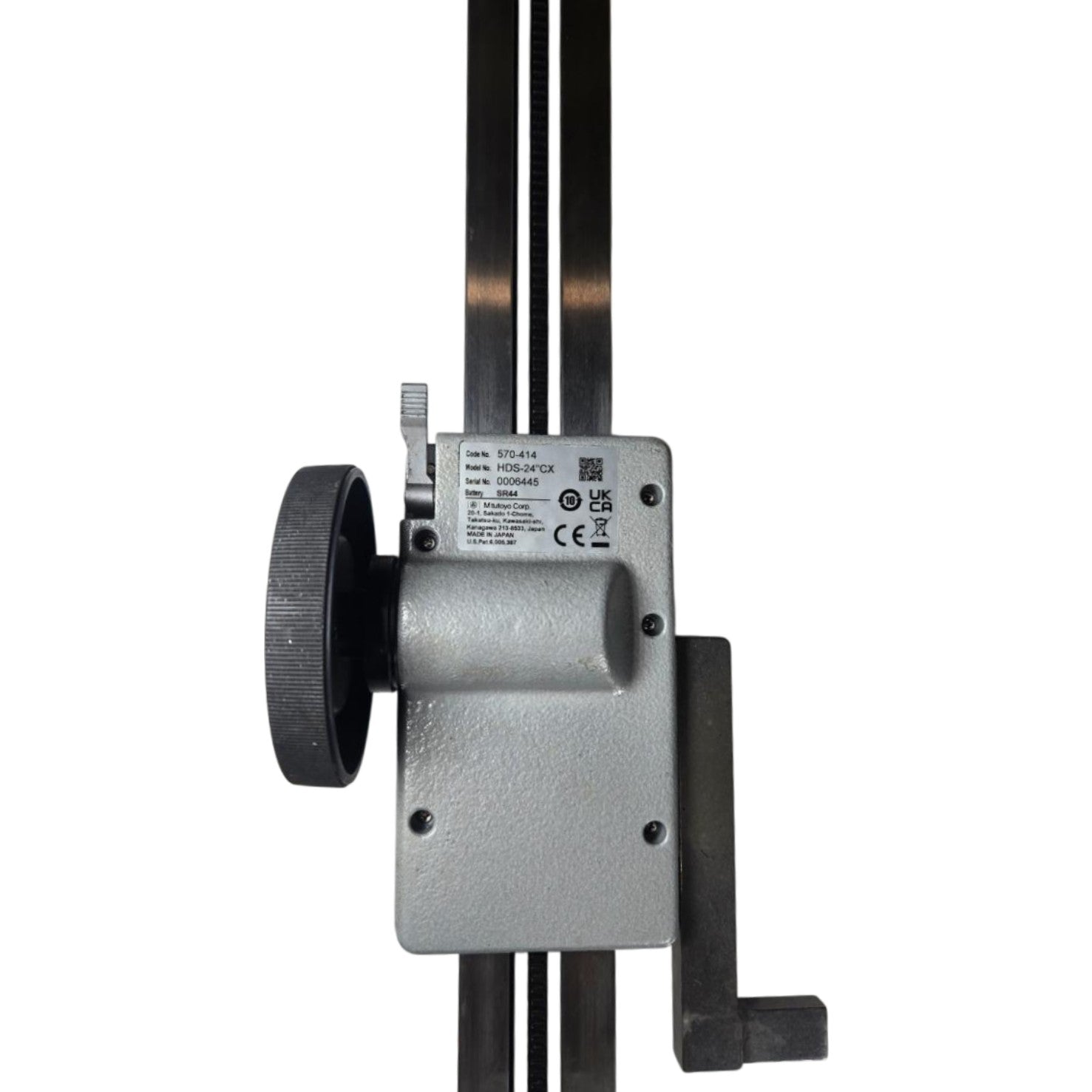

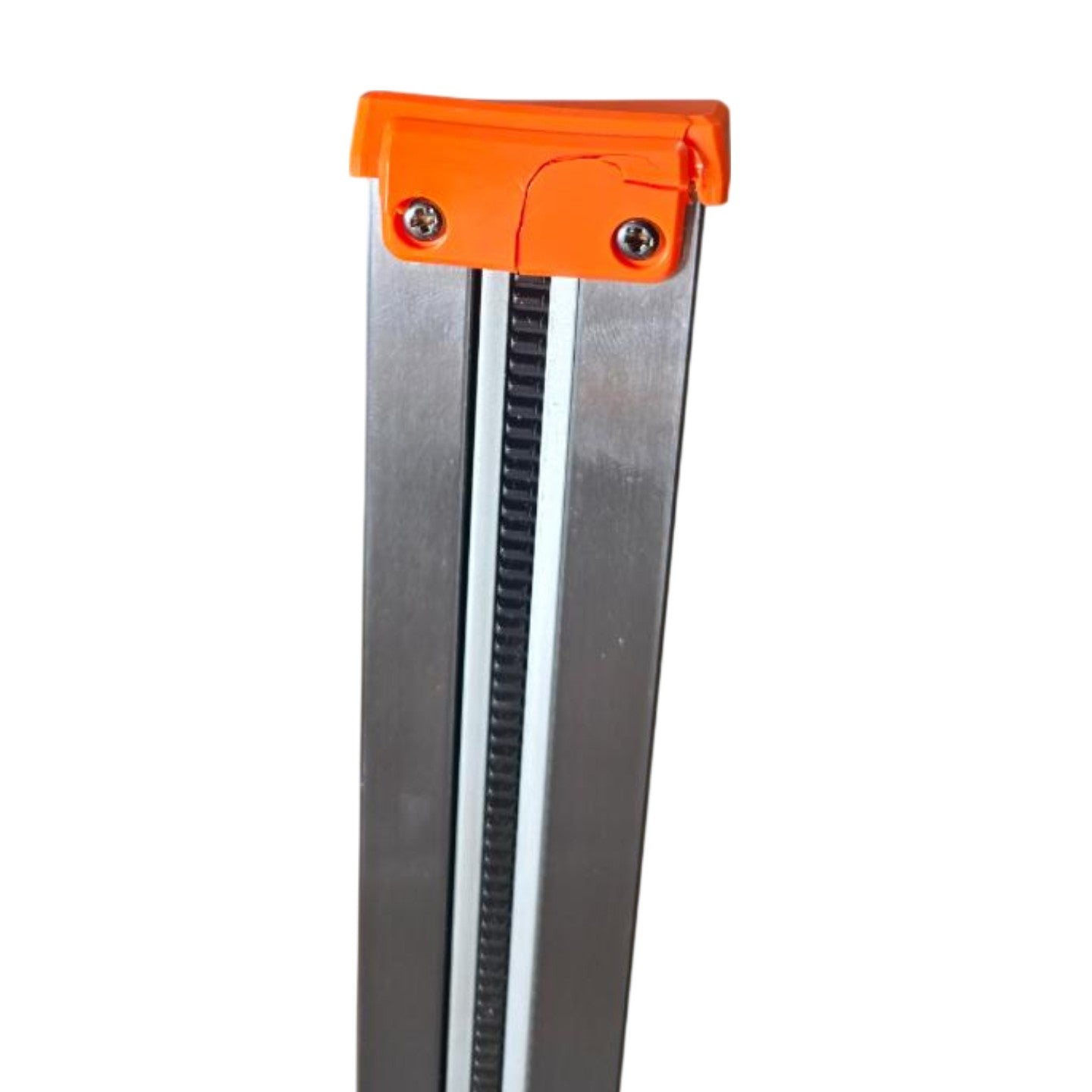

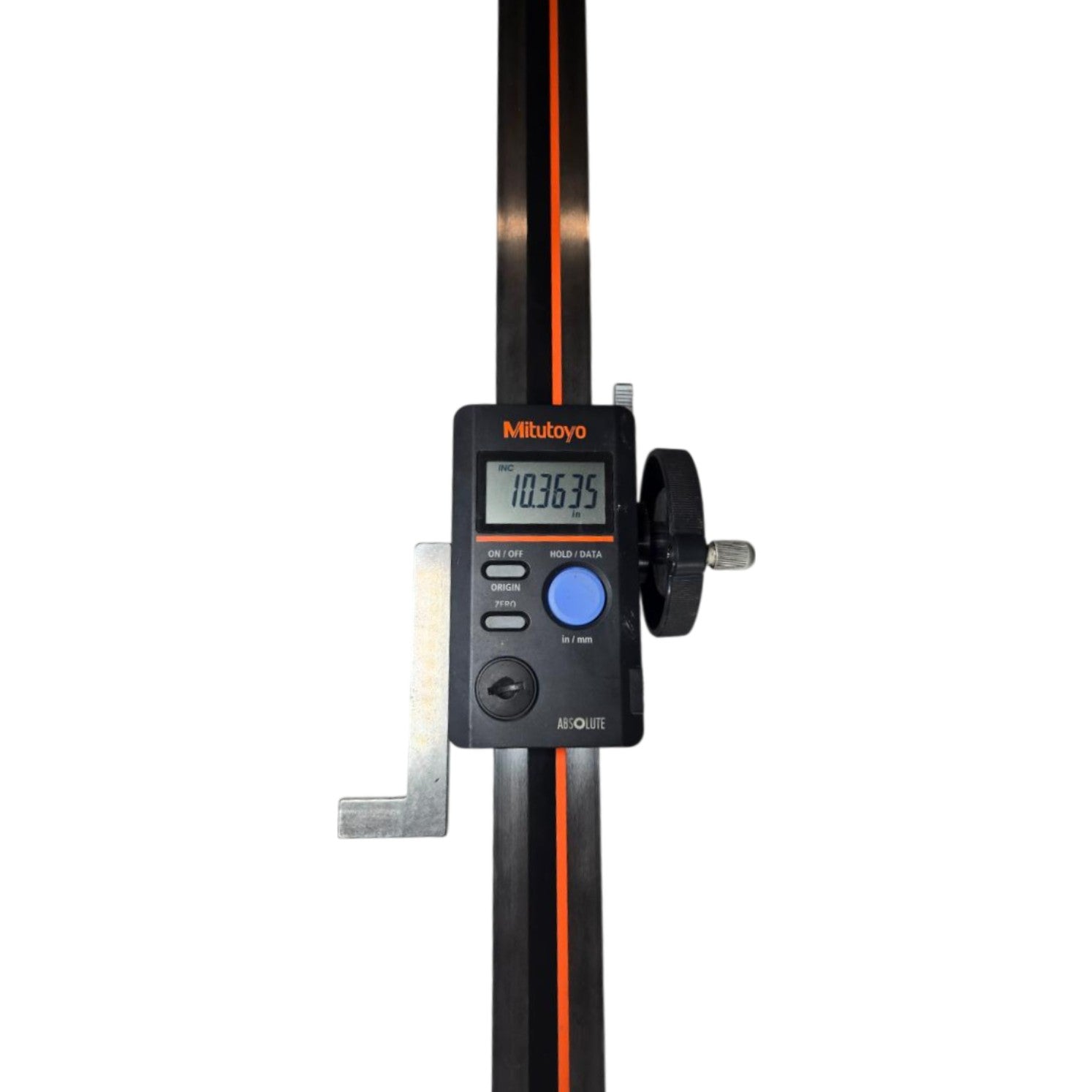

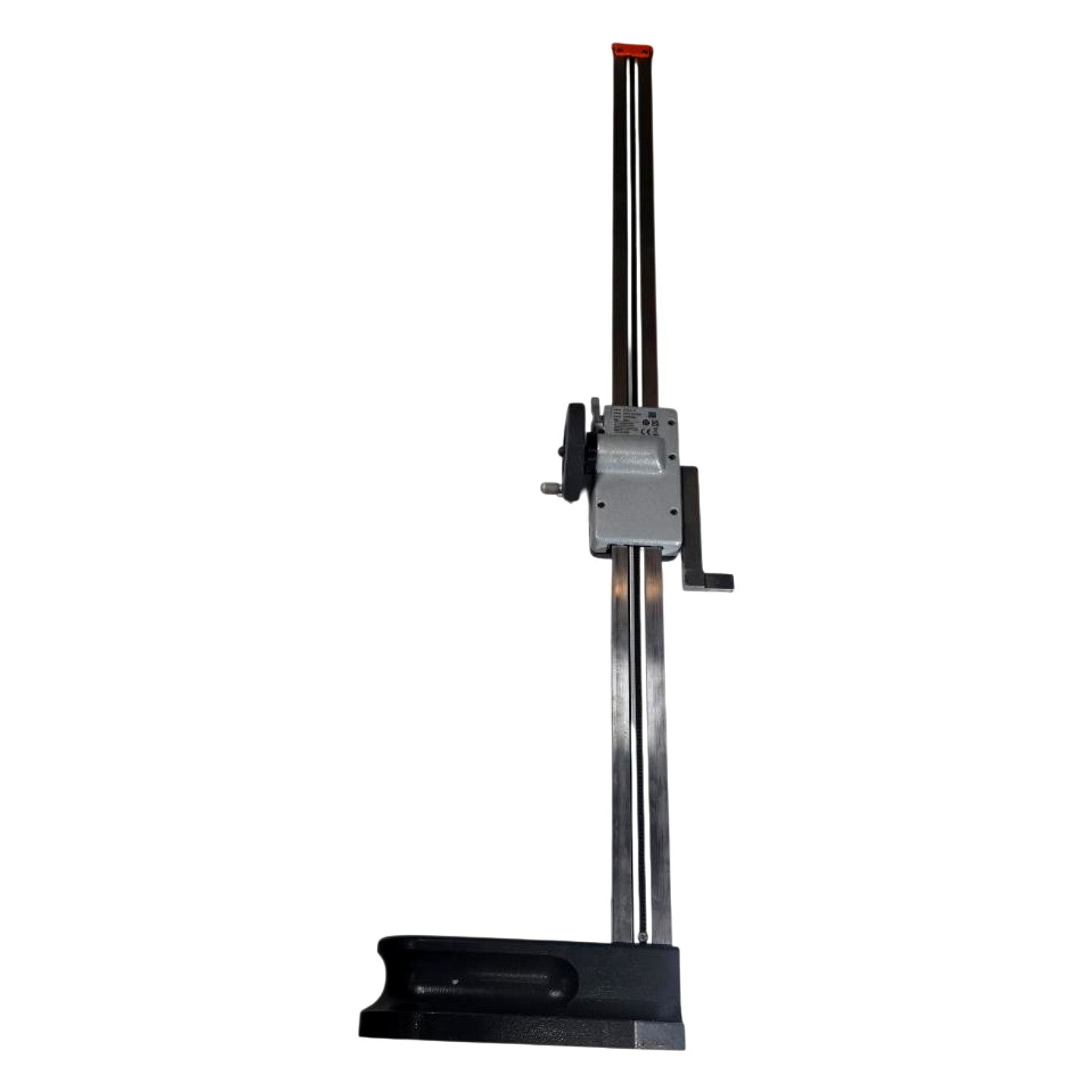

The Mitutoyo 570-414 HDS-24CX is a 24-inch range ABSOLUTE digital height gage featuring Mitutoyo's capacitive linear encoder system, which retains the origin point even after power-off — eliminating the need to re-zero at startup. The carriage is driven by a rack-and-pinion mechanism with a fine-adjust thumbwheel and a clamp screw for locking position, and the beam rides on a hardened stainless steel column with an integral measurement scale protected by a dust cap at the top. The cast-iron base provides a stable reference surface for use on surface plates, and the display unit outputs in both inch and metric via the in/mm toggle; it supports Mitutoyo's SPC data output for connection to data collection systems. Battery is a single SR44 silver-oxide cell; the unit is Made in Japan and is sold new — other (original Mitutoyo factory carton, showing external shipping wear).
Product Specifications
| Brand | Mitutoyo |
| Model Number | HDS-24CX |
| Code / Part Number | 570-414 |
| Measurement Range | 0 - 24 in (0 - 600 mm) |
| Resolution (inch) | 0.0005 in |
| Resolution (metric) | 0.01 mm |
| Accuracy | ±0.002 in (±0.05 mm) |
| Display | LCD digital readout, in/mm switchable |
| Encoder Type | ABSOLUTE capacitive linear encoder |
| Drive Mechanism | Rack and pinion w/ fine-adjust thumbwheel |
| Carriage Lock | Clamp screw |
| Column Material | Hardened stainless steel |
| Base Material | Cast iron |
| Battery | SR44 (silver-oxide, 1 cell) |
| SPC Data Output | Yes (Mitutoyo SPC compatible) |
| Country of Origin | Japan |
| Condition | New - other (original carton, external wear) |
