Mitutoyo Pro 3600 950-318 Digital Protractor w/ Case & Manual
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

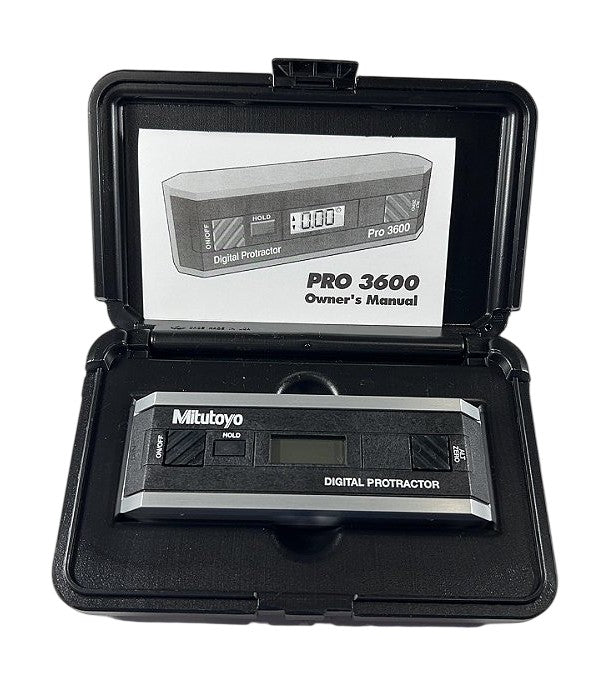

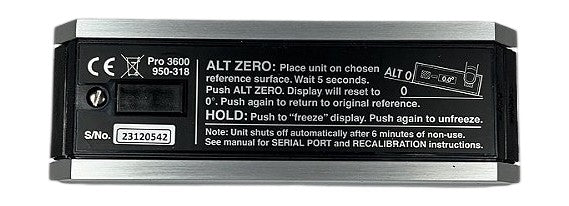

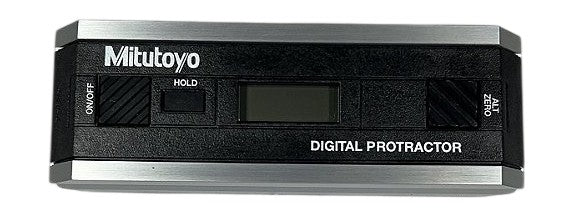

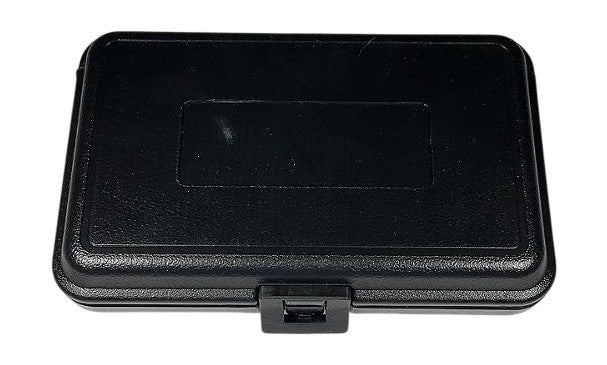

The Mitutoyo Pro 3600 (model 950-318) is a new digital inclinometer/protractor that measures angles across a full 360° range with 0.1° resolution displayed on an LCD readout. The unit features an ALT ZERO function that allows the operator to set any surface as a relative zero reference — the display resets to 0.0° on that surface and reads deviation from it — plus a HOLD button that freezes the displayed reading for transfer to paper or SPC. A serial port output is present for data collection, and the instrument includes a recalibration function; automatic shutoff occurs after 6 minutes of non-use to conserve the battery. Supplied new in a fitted hard plastic carry case with the original Pro 3600 Owner's Manual; serial number 23120542 is visible on the label. Typical applications include setting machine table tilts, verifying bevel angles on workpieces, aligning structural members, and checking saw blade or router bit angles in fabrication and woodworking environments.
Product Specifications
| Brand | Mitutoyo |
| Model | Pro 3600 |
| Part Number | 950-318 |
| Instrument Type | Digital Protractor / Inclinometer |
| Measurement Range | 360° |
| Resolution | 0.1° |
| Display Type | LCD |
| ALT ZERO Function | Yes — relative zero on any reference surface |
| HOLD Function | Yes — freezes display reading |
| Data Output | Serial port |
| Auto Shutoff | 6 minutes of non-use |
| Serial Number | 23120542 |
| Includes | Hard plastic carry case, Pro 3600 Owner's Manual |
| Condition | New |
