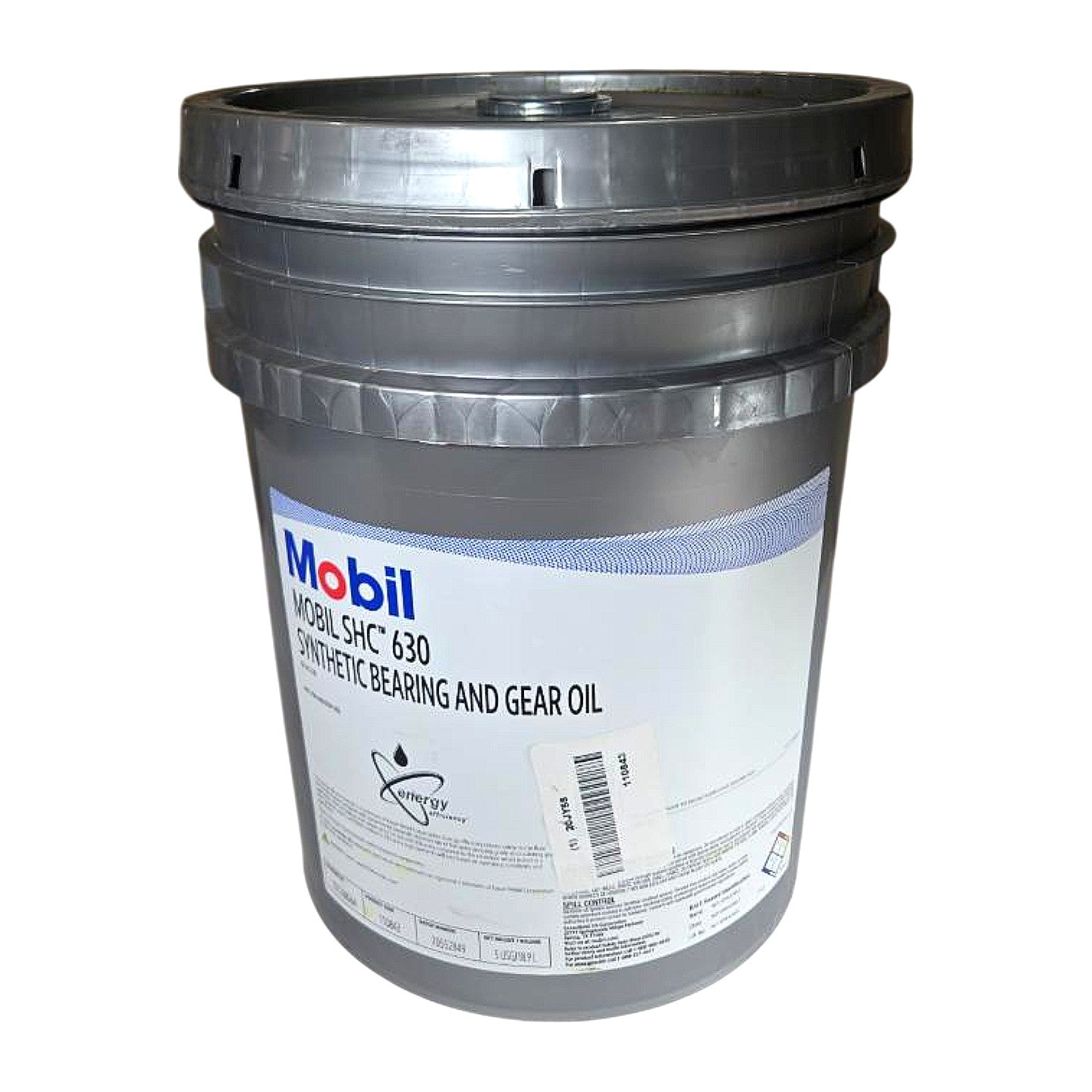

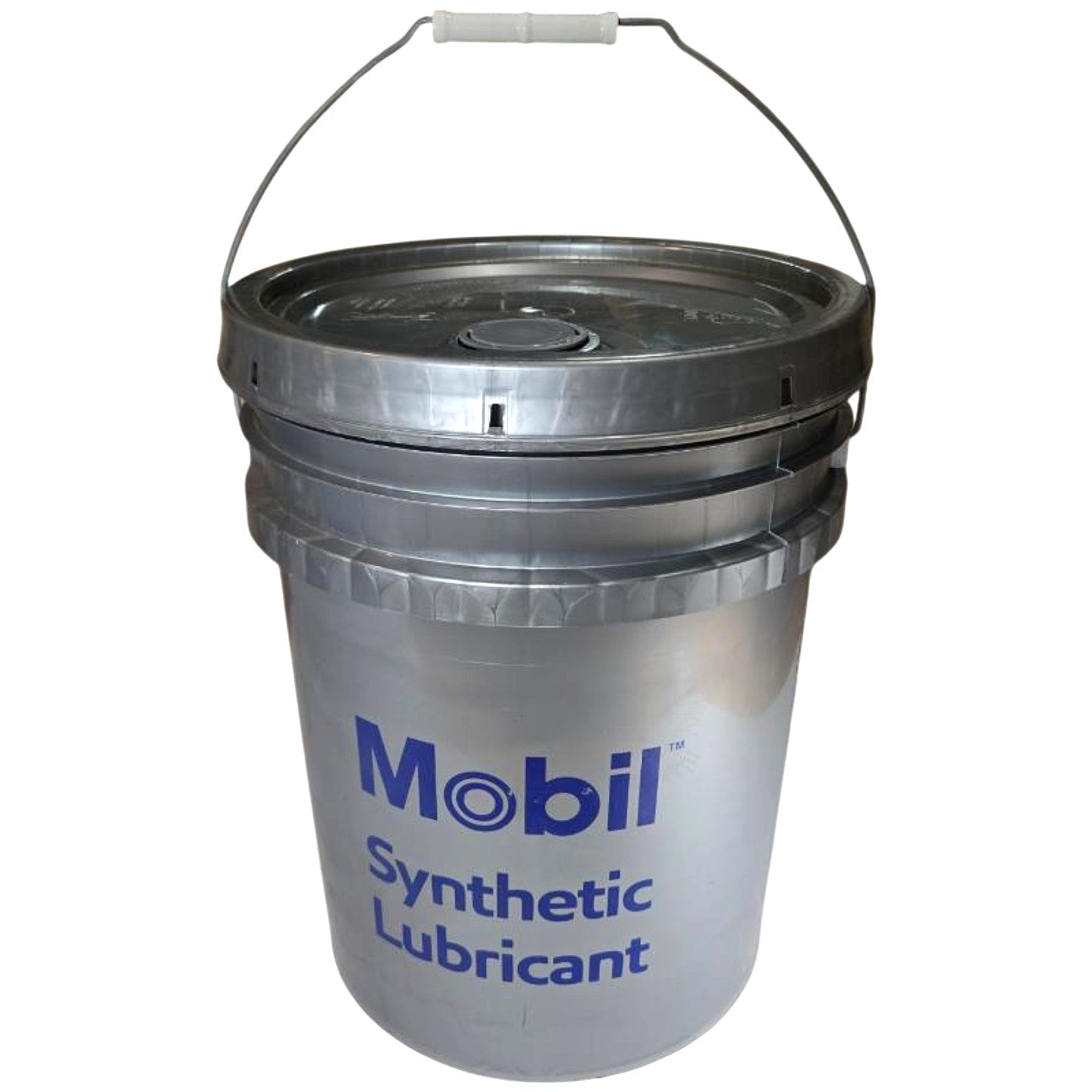

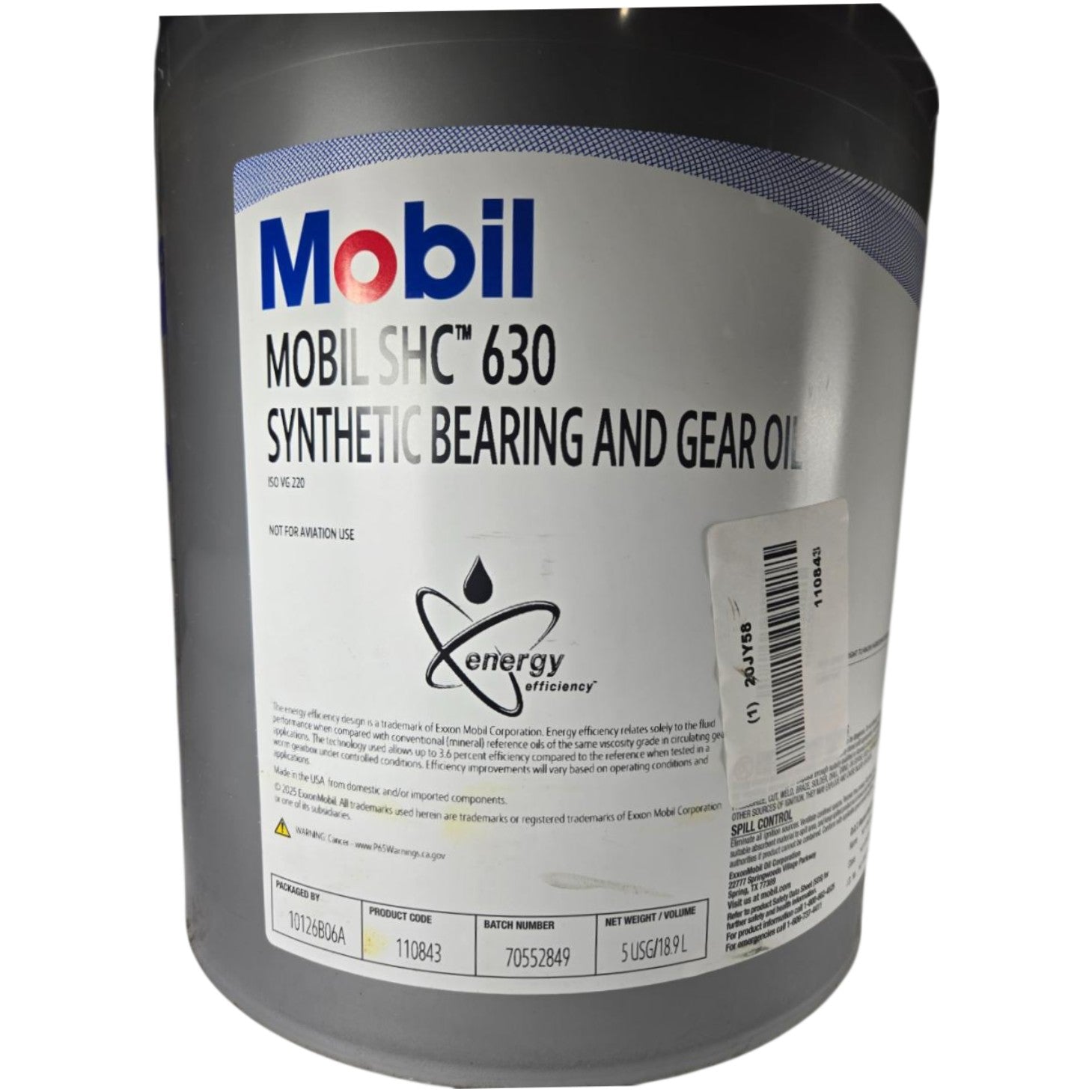

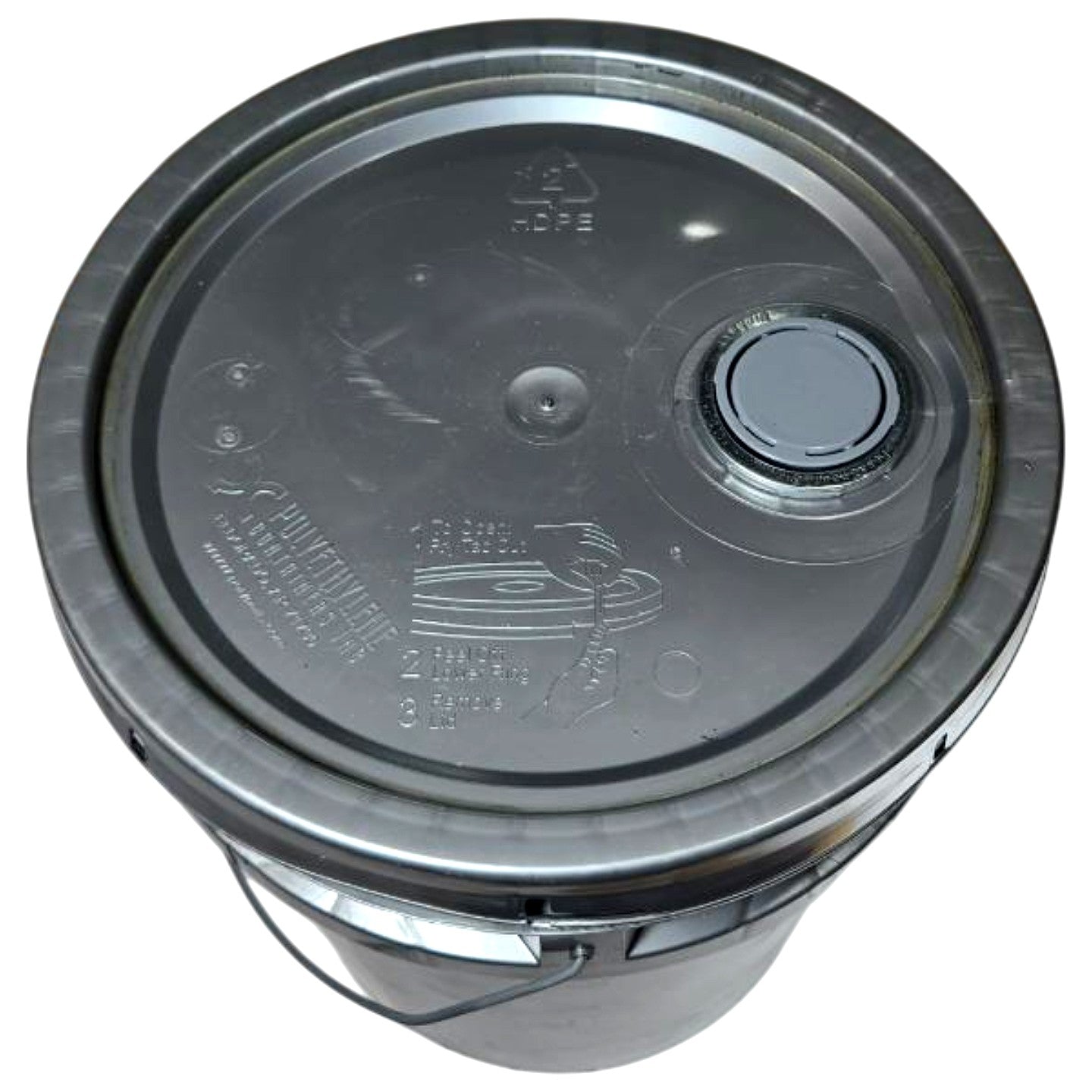

Mobil 110843 SHC 630 ISO VG 220 5 gal Pail Synthetic Bearing & Gear Oil
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mobil SHC 630 (product code 110843) is a new, full-synthetic polyalphaolefin (PAO)-based bearing and gear oil formulated to ISO VG 220 viscosity grade, packaged in a 5 USG (18.9 L) HDPE pail. The SHC 630 delivers up to 3.6% energy efficiency improvement over conventional mineral reference oils of the same viscosity grade in circulating gear and gearbox applications, per ExxonMobil's published data. It is engineered for heavily loaded plain and rolling-element bearings, industrial enclosed gearboxes, circulating systems, and worm gear drives operating across a wide temperature range, providing excellent oxidation resistance, thermal stability, and long oil-change intervals. The product carries an "Energy Efficiency" designation from ExxonMobil and is explicitly labeled "Not for Aviation Use." Batch number 70552849, packaged by 10126B06A, confirms this is a current, fresh production fill.
Product Specifications
| Brand | Mobil (ExxonMobil) |
| Product Name | Mobil SHC 630 |
| Product Code / MPN | 110843 |
| Base Oil Type | Synthetic PAO (Polyalphaolefin) |
| ISO Viscosity Grade | ISO VG 220 |
| AGMA Viscosity Grade | AGMA 5 EP |
| Kinematic Viscosity @ 40°C | 220 cSt |
| Kinematic Viscosity @ 100°C | 28.5 cSt |
| Viscosity Index | 152 |
| Pour Point | -39°C (-38°F) |
| Flash Point (COC) | 260°C (500°F) |
| Container Type | Pail (HDPE) |
| Net Volume | 5 USG / 18.9 L |
| Color | Orange |
| Energy Efficiency Rating | Up to 3.6% vs. mineral ref. oil (same ISO VG) |
| Aviation Use | Not for Aviation Use |
| Batch Number | 70552849 |
| Country of Origin | USA (domestic and/or imported components) |
| Condition | New |
