Morse 96314 2105G 5/16-18 NC H5 TiN HSS Thread Forming Tap Plug (2 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

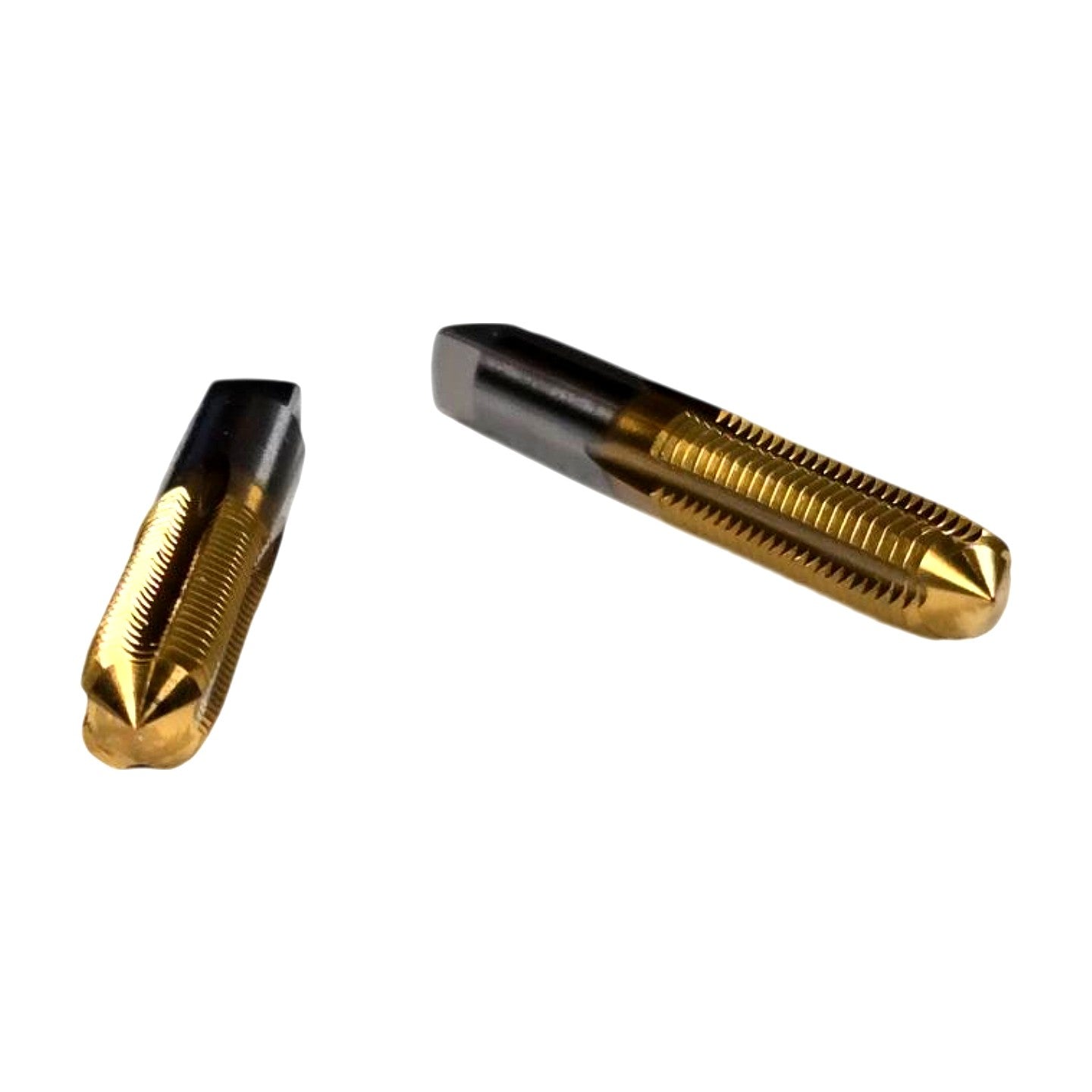

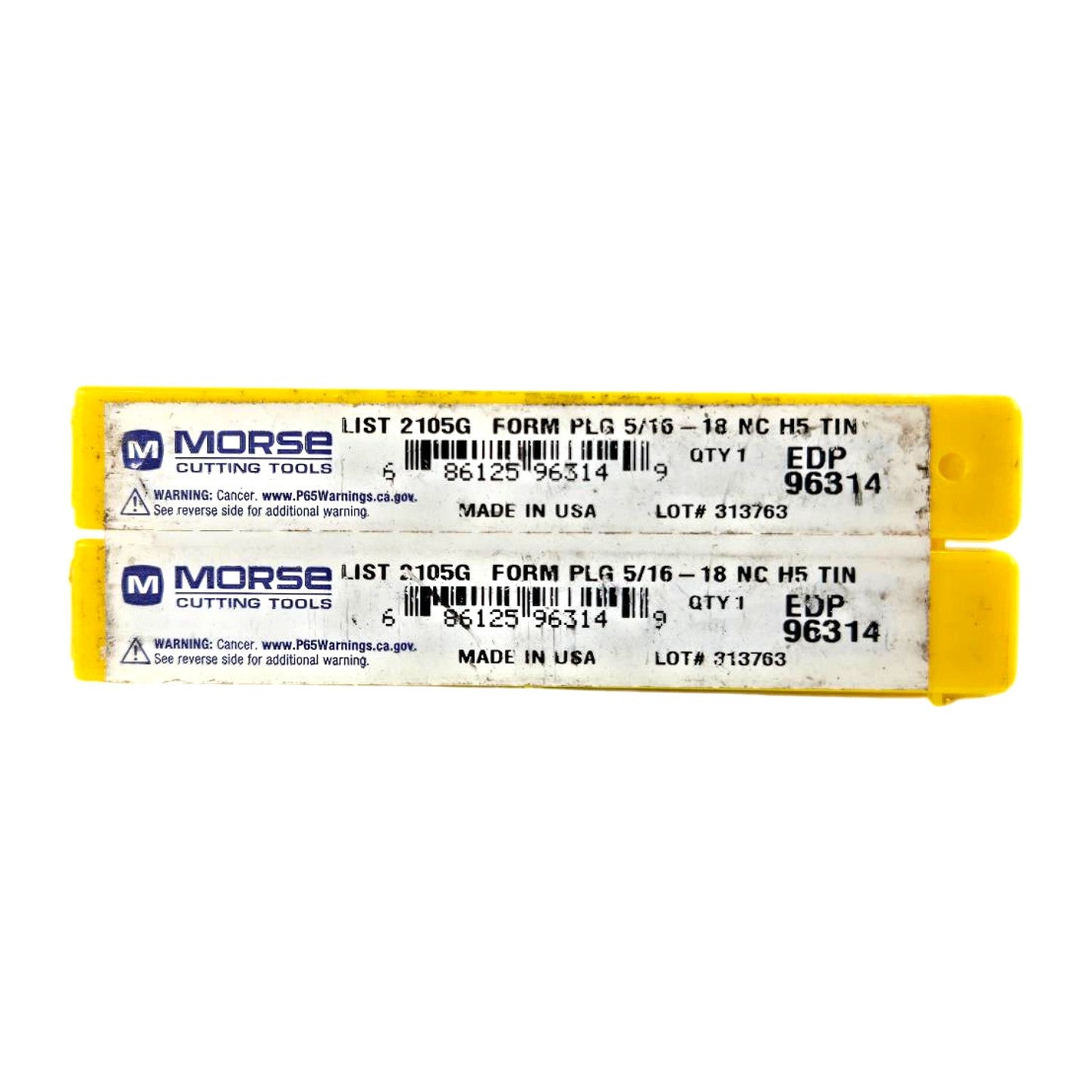

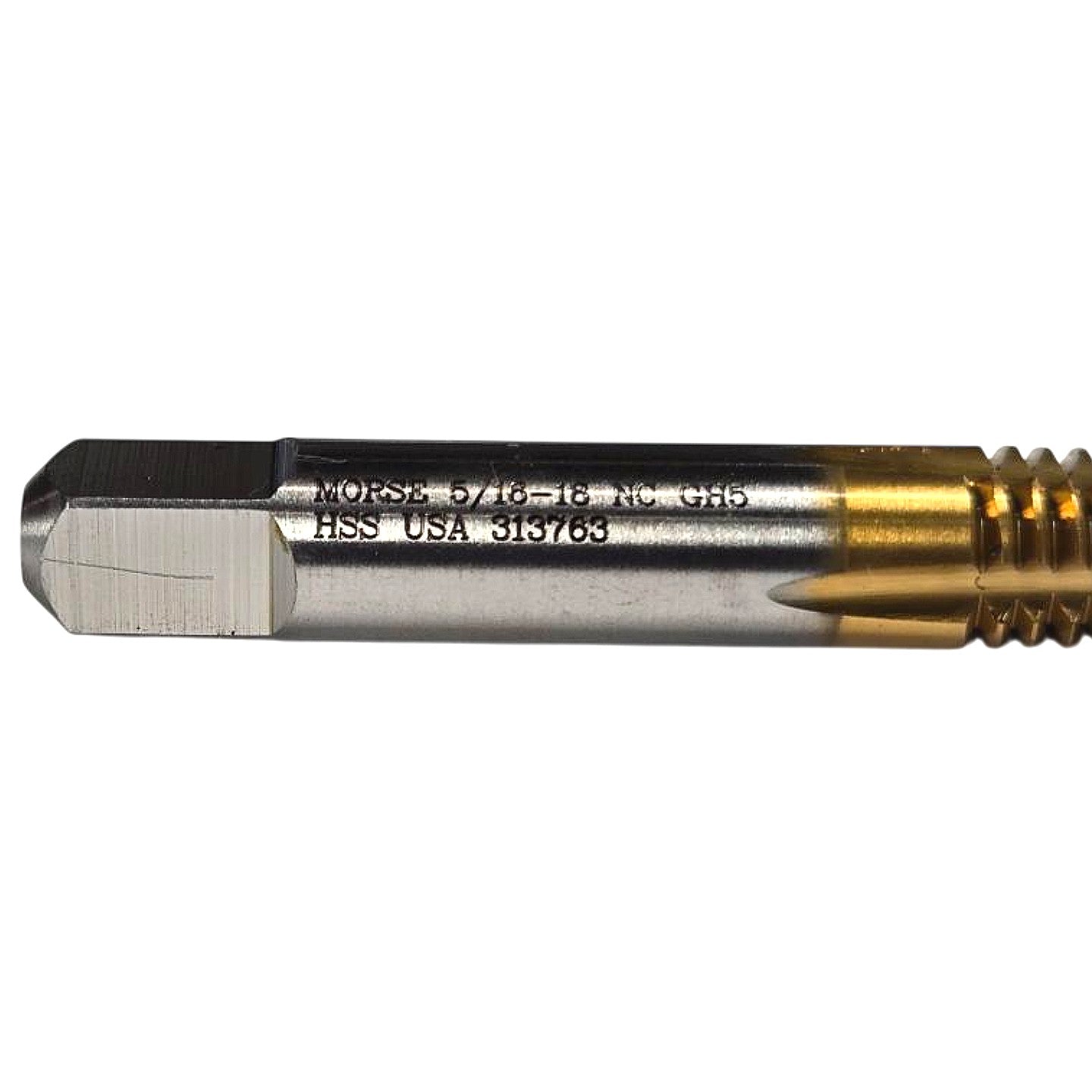

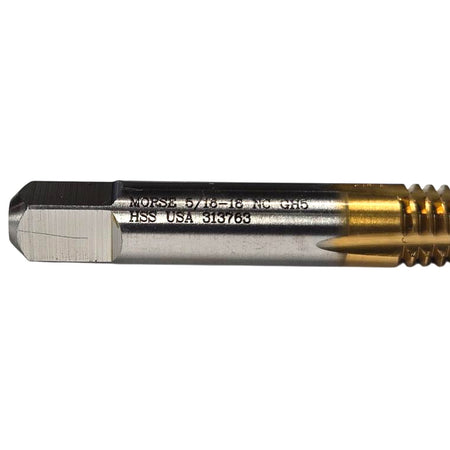

This listing is for a lot of two (2) new Morse Cutting Tools EDP 96314 thread-forming (fluteless) taps, List/Series 2105G, sized 5/16-18 UNC with a plug chamfer and GH5 (H5) pitch diameter tolerance limit. The taps are manufactured from M2 high-speed steel (HSS) and are finished with a TiN (Titanium Nitride) PVD coating, which is clearly visible as the gold finish on the threaded portion of the tool; the dark uncoated square shank is standard for this style. Thread-forming taps displace rather than cut material, producing stronger threads with no chips, making them suited for through- and blind-hole applications in ductile materials including low-carbon steel, aluminum, and copper alloys. Each tap measures 2-23/32 in. overall length with a 1-1/8 in. thread length, features a square drive shank, and is made in the USA as confirmed by the package label and tool shank engraving.
Product Specifications
| Brand | Morse Cutting Tools |
| MPN / EDP | 96314 |
| Series / List # | 2105G |
| Thread Size | 5/16 in-18 |
| Thread Standard | UNC (National Coarse) |
| Tap Type | Thread Forming (Fluteless) |
| Chamfer Style | Plug |
| Pitch Diameter Limit | GH5 (H5) |
| Material | M2 High-Speed Steel (HSS) |
| Coating | TiN (Titanium Nitride) |
| Overall Length (OAL) | 2-23/32 in (2.719 in) |
| Thread Length (LU) | 1-1/8 in (1.125 in) |
| Shank Type | Square Drive |
| Country of Manufacture | USA |
| Quantity in Lot | 2 pcs |
| Condition | New |
