Nachi AQRVD0H8D1500-D AquaREVO 15mm 8xD Carbide Coolant-Through Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

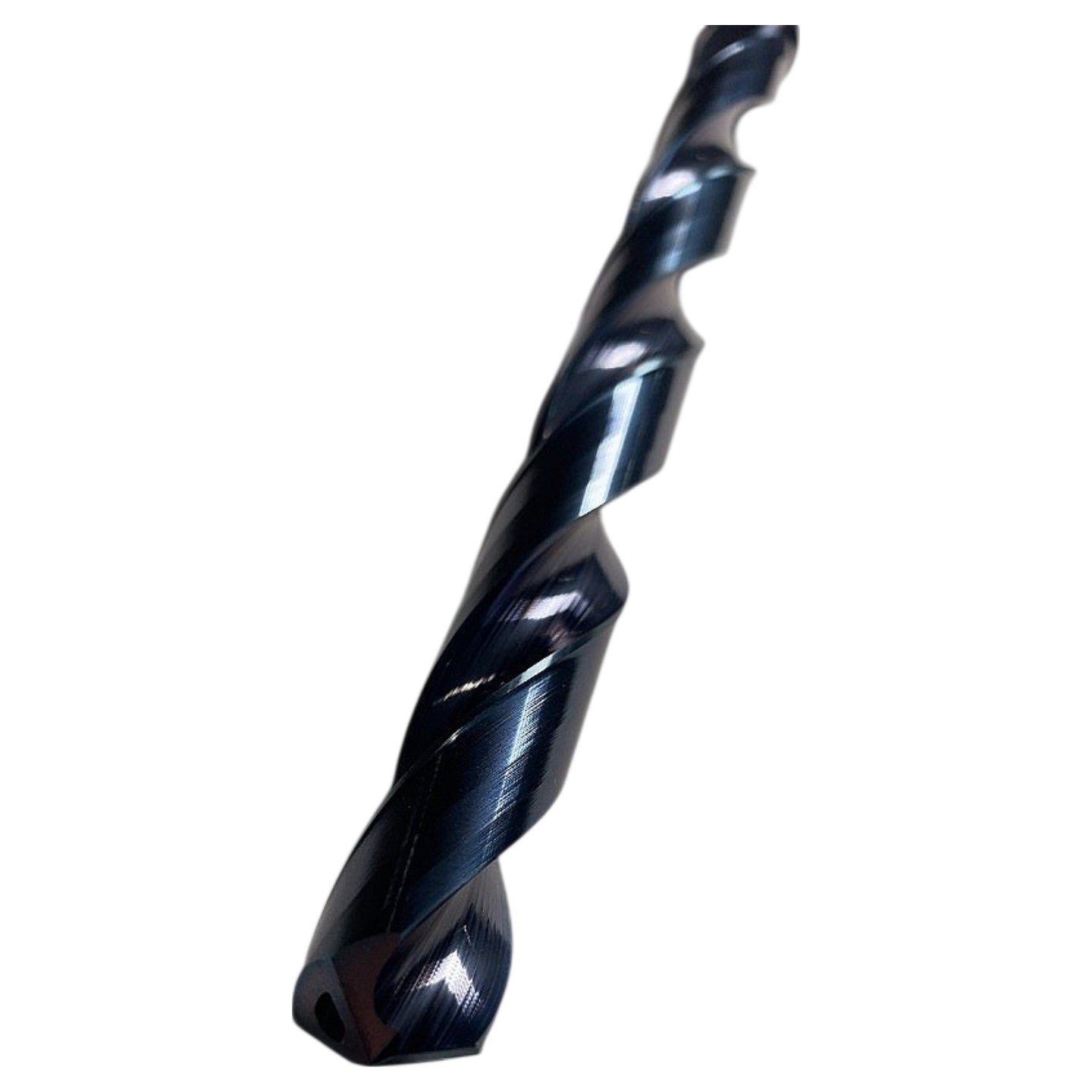

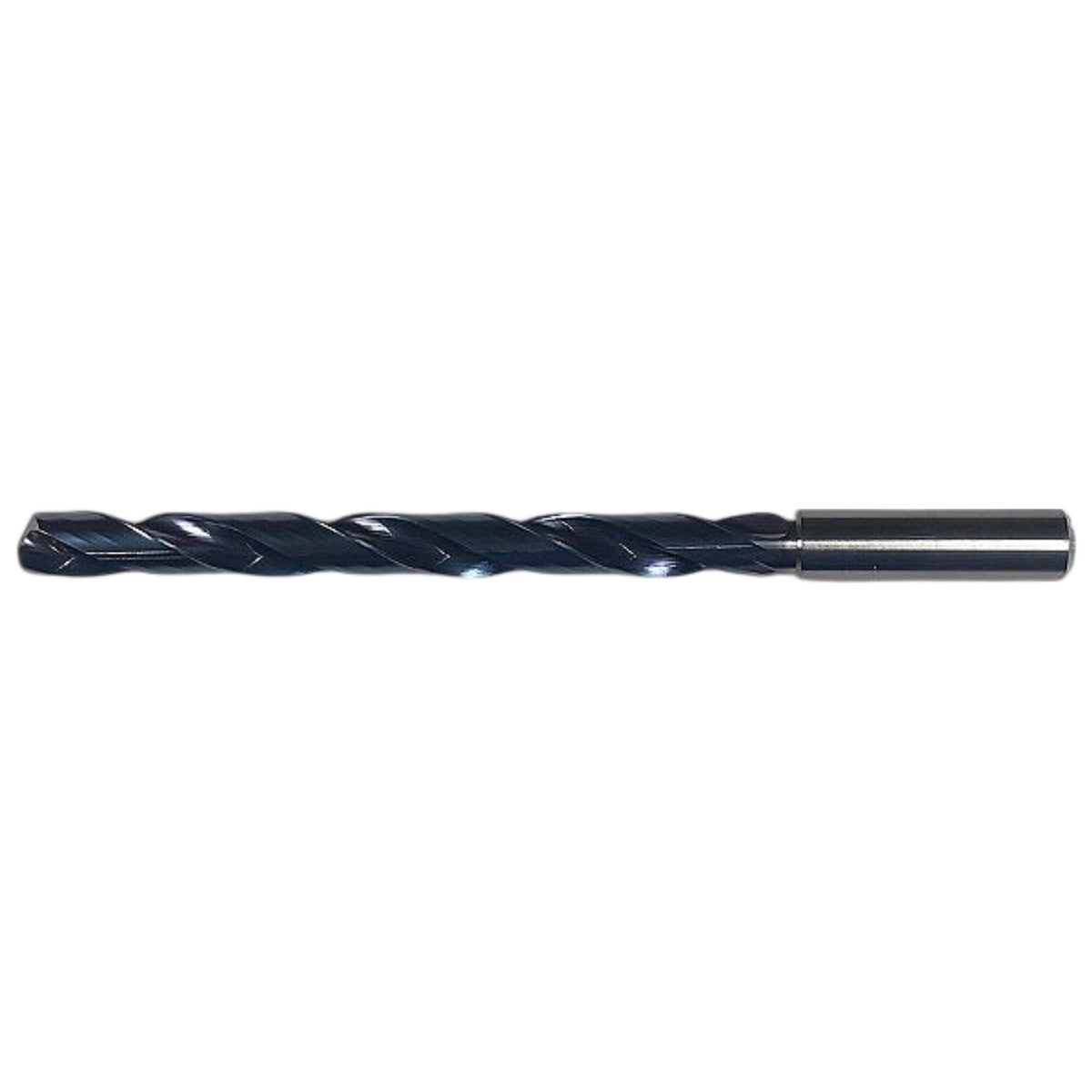

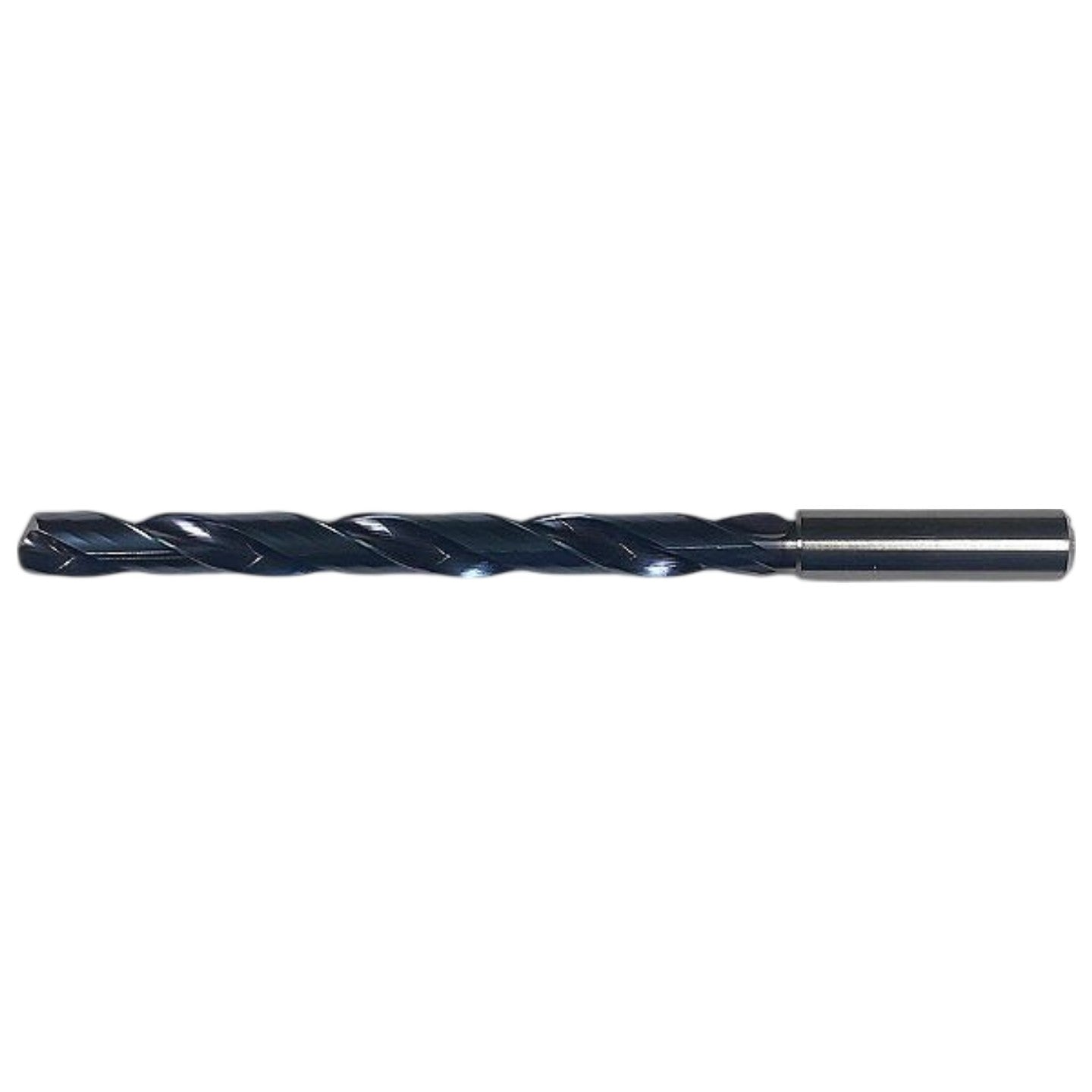

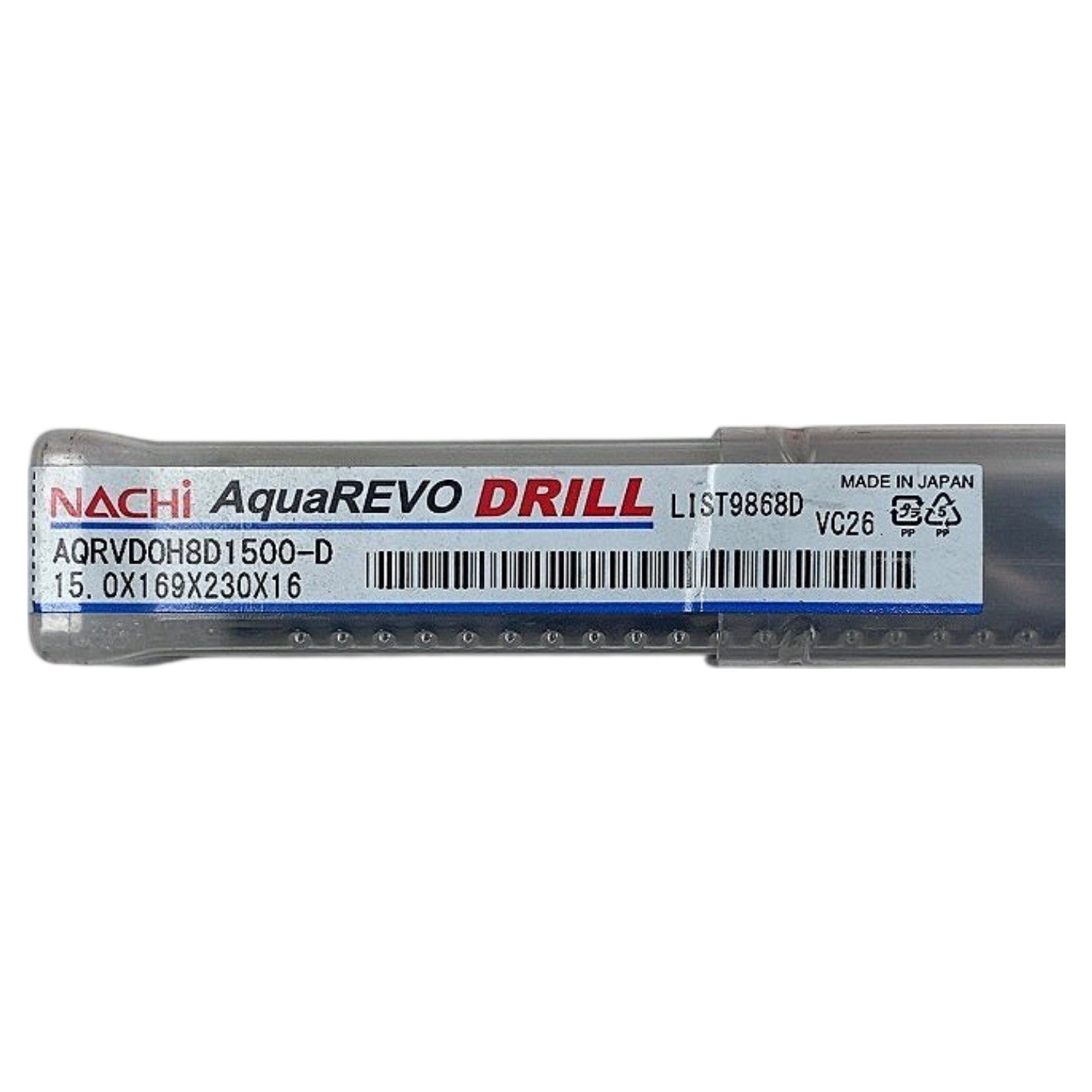

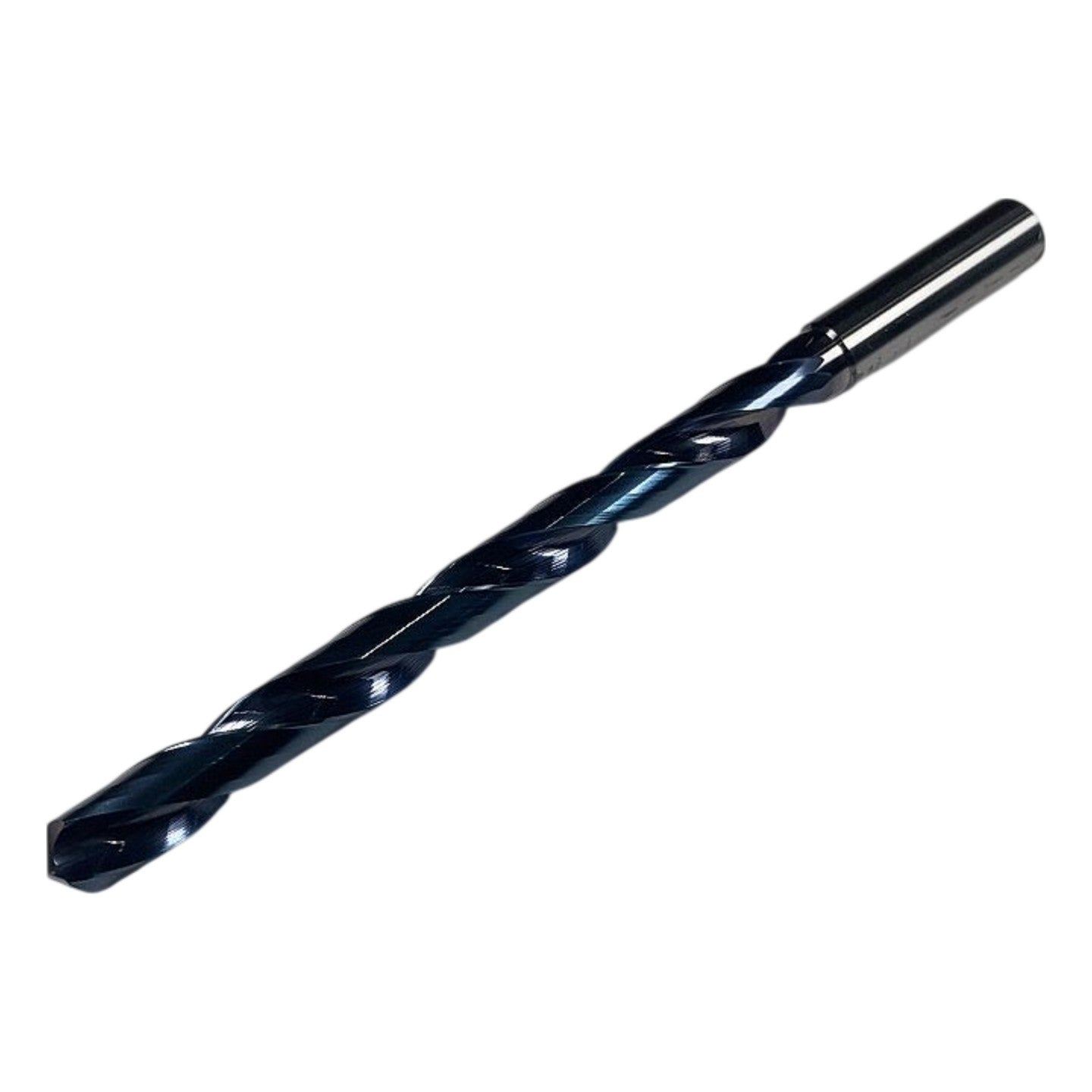

This is a new Nachi AquaREVO LIST9868D series solid carbide coolant-through drill, part number AQRVD0H8D1500-D, manufactured in Japan. The drill is 15.0mm in cutting diameter with a 169mm flute length, 230mm overall length, and a 16mm straight cylindrical shank, as encoded directly in the label dimensions 15.0X169X230X16. The 'H8D' designation indicates an 8×D depth-of-cut capability (approximately 120mm depth at 8× the 15mm diameter), and the drill features Nachi's proprietary AquaREVO geometry optimized for deep-hole drilling with through-coolant delivery, targeting steel, cast iron, and stainless steel applications in CNC machining centers with coolant-through toolholding systems. The dark blue-black surface finish visible in the photos is consistent with Nachi's AquaREVO coating (a multi-layer PVD coating), which provides heat and wear resistance for high-speed, high-feed deep-hole operations. The 16mm straight shank is compatible with ER32 or ER40 collet chucks and hydraulic or shrink-fit toolholders bored to 16mm.
Product Specifications
| Brand | Nachi |
| Part Number (MPN) | AQRVD0H8D1500-D |
| Series | AquaREVO |
| List Number | LIST9868D |
| Cutting Diameter | 15.0 mm |
| Flute Length | 169 mm |
| Overall Length (OAL) | 230 mm |
| Shank Diameter | 16 mm |
| Shank Type | Straight cylindrical |
| Depth of Cut Capability | 8×D (~120 mm at 15mm dia) |
| Number of Flutes | 2 |
| Coolant | Through-coolant |
| Tool Material | Solid carbide |
| Coating | AquaREVO PVD multi-layer (blue-black) |
| Country of Origin | Japan |
| Condition | New |
