Nachi AQRVD0H8D1600 AquaREVO 16mm x 8xD Carbide Coolant-Through Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

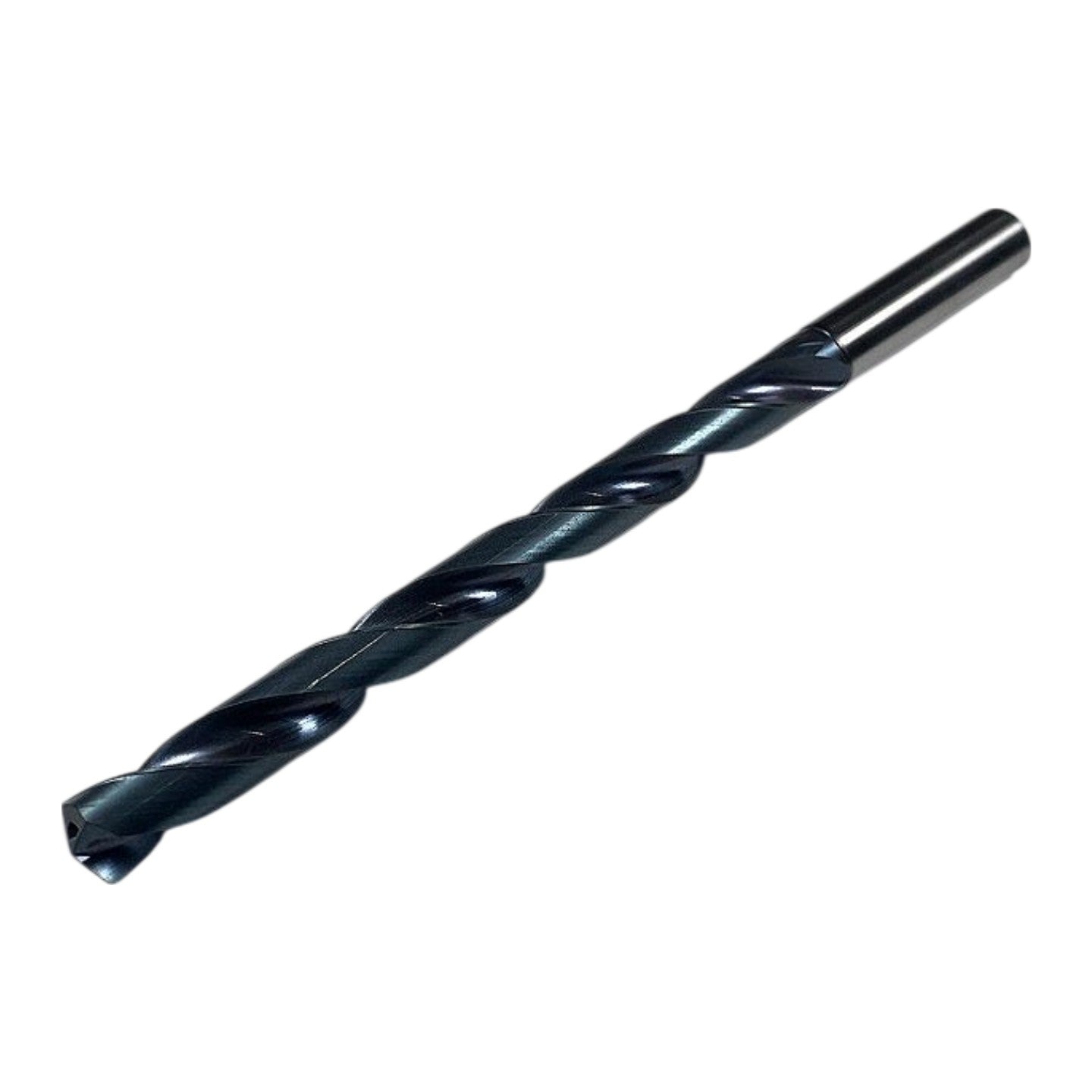

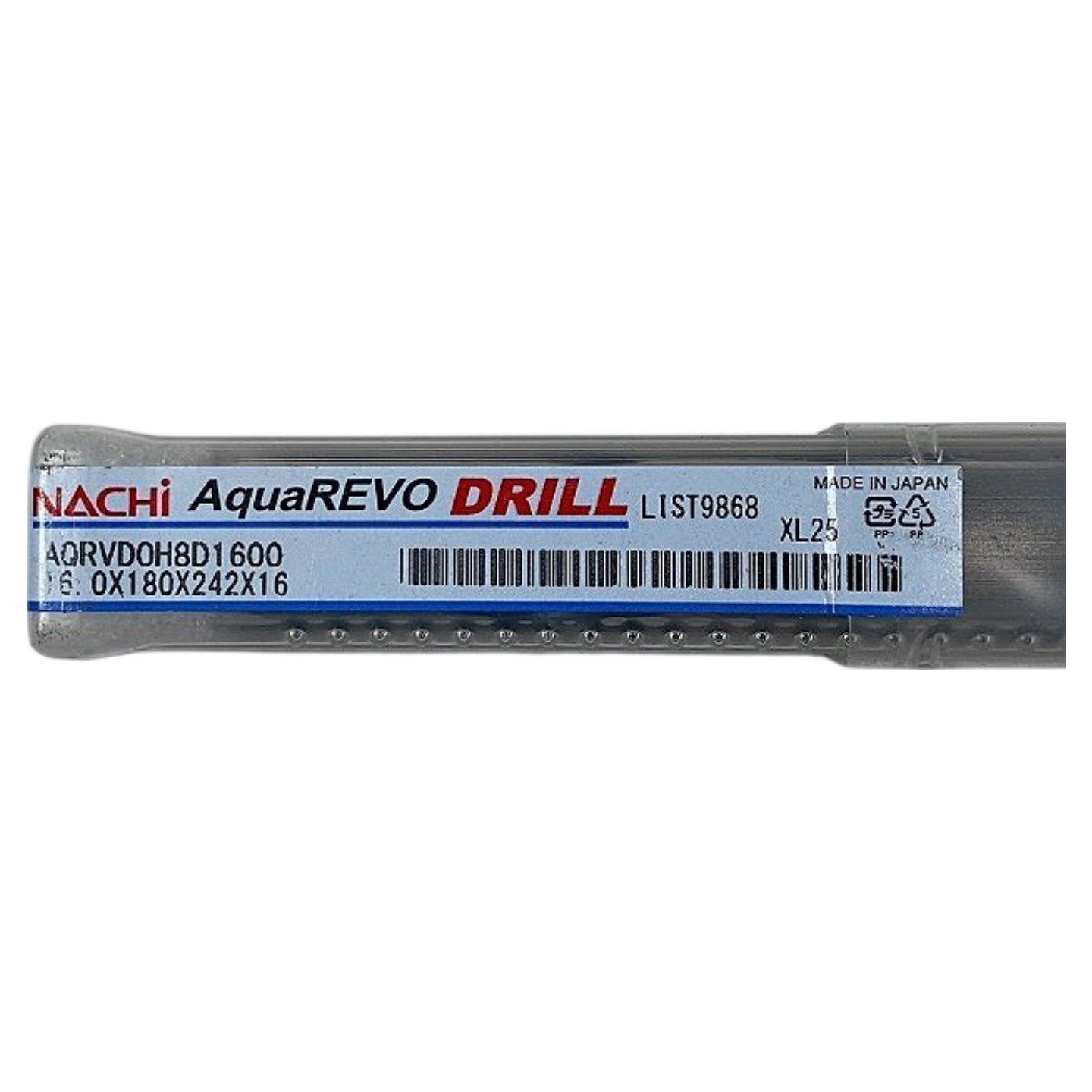

The Nachi AQRVD0H8D1600 is a new, solid carbide AquaREVO through-coolant twist drill from Nachi's LIST9868 series, manufactured in Japan to XL25 tolerance grade. The part number decodes as: AQRVD = AquaREVO drill series, 0H8 = 8xD depth-of-cut (long series), D1600 = 16.0 mm cutting diameter; dimensional specs confirmed on label as 16.0 mm diameter × 180 mm flute length × 242 mm overall length × 16 mm shank diameter. The drill features Nachi's proprietary dark multi-layer coating (visible in the product photo as a blue-black finish), internal coolant-through channels for high-pressure coolant delivery to the cutting edge, and is designed for deep-hole drilling in steel, cast iron, and stainless steel on CNC machining centers using ER or hydraulic chucks sized for a 16 mm straight shank. The 8xD aspect ratio is suited for deep-hole operations where chip evacuation and tool life are critical, leveraging through-coolant to clear chips and reduce heat at depth.
Product Specifications
| Brand | Nachi |
| MPN | AQRVD0H8D1600 |
| Series | AquaREVO |
| List Number | LIST9868 |
| Cutting Diameter | 16.0 mm |
| Flute Length | 180 mm |
| Overall Length (OAL) | 242 mm |
| Shank Diameter | 16 mm |
| Depth of Cut Ratio | 8xD |
| Shank Type | Straight (cylindrical) |
| Tolerance Grade | XL25 |
| Coolant | Through-coolant (internal channels) |
| Coating | Multi-layer dark coating (blue-black) |
| Material | Solid Carbide |
| Country of Origin | Japan |
| Condition | New |
| Number of Flutes | 2 |
| Point Angle | 140° |
