Nachi List 601 1-27/32 HSS MT5 General Purpose Taper Shank Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

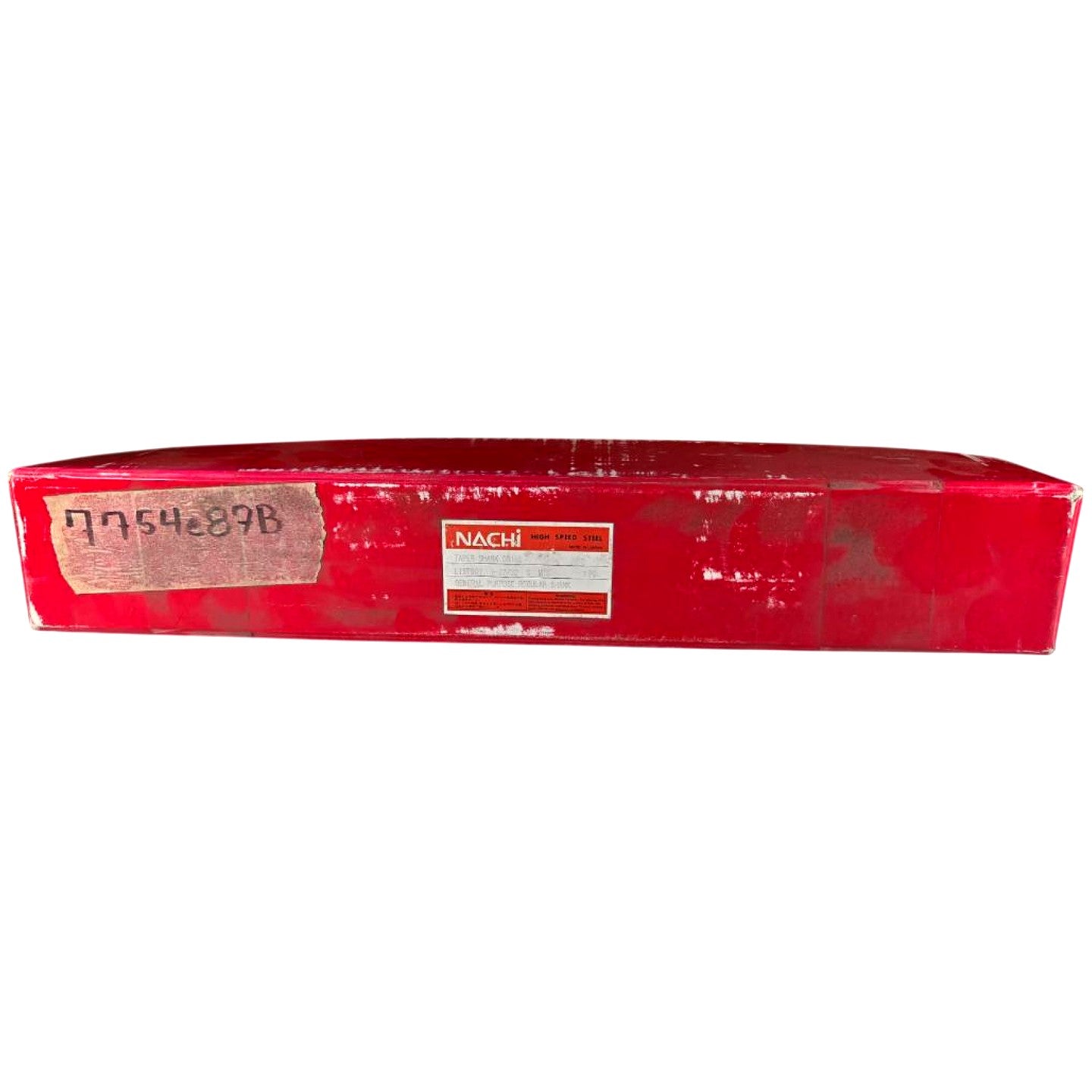

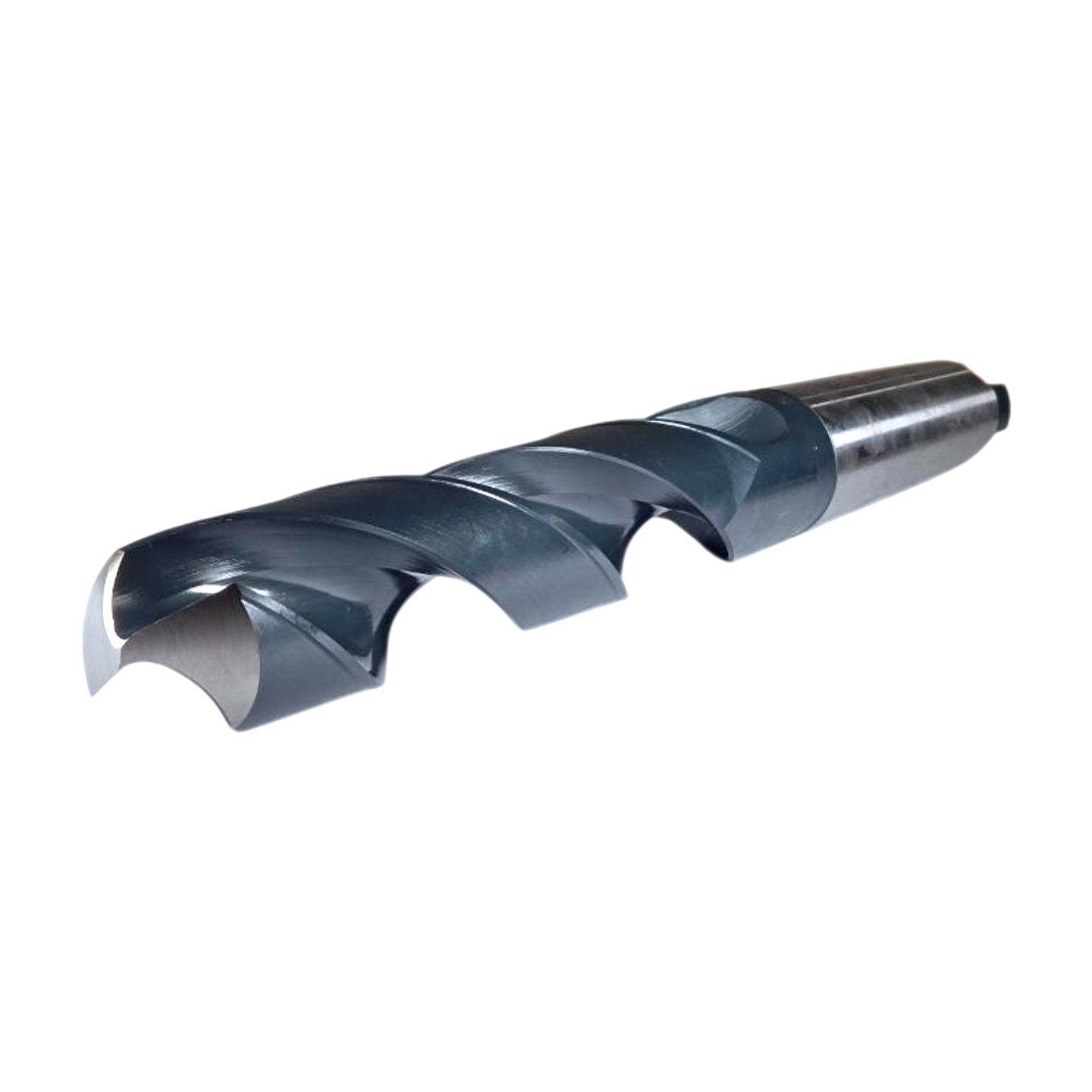

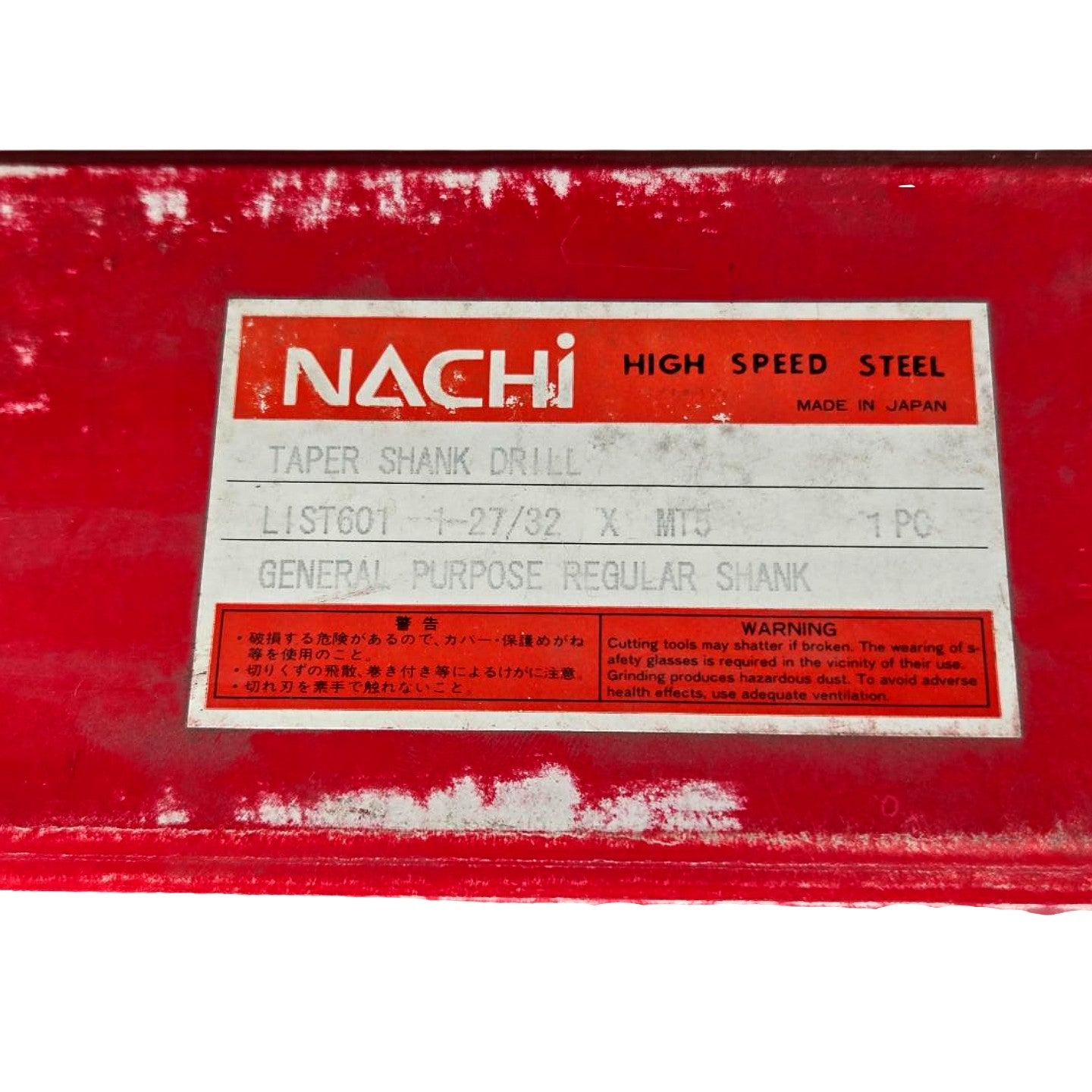

The Nachi List 601 (L601) is a high-speed steel taper shank twist drill, 1-27/32" diameter with a Morse Taper 5 (MT5) shank, manufactured in Japan to general-purpose regular-shank dimensions per Nachi's List 601 standard. Constructed from M2-grade HSS, it carries a black oxide surface treatment that provides mild corrosion resistance and reduces friction during chip evacuation on entry. The 118° conventional split-point geometry suits general-purpose drilling in steel, cast iron, aluminum, and similar workpiece materials on drill presses, radial arm drills, and machine tools equipped with a MT5 spindle or sleeve. Right-hand cut, right-hand helix; this drill ships new in the original Nachi red box, unsharpened from the factory.
Product Specifications
| Brand | Nachi |
| Series / List # | List 601 (L601) |
| Drill Diameter | 1-27/32 in (1.8438 in / 46.83 mm) |
| Shank Type | Morse Taper 5 (MT5) |
| Point Angle | 118° |
| Material | High Speed Steel (HSS) |
| Finish / Coating | Black Oxide |
| Flute Type | Right-hand helix, 2-flute spiral |
| Cut Direction | Right Hand (RH) |
| Shank Standard | General Purpose Regular Shank |
| Country of Origin | Japan |
| Quantity | 1 pc |
| Condition | New |
