Nachi LIST9617 21/64 x 196 x 246mm 20D Aqua Drill EX Long Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

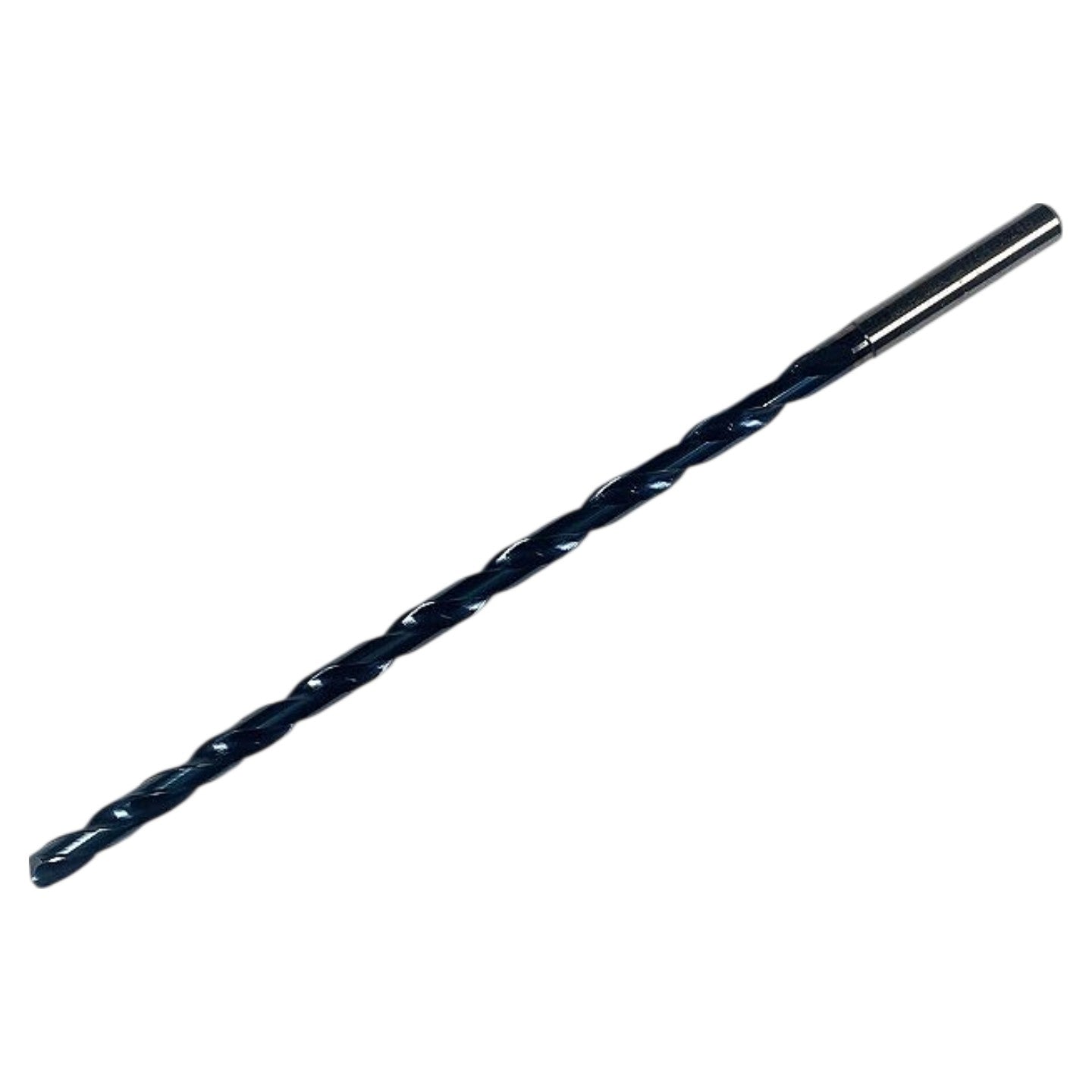

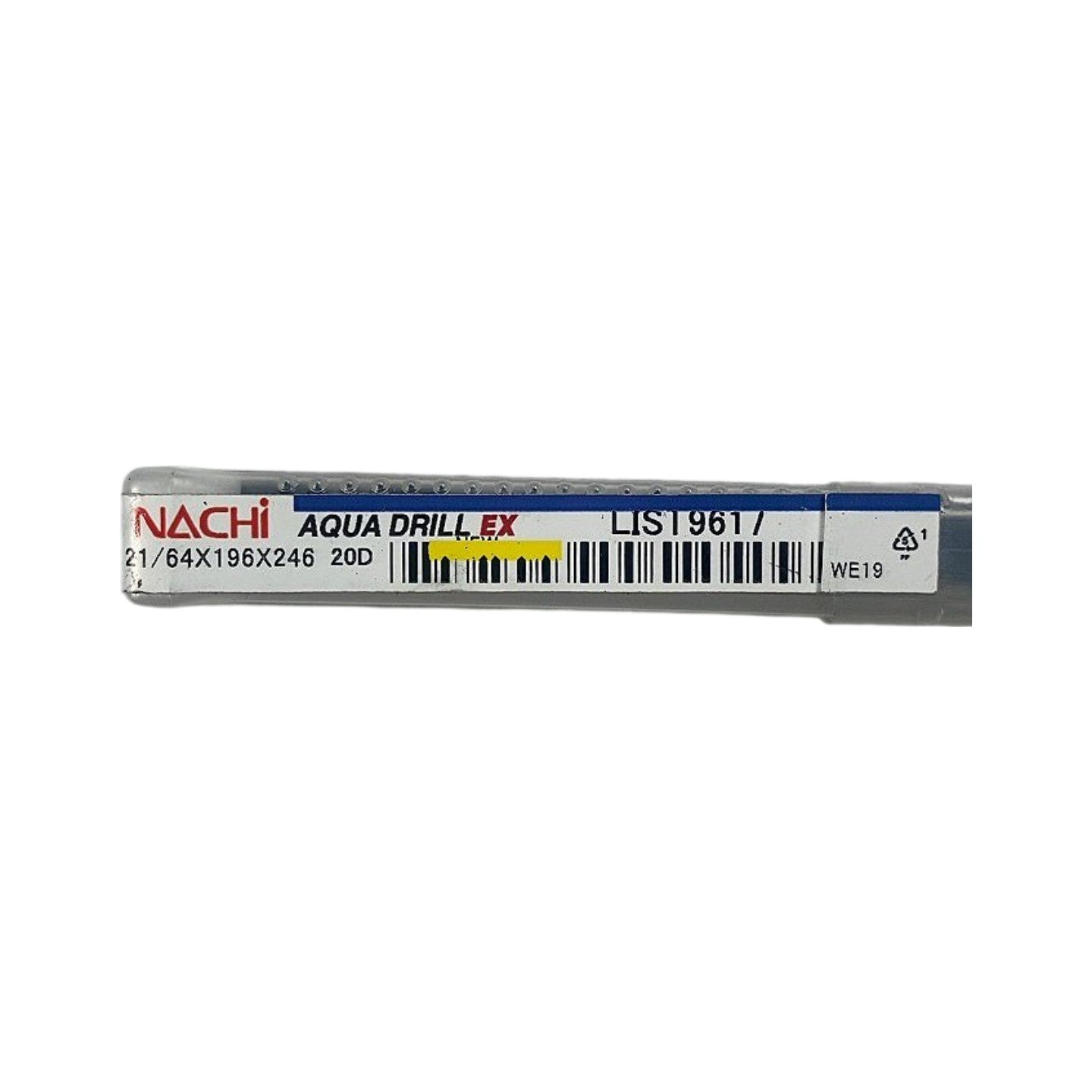

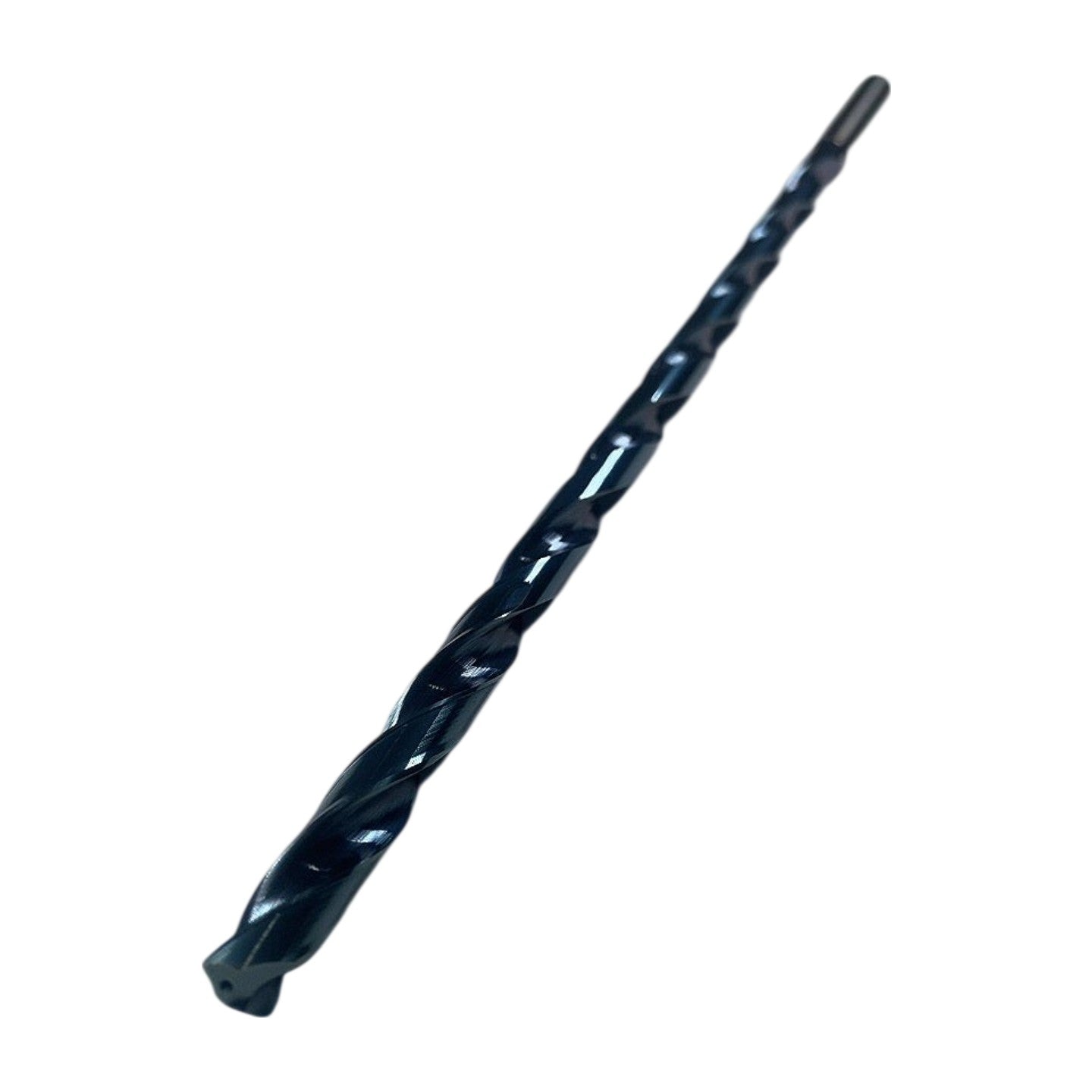

The Nachi Aqua Drill EX (LIST9617) is a solid carbide, coolant-through, extra-long series twist drill designed for deep-hole drilling up to 20× diameter in a single pass. This specific drill measures 21/64 in (0.328 in) in diameter with a 196 mm (7.72 in) flute length and 246 mm (9.69 in) overall length, as confirmed by the label designation "21/64X196X246 20D." The Aqua Drill EX series features Nachi's proprietary AquaReivo coating (a multi-layer PVD coating optimized for high-speed drilling with coolant), a 140° split-point geometry for self-centering and reduced thrust force, and through-coolant channels that deliver cutting fluid directly to the cutting edge — enabling aggressive feed rates and extended tool life in steel, alloy steel, and cast iron. The drill has a straight shank for use in standard collet chucks, hydraulic chucks, or shrink-fit toolholders and is offered here in new, unused condition.
Product Specifications
| Brand | Nachi |
| Series | Aqua Drill EX |
| List Number | LIST9617 |
| Drill Diameter | 21/64 in (0.3281 in / 8.334 mm) |
| Flute Length | 196 mm (7.72 in) |
| Overall Length | 246 mm (9.69 in) |
| Depth of Cut Ratio | 20xD |
| Shank Type | Straight (cylindrical) |
| Construction | Solid carbide |
| Coating | AquaReivo PVD multi-layer coating |
| Point Angle | 140° |
| Point Type | Split point |
| Coolant | Through-coolant (internal channels) |
| Condition | New |
