Neptronic SF SKE4-N02M-480-1 2.0kW 480V 1-Phase Electric Steam Humidifier
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

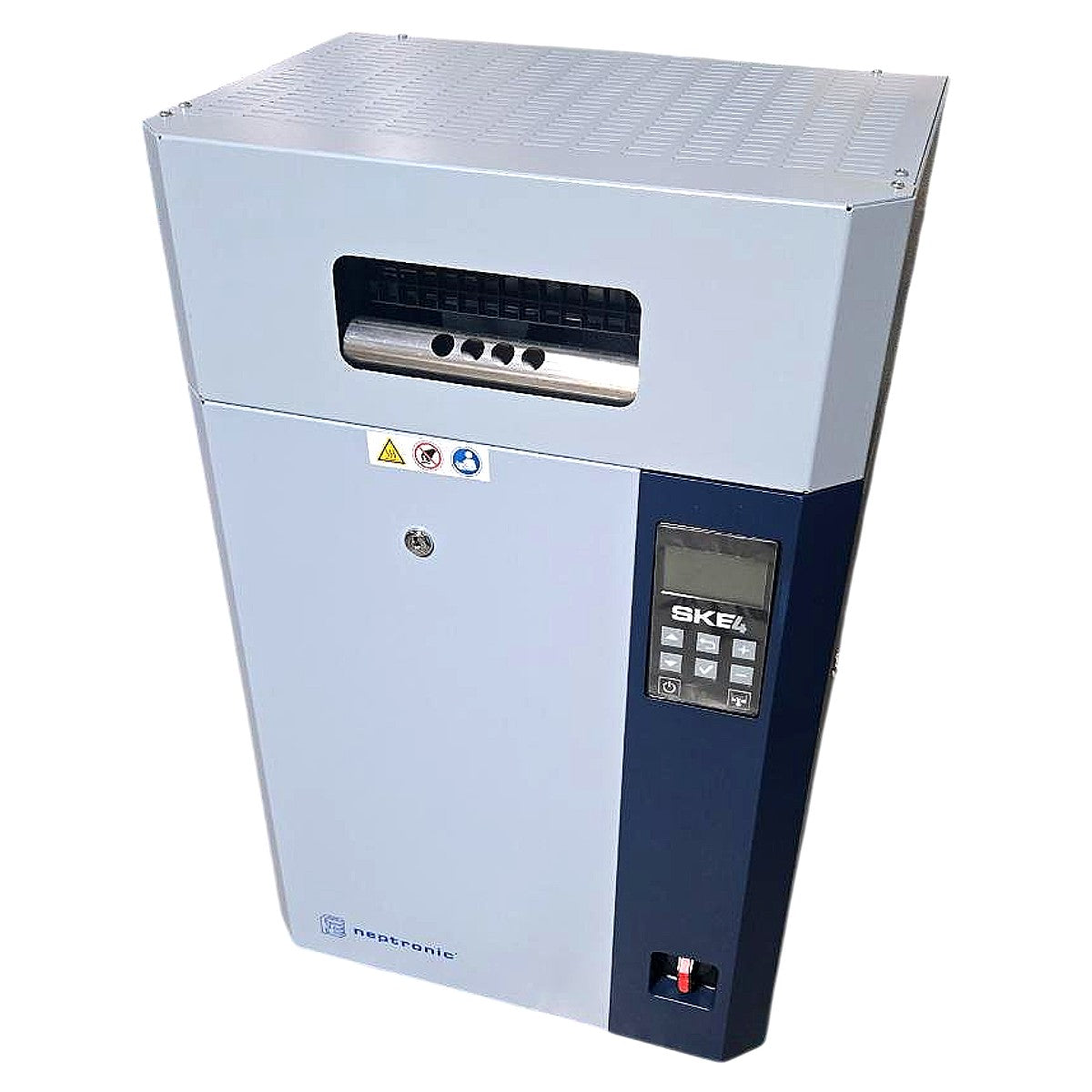

The Neptronic SF SKE4-N02M-480-1 is a new, wall-mounted resistive electric steam humidifier from the SKE4 series, designed for commercial and industrial HVAC humidification applications. The unit operates on 480V single-phase 60Hz power at 4.5A and delivers 2.0 kW of heating capacity, generating clean, hygienic steam through immersed stainless-steel electrode cylinders visible at the top steam outlet. This unit is configured with option modules SFSDU4-1-480 (480V single-phase disconnect/contactor unit) and SFSK4BAC-MOD, which adds BACnet/Modbus communication capability for integration with building automation systems (BAS). The front-mounted SKE4 digital controller provides LCD display readout, push-button navigation, and on/off control with setpoint adjustment. Manufactured in Canada and certified to UL Std. 998 and CSA Std. C22.2 No. 104 (ETL Listed by Intertek, file 4011008), this humidifier is suitable for duct-mounted or fan-coil unit steam distribution in commercial buildings, healthcare facilities, data centers, and clean-room environments.
Product Specifications
| Brand | Neptronic |
| Model / MPN | SF SKE4-N02M-480-1 |
| Serial Number | 22E1943643 |
| Option Modules | SFSDU4-1-480 / SFSK4BAC-MOD |
| Voltage | 480V |
| Phase | 1-Phase (1~) |
| Frequency | 60 Hz |
| Current (Amps) | 4.5 A |
| Power | 2.0 kW |
| Control Interface | SKE4 digital LCD controller w/ keypad |
| Communication Protocol | BACnet / Modbus (SFSK4BAC-MOD) |
| Steam Generation Method | Resistive electric, immersed electrode cylinder |
| Mounting Style | Wall-mount |

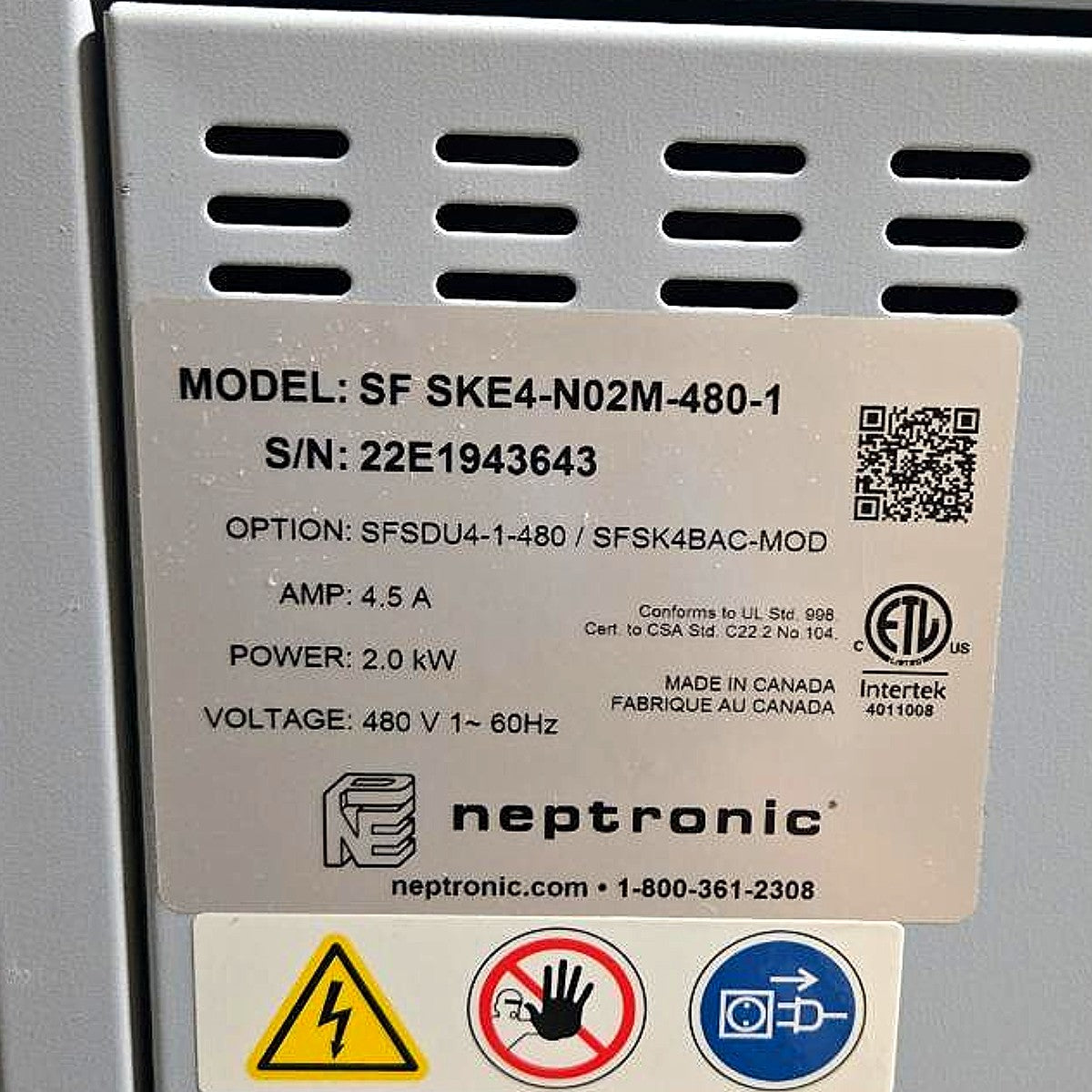

| Certifications | ETL Listed; UL Std. 998; CSA C22.2 No. 104 |
| Country of Origin | Canada |
| Condition | New |
