Newco 12" 300 WCB Fig 13F-CB2 ANSI B16.34 Flanged Gate Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

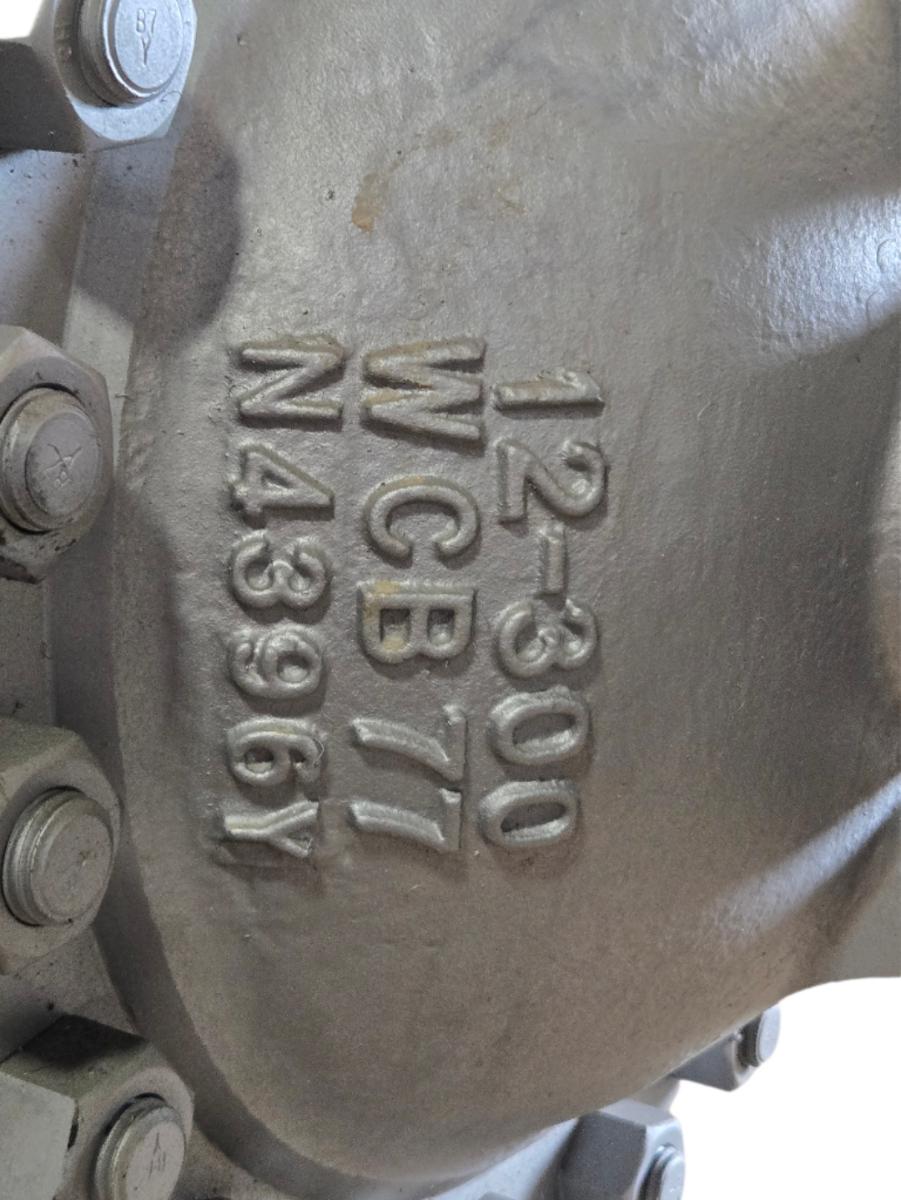

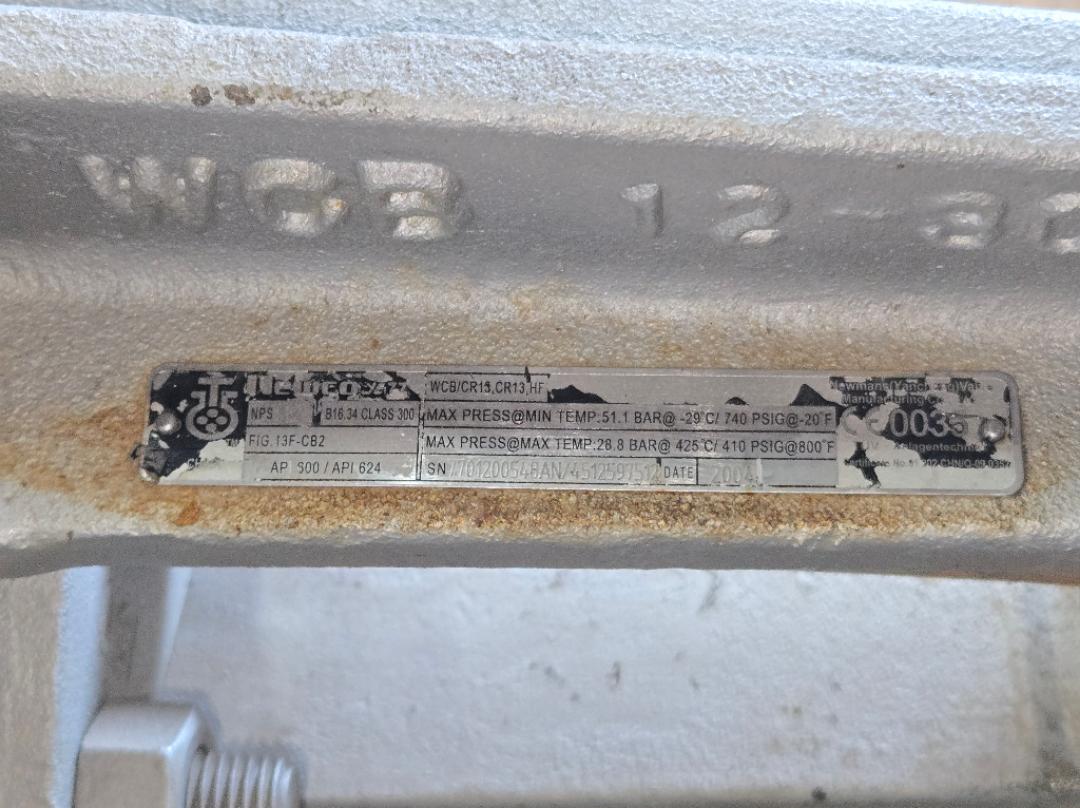

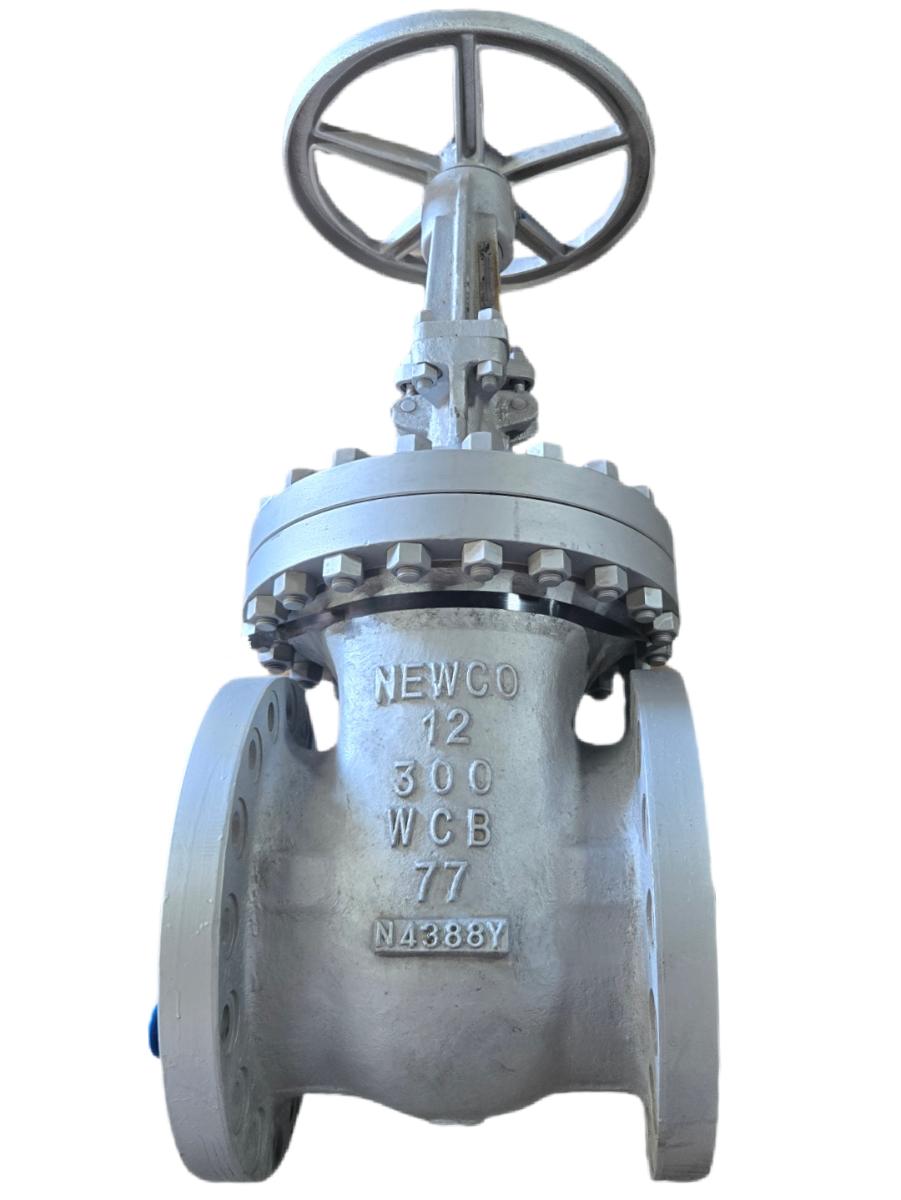

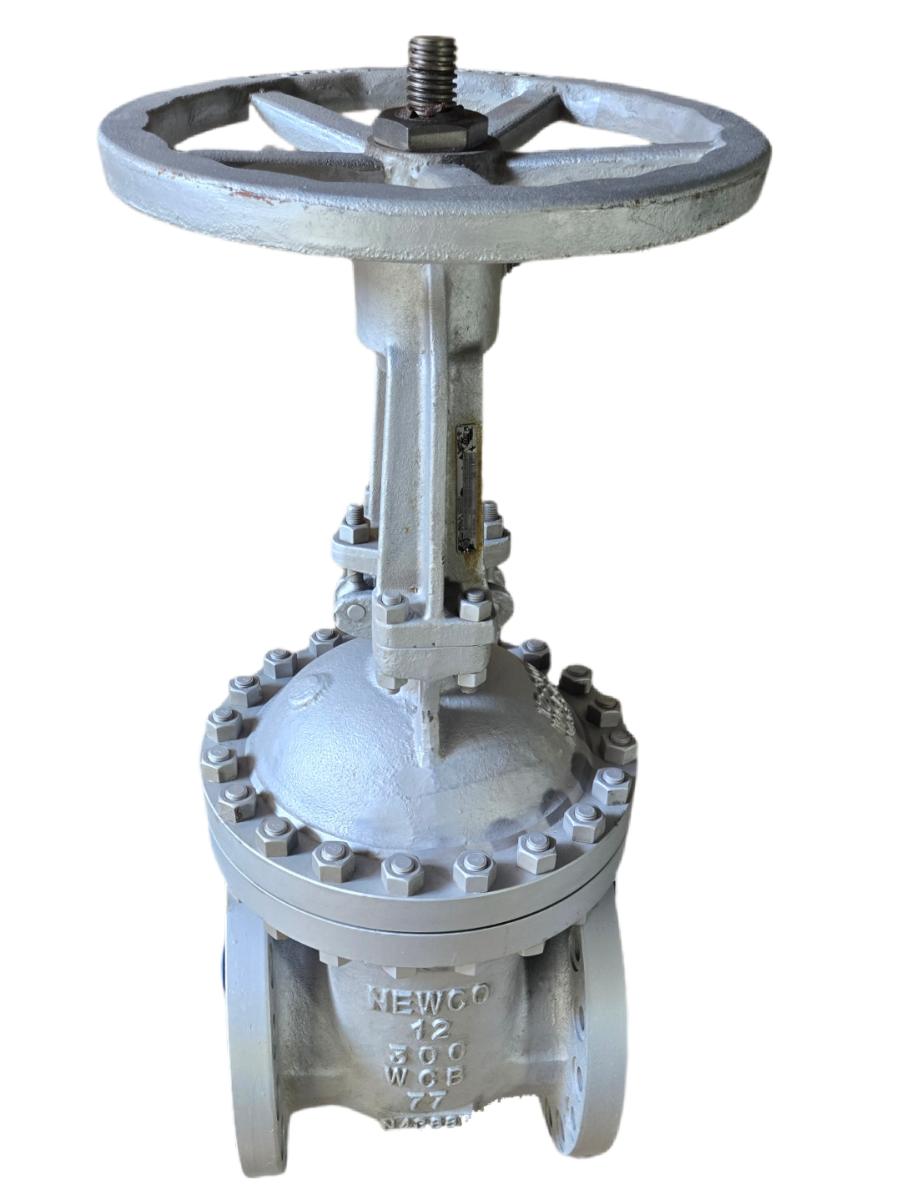

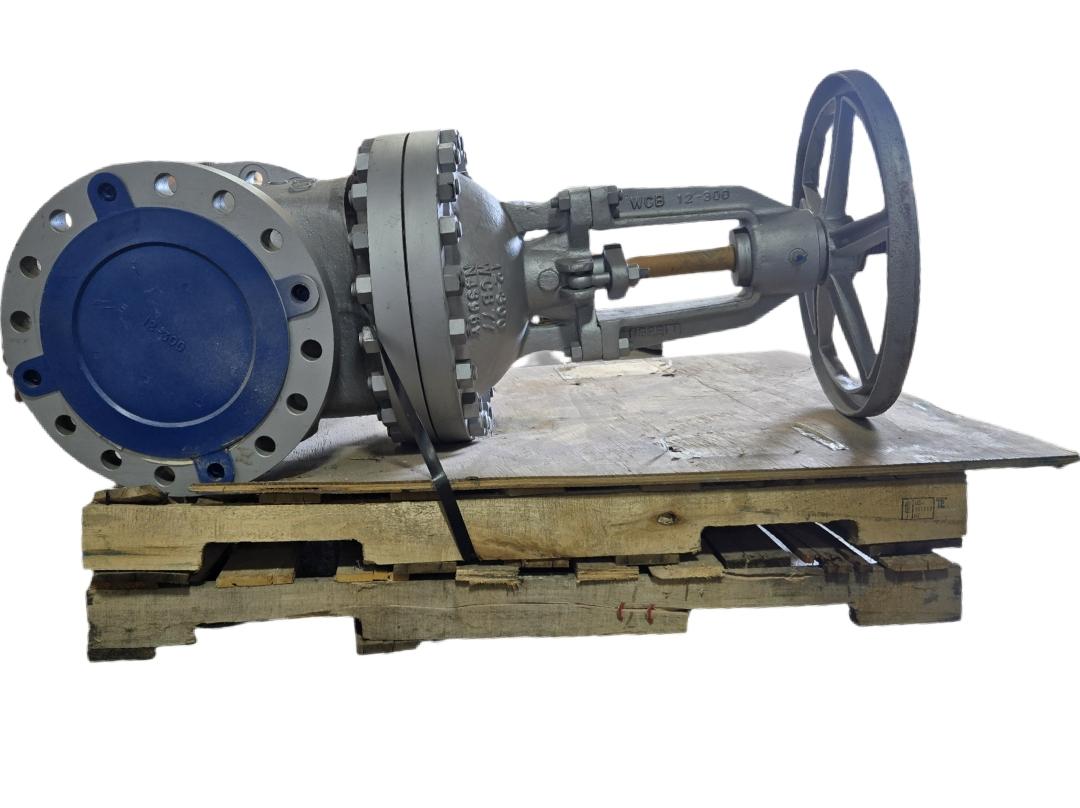

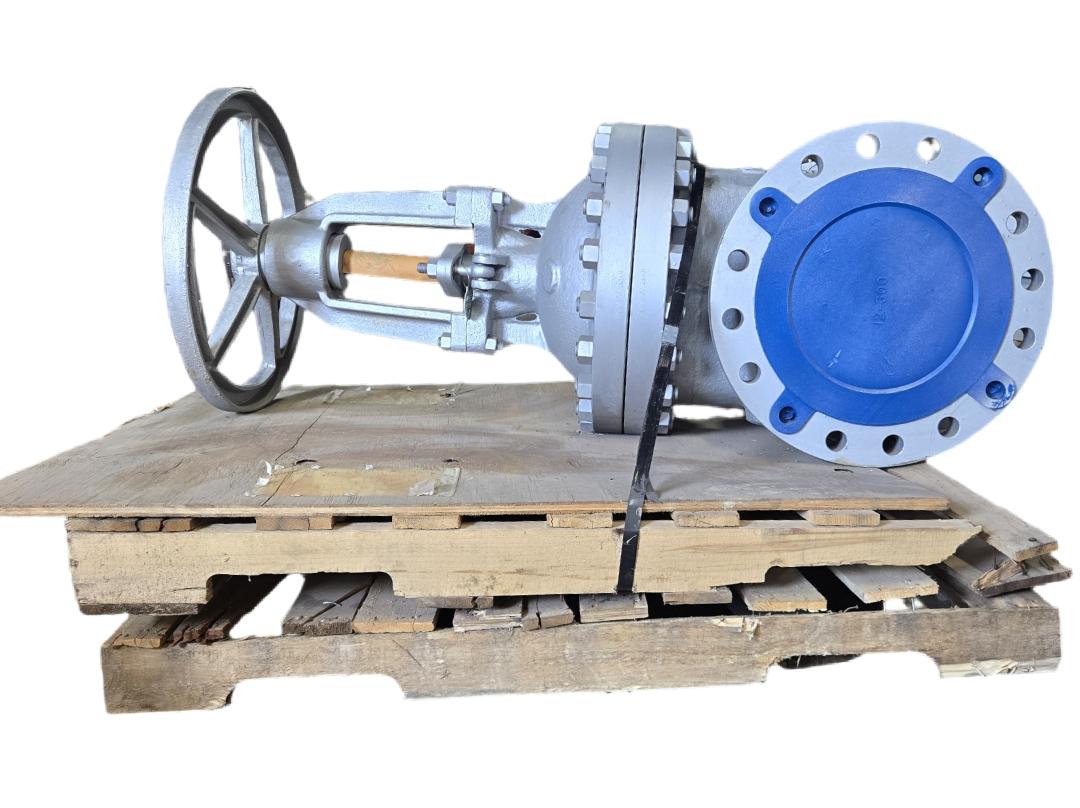

This is a new Newco Figure 13F-CB2 gate valve, 12-inch NPS, ANSI/ASME B16.34 Class 300, with a cast carbon steel (ASTM A216 WCB) body and bolted bonnet construction. Trim designation WCB/CR15/CR13/HF indicates a hard-faced seat (HF) with 13% chromium stem and 15% chromium seat rings, providing corrosion and erosion resistance in demanding service. The valve features raised-face flanged end connections per ANSI B16.34 Class 300, an outside screw and yoke (OS&Y) rising stem design, and a large handwheel operator; it is API 600 / API 624 compliant per the nameplate. Pressure ratings per the nameplate are 740 PSIG at -20°F and 410 PSIG at 800°F (51.1 bar at -29°C and 28.8 bar at 425°C). Manufactured in 2004 per the nameplate date stamp, serial number visible as N4388Y / N4396Y on body casting; flanged ports are protected with blue plastic flange covers as shipped. Suitable for steam, hydrocarbon, water, and general industrial pipeline isolation service where ASME Class 300 carbon steel is specified.
Product Specifications
| Manufacturer | Newco (Newman Tonks / TuboTec) |
| Figure Number | 13F-CB2 |
| Valve Type | Gate Valve, Outside Screw & Yoke (OS&Y), Rising Stem |
| Nominal Pipe Size (NPS) | 12 inch |
| Pressure Class | ANSI/ASME Class 300 |
| Design Standard | ANSI/ASME B16.34 |
| Testing Standard | API 600 / API 624 |
| End Connection | Raised Face (RF) Flanged, ANSI B16.34 Class 300 |
| Body Material | ASTM A216 Grade WCB Cast Carbon Steel |
| Trim Designation | WCB/CR15/CR13/HF (hard-faced seats, 13Cr stem, 15Cr seat rings) |
| Bonnet Type | Bolted Bonnet |
| Operator | Handwheel (manual) |
| Maximum Pressure at Minimum Temperature | 740 PSIG at -20°F (51.1 bar at -29°C) |
| Maximum Pressure at Maximum Temperature | 410 PSIG at 800°F (28.8 bar at 425°C) |
| Manufacture Date | 2004 |
| Body Serial Number | N4388Y / N4396Y |
| Condition | New |
