Niagara N70969 3/4x3/4x1-5/8x3-7/8 TiAlN HSCO Roughing End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

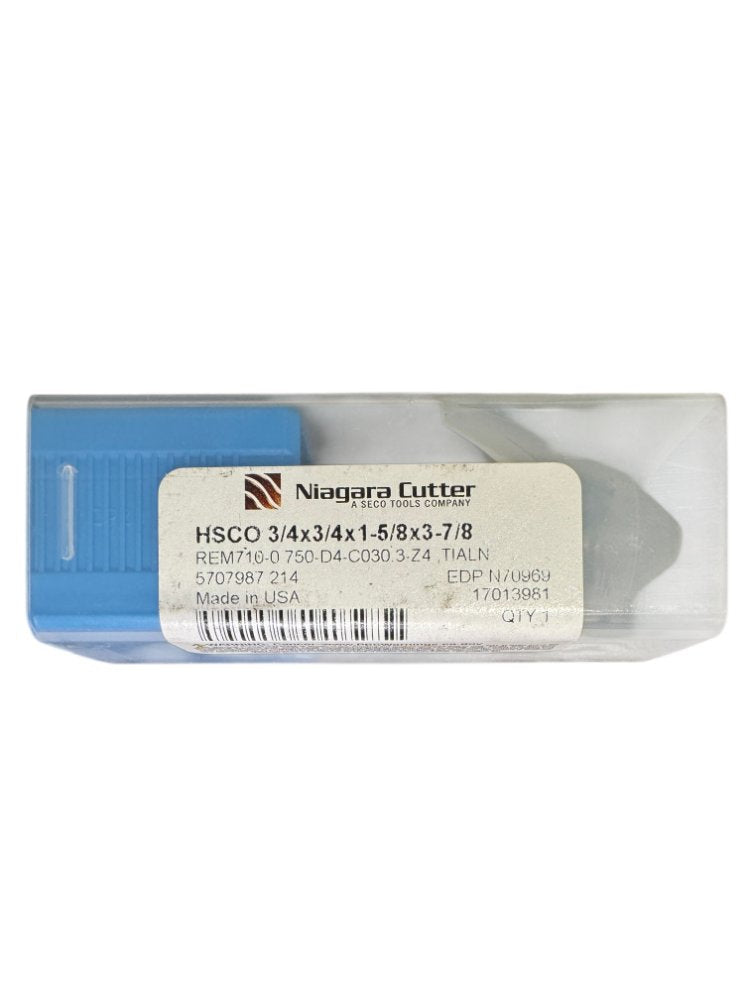

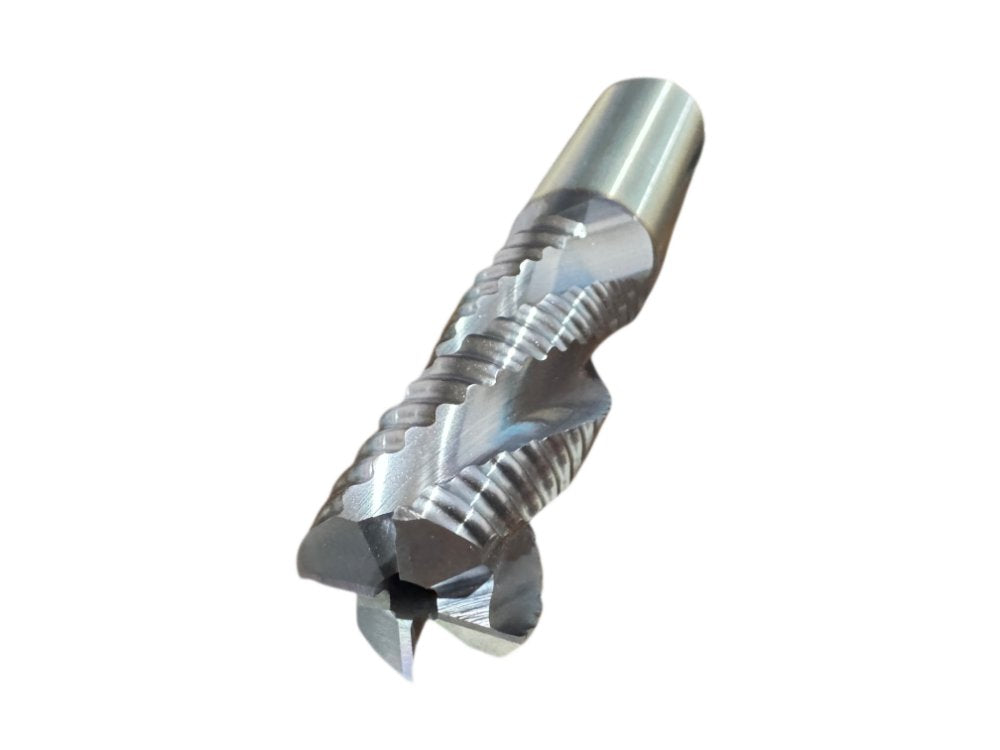

This is a new Niagara Cutter REM710-0.750-D4-C030.3-Z4 (EDP N70969) 4-flute roughing end mill manufactured in the USA from high-speed cobalt (HSCO/M42) steel with a TiAlN (Titanium Aluminum Nitride) coating, providing elevated heat resistance and extended tool life in ferrous and hardened materials. The tool measures 3/4 in cutting diameter with a 3/4 in straight shank, 1-5/8 in length of cut, and 3-7/8 in overall length, fitting standard 3/4 in collets, end mill holders, and Weldon-style toolholders. The REM710 series features a fine-pitch wavy (roughing) tooth geometry on the flute lands that breaks chips into short segments, reducing cutting forces and allowing aggressive material removal rates in steel, stainless steel, and cast iron. TiAlN coating deposits a hard aluminum-rich nitride layer that forms a protective alumina barrier at high cutting temperatures, making this end mill well-suited for dry or minimal-lubrication machining. Quantity is 1 piece, new in original Niagara/Seco Tools packaging.
Product Specifications
| Brand | Niagara Cutter (Seco Tools) |
| EDP Number | N70969 |
| Part Number (MPN) | REM710-0.750-D4-C030.3-Z4 |
| Series | REM710 |
| Catalog/Stock # | 5707987 214 |
| Country of Origin | USA |
| End Mill Type | Roughing (Wavy Tooth) |
| Cutting Diameter | 3/4 in (0.750 in) |
| Shank Diameter | 3/4 in |
| Length of Cut | 1-5/8 in |
| Overall Length | 3-7/8 in |
| Number of Flutes | 4 |
| End Type | Square (Flat) End |
| Helix Angle | 30° |
| Material / Grade | HSCO (High-Speed Cobalt / M42) |
| Coating | TiAlN (Titanium Aluminum Nitride) |
| Shank Type | Straight Shank |
| Condition | New |
| Quantity | 1 pc |
