Niagara REM710-0.750-D4-C030 3/4in 4-Flute TiAlN HSS-Co Roughing End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

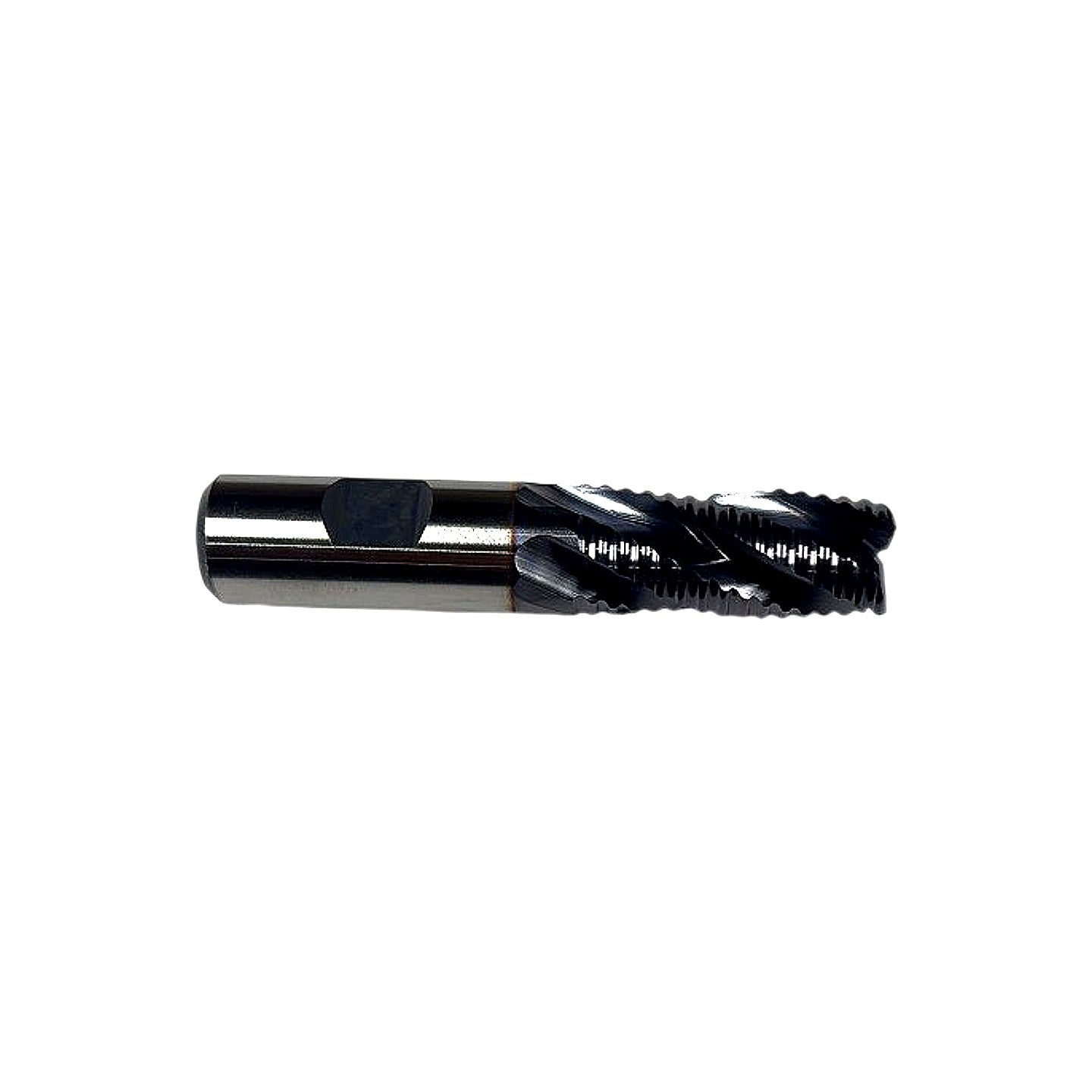

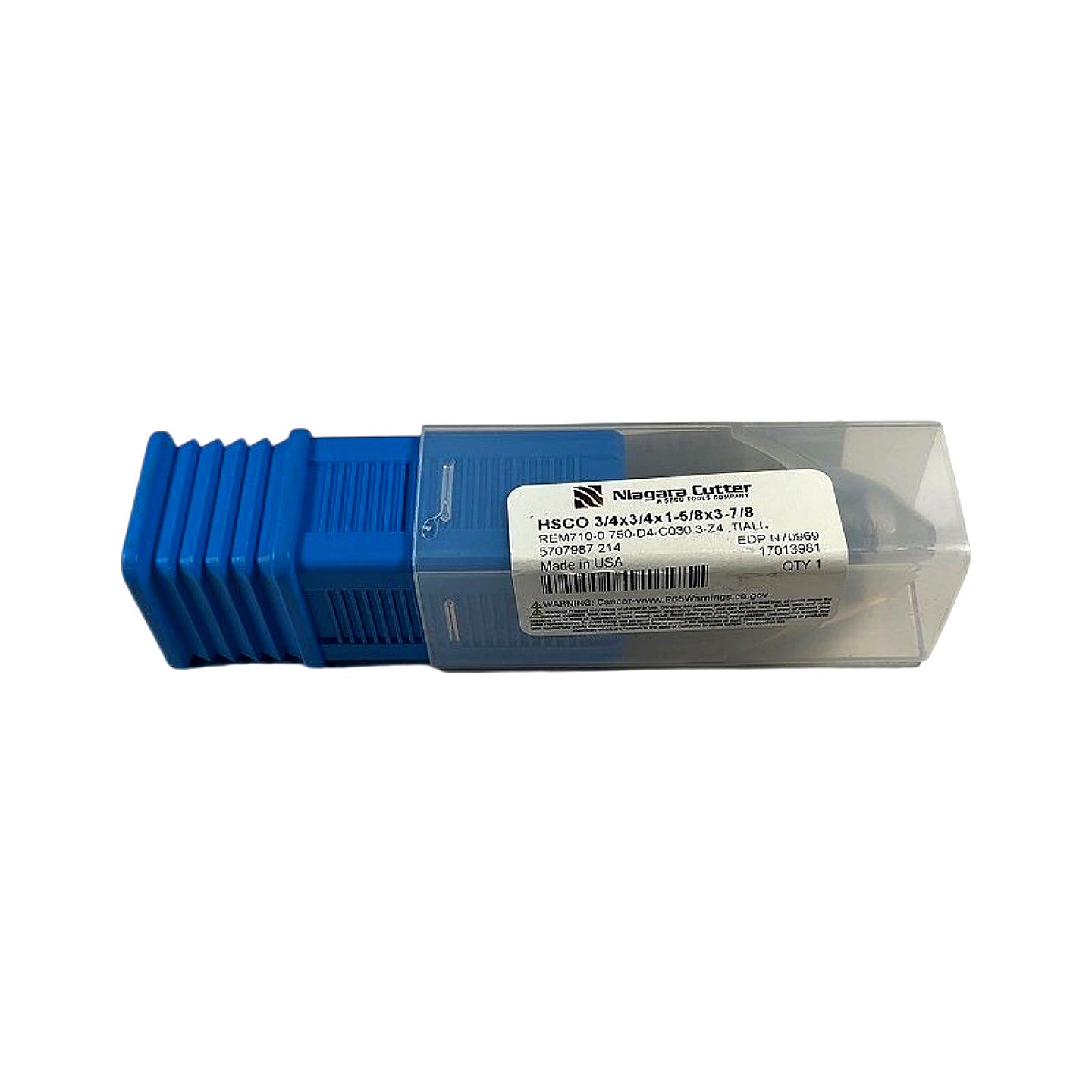

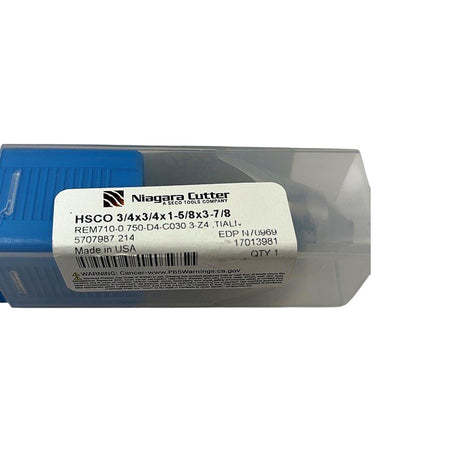

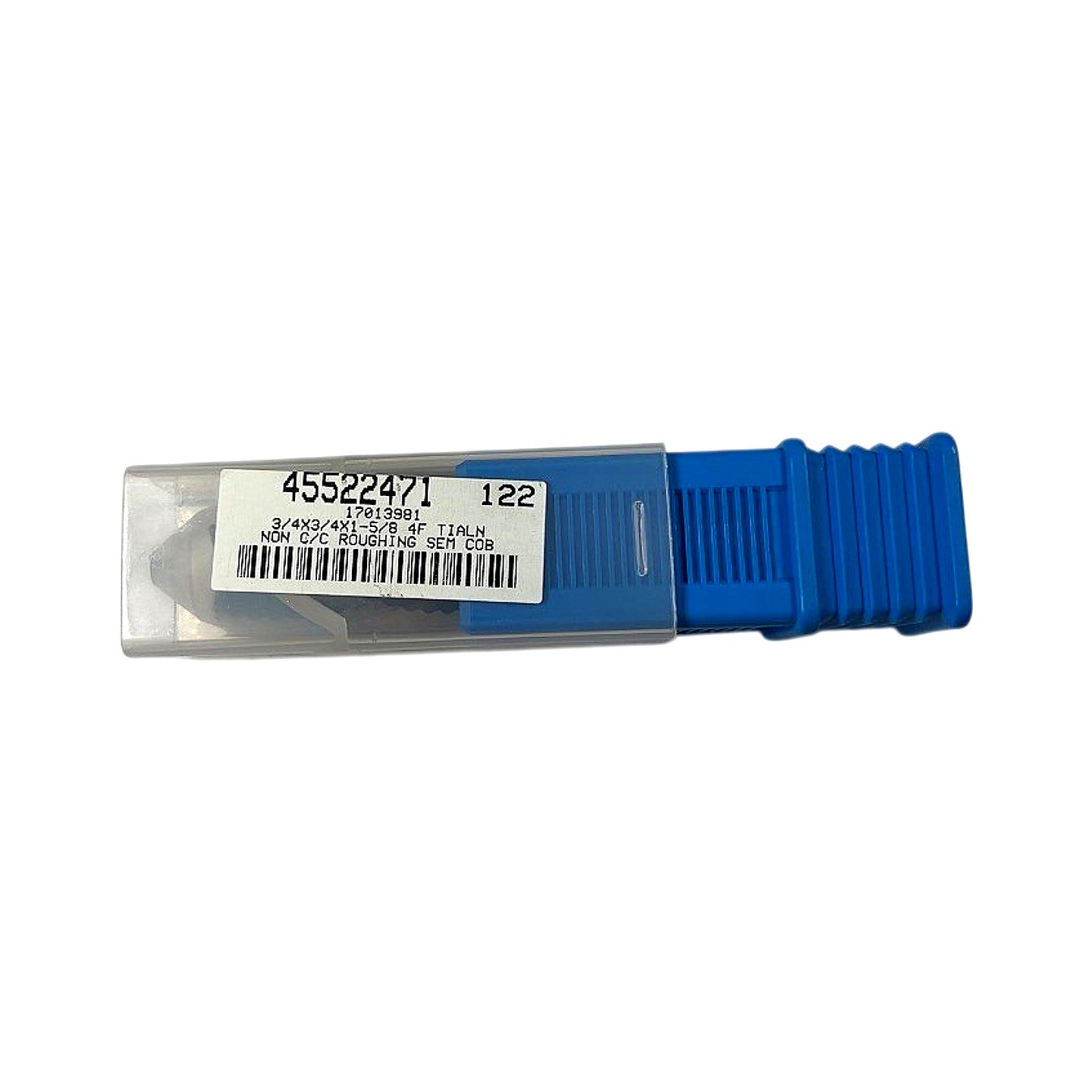

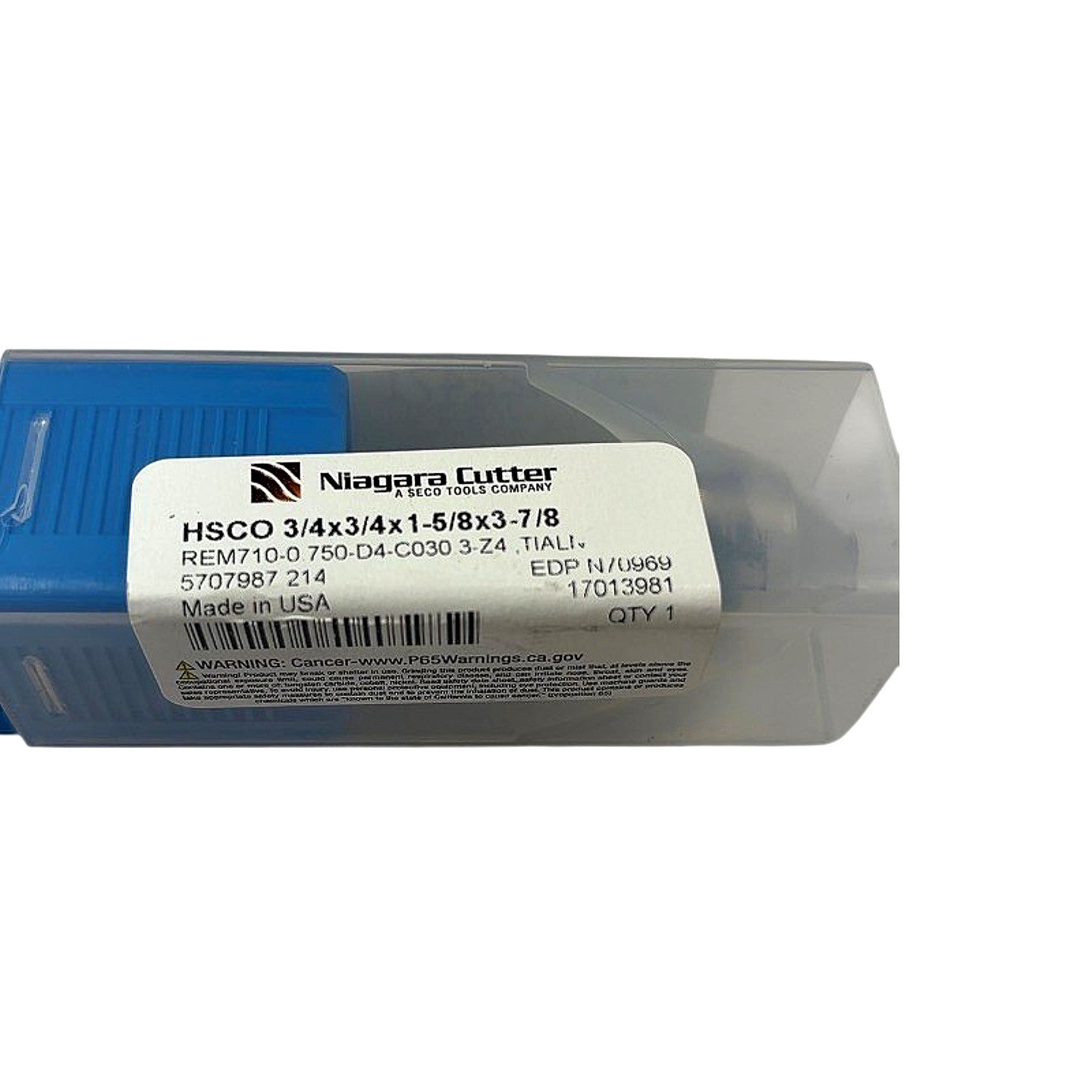

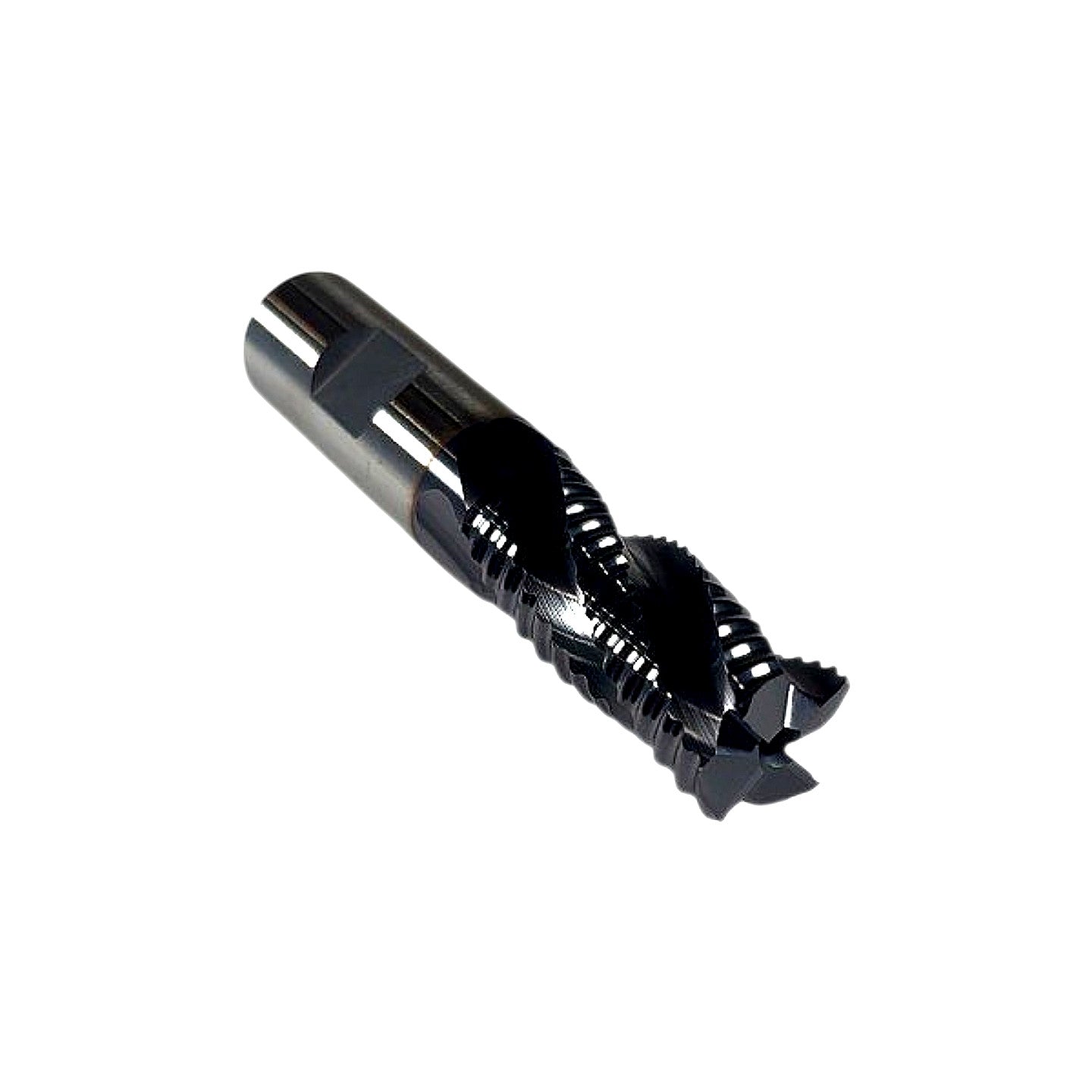

This is a new Niagara Cutter (a Seco Tools company) REM710-0.750-D4-C030 3-Z4 roughing end mill made in the USA from high-speed steel cobalt (HSS-Co/M42-grade equivalent) with a TiAlN (Titanium Aluminum Nitride) coating, giving it a characteristic dark black appearance and elevated heat resistance up to approximately 800°C. The cutter features a 3/4 in (0.750 in) cutting diameter, 4-flute configuration, 1-5/8 in length of cut, 3/4 in shank diameter, and a 3-7/8 in overall length, with a 30° helix angle (C030 in the part number) and a non-center-cutting design as indicated by the "NON C/C" descriptor on the secondary label. The serrated/wavy peripheral tooth form (coarse pitch rougher) breaks chips into shorter segments, reducing cutting forces and enabling aggressive material removal rates in steels, stainless steels, and alloy materials; the tool accepts standard 3/4 in ER, Weldon, or shrink-fit toolholders. EDP number 17013981, Niagara internal code 5707987 214.
Product Specifications
| Brand | Niagara Cutter (Seco Tools) |
| MPN | REM710-0.750-D4-C030 3-Z4 |
| EDP Number | 17013981 |
| Series | REM710 |
| Cutting Diameter | 3/4 in (0.750 in) |
| Shank Diameter | 3/4 in |
| Length of Cut (LOC) | 1-5/8 in |
| Overall Length (OAL) | 3-7/8 in |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | HSS Cobalt (HSCO) |
| Coating | TiAlN (Titanium Aluminum Nitride) |
| End Type | Non-Center Cutting |
| Cut Type | Roughing (Coarse/Wavy Serrated Flutes) |
| Shank Style | Weldon Flat (single flat visible) |
| Country of Origin | USA |
| Condition | New |
