Nine9 N9MT080201W-60 NC40 60° TiN Carbide Threading Insert (10 pcs)

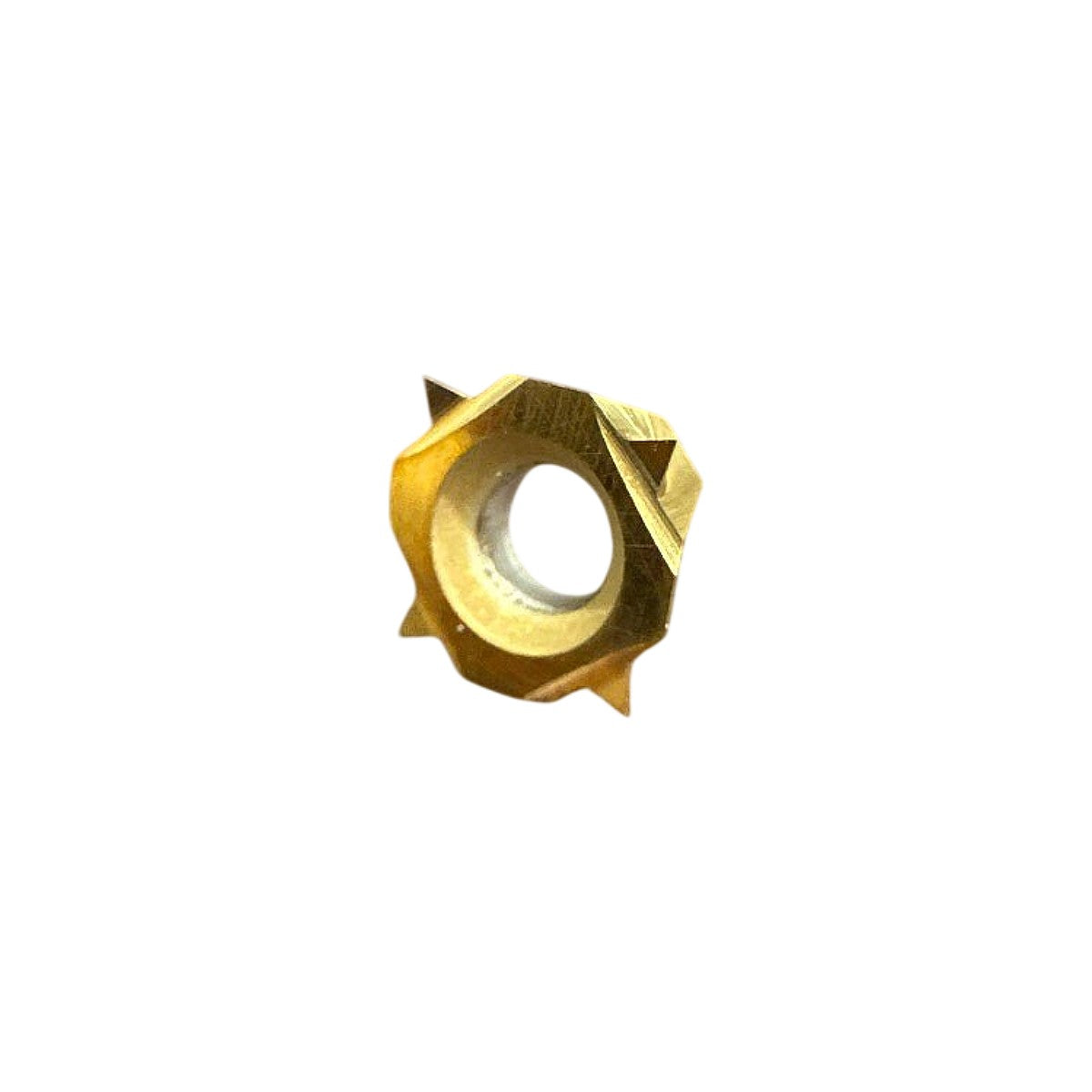

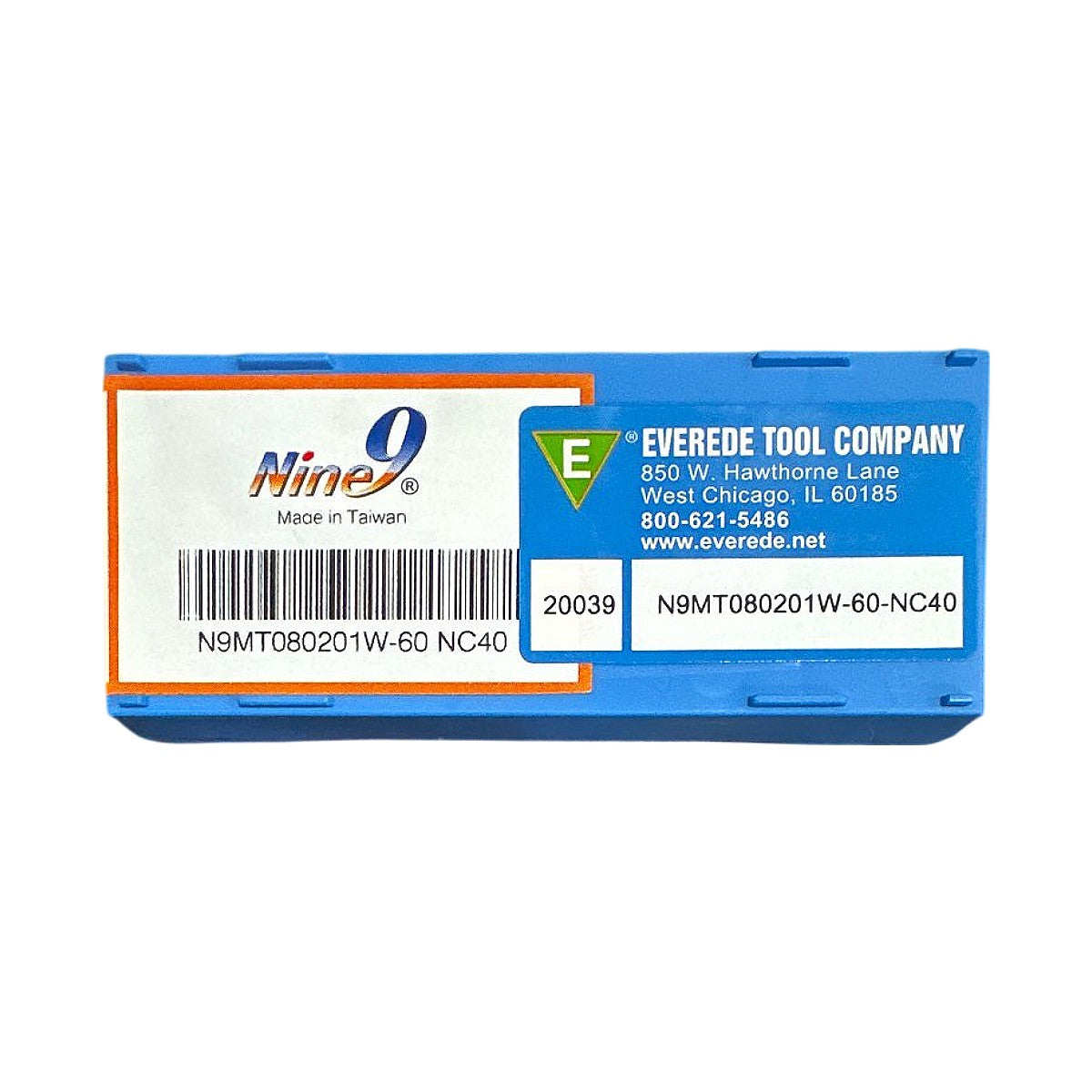

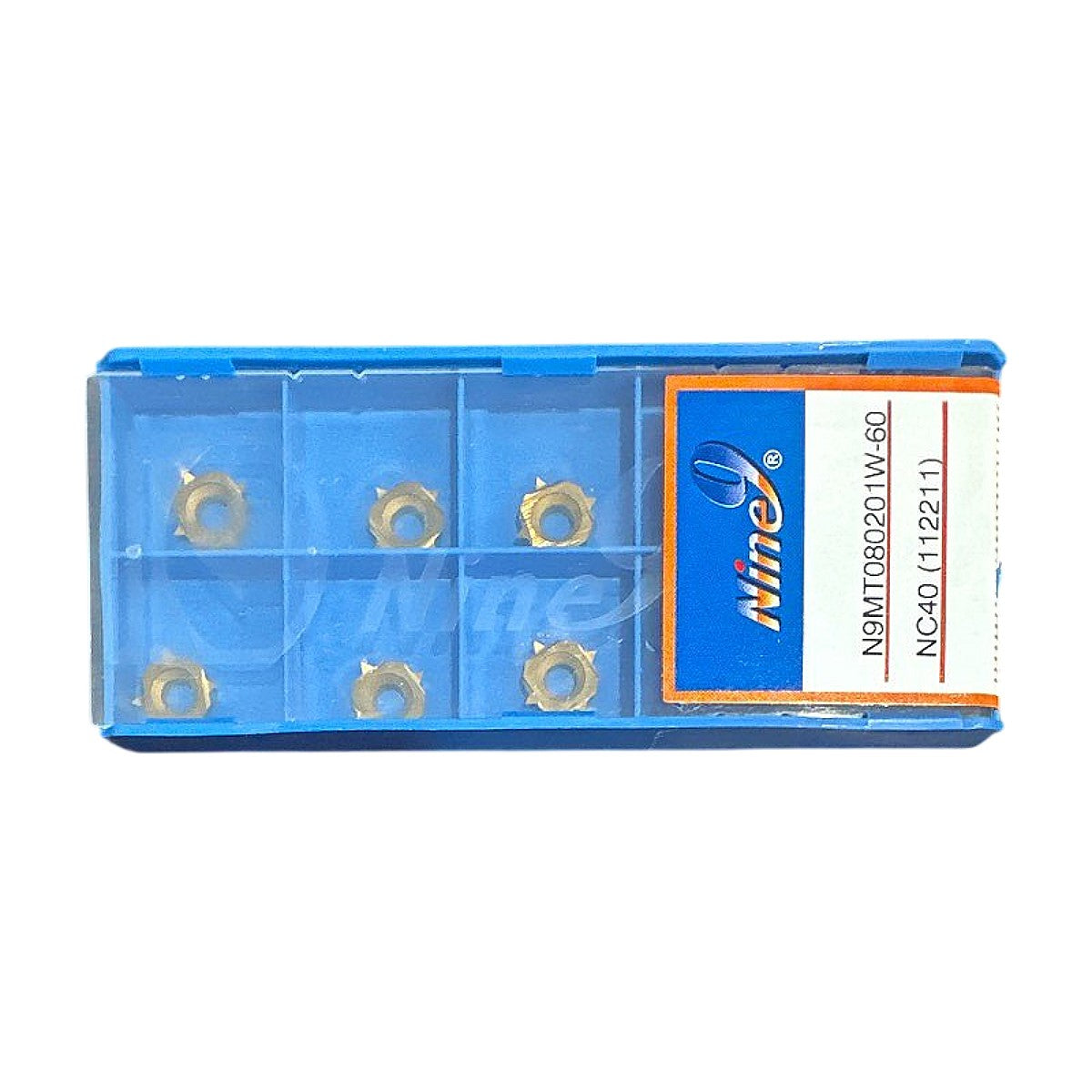

The Nine9 (Everede Tool) N9MT080201W-60-NC40 is a full-profile carbide threading insert designed for internal and external thread turning on CNC lathes, sold new in a 10-piece plastic case. Decoding the part number: N9MT = Nine9 multi-tooth thread insert style; 08 = insert size (8 mm inscribed circle); 02 = 2 teeth per insert; 01 = tooth pitch index 1; W = with chip breaker geometry; 60 = 60° thread angle (covers Metric, UN/UNC/UNF, and other 60° thread forms); NC40 = the carbide grade, a PVD TiN-family coated submicron carbide optimized for threading steel, stainless steel, and cast iron at moderate cutting speeds. The octagonal body with a central mounting hole mates with Nine9 / Everede-compatible toolholders in the N9 threading system; the multi-tooth geometry (2 teeth) allows significantly faster feed rates and improved productivity versus single-point threading inserts. The gold PVD TiN coating visible on all inserts in the photos reduces friction, resists built-up edge, and extends tool life on ISO P and M material groups. Made in Taiwan by Everede Tool Company (West Chicago, IL), catalog item 20039.

Product Specifications
