Norgren B72G-2AK-QD3-RMG 3/8in NPT 150PSI Pneumatic Filter Regulator

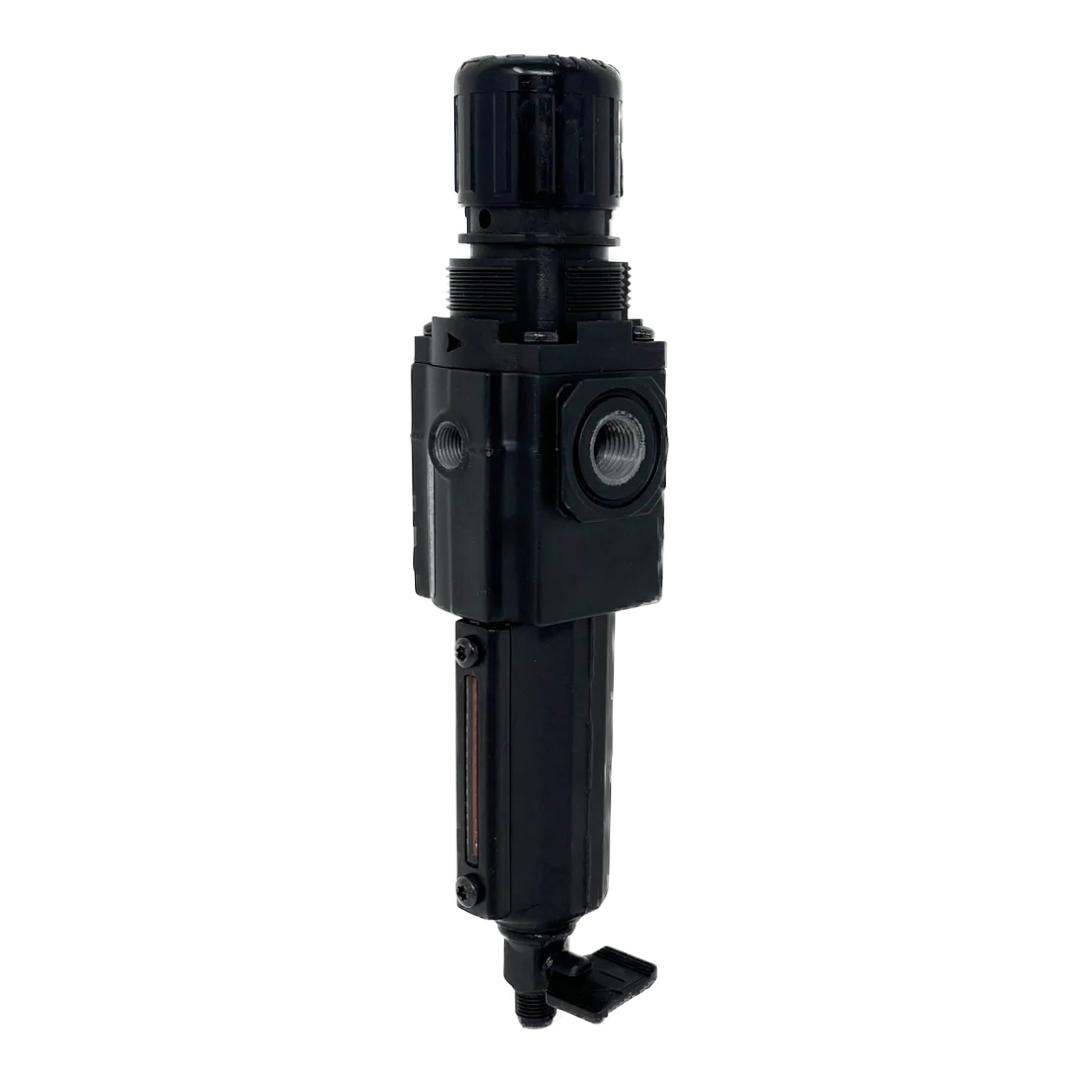

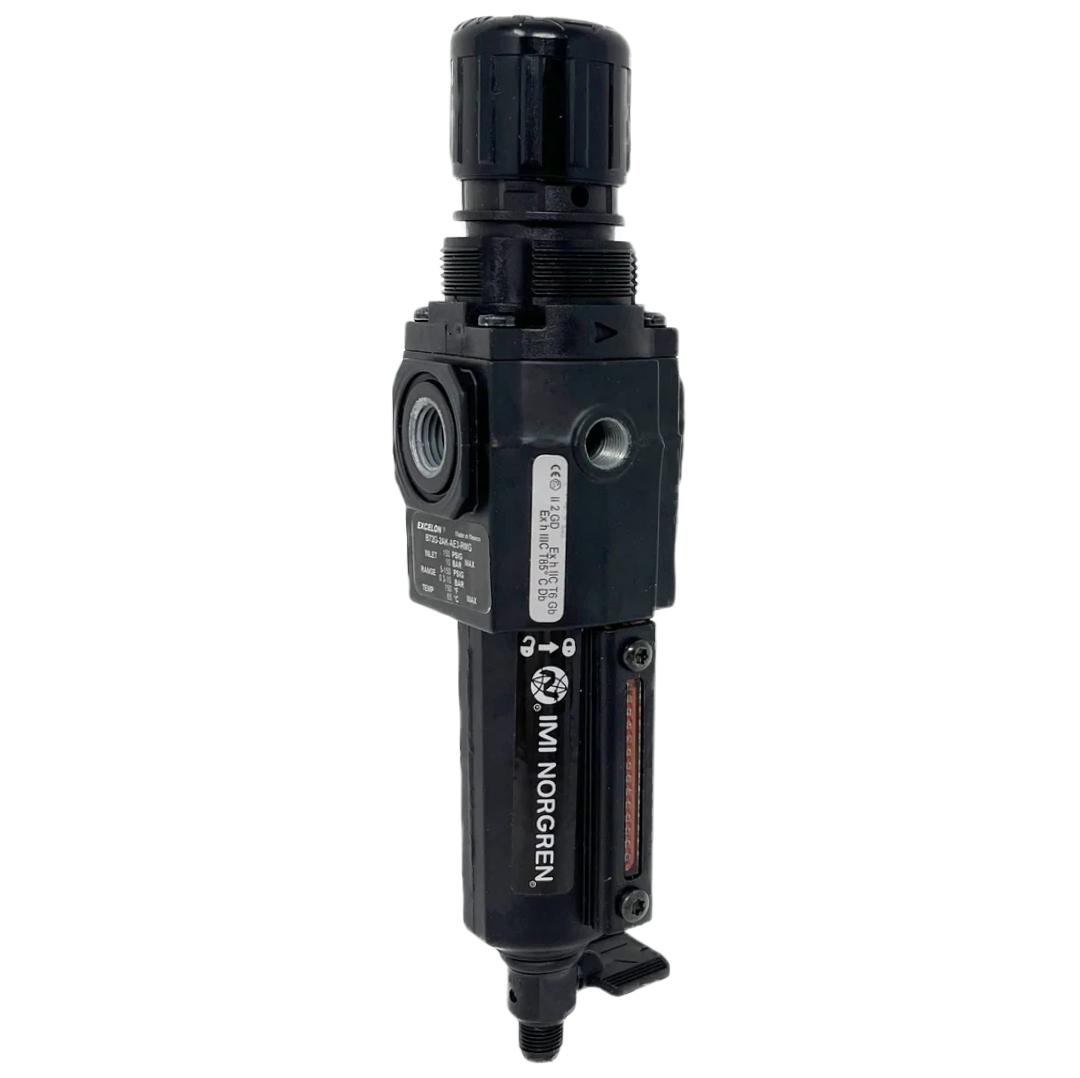

The IMI Norgren B72G-2AK-QD3-RMG is a new, factory-sealed combination filter/regulator from the Excelon II B72G series, manufactured in Mexico and carrying CE marking along with ATEX/IECEx Ex II 2 GD hazardous-location certification visible on the product label. Decoding the part number: B72G = Excelon II 3/8 in. NPT filter-regulator body; 2 = 40-micron filter element; A = automatic drain; K = relieving regulator type; QD3 = 0–150 PSIG outlet pressure range; R = rising-stem manual override; M = metal bowl with sight glass; G = bracket/mounting included. The unit features a metal bowl with a red liquid-level sight glass strip, an automatic drain at the bowl bottom, a locking knob on the regulator bonnet, and side ports including a gauge port visible on the body face. Suitable for compressed air service in industrial automation, machine tool, and process control applications where a single inline unit must filter particulate and regulate downstream pressure; the ATEX II 2 GD rating makes it suitable for Zone 1/21 gas and dust hazardous environments. Product Specifications Brand Norgren MPN B72G-2AK-QD3-RMG Series Excelon II B72G Product Type Filter/Regulator (Combination Unit) Port Size 3/8 in. NPT Filter Element Grade 40 micron Drain Type Automatic Regulator Type Relieving (non-relieving option not selected) Outlet Pressure Range 0–150 PSIG Maximum Inlet Pressure 150 PSIG Bowl Material Metal with sight glass Sight Glass Present (red liquid-level indicator strip) Mounting Bracket included Hazardous Location Certification ATEX/IECEx Ex II 2 GD (Zone 1/21 Gas & Dust) CE Marked Yes Country of Origin Mexico Media Compressed air Part Number (MPN) B72G-2AK-QD3-RMG
