Norgren R07-200-RGLA 1/4" NPT 0-125 PSIG Compressed Air Regulator ATEX

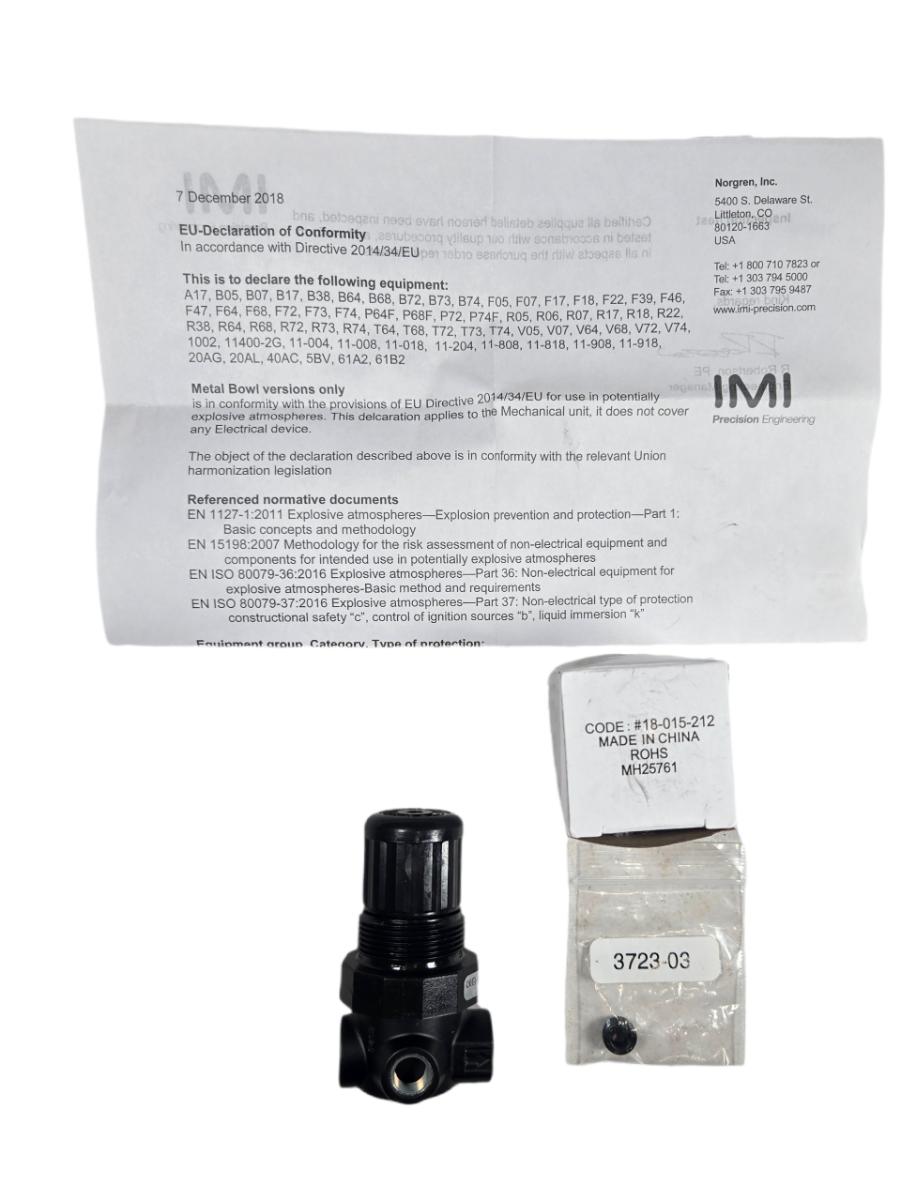

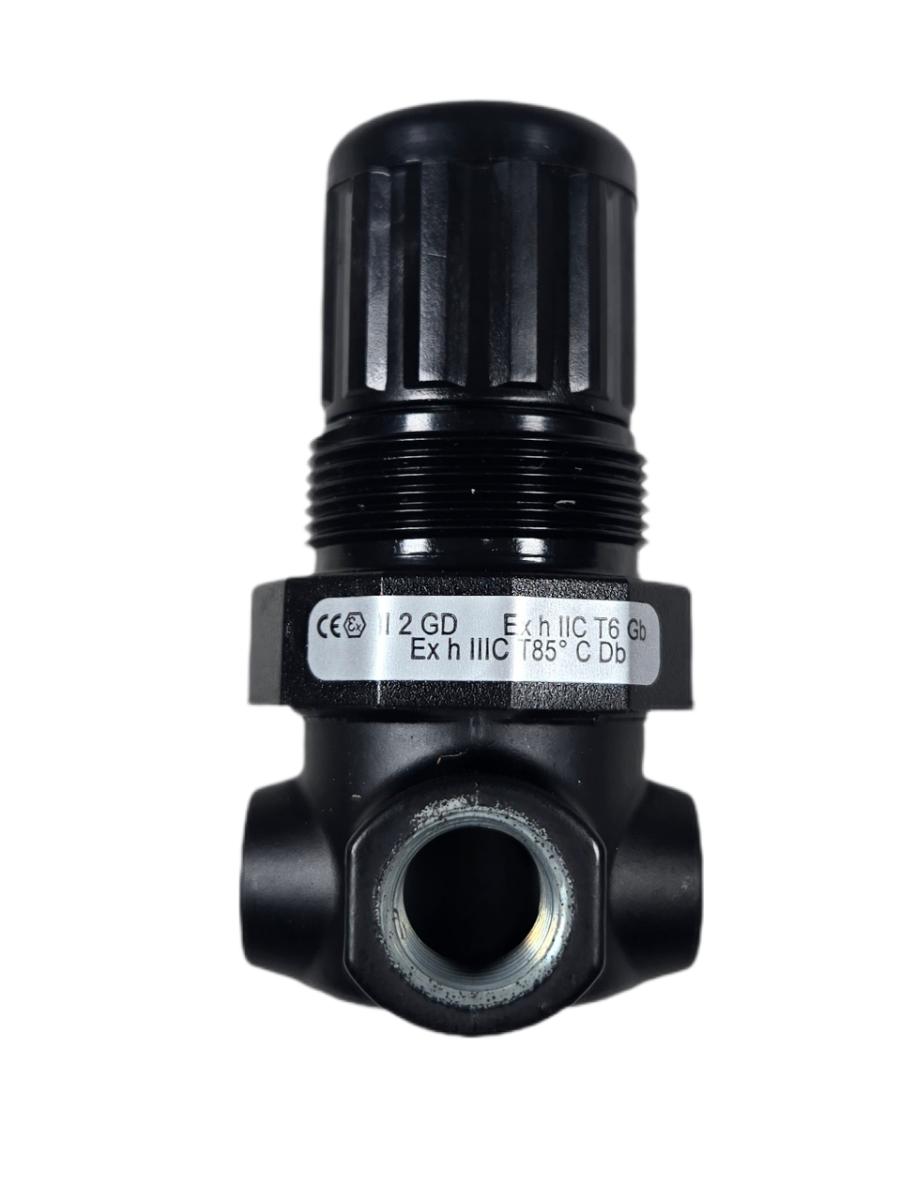

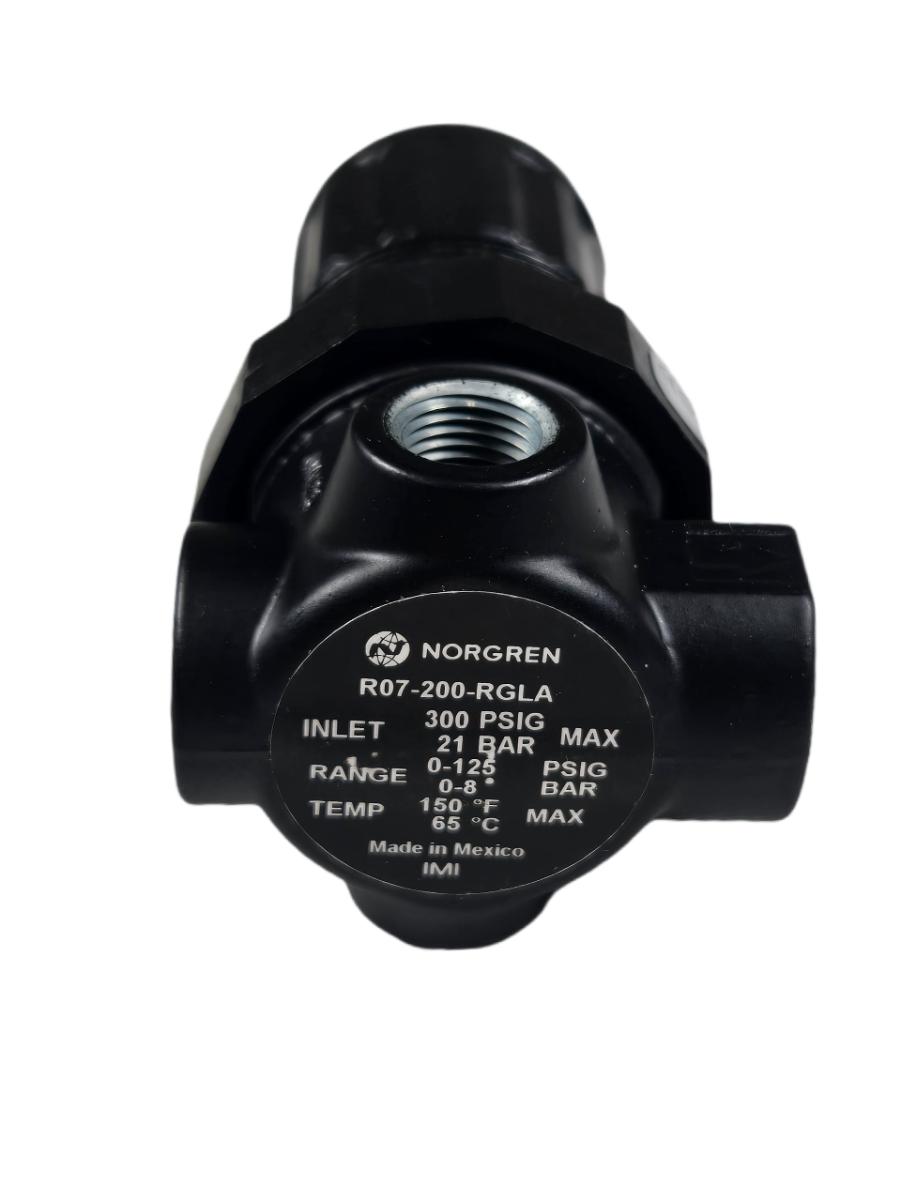

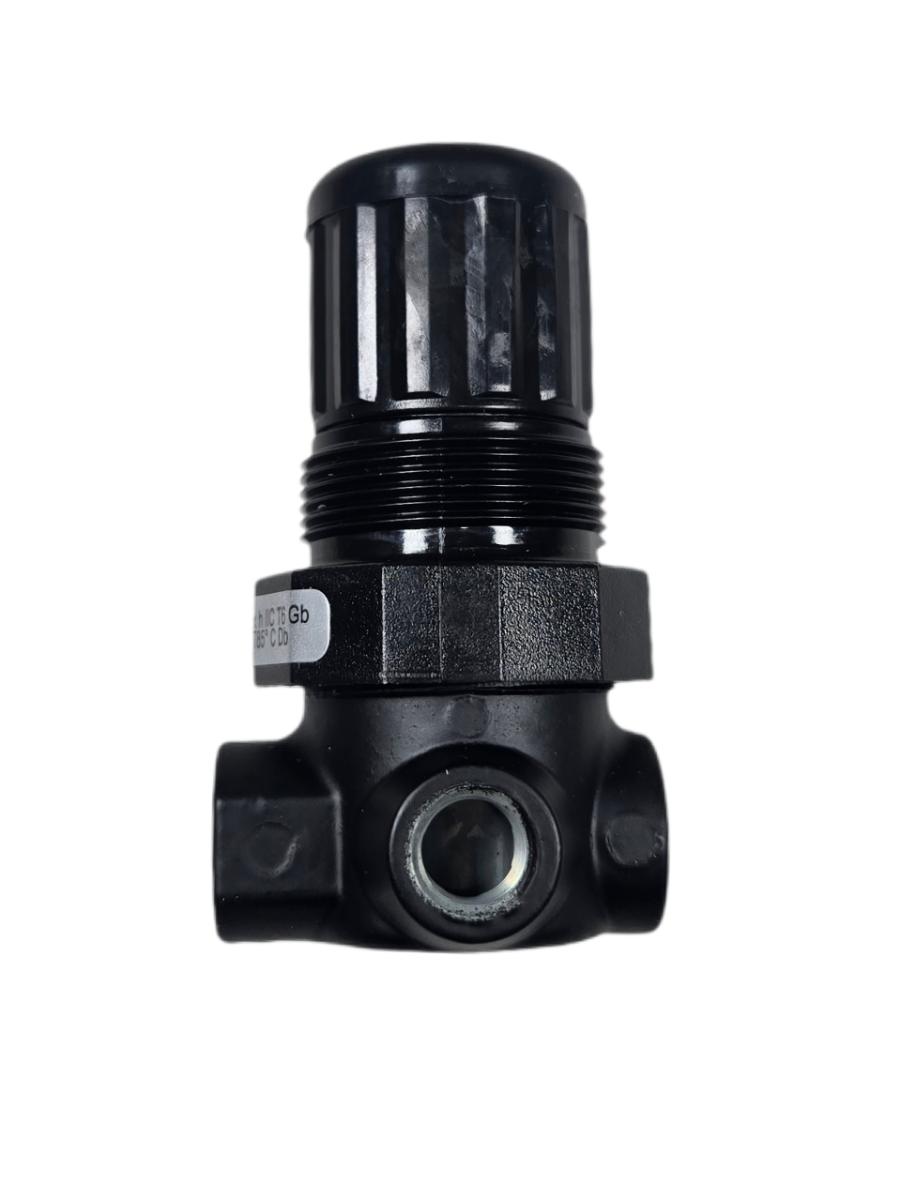

The Norgren R07-200-RGLA is a new, general-purpose compressed air pressure regulator from IMI Norgren's R07 series, featuring a metal body construction rated for use in potentially explosive atmospheres per ATEX Directive 2014/34/EU. The unit carries dual ATEX ratings visible on its label: Ex h IIC T6 Gb (Zone 1 gas atmospheres, Equipment Group IIC, Temperature Class T6) and Ex h IIIC T85°C Db (Zone 21 dust atmospheres, Equipment Group IIIC, max surface temperature 85°C), making it suitable for hazardous-area pneumatic systems. Inlet pressure is rated to 300 PSIG (21 BAR) maximum, with an adjustable outlet pressure range of 0–125 PSIG (0–8 BAR), and a maximum operating temperature of 150°F (65°C). Port size is 1/4" NPT based on the R07-200 series designation (the '200' suffix indicating 1/4" porting), and the 'RGLA' suffix encodes a relieving regulator with gauge port, metal bowl, and without gauge supplied. The kit as pictured includes the regulator body, a separately packaged Norgren pressure gauge (0–160 PSIG / 0–1.1 MPa / 0–11 BAR), a Norgren part 3723-03 gauge port plug, and an IMI EU Declaration of Conformity document dated December 7, 2018; manufactured in Mexico by IMI Precision Engineering.

Product Specifications
