Norgren R24-200-RGLA 1/4 in NPT 300 PSI Pneumatic Pressure Regulator
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

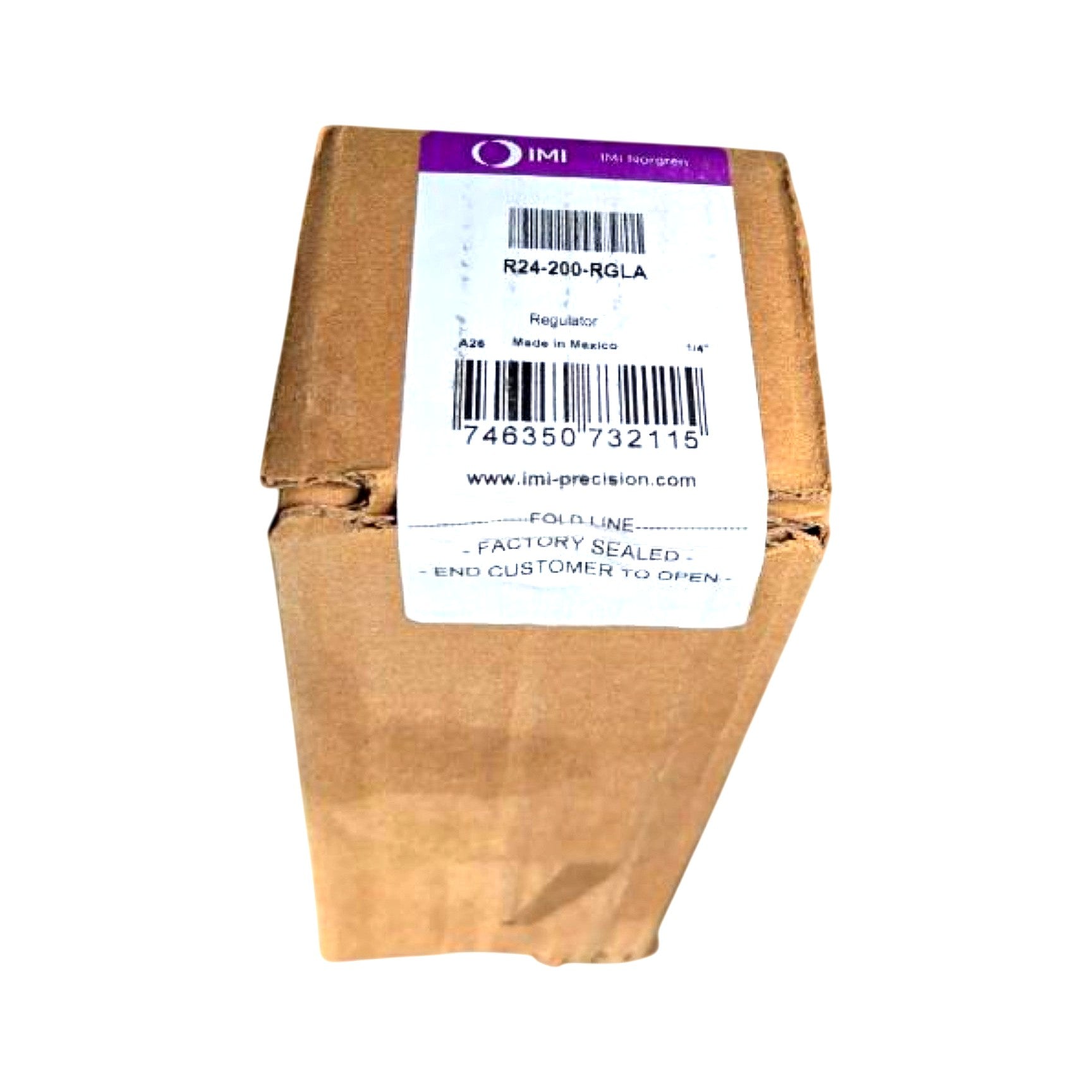

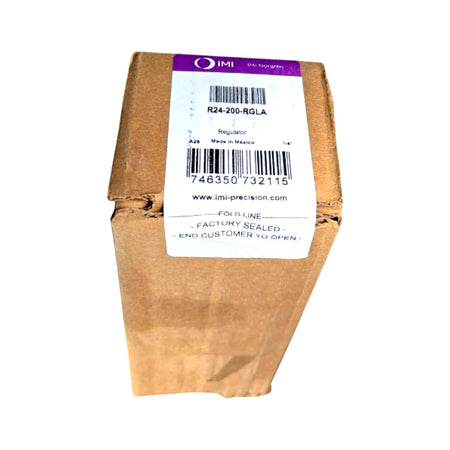

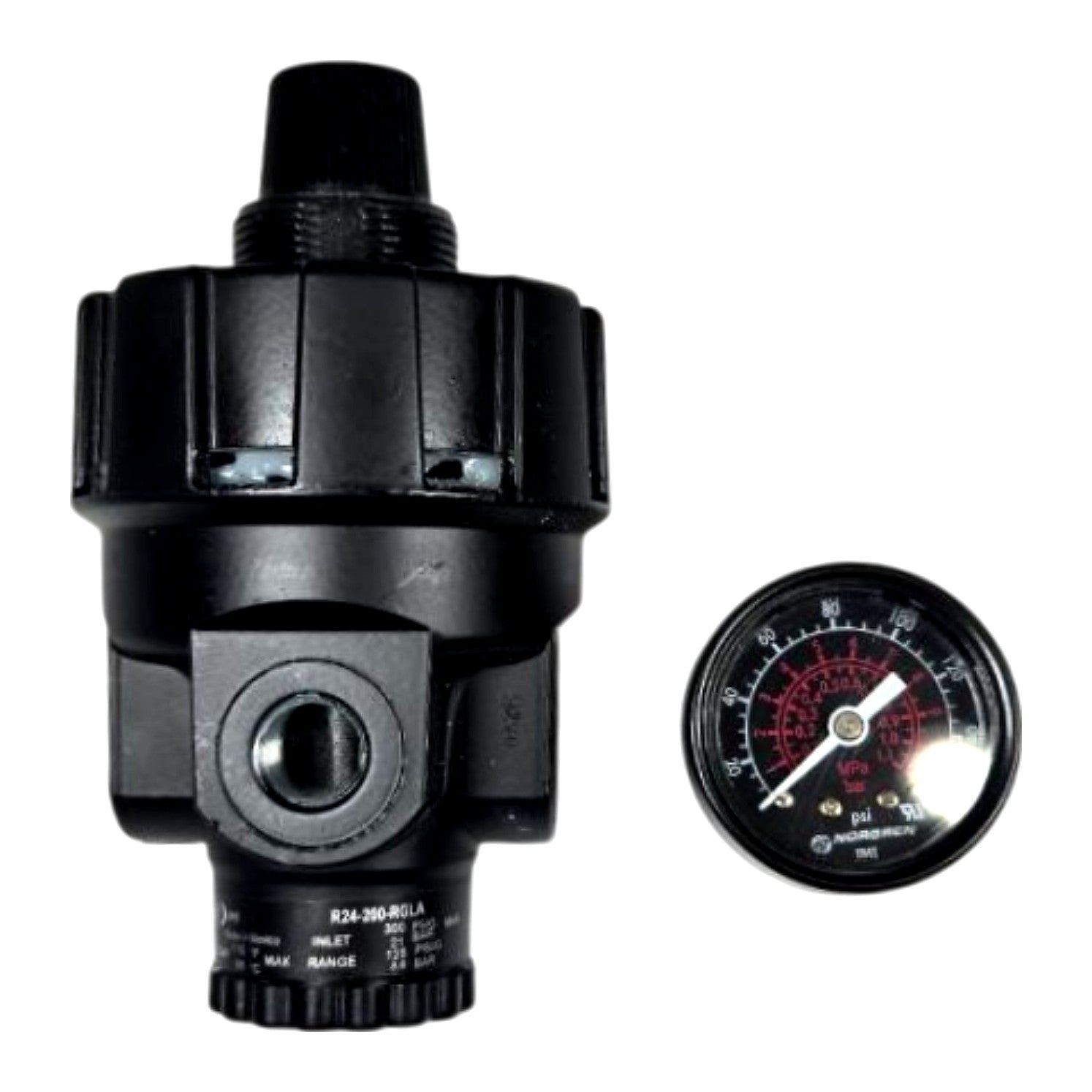

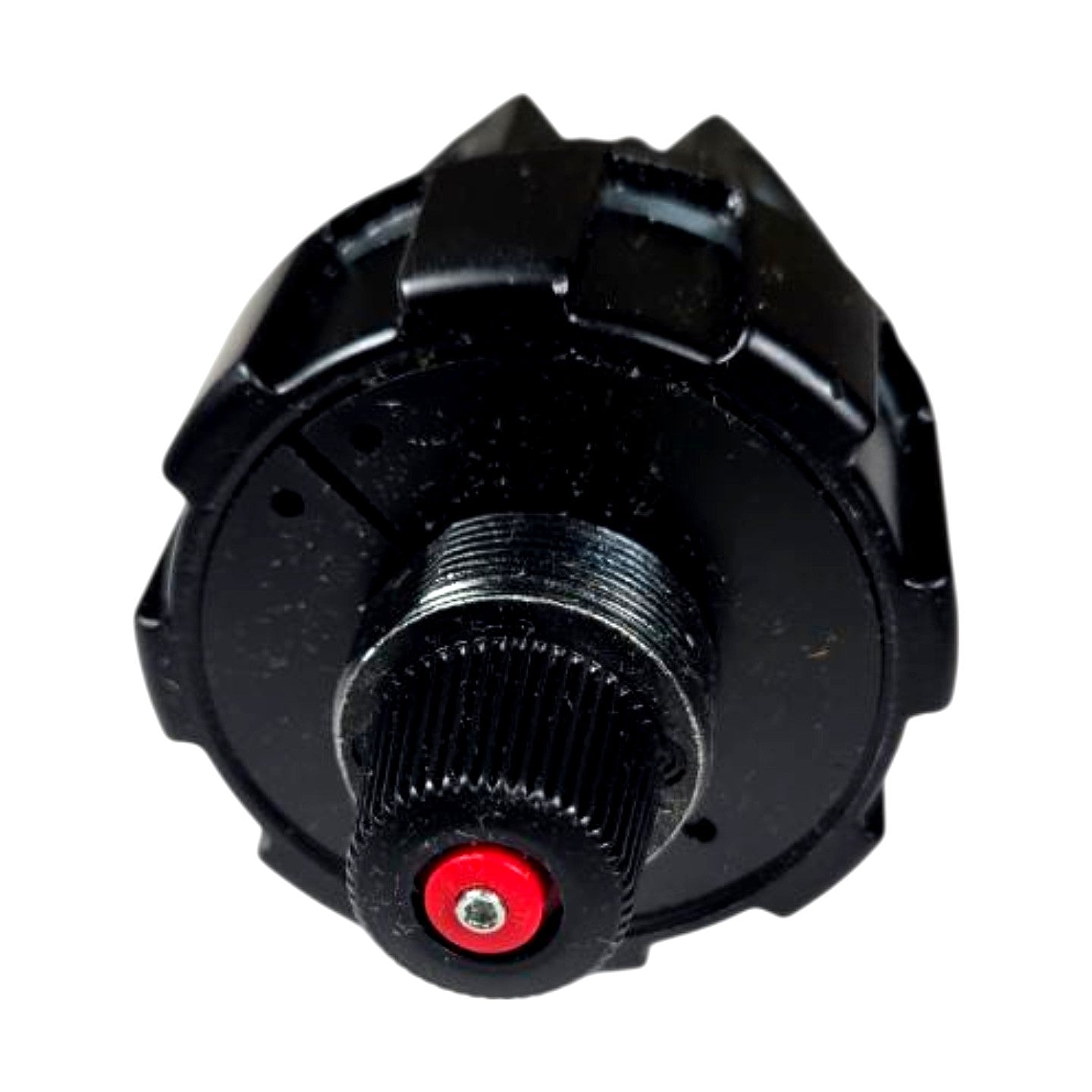

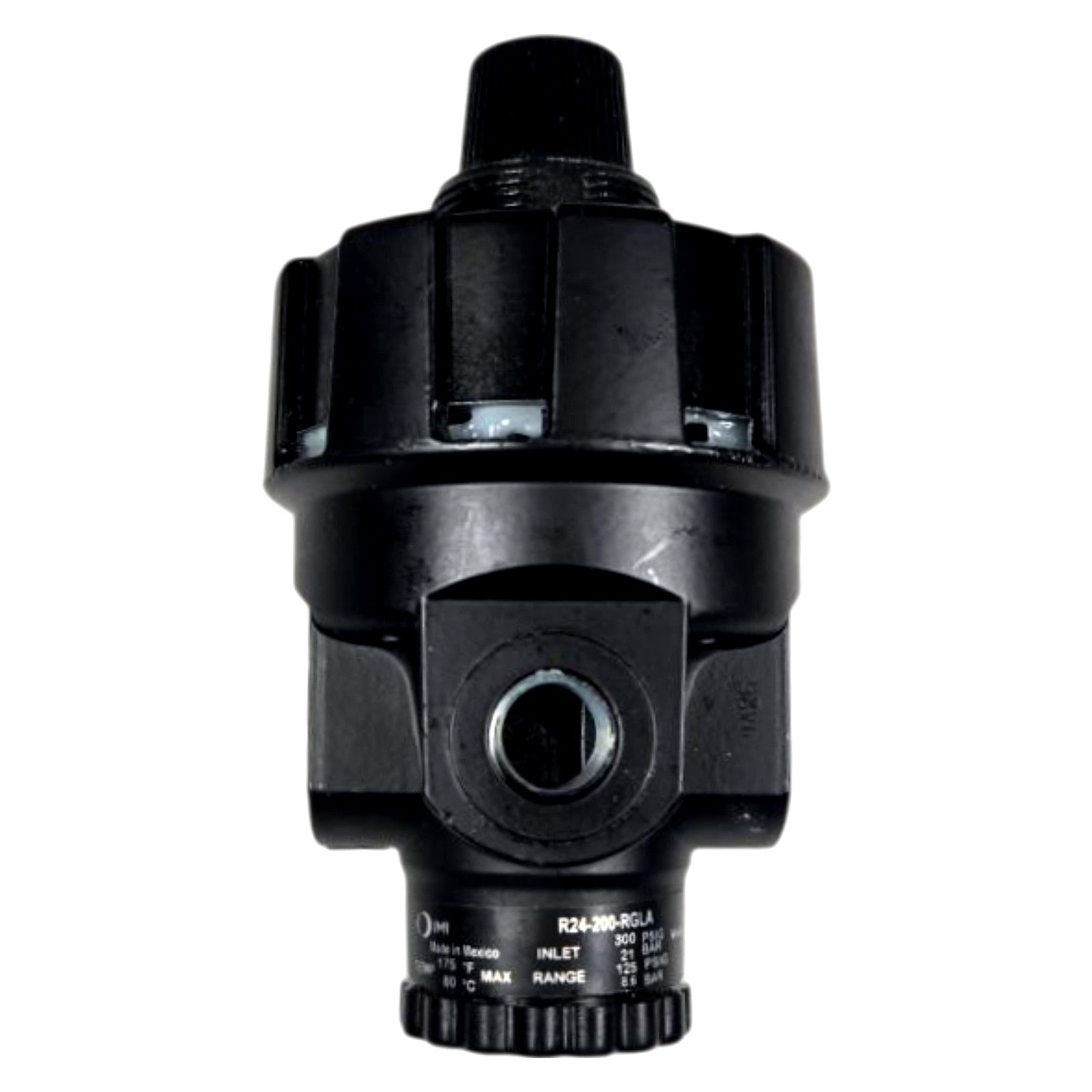

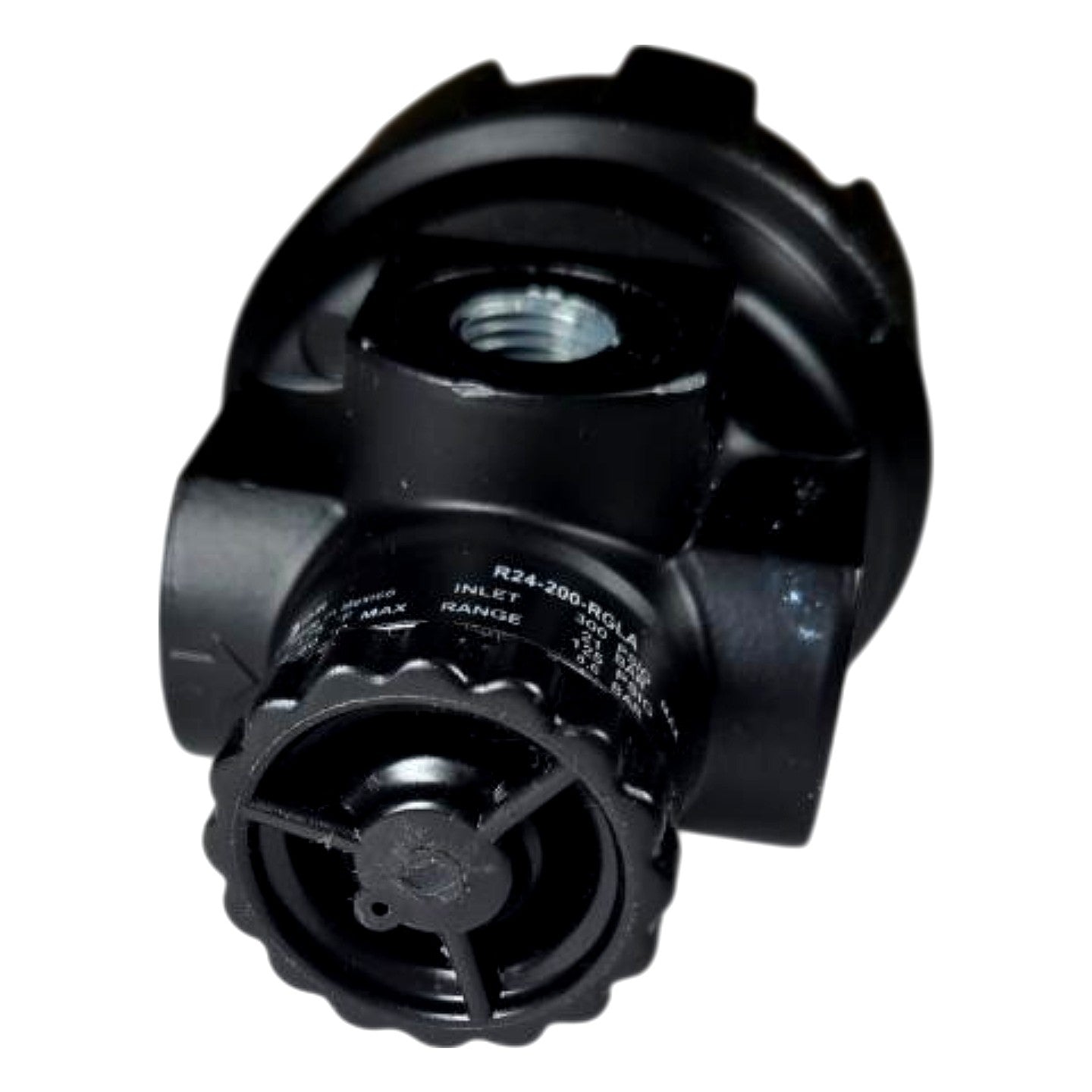

The IMI Norgren R24-200-RGLA is a new, factory-sealed general-purpose compressed air pressure regulator from the R24 series, featuring a 1/4 in NPT port size and a maximum inlet pressure of 300 PSIG (21 BAR). The outlet pressure range is 0–125 PSIG (0–8.6 BAR) with a relieving-type diaphragm design, allowing downstream pressure bleed-off when the set point is reduced — confirmed by the 'R' suffix in the model code. The part number suffix 'GLA' indicates the unit ships with a gauge port and includes the Norgren-branded dual-scale (PSI/MPa) pressure gauge visible in the photos; a tamper-resistant locking cap and bottom-mounted gauge port (1/8 in NPT, visible in underside photo) are also present. The knurled adjustment knob with integrated lock ring allows precise outlet pressure setting, and the red manual pressure-relief button on the bonnet provides convenient downstream depressurization. Manufactured in Mexico under the IMI Norgren brand, this regulator is suited for compressed air service in pneumatic tool circuits, automation equipment, and FRL assembly installations requiring 1/4 in NPT connections.
Product Specifications
| Manufacturer | IMI Norgren |
| Part Number (MPN) | R24-200-RGLA |
| Product Type | Relieving-Type Pneumatic Pressure Regulator |
| Port Size | 1/4 in NPT |
| Max Inlet Pressure | 300 PSIG (21 BAR) |
| Outlet Pressure Range | 0–125 PSIG (0–8.6 BAR) |
| Regulator Action | Relieving (venting) |
| Gauge Included | Yes, dual-scale PSI/MPa |
| Max Operating Temp | 175°F (80°C) |
| Gauge Port Size | 1/8 in NPT (bottom-mounted) |
| Adjustment Type | Knurled knob w/ locking collar |
| Pressure Relief Button | Yes, manual red button on bonnet |
| Series | R24 |
| Country of Origin | Mexico |
| Condition | New, factory sealed |
| Media | Compressed air |
| Body Material | Die-cast aluminum |
