North American Tool 1057502 M24 x 3.0 HSS GD-3 4 Flute Spiral Flute Tap
Regular price
$157.69
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

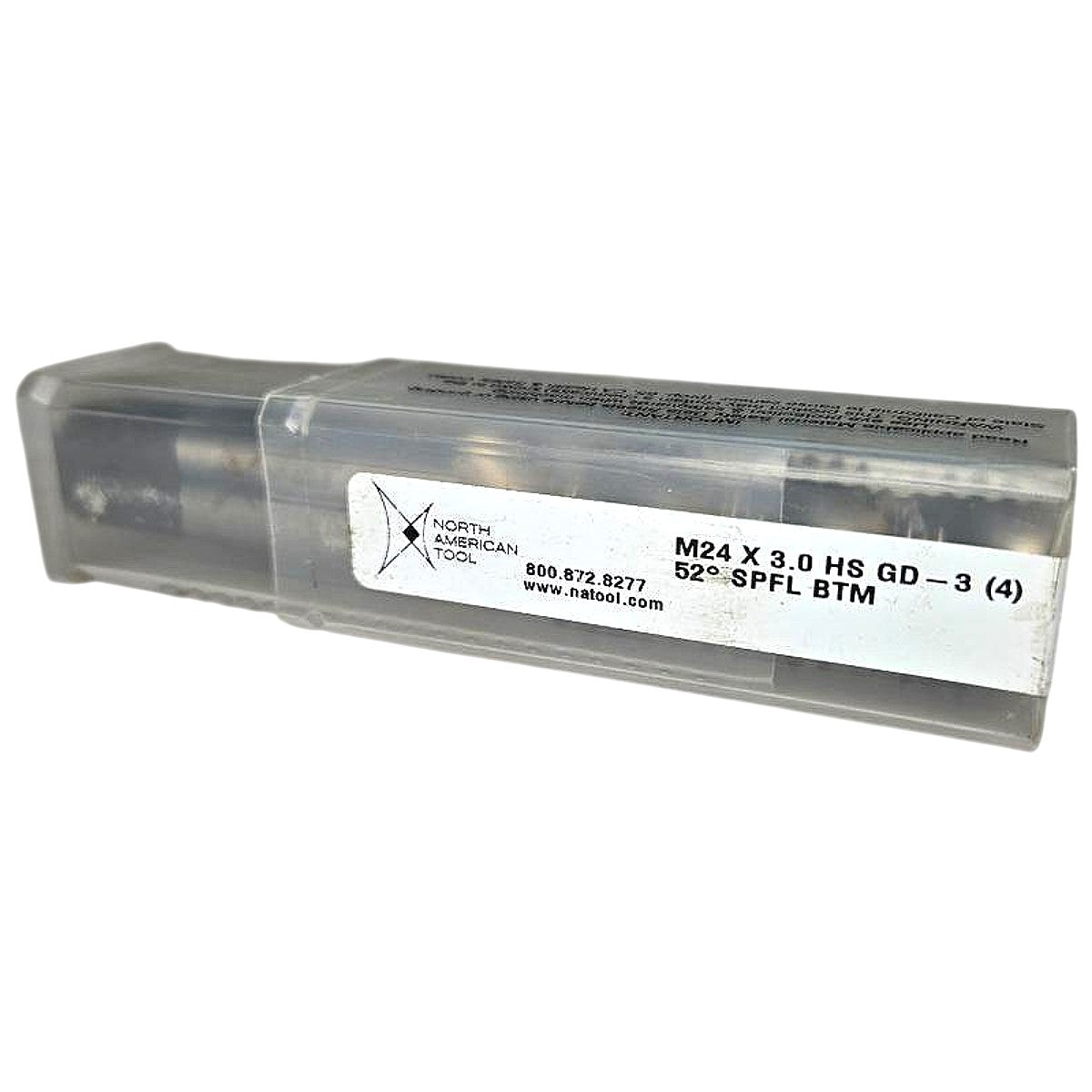

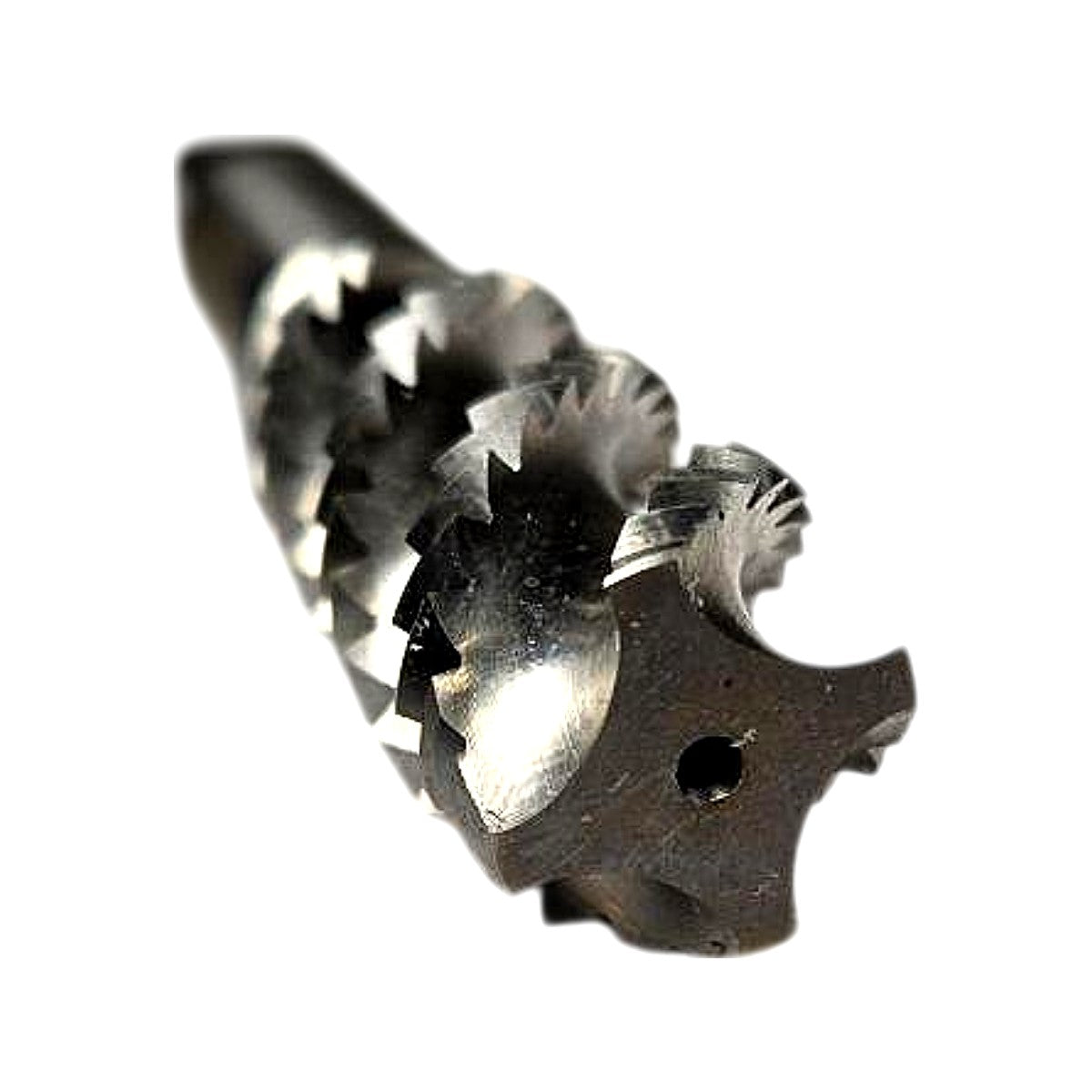

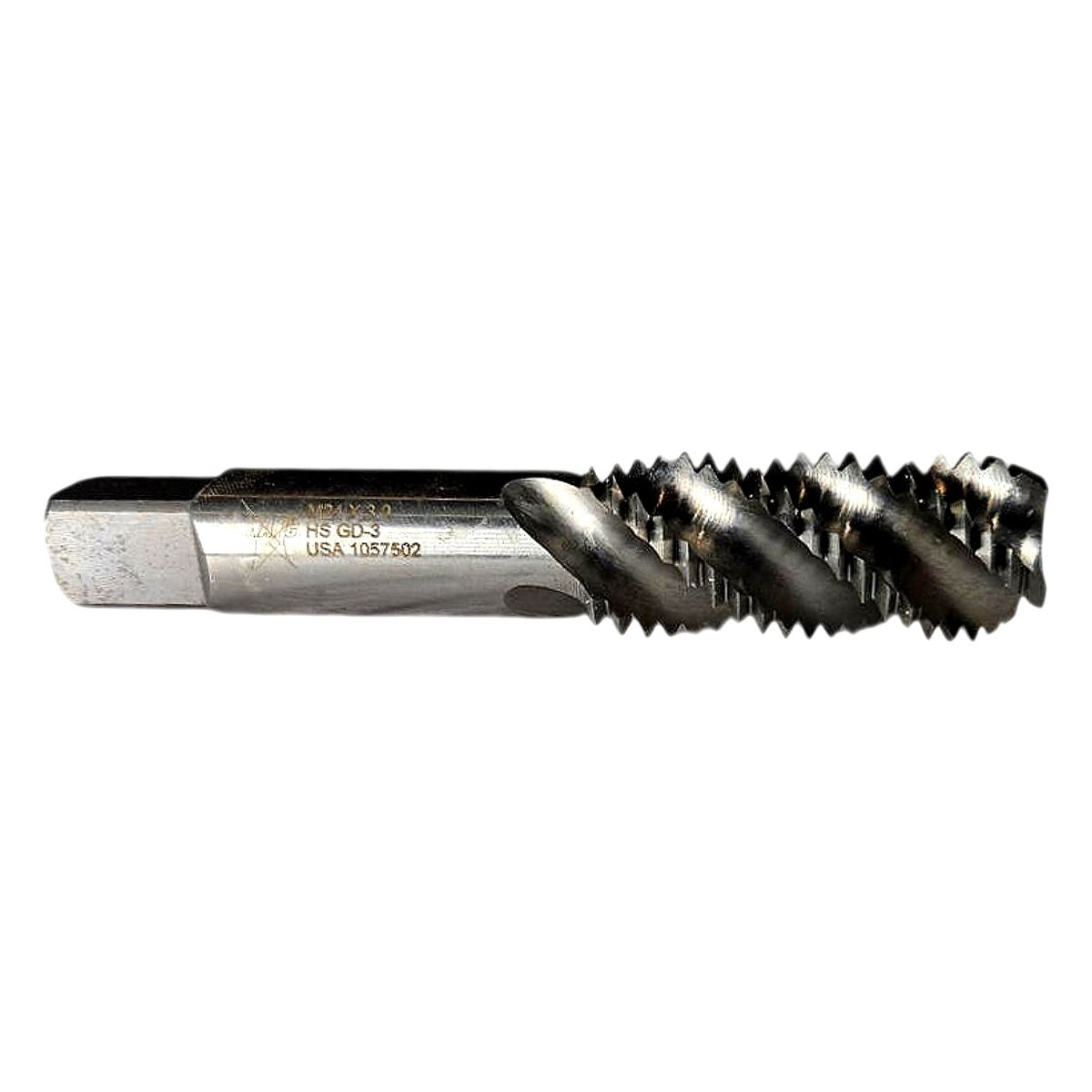

This North American Tool 1057502 is an M24 x 3.0 metric coarse spiral flute tap made from high speed steel (HS) with a GD-3 ground thread limit, as marked on the shank and box label. It has four flutes with a 52° spiral flute and a bottoming chamfer, which suits threading blind holes and pulls chips back out of the hole ahead of the cutting edges. The tap is bright (uncoated per the photos), has a square-drive shank, and is made in the USA. Supplied new in the original plastic box.
Product Specifications
| Brand | North American Tool |
| MPN | 1057502 |
| Thread Size | M24 x 3.0 |
| Thread Pitch | 3.0 mm |
| Thread Standard | Metric Coarse |
| Material | High Speed Steel (HSS) |
| Thread Limit | GD-3 |
| Number of Flutes | 4 |
| Flute Type | Spiral Flute |
| Spiral Angle | 52° |
| Chamfer | Bottoming |
| Coating | Uncoated |
| Shank Type | Square Drive |
| Hand | Right Hand |
| Operation | Tapping, Blind Holes |
| Country of Origin | USA |
