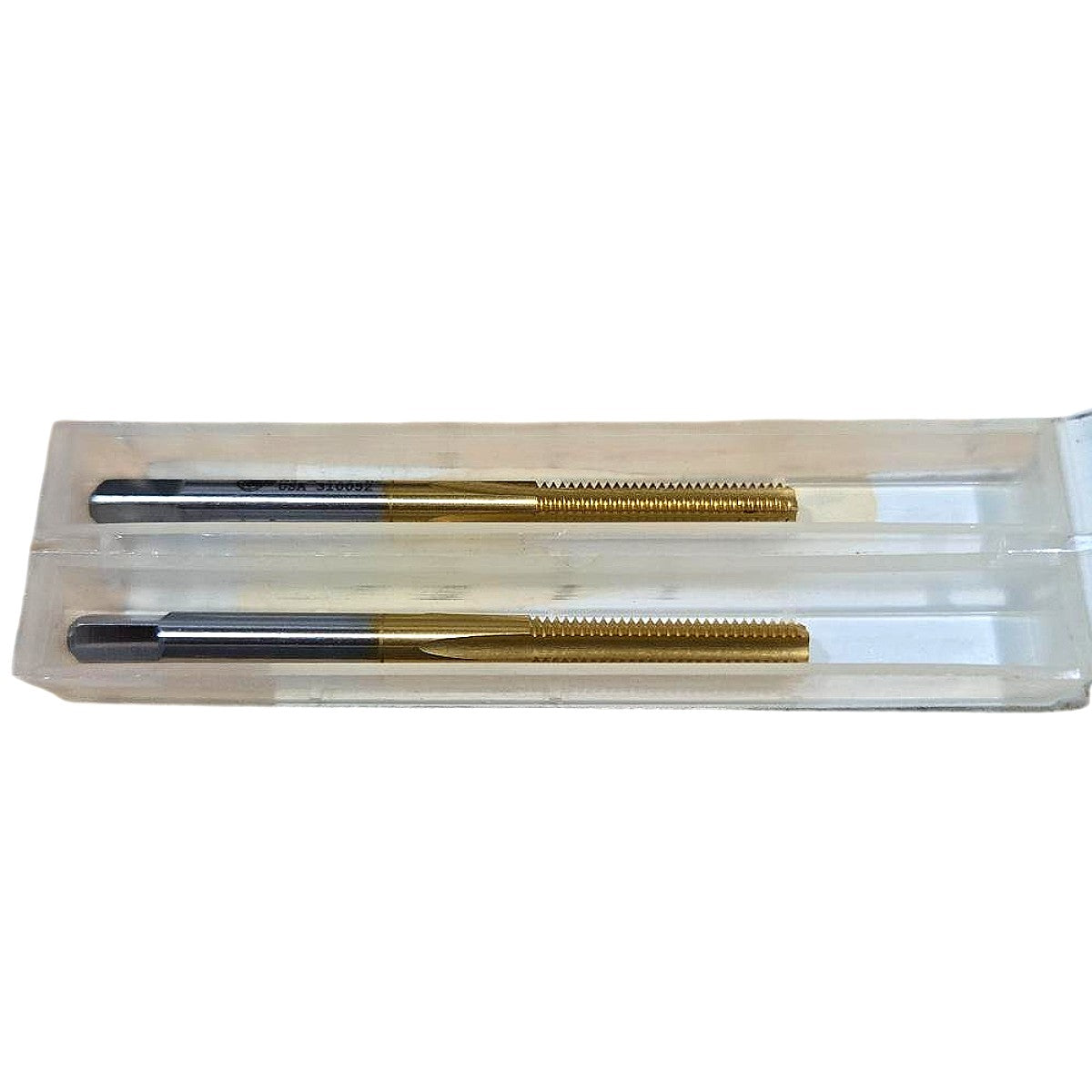

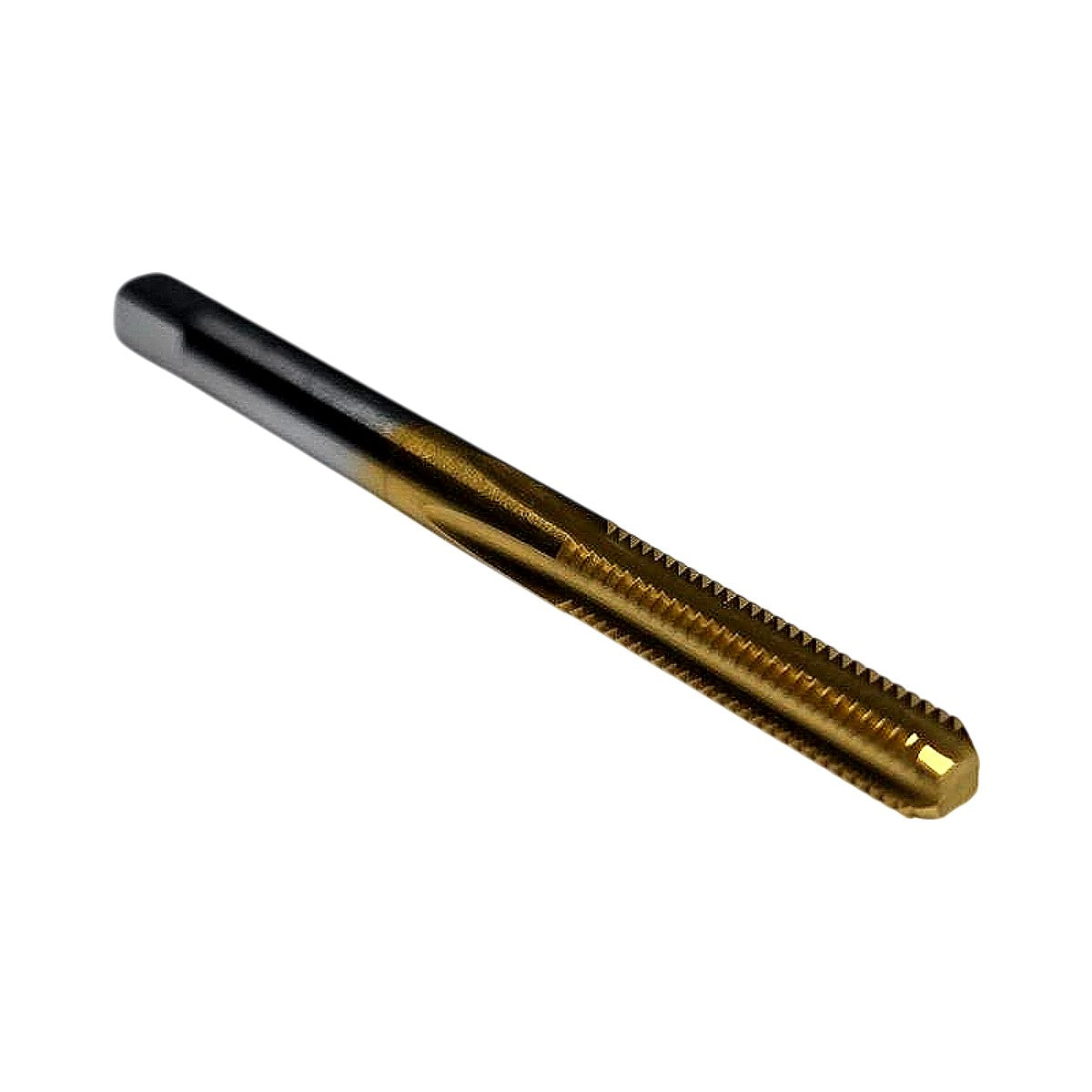

North American Tool 310052 M4x0.7 D8 4 Flute TiN Brass Bottoming Tap (2 Pcs)
Regular price
$22.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

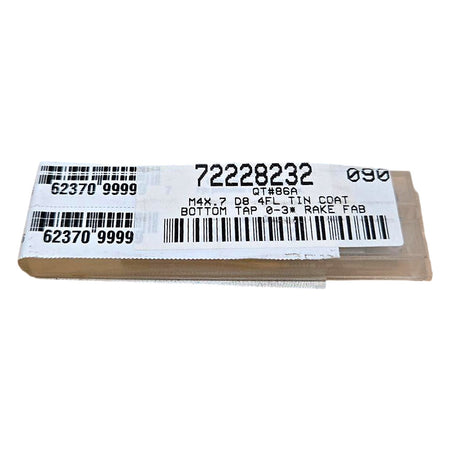

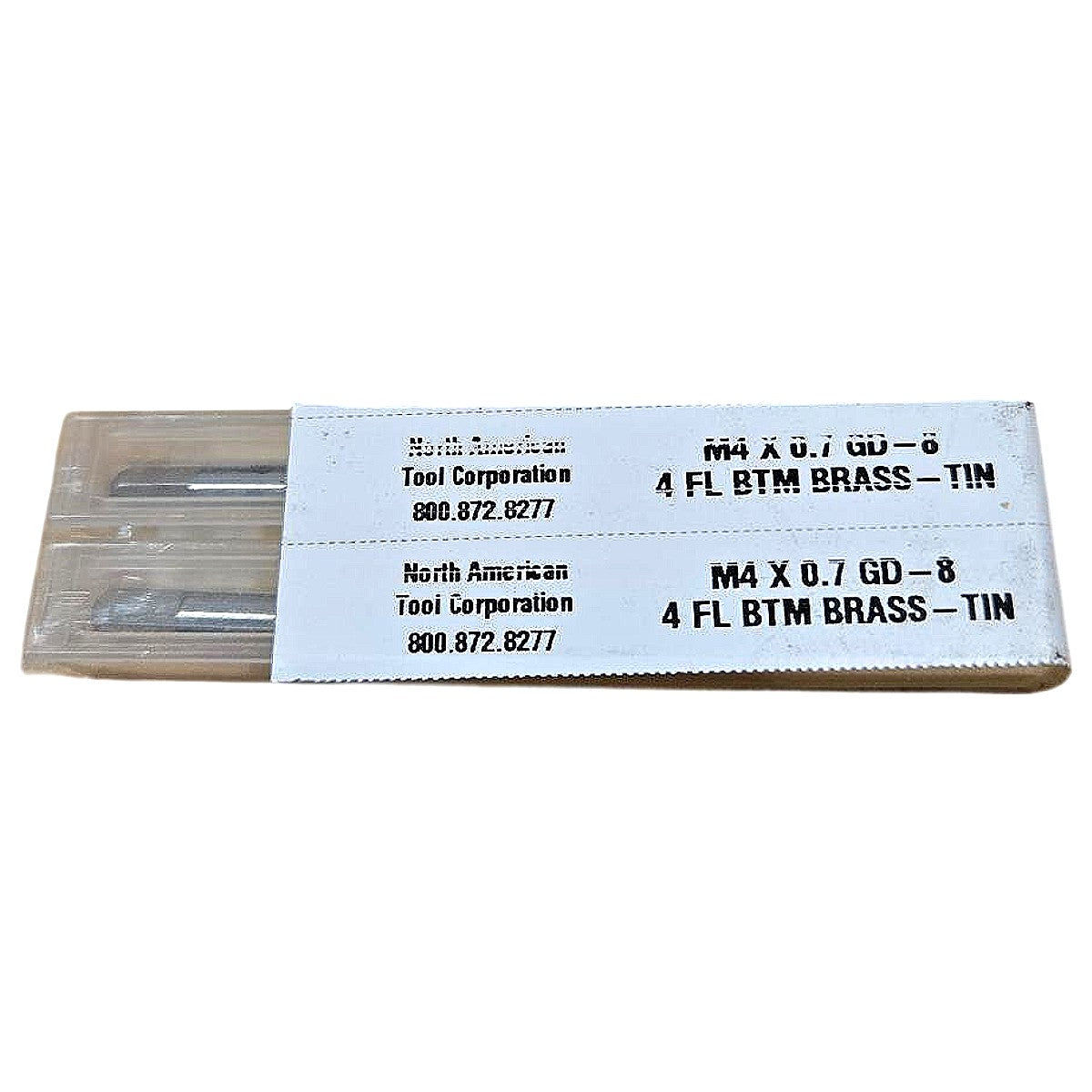

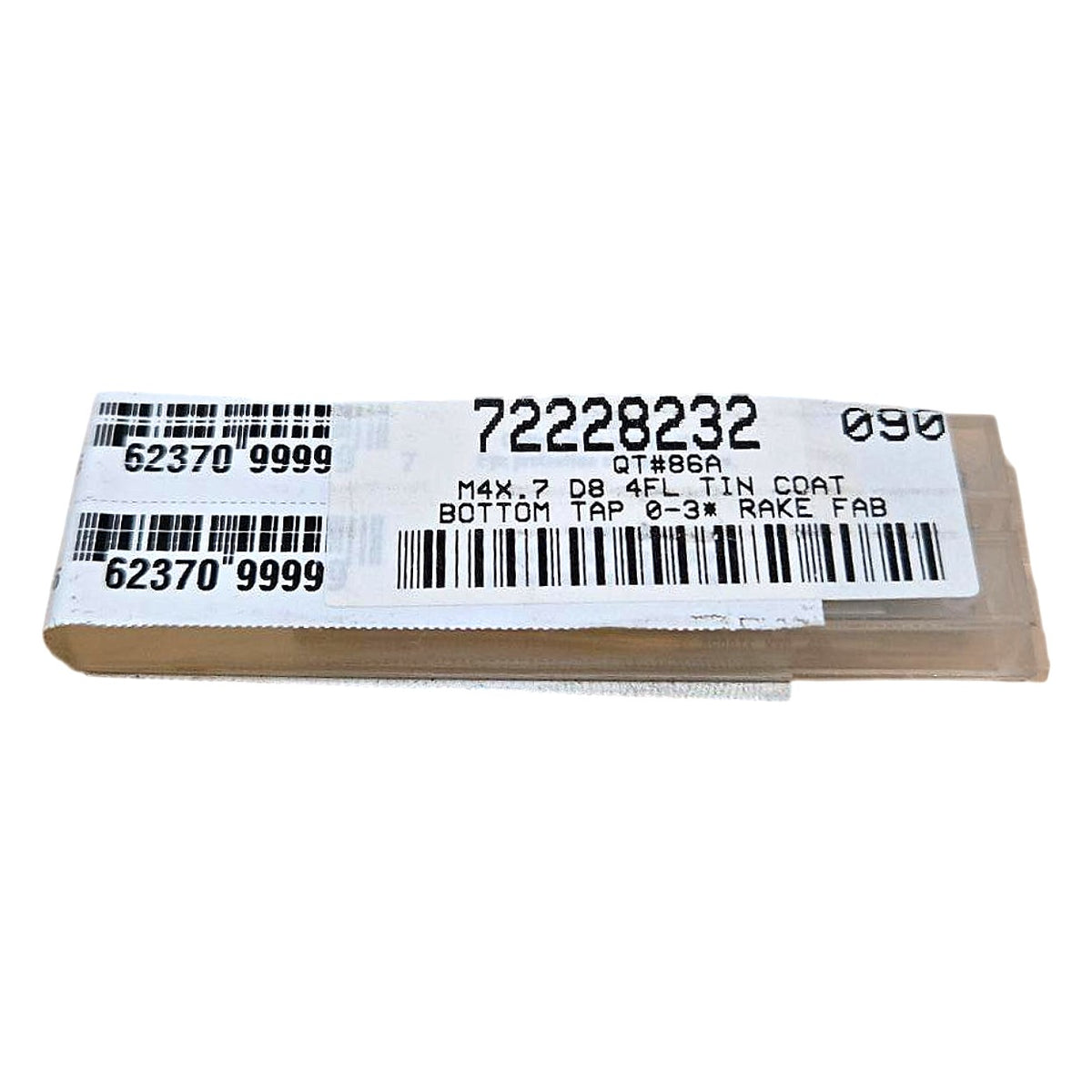

This North American Tool Corporation 310052 is a M4x0.7 metric bottoming tap with a D8 pitch diameter limit, 4 flutes and a TiN (titanium nitride) coating, supplied as a pack of 2 in new condition. The straight-flute, bottom-chamfer design with a 0-3 degree rake is made for cutting threads to the bottom of blind holes in brass and other free-machining copper alloys. The TiN coating adds surface hardness and wear resistance, and the tap has a squared drive end on a reduced-diameter shank for use in a tap wrench or holder. The packaging shows the markings M4 X 0.7 GD-8 4 FL BTM BRASS-TIN and the item number 72228232.
Product Specifications
| Brand | North American Tool Corporation |
| MPN | 310052 |
| Alternate Item Number | 72228232 |
| Thread Size | M4 x 0.7 |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric Coarse |
| Thread Limit | D8 |
| Tap Type | Bottoming |
| Number of Flutes | 4 |
| Flute Type | Straight |
| Coating | TiN |
| Rake Angle | 0-3 Degrees |
| Workpiece Material | Brass |
| Thread Direction | Right Hand |
| Operation | Hand Tapping |
| Quantity per Pack | 2 |
