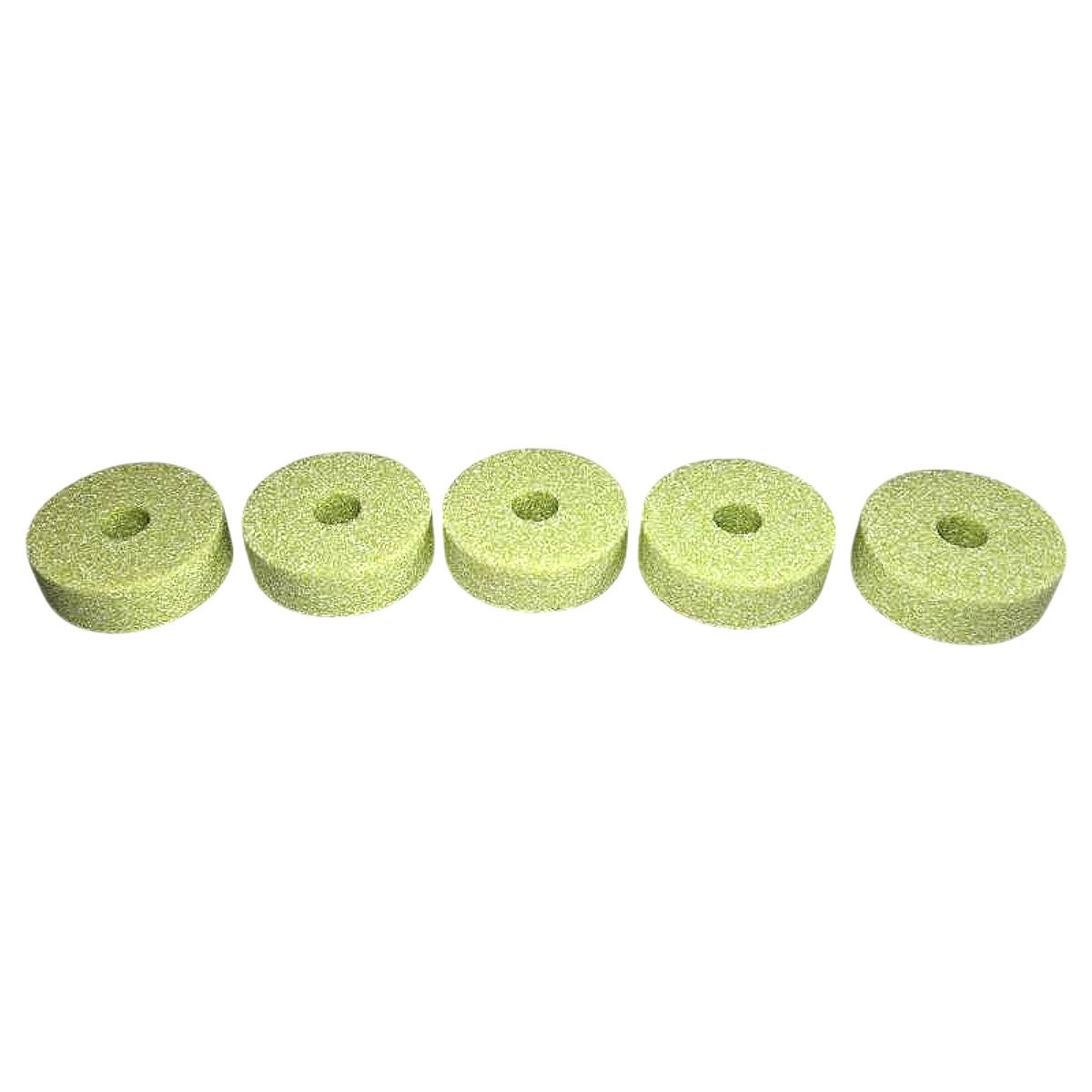

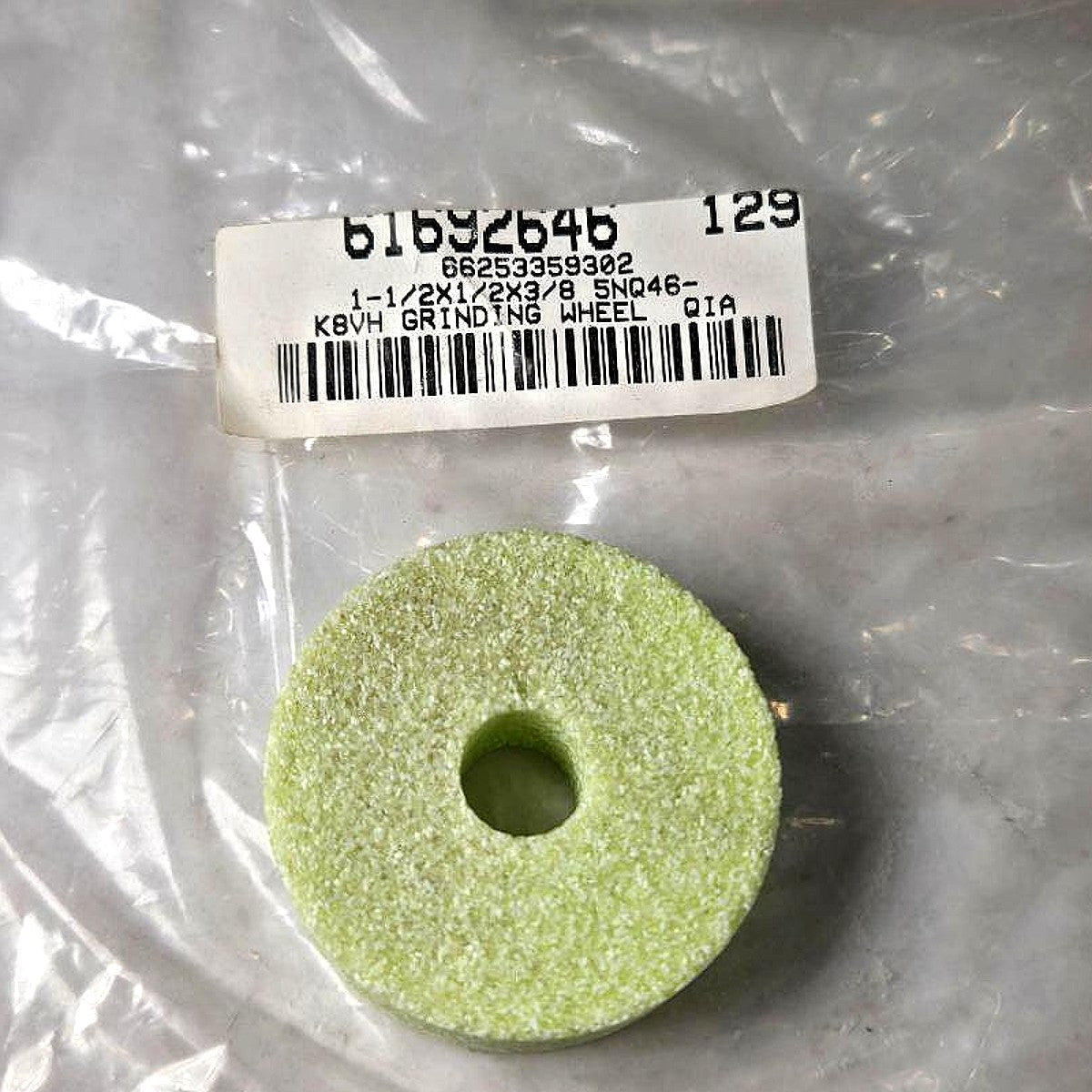

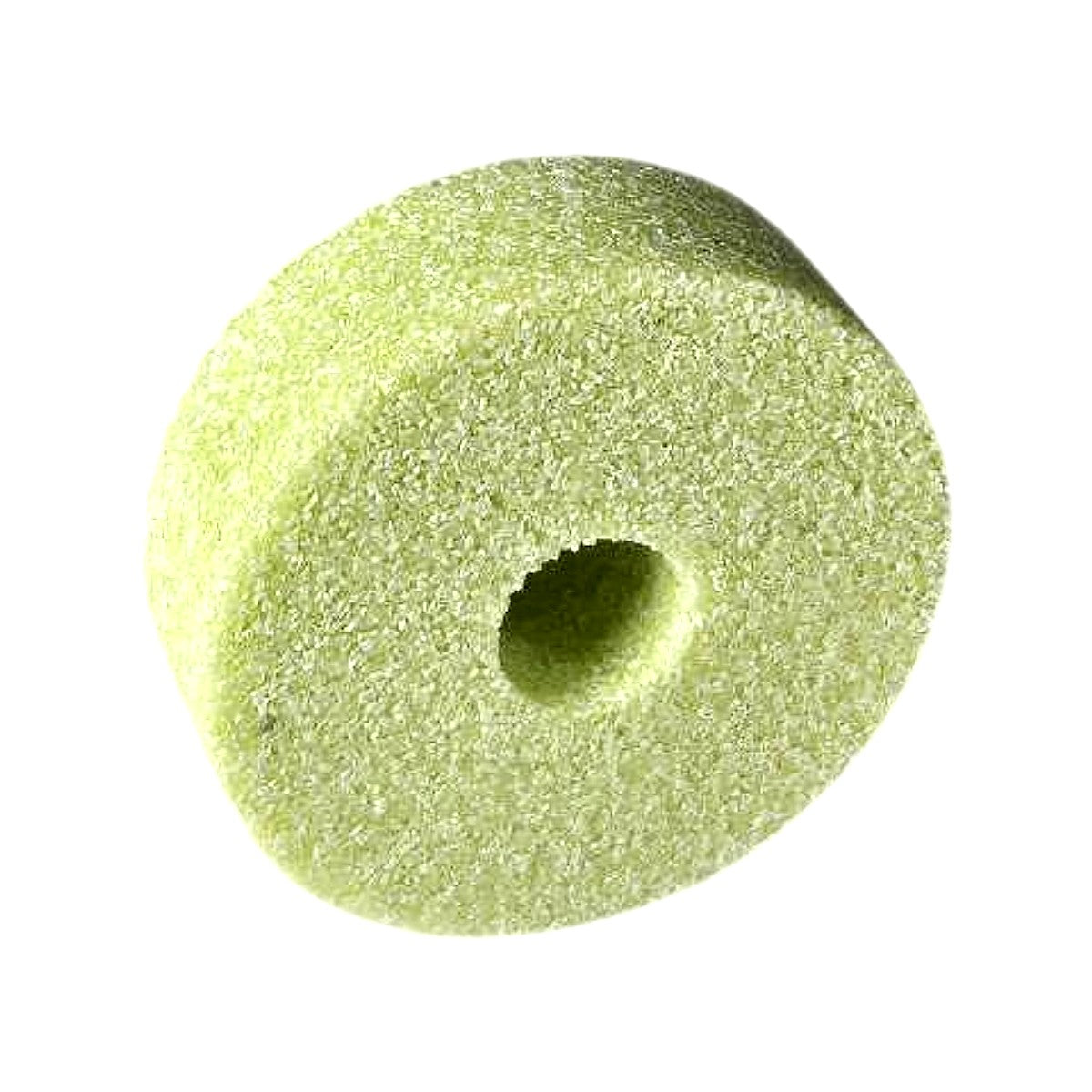

This is a new pack of five Norton Quantum ceramic alumina grinding wheels, specification 5NQ46-K8VH, each measuring 1-1/2 in outside diameter x 1/2 in thick with a 3/8 in arbor hole. The designation decodes to a 5NQ Norton Quantum abrasive, 46 grit, K (medium) hardness grade, 8 structure, and VH vitrified bond. The wheels are light green and are straight-profile discs with a porous, open-grained face. Vitrified-bond wheels of this size are used on small bench, tool-post and die grinders for tool and cutter sharpening and general off-hand or precision grinding. The label on the bag carries Norton item number 61692646 and number 66253359302.
Product Specifications
| Brand | Norton |
| MPN | 5NQ46-K8VH |
| Item Number | 61692646 |
| Alternate Part Number | 66253359302 |
| Abrasive Type | Quantum Ceramic Alumina (5NQ) |
| Series | Norton Quantum |
| Grit Size | 46 |
| Hardness Grade | K (Medium) |
| Structure | 8 |
| Bond Type | VH (Vitrified) |
| Outside Diameter | 1-1/2 in |
| Thickness | 1/2 in |
| Arbor Hole Size | 3/8 in |
| Color | Light Green |
| Wheel Shape | Straight (Type 1) |
| Quantity per Pack | 5 |
