2 Stage Vacuum Pump 9 cfm 3/4 hp Rotary Vane Vacuum Pump 1.5 Micron Vacuum Oil
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

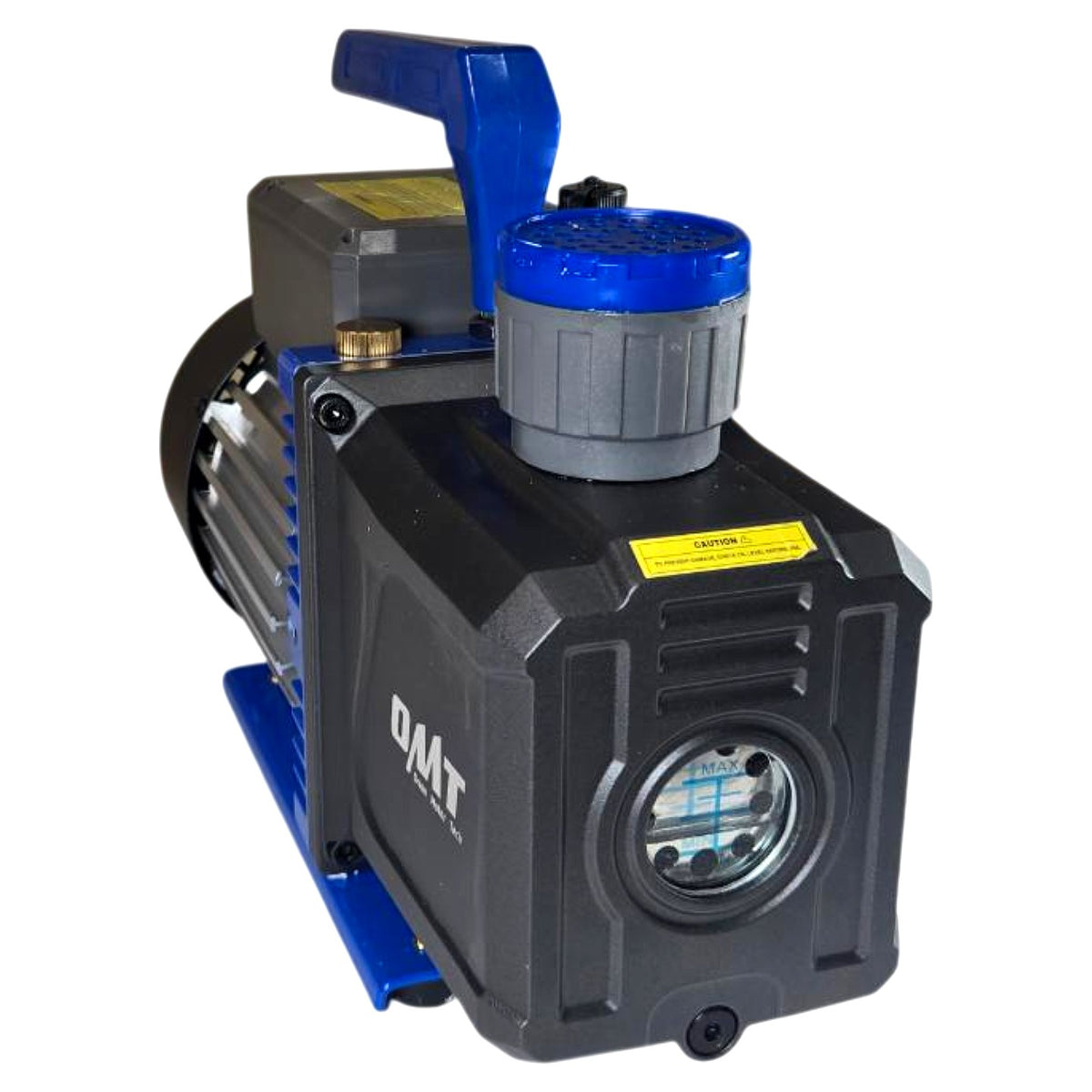

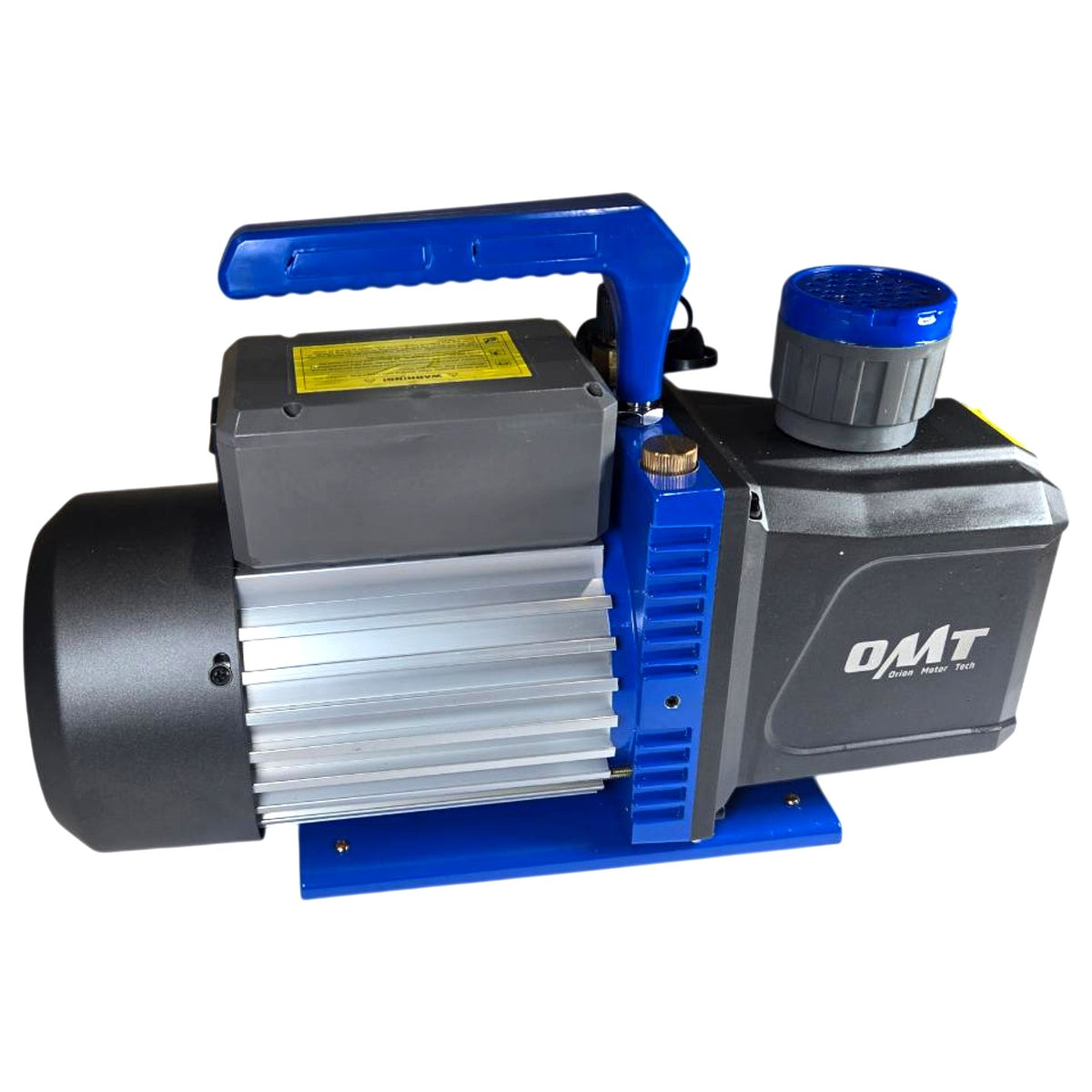

The Orion Motor Tech (OMT) Model 2RS-3+ is a new two-stage rotary vane vacuum pump rated at 9 CFM displacement, achieving an ultimate vacuum of 0.2 Pa — making it suitable for HVAC system evacuation, refrigerant recovery, and air conditioning service on R-410A, R-22, R-134a, and other common refrigerants. The 3/4 HP motor runs on 110V / 60 Hz single-phase power with an IEC C14 inlet connector and a front-panel rocker switch; the aluminum-finned pump body dissipates heat efficiently during extended pull-down operations. An oil-level sight glass on the pump body allows visual monitoring of the 500 mL (16.9 fl. oz.) oil capacity without disassembly, and a top-mounted oil-mist separator/exhaust filter reduces oil carryover during operation. The kit ships new with power cord, user manual, and a pair of nitrile-coated work gloves; the blue steel base plate provides stable bench mounting.
Product Specifications
| Brand | Orion Motor Tech (OMT) |
| Model Number | 2RS-3+ |
| Pump Type | Two-Stage Rotary Vane |
| Displacement (Flow Rate) | 9 CFM |
| Ultimate Vacuum | 0.2 Pa |
| Motor Power | 3/4 HP |
| Power Supply | 110V / 60 Hz |
| Power Connector | IEC C14 (standard 3-prong) |
| Oil Capacity | 16.9 fl. oz. (500 mL) |
| Oil Sight Glass | Yes, front-mounted |
| Exhaust Filter / Oil Separator | Yes, top-mounted mist separator |
| Pump Stages | 2 |
| Number of Stages | 2 |
| Includes | Power cord, user manual, nitrile work gloves |
| Country of Origin | China |
| Condition | New |
