OSG 1500100900LF No.6-32 UNC 2B Go/No-Go Thread Plug Gage PD .1177/.1214
Regular price
$85.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

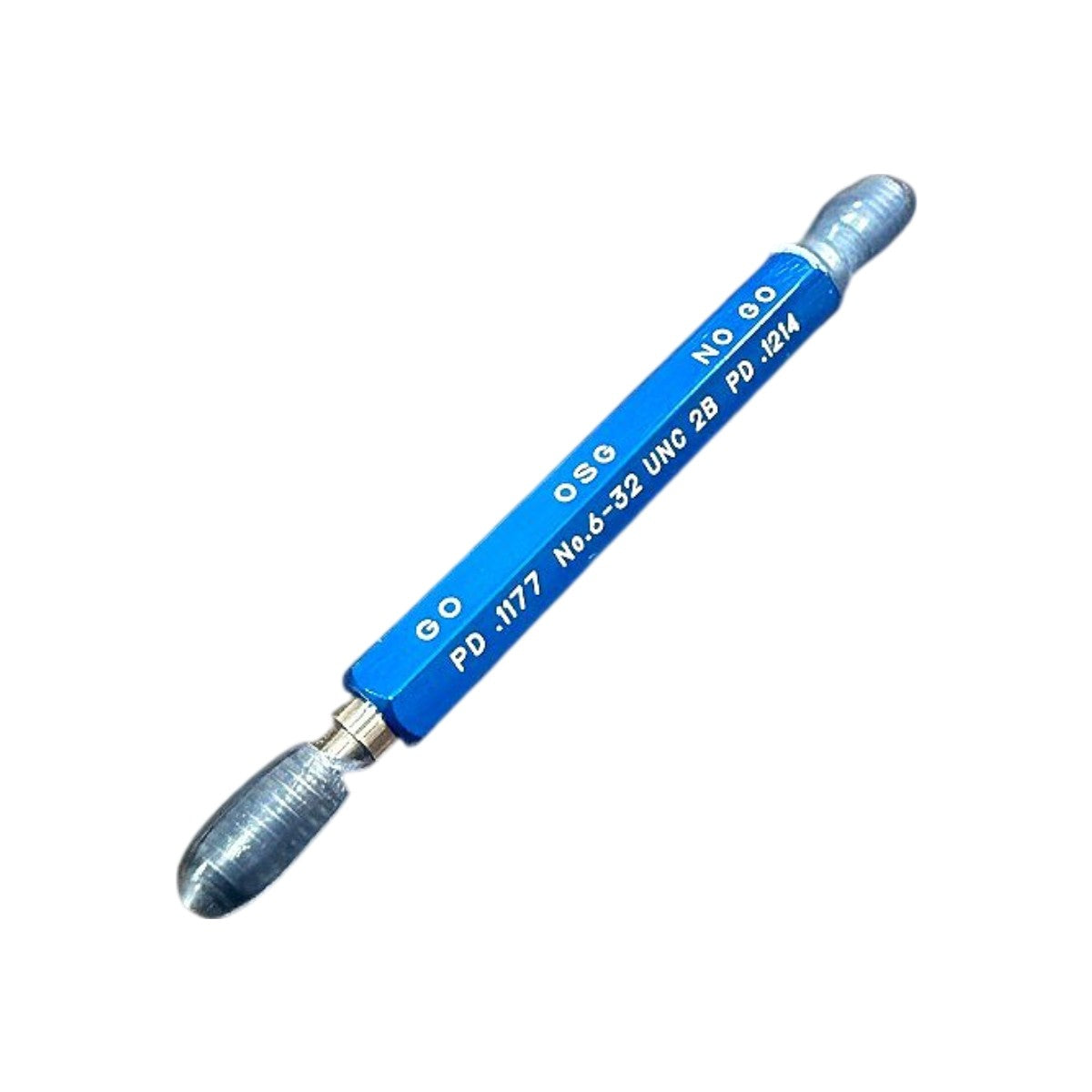

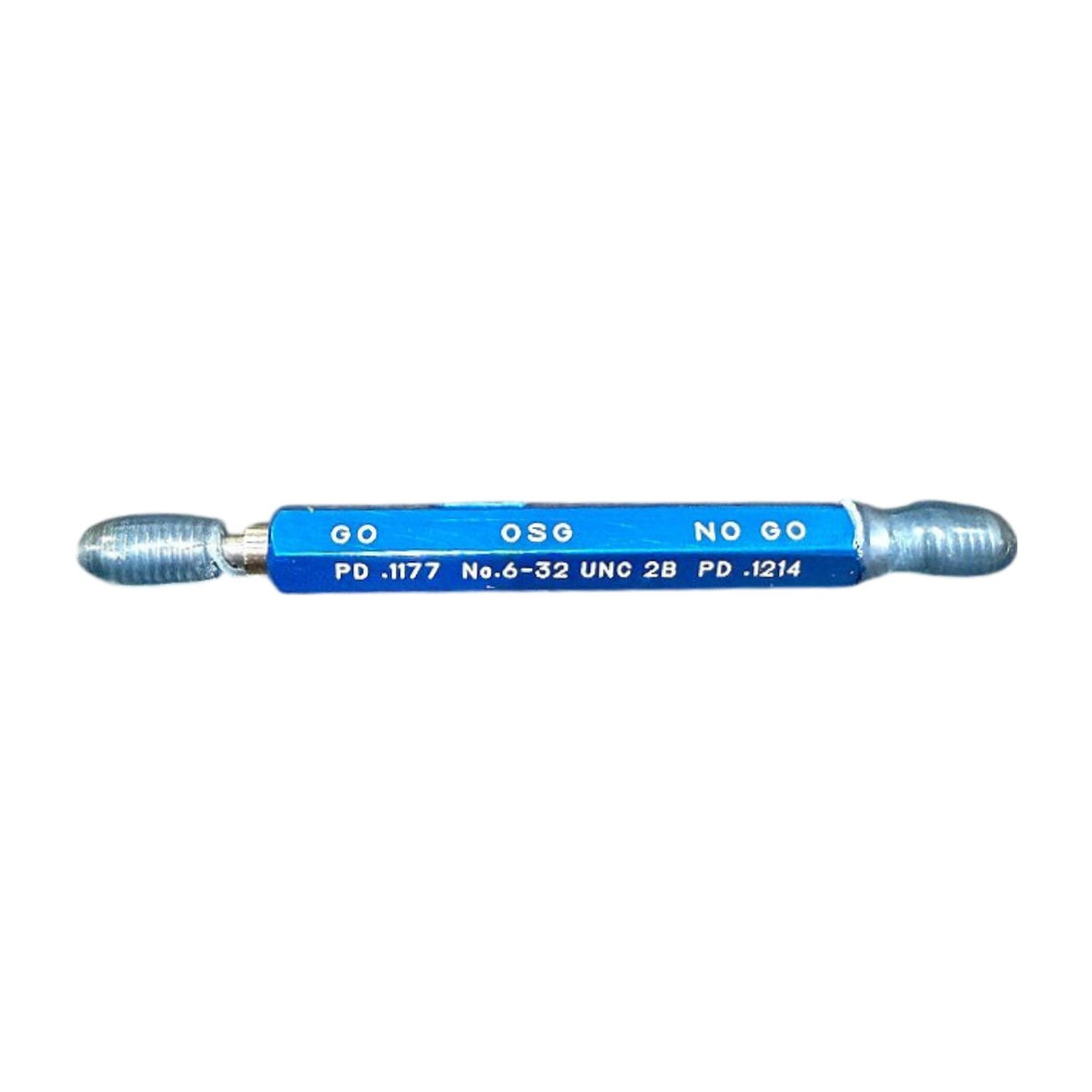

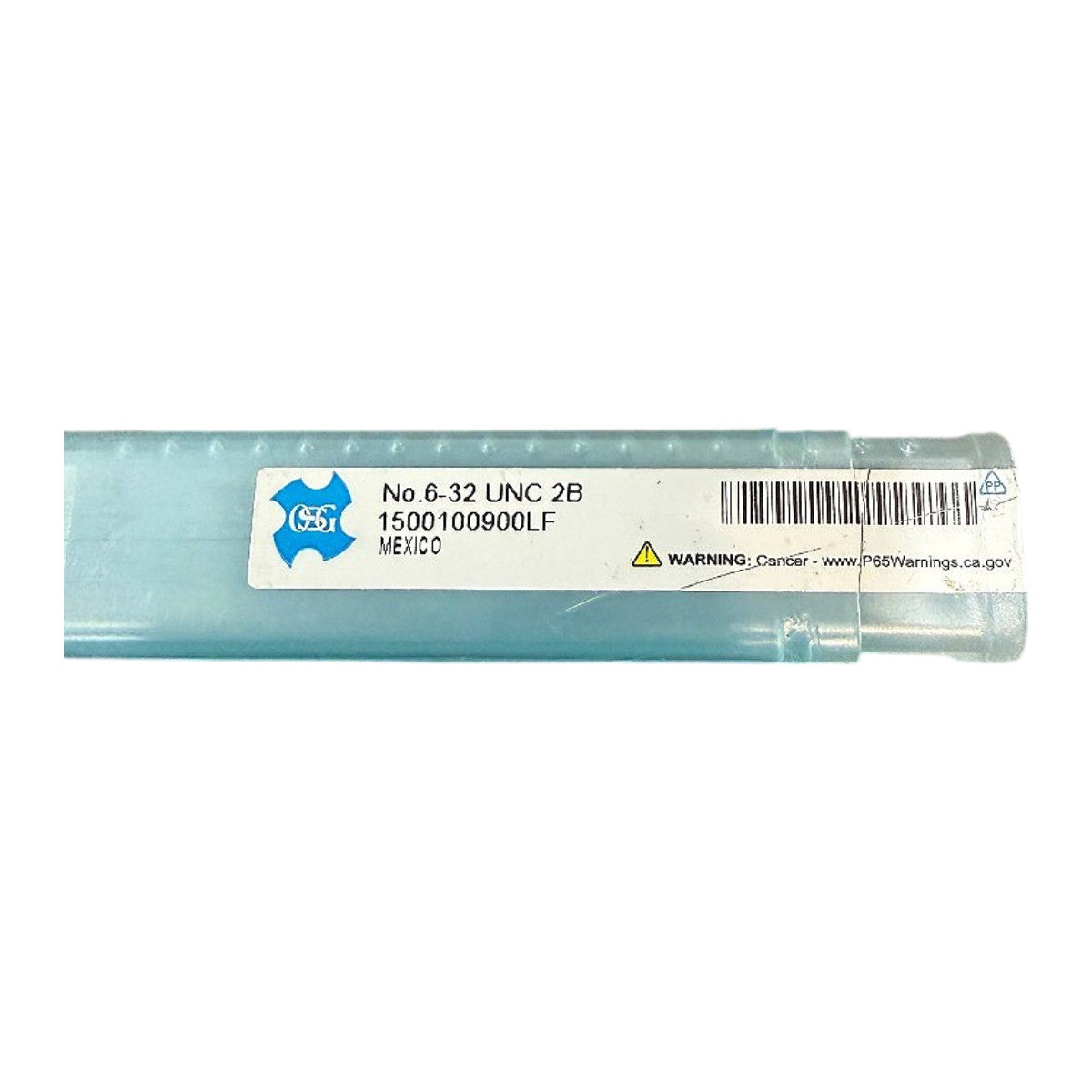

This OSG 1500100900LF is a double-end Go/No-Go thread plug gage for inspecting internal No.6-32 UNC class 2B threads. The Go member is marked PD .1177 and the No-Go member PD .1214, so the pitch diameter of a tapped hole can be checked against the class 2B limits. The gage has a blue hex handle with a gaging member at each end, is made in Mexico, and ships in the original clear sleeve. This item is new.
Product Specifications
| Brand | OSG |
| MPN | 1500100900LF |
| Thread Size | No.6-32 |
| Thread Standard | UNC |
| Thread Class | 2B |
| Threads Per Inch | 32 TPI |
| Gage Type | Go/No-Go Plug Gage |
| Go Pitch Diameter | .1177 in |
| No-Go Pitch Diameter | .1214 in |
| Number of Ends | 2 (Go and No-Go) |
| Thread Type | Internal |
| Thread Direction | Right Hand |
| Handle Color | Blue |
| Country of Origin | Mexico |
