OSG 1653503908 1/2-20 GH5 TiCN 3-Flute Spiral Point Plug Tap
Regular price
$53.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

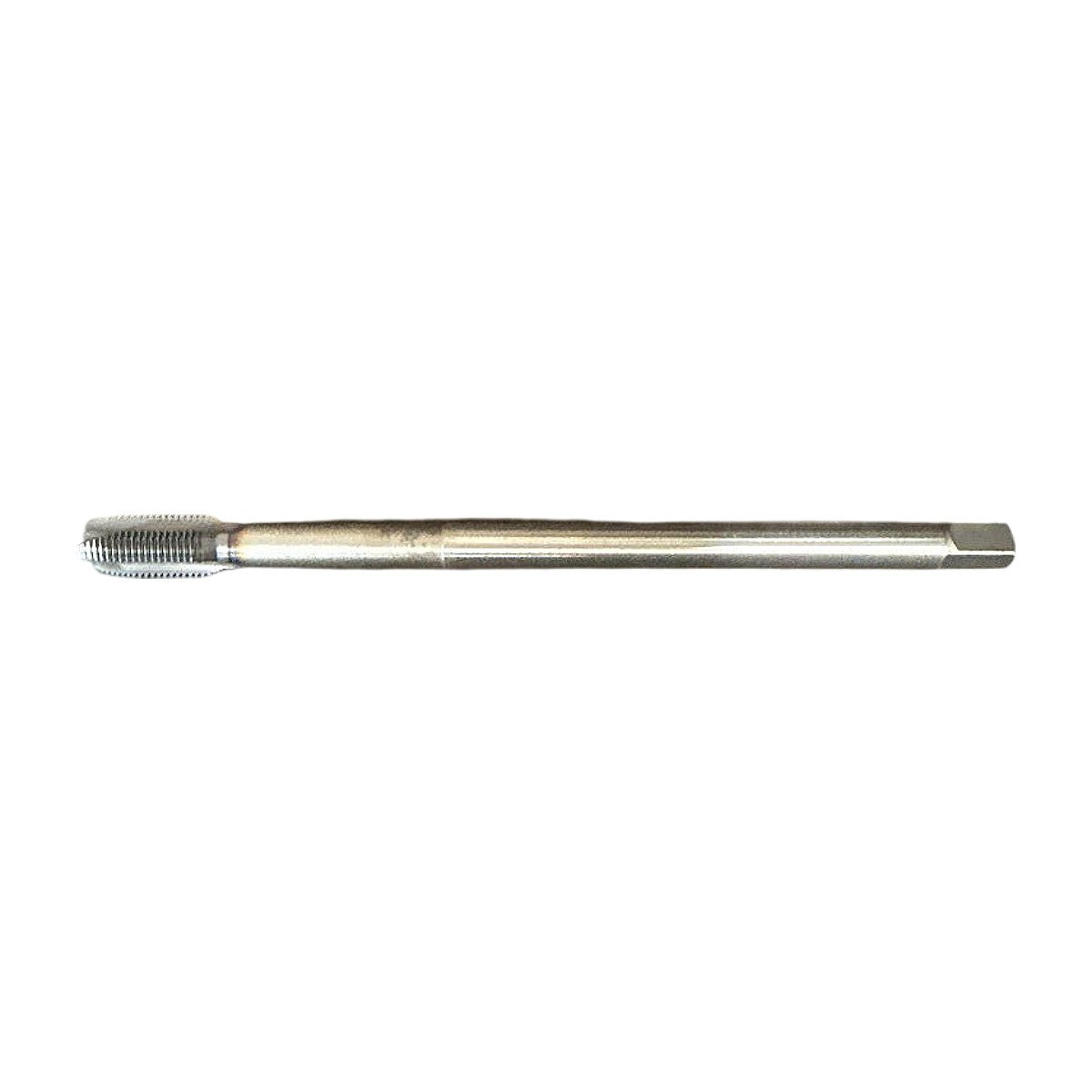

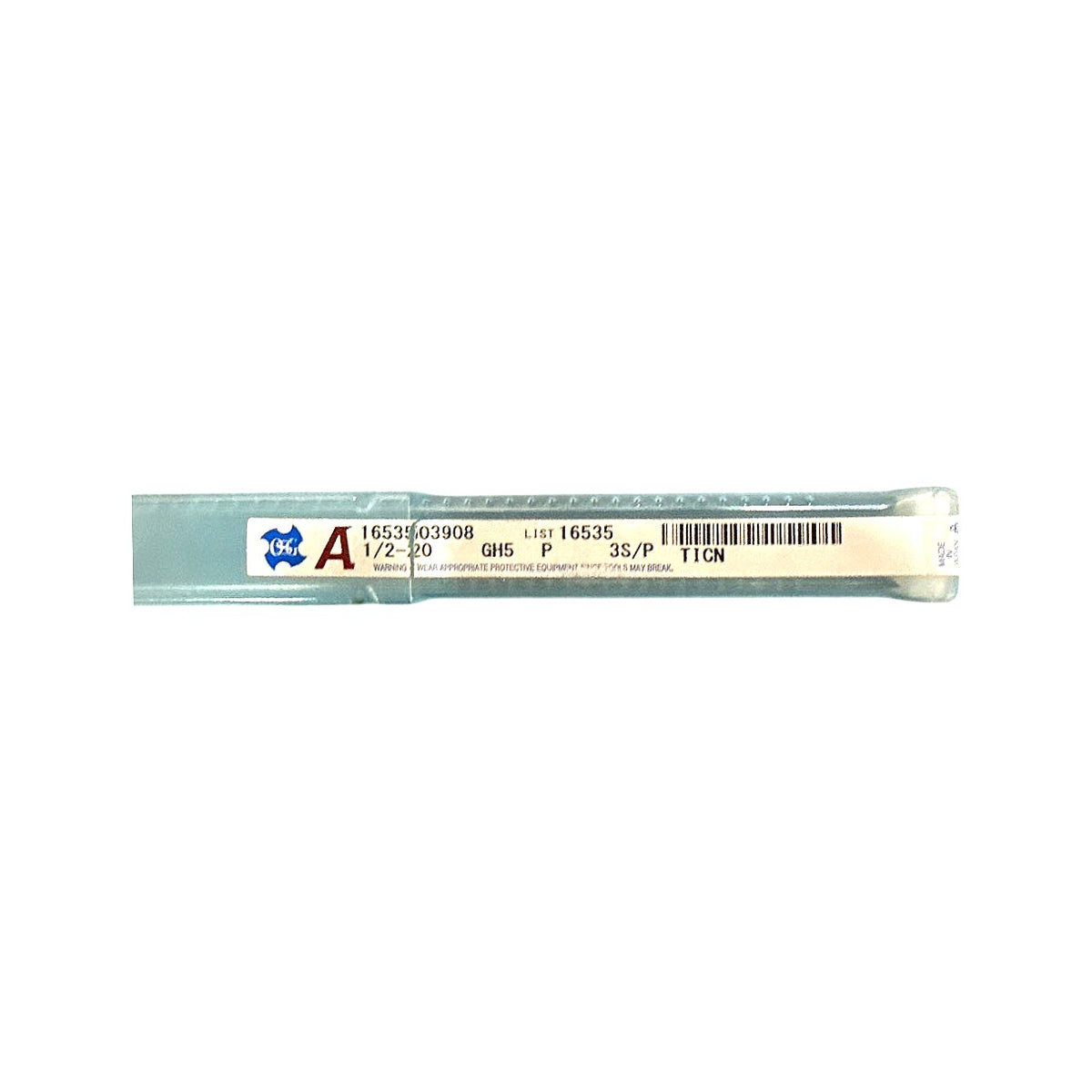

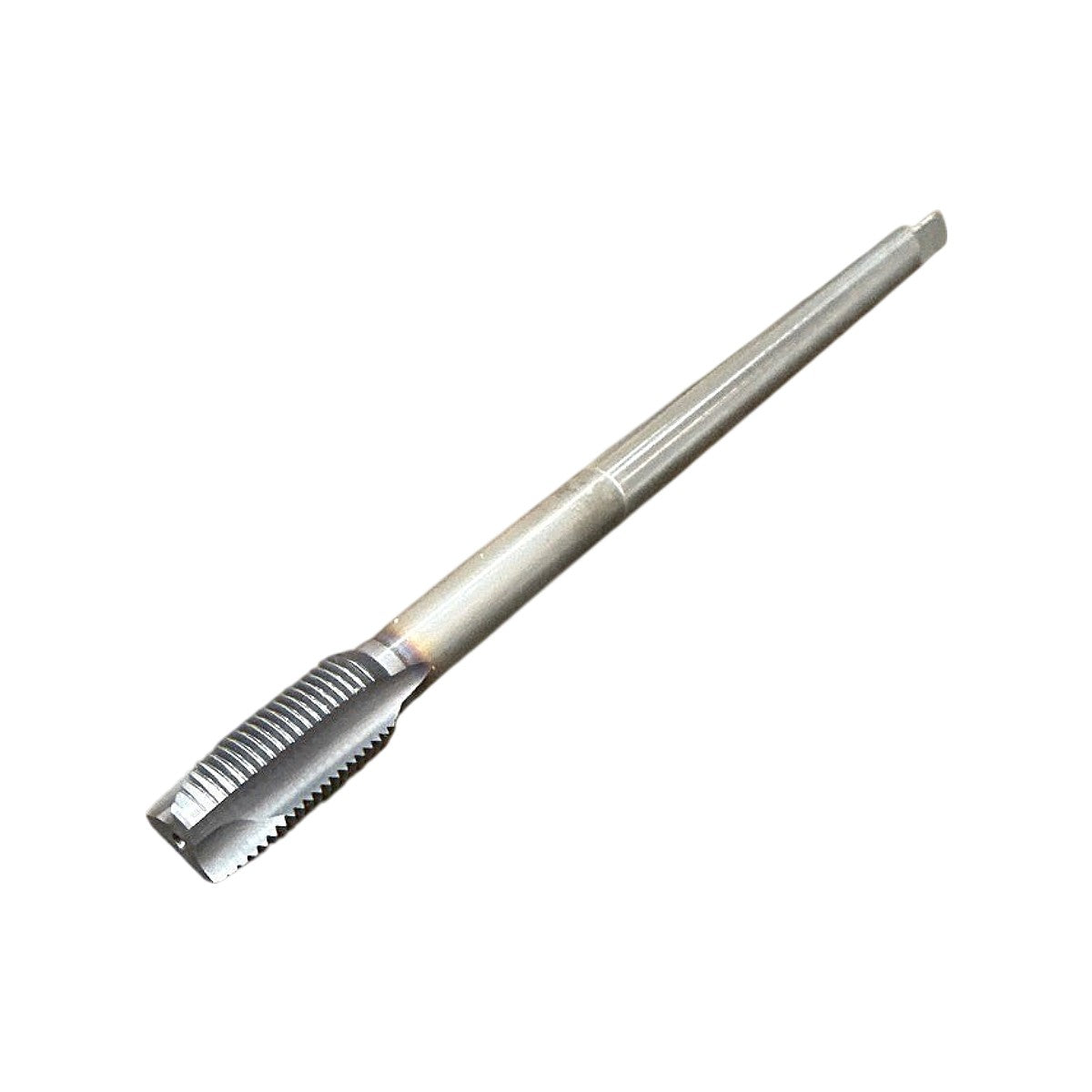

This OSG 1653503908 (List 16535) is a 1/2-20 UNF spiral point (gun) tap with 3 flutes and a GH5 pitch diameter limit, with a TiCN coating as marked on the manufacturer's label. The spiral point geometry pushes chips ahead of the tap, which makes it suited to tapping through holes, and the bottoming-style chamfer designation on the label is P (plug). It has an extended, reduced-diameter shank ending in a square drive, which gives reach into deeper or recessed holes. Made in Japan and sold new in its original OSG tube packaging.
Product Specifications
| Brand | OSG |
| MPN | 1653503908 |
| List Number | 16535 |
| Thread Size | 1/2-20 |
| Thread Standard | UNF |
| Thread Limit | GH5 |
| Number of Flutes | 3 |
| Tap Style | Spiral Point (Gun) |
| Chamfer | Plug |
| Coating | TiCN |
| Tool Material | HSS |
| Hand | Right Hand |
| Shank Type | Reduced shank w/ square drive |
| Operation | Tapping, Through Holes |
| Country of Origin | Japan |
