OSG 1662501517 9.7x33.87 9/16-12 U12-INT 5 flute Solid Carbide Thread Mill
Regular price
$186.19
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

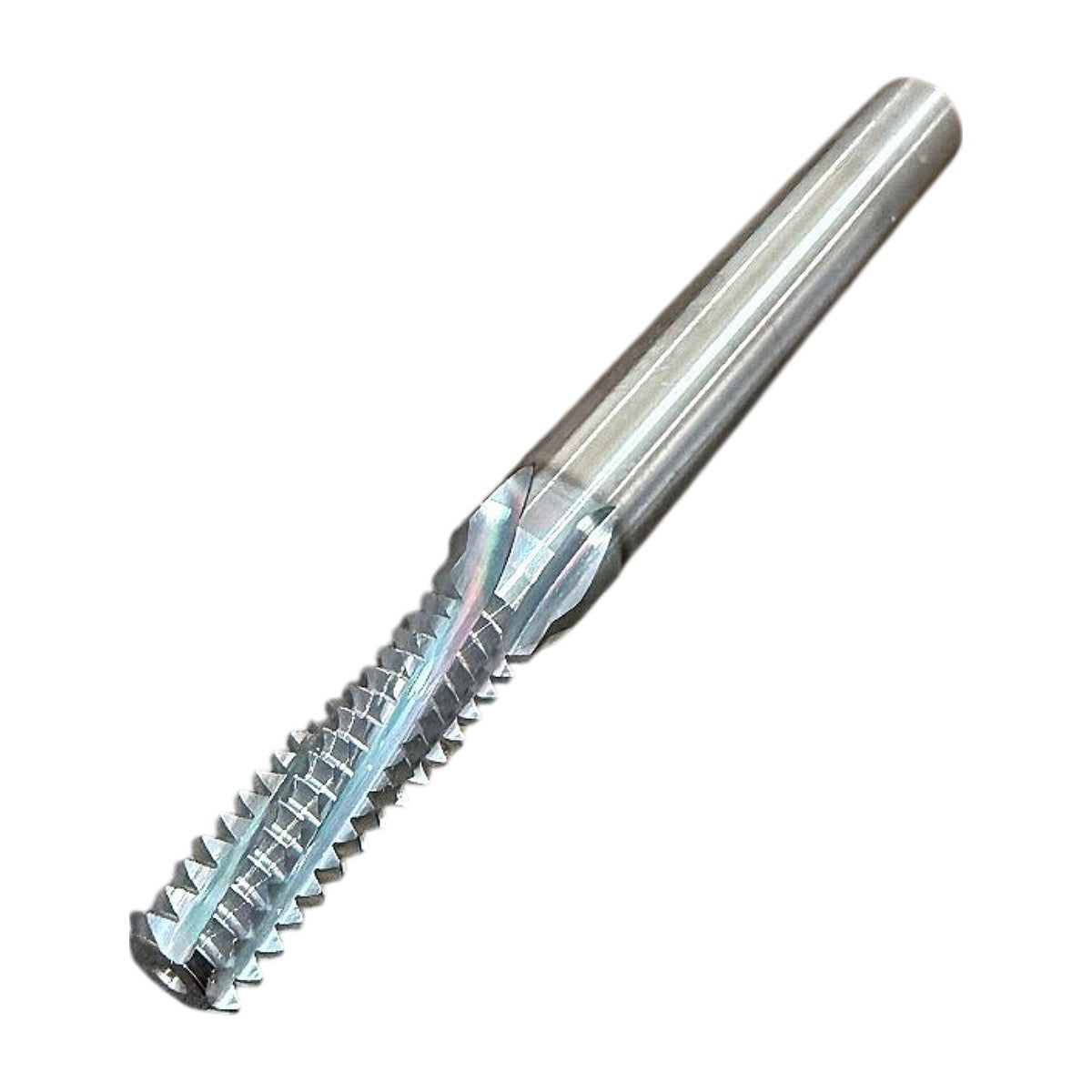

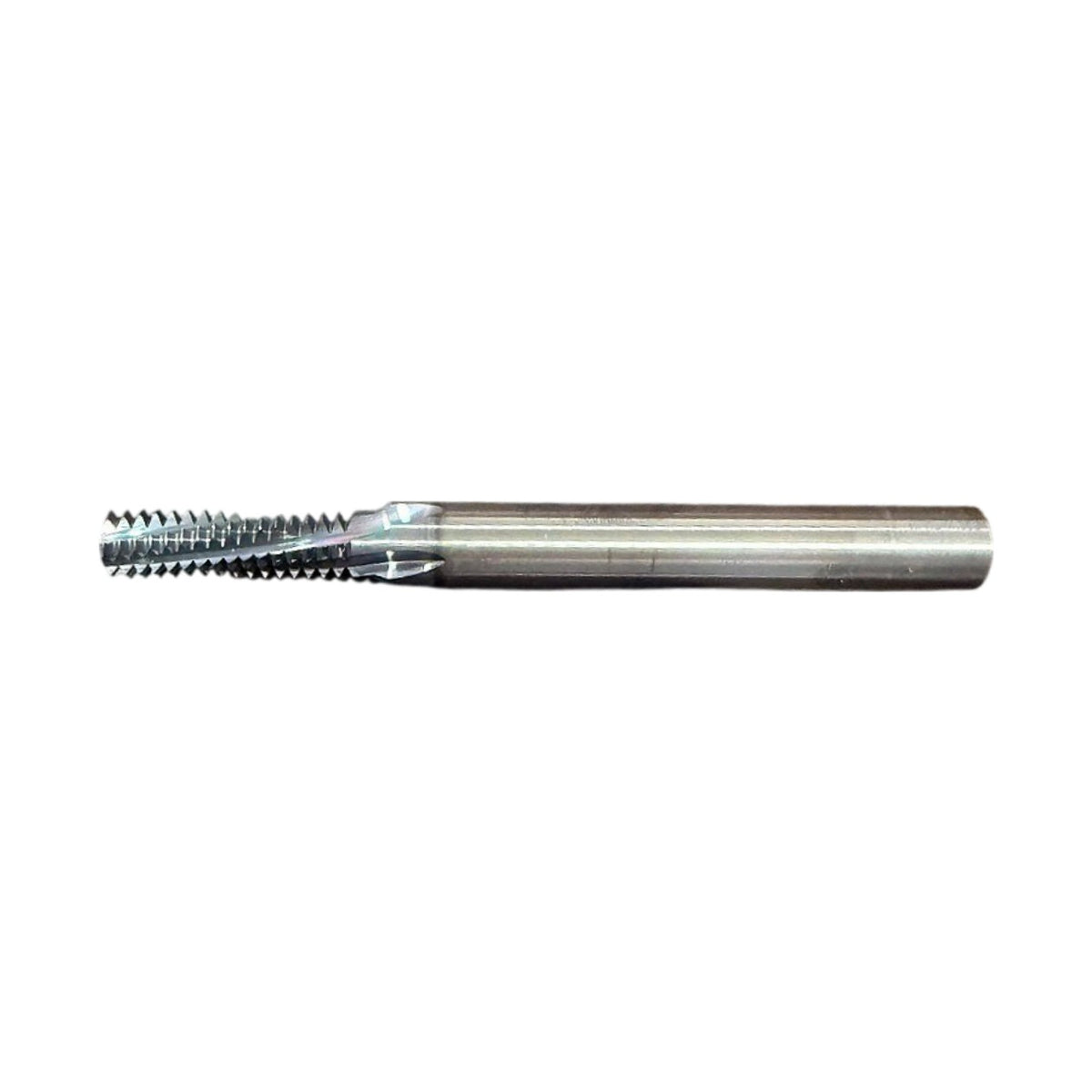

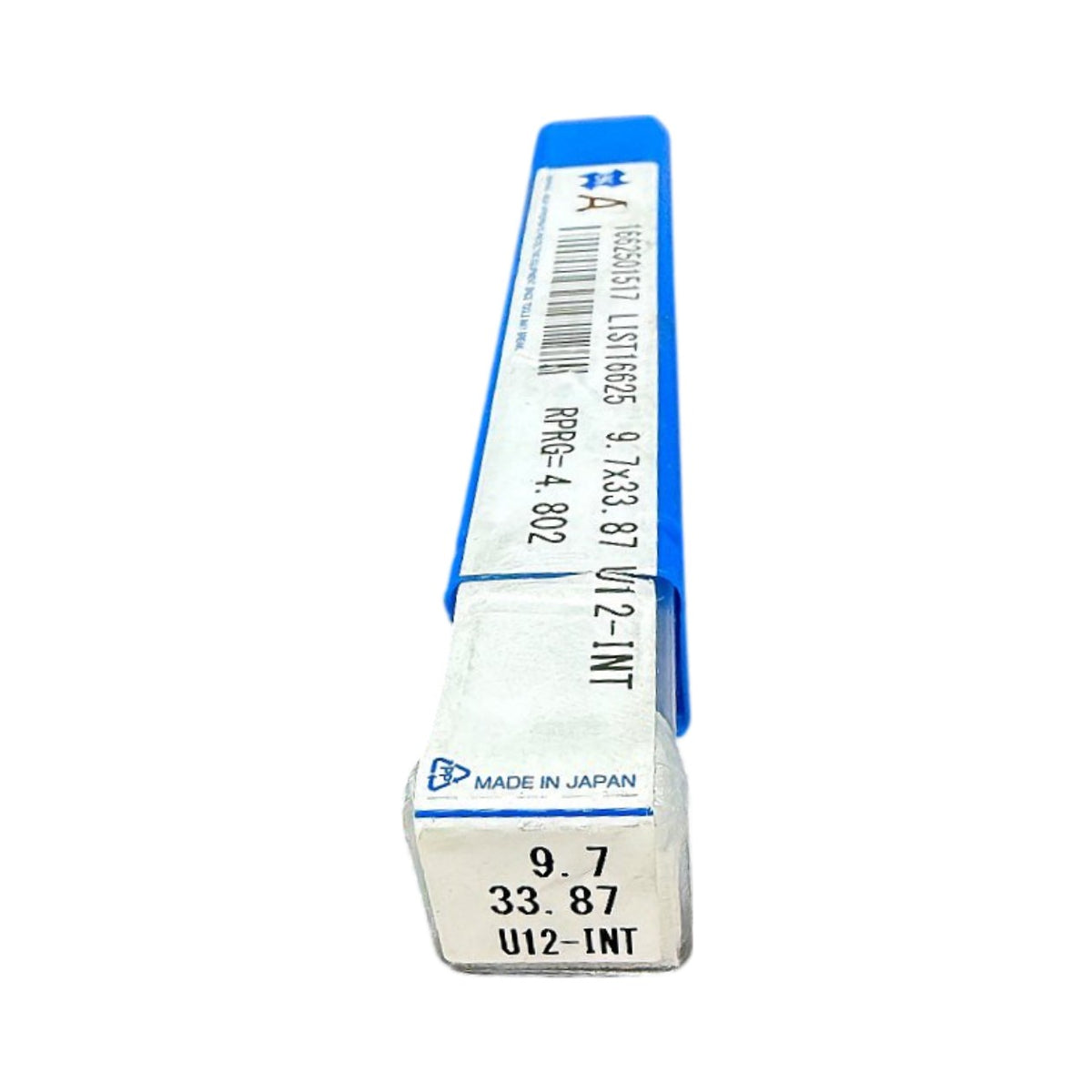

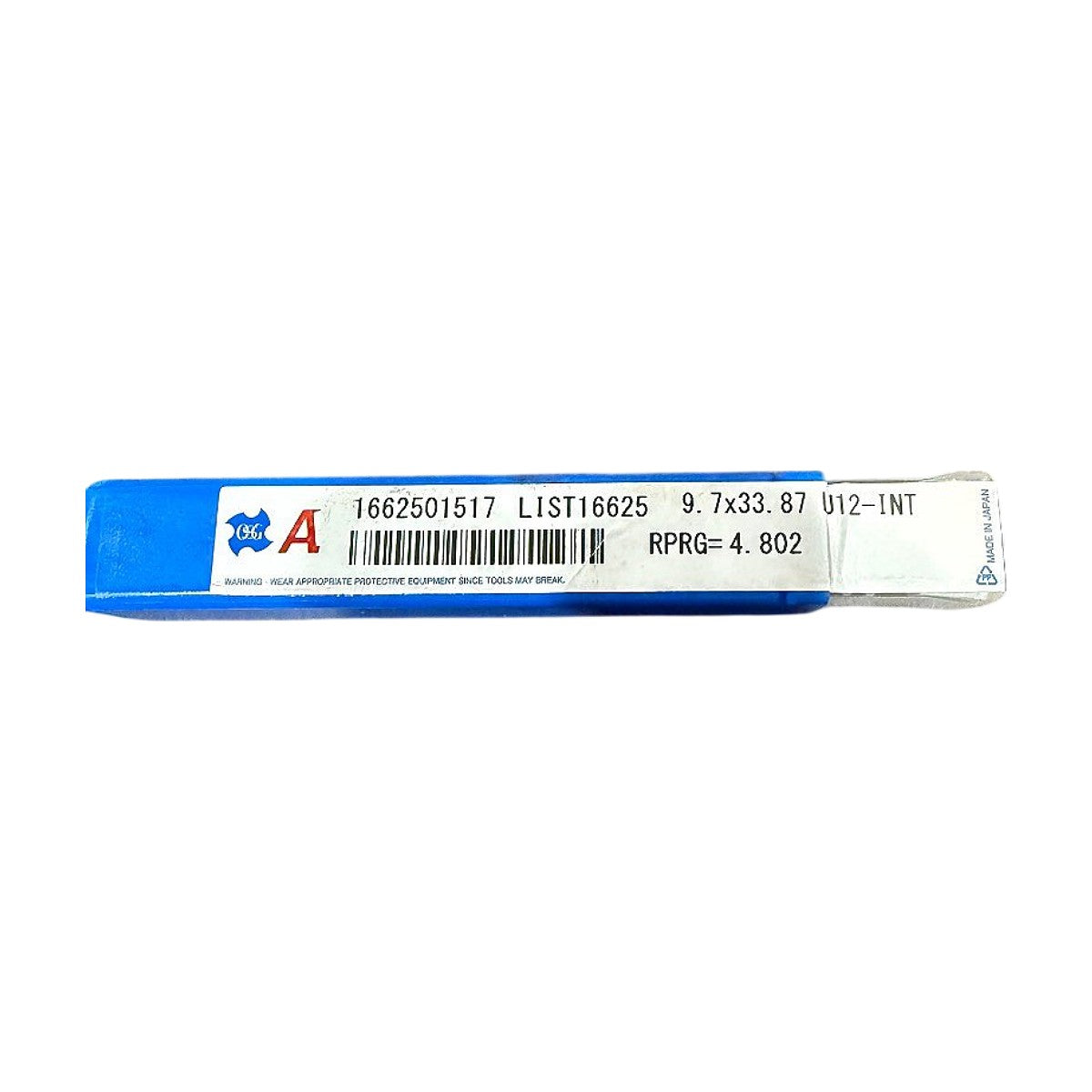

This OSG 1662501517 (catalog list LIST16625) is a solid carbide internal thread mill with a 9.7 mm cutting diameter and a 33.87 mm length of cut, designated U12-INT for 12 threads per inch unified internal threads. The 33.87 mm cut length equals 16 pitches of a 12 TPI thread. It is a multi-flute helical-flute design with a straight cylindrical shank and an iridescent coated cutting section, and the box carries an RPRG value of 4.802 for CNC thread-milling programming. Thread mills cut internal threads by helical interpolation on CNC milling machines or machining centers. Made in Japan, and this unit is new.
Product Specifications
| Brand | OSG |
| MPN | 1662501517 |
| Catalog/List Number | LIST16625 |
| Cutting Diameter | 9.7 mm |
| Length of Cut | 33.87 mm |
| Thread Form/Pitch | U12 (12 TPI, Unified) |
| Threads Per Inch | 12 |
| Thread Type | Internal |
| Material | Solid Carbide |
| Coating | PVD Coated |
| Number of Flutes | 5 |
| Operation | Thread Milling |
| Hand | Right Hand |

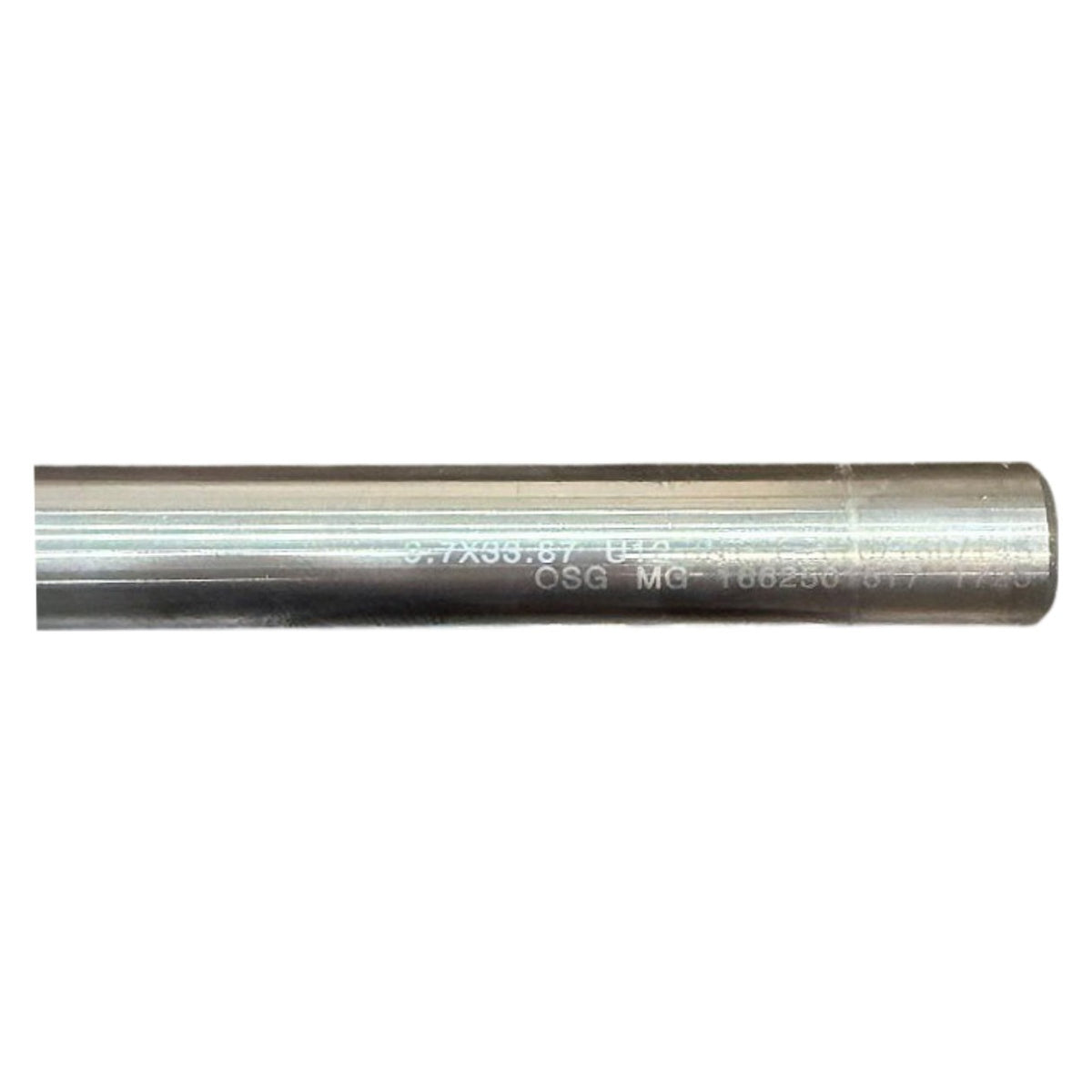

| Shank Type | Straight Cylindrical |
| RPRG Value | 4.802 |
| Country of Origin | Japan |
