OSG 430-8197 3/4 in Ball Nose 4-Flute Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

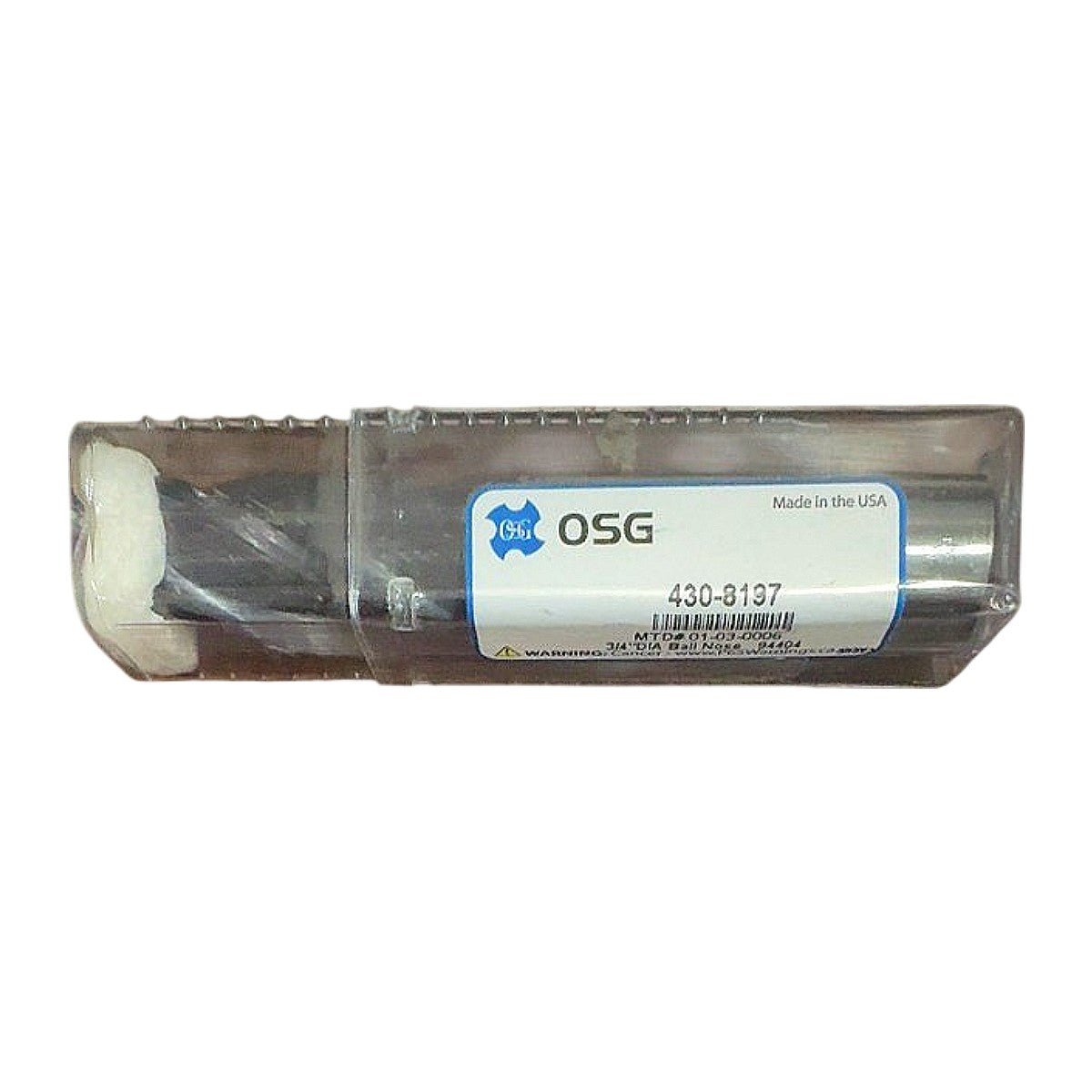

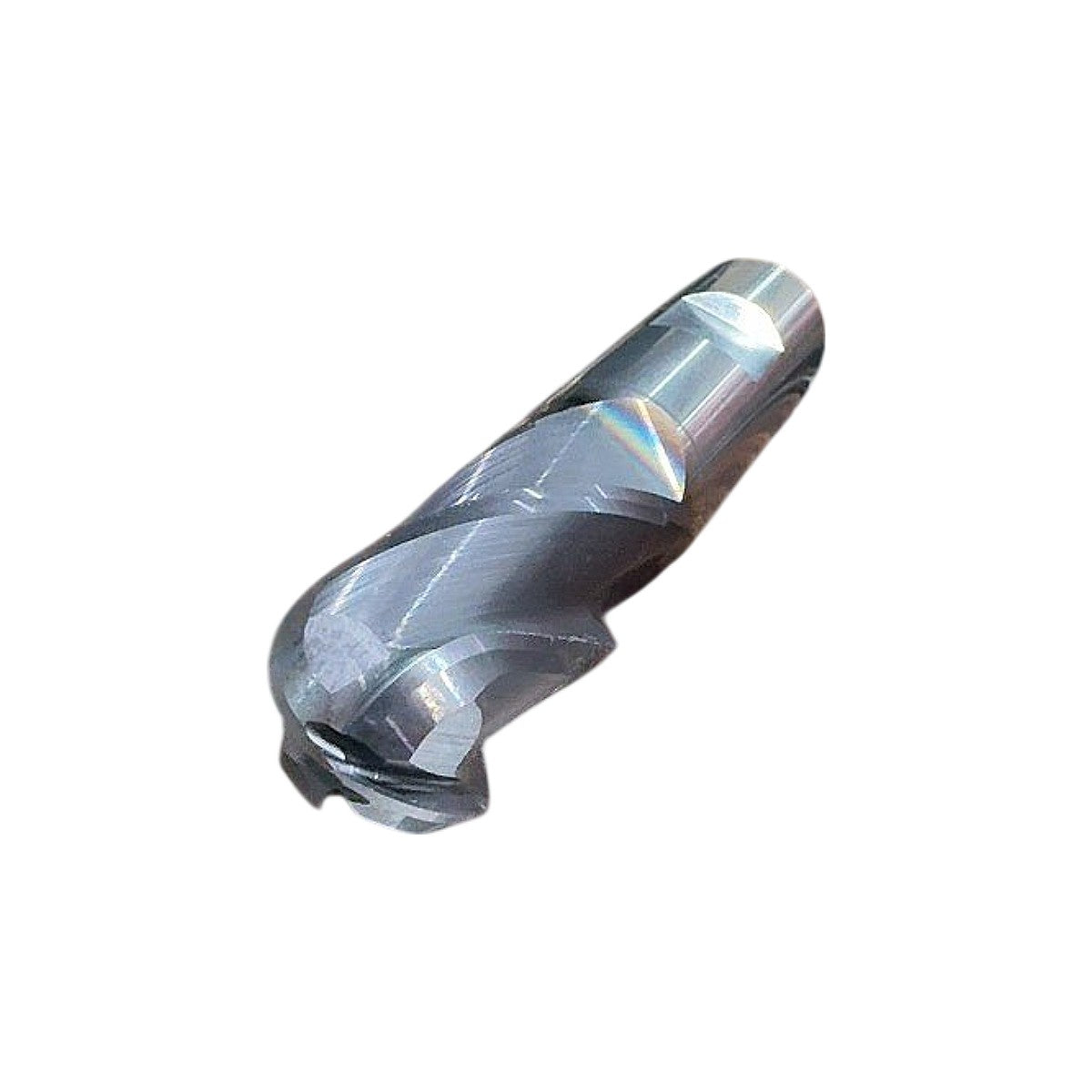

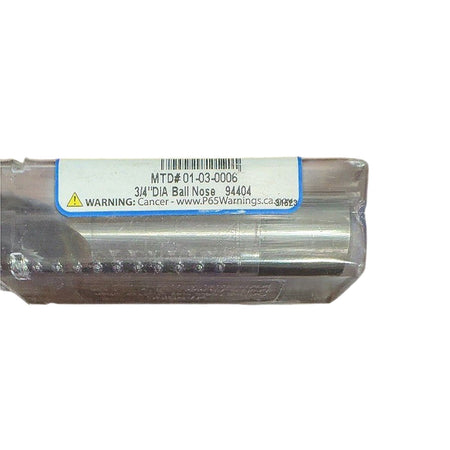

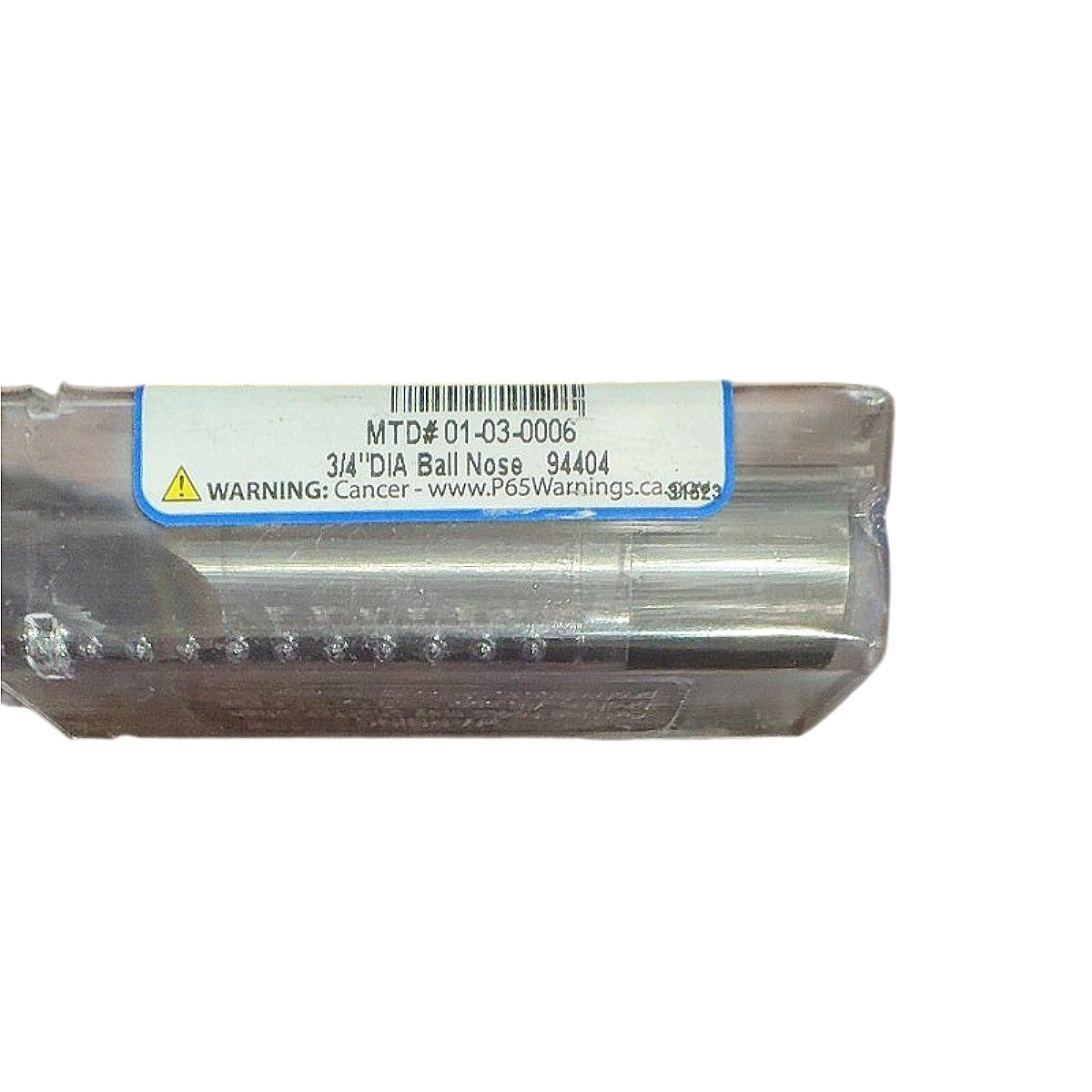

The OSG 430-8197 is a new, solid carbide 4-flute ball nose end mill with a 3/4 in (0.750 in) cutting diameter, made in the USA and sold under OSG's 94404 series designation. The dark gray/black coating visible on the flutes is consistent with OSG's proprietary TiAlN-family coating (TICN or A-Coat), which provides elevated heat resistance and extended tool life in hardened steels, alloy steels, stainless, and cast iron. OSG's 430-series ball nose end mills feature a right-hand helix and right-hand cut geometry with a 3/4 in straight shank, making them compatible with standard ER, Weldon, and shrink-fit toolholders sized for 3/4 in shanks. The ball nose profile is suited for 3D contouring, profiling, and finishing operations on CNC machining centers. MTD# 01-03-0006 is a distributor tracking number and does not affect technical specification.
Product Specifications
| Brand | OSG |
| Part Number (OSG) | 430-8197 |
| Series | 94404 |
| Country of Origin | USA |
| Cutting Diameter | 3/4 in (0.750 in) |
| End Type | Ball Nose |
| Number of Flutes | 4 |
| Shank Diameter | 3/4 in |
| Shank Type | Straight |
| Material | Solid Carbide |
| Coating | TiAlN-family (dark, multi-layer) |
| Cut Direction | Right-Hand Cut |
| Helix Direction | Right-Hand Helix |
| Condition | New |
