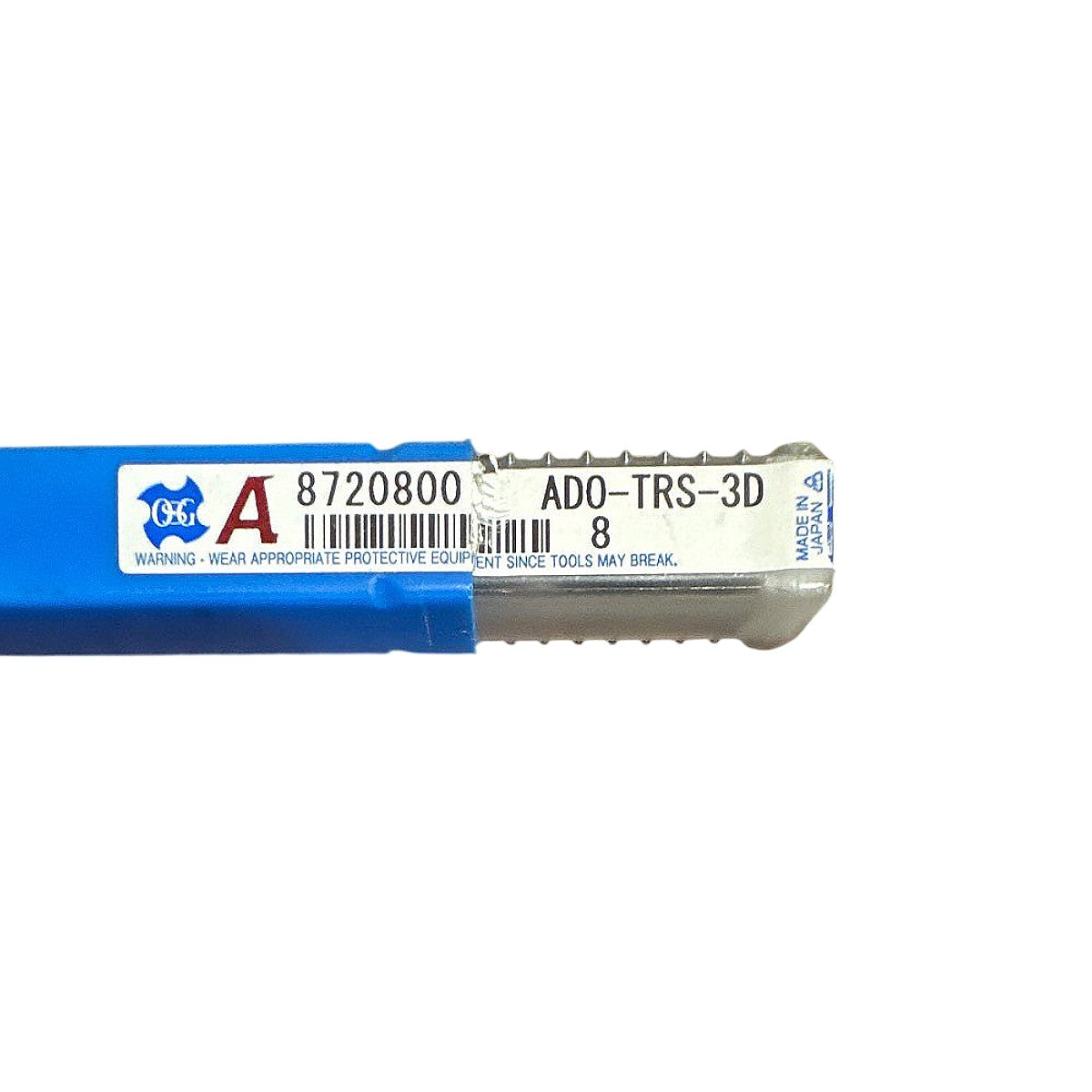

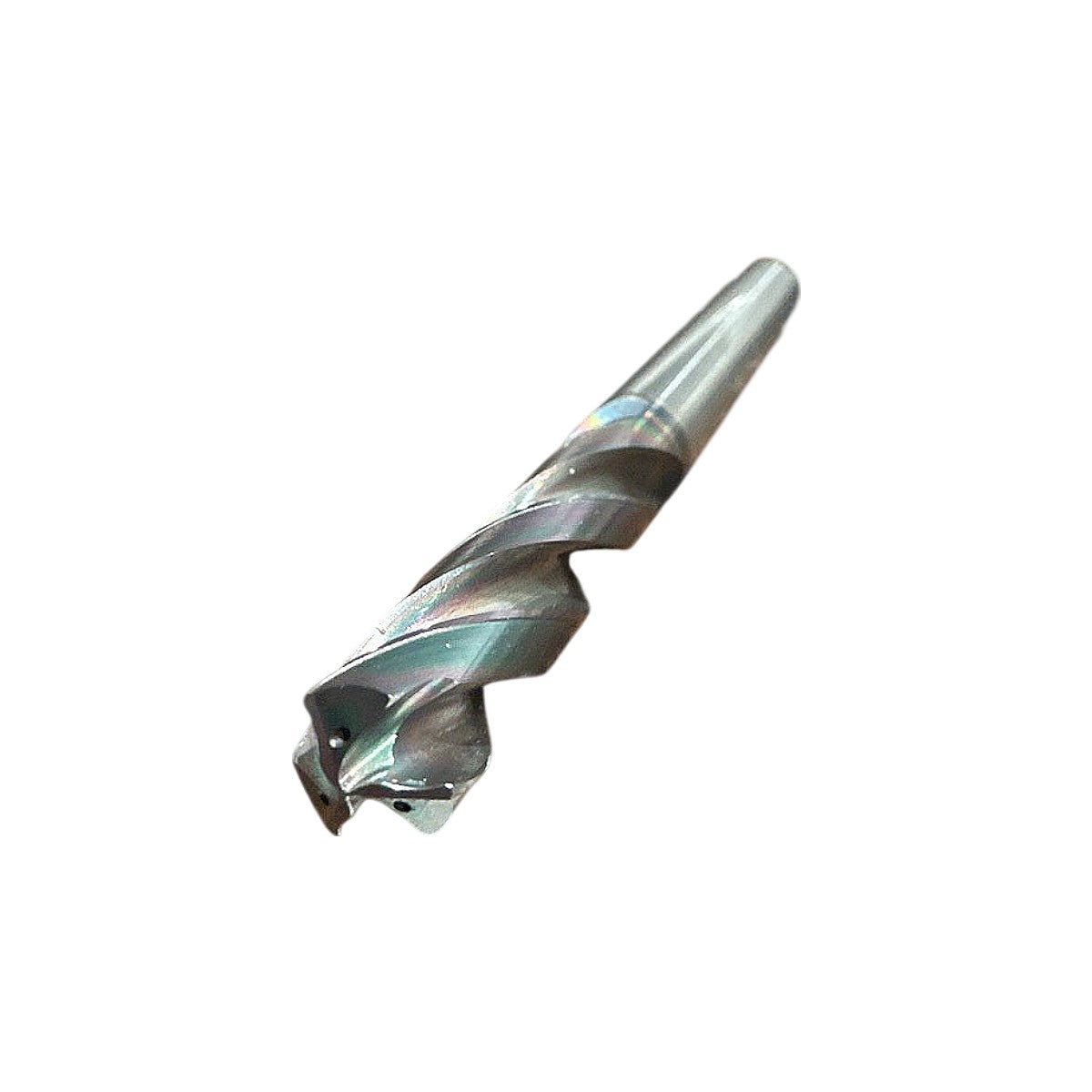

OSG ADO-TRS-3D-8 8mm 3xD Carbide Through-Coolant Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The OSG ADO-TRS-3D-8 (OSG item# 8720800) is a new, solid carbide through-coolant drill with an 8 mm cutting diameter and a 3×D depth-of-cut rating, made in Japan to OSG's ADO-TRS series standard. The ADO-TRS series features OSG's proprietary A-Brand geometry with a thinned web, polished flutes, and an AlCrN-based hard coating (OSG's "TRS" treatment) engineered for stainless steels and difficult-to-cut materials including austenitic stainless, duplex stainless, and titanium alloys. Internal through-coolant channels deliver cutting fluid directly to the cutting edge, enabling high feed rates and reliable chip evacuation at 3×D depths without peck cycles. The drill accepts standard cylindrical shank toolholders (hydraulic, shrink-fit, or milling chuck) compatible with an 8 mm bore.
Product Specifications
| Brand | OSG |
| MPN / Item # | 8720800 |
| Series | ADO-TRS-3D |
| Cutting Diameter | 8 mm |
| Depth-of-Cut Ratio | 3×D (3× diameter) |
| Max Drilling Depth | 24 mm (3 × 8 mm) |
| Shank Diameter | 8 mm (cylindrical) |
| Shank Type | Straight / Cylindrical |
| Number of Flutes | 2 |
| Coolant | Through-coolant (internal channels) |
| Coating | TRS (AlCrN-based hard coating) |
| Substrate | Solid Carbide |
| Point Angle | 140° |
| Country of Origin | Japan |
| Condition | New |
| Application | Stainless steel, titanium, difficult-to-cut alloys |
