OSG M3.5x0.6 6H Go/No-Go Double-End Thread Plug Gauge
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

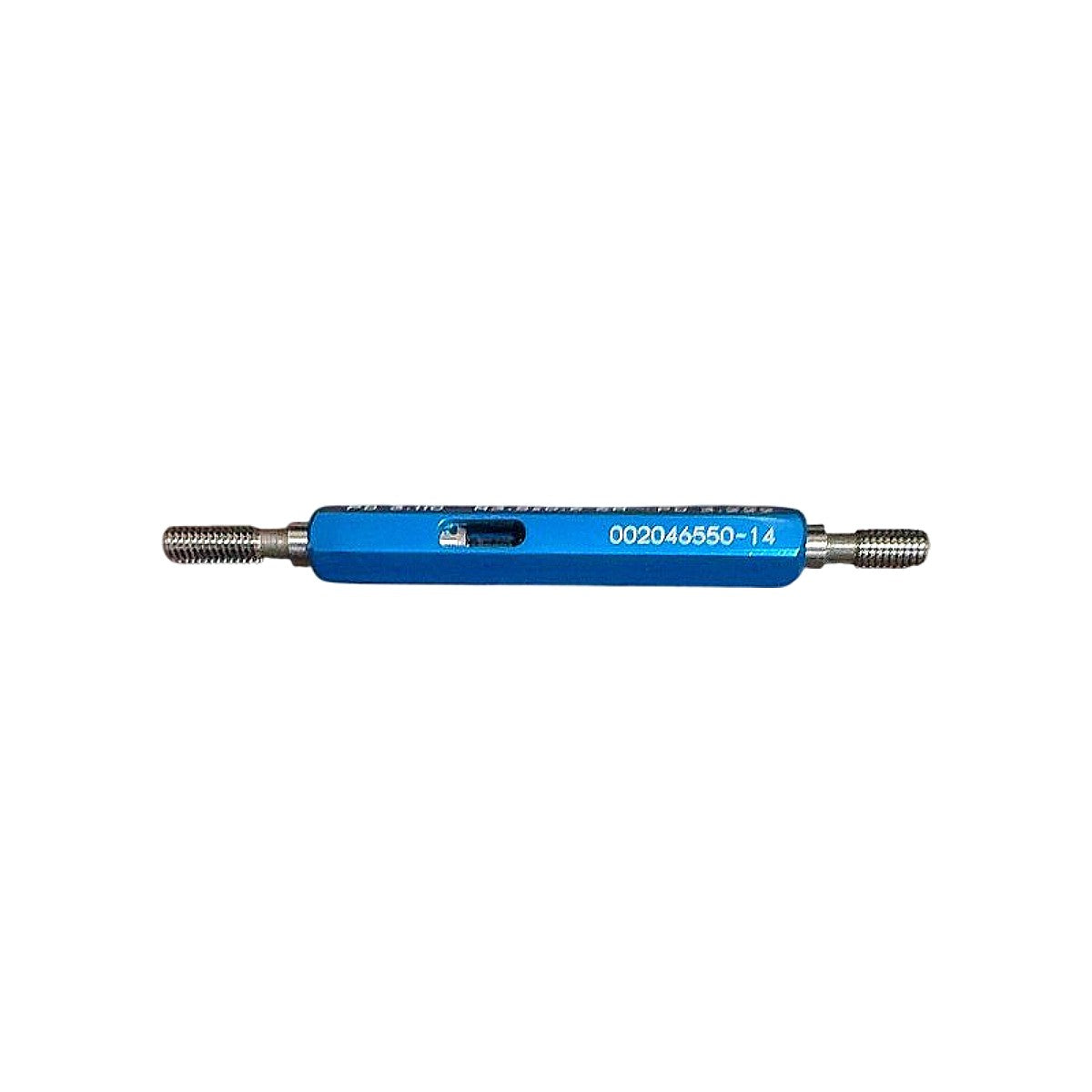

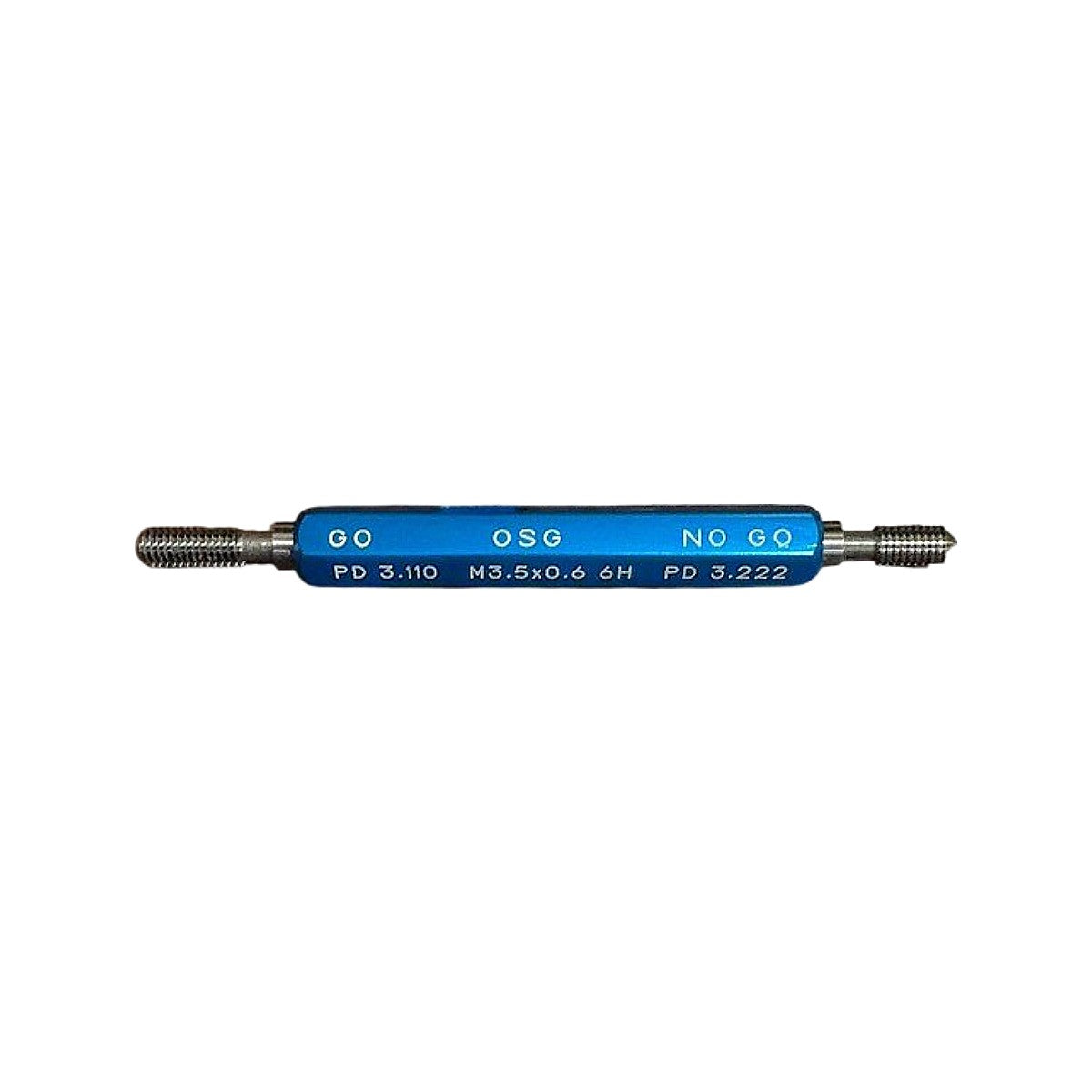

This is a new OSG double-end thread plug gauge for M3.5×0.6 metric threads to ISO tolerance class 6H, serial number 002046550-14. The GO member has a pitch diameter of 3.110 mm and the NO-GO member has a pitch diameter of 3.222 mm, both stamped directly on the blue anodized aluminum handle for quick identification in service. The gauge checks internal (nut-side) thread pitch diameter compliance per ISO 1502/ASME B1.16M standards: the GO member must pass fully to confirm the thread is not undersize, while the NO-GO member must not enter to confirm the thread is not oversize. OSG manufactures this gauge to Class X (high precision) tolerances consistent with their standard thread plug gauge line, with hardened and ground steel thread members suitable for production inspection of M3.5×0.6 tapped holes in machined components.
Product Specifications
| Brand | OSG |
| Serial / Lot Number | 002046550-14 |
| Gauge Type | Double-End Thread Plug Gauge (Go/No-Go) |
| Thread Standard | Metric (M) |
| Nominal Diameter | 3.5 mm |
| Pitch | 0.6 mm |
| Thread Designation | M3.5x0.6 |
| Tolerance Class | 6H (ISO metric internal thread) |
| GO Pitch Diameter | 3.110 mm |
| NO-GO Pitch Diameter | 3.222 mm |
| Handle Color | Blue anodized aluminum |
| Gauge Members Material | Hardened steel |
| Gauge Configuration | Double-end (GO one end, NO-GO opposite end) |
| Applicable Standard | ISO 1502 / ASME B1.16M |
| Condition | New |
