Parker 06R118AC 1/4 in NPT 0-250 psi w/ Gauge Zinc Pneumatic Air Regulator
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

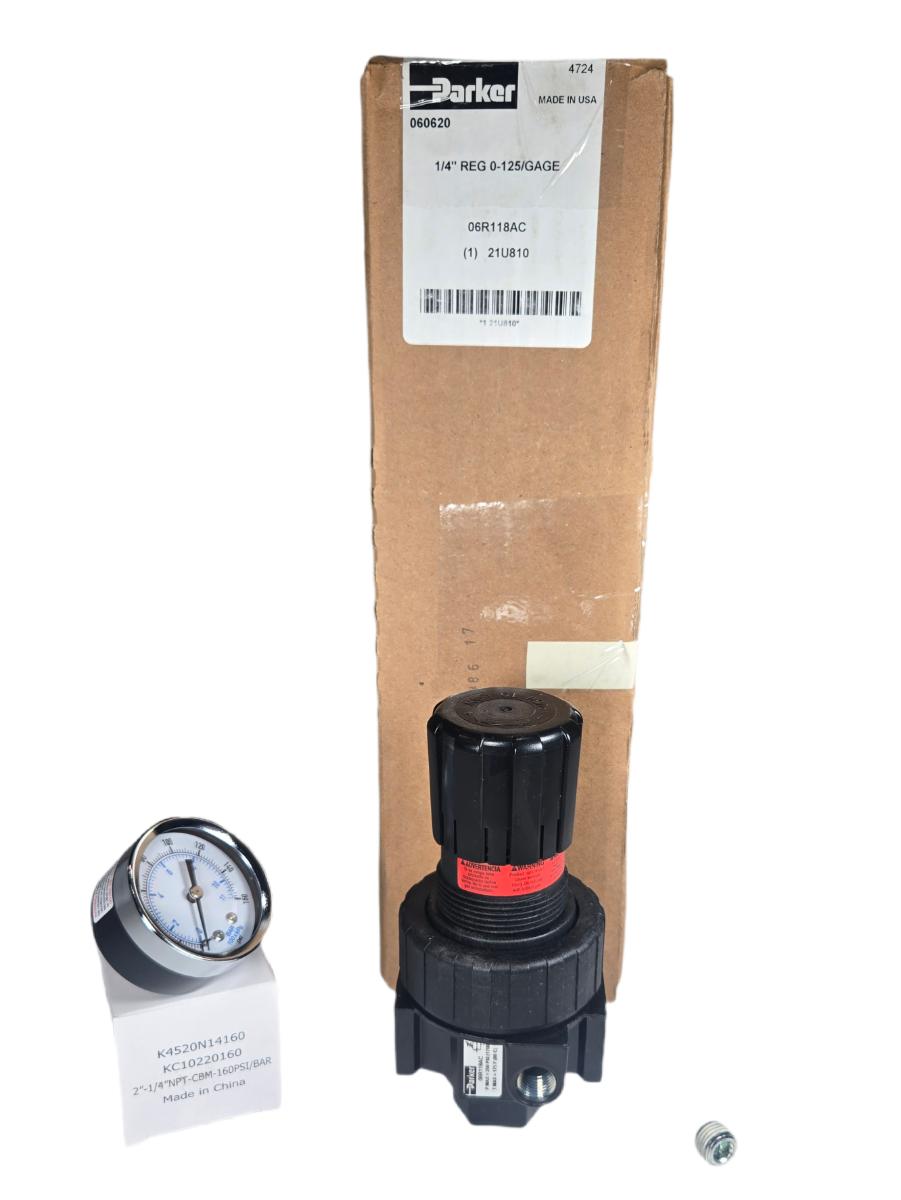

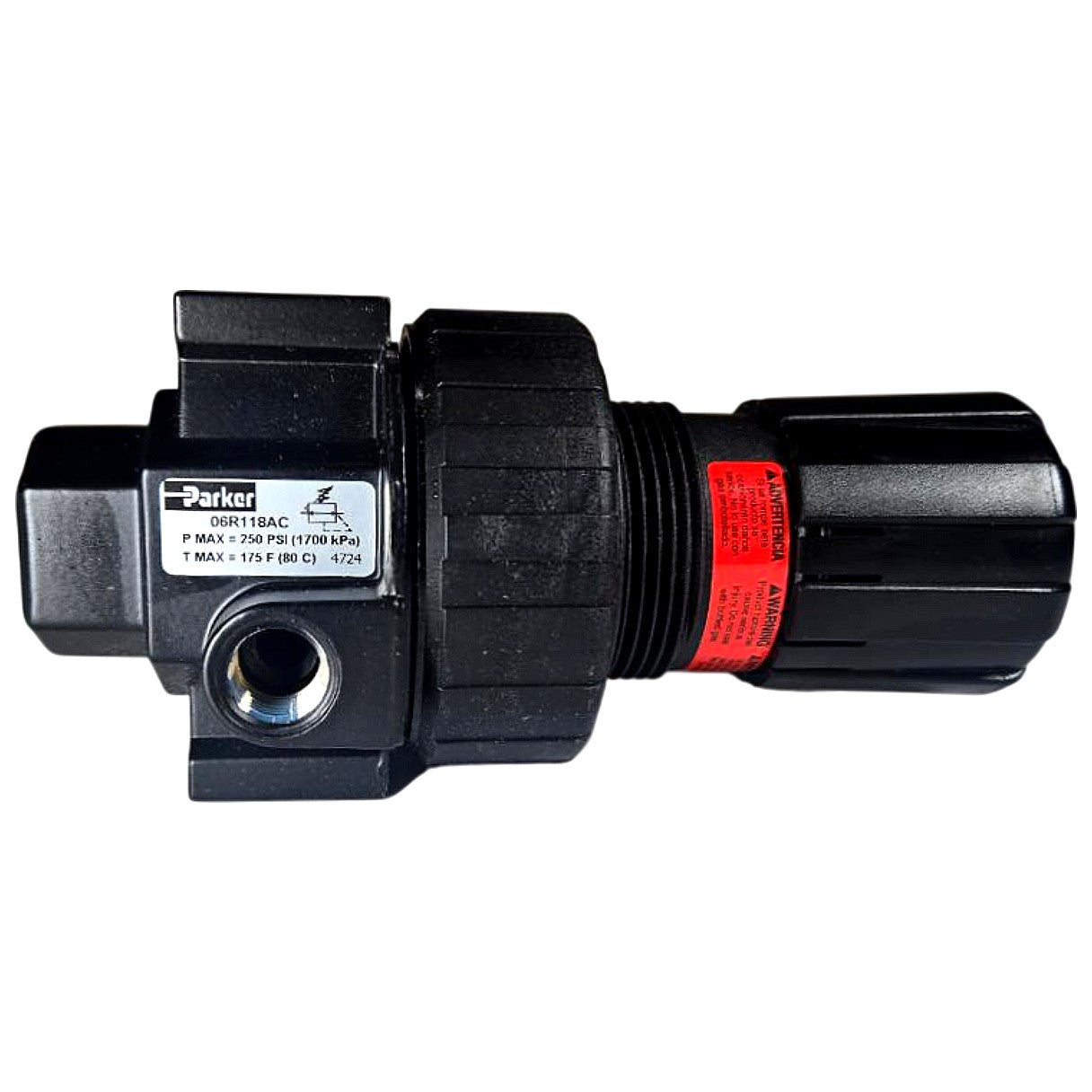

The Parker 06R118AC is a new, general-purpose compressed air pressure regulator from Parker's domnick hunter / Industrial Gas Filtration & Generation (IGFD) series, featuring a zinc die-cast body with 1/4 in NPT inlet and outlet ports and an adjustable output pressure range of 0–125 psi (0–8.6 bar). As confirmed on the unit label and carton, the regulator is rated for a maximum inlet pressure of 250 psi (1700 kPa) and a maximum operating temperature of 175°F (80°C), making it suitable for compressed air distribution, FRL assemblies, and pneumatic tool supply lines. The package (Parker catalog kit 060620, Grainger/distributor reference 21U810) ships with the regulator, a gauge port plug, and a separately labeled aftermarket 2 in dial / 1/4 in NPT back-mount pressure gauge (K4520N14160 / KC10220160) reading 0–160 psi / 0–11 bar, allowing direct output pressure monitoring; the regulator itself is Made in USA. The knob-adjustable, relieving-type diaphragm design provides a nominal flow capacity of 53 SCFM and delivers stable downstream pressure regulation for workshop compressor systems, assembly machinery, and pneumatic instrumentation panels.
Product Specifications
| Brand | Parker |
| MPN | 06R118AC |

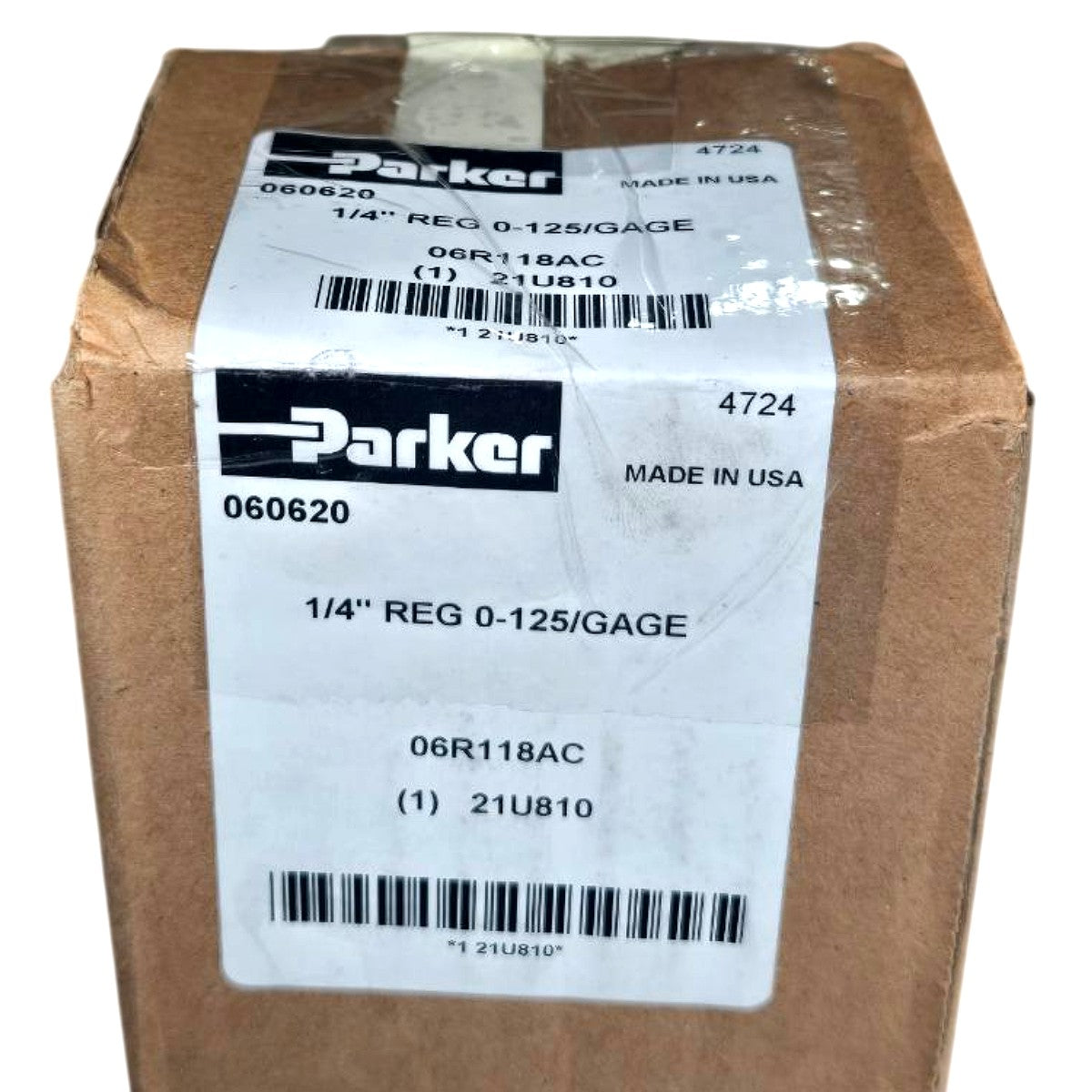

| Catalog / Kit No. | 060620 |
| Port Size | 1/4 in NPT |
| Outlet Pressure Range | 0–125 psi (0–8.6 bar) |
| Max Inlet Pressure | 250 psi (1700 kPa) |
| Max Operating Temp | 175°F (80°C) |
| Flow Capacity | 53 SCFM |
| Body Material | Zinc die-cast |
| Adjustment Type | Knob, relieving-type diaphragm |
| Gauge Port | Included (plug & aftermarket 2 in gauge) |

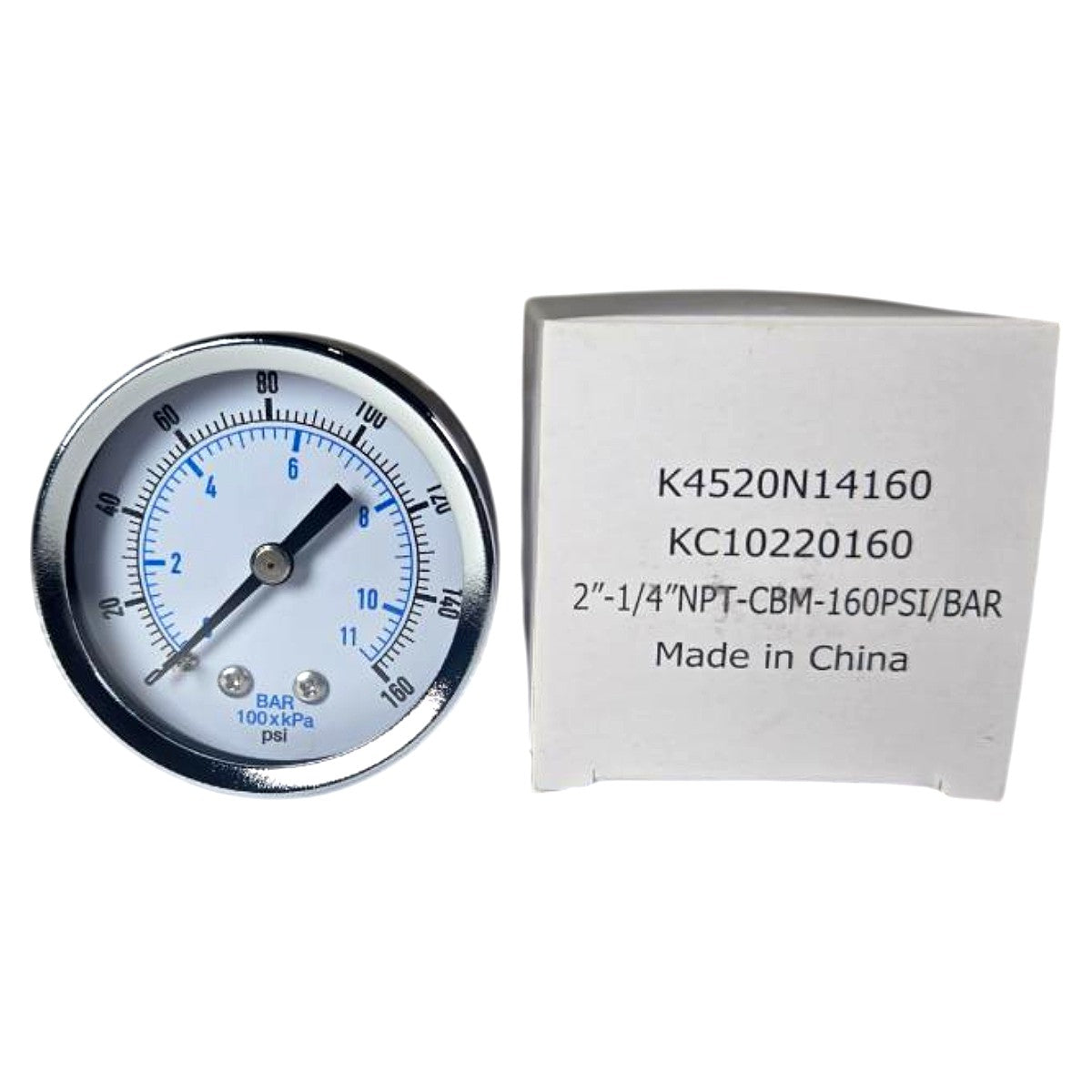

| Gauge Range | 0–160 psi / 0–11 bar, 2 in dial, 1/4 in NPT |
| Gauge PN | K4520N14160 / KC10220160 |
| Country of Origin (Regulator) | USA |
| Country of Origin (Gauge) | China |
| Condition | New |
