Parker 4100SGBL-1500 Aggres Chem 1.5in x 7ft 250PSI Transfer Hose Assembly
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

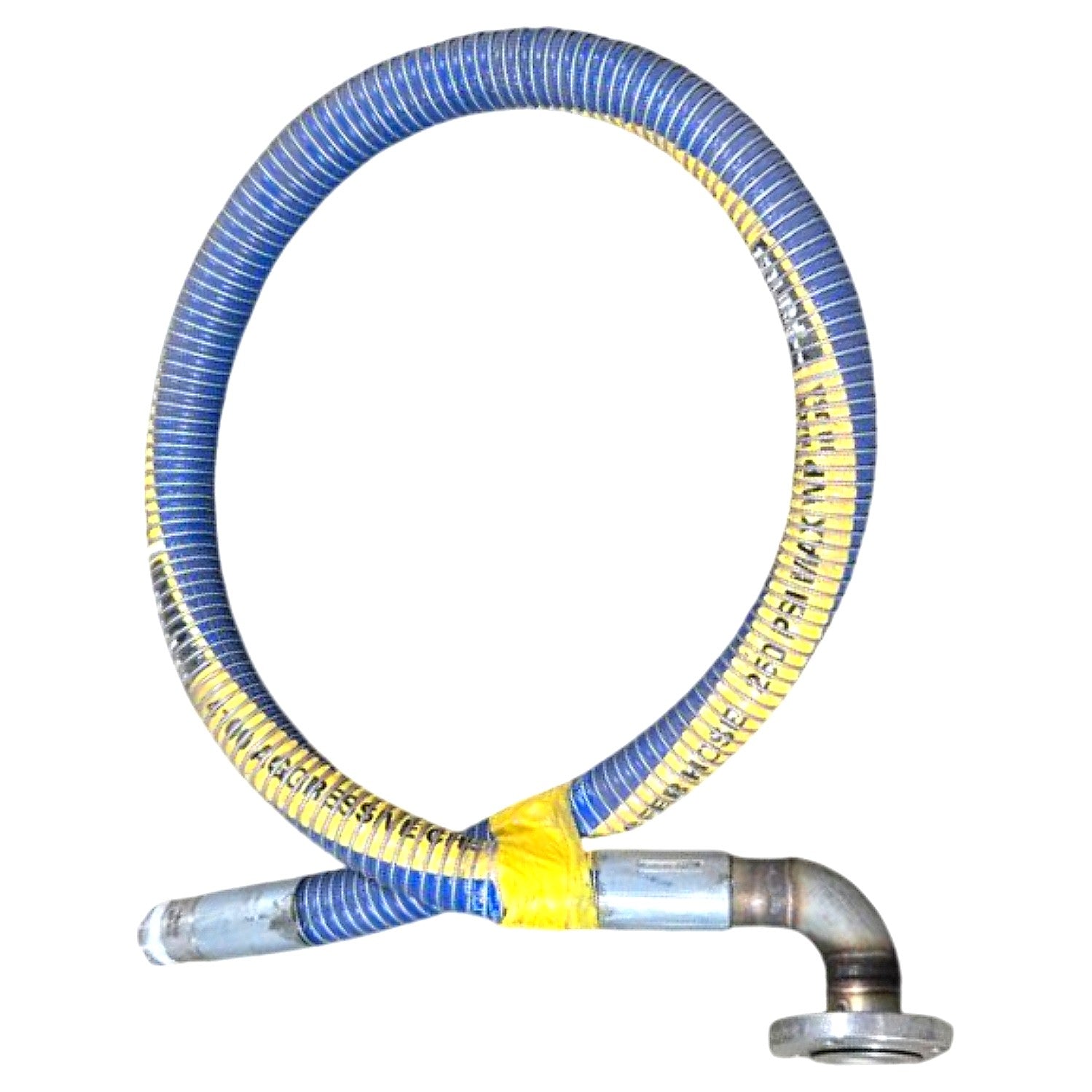

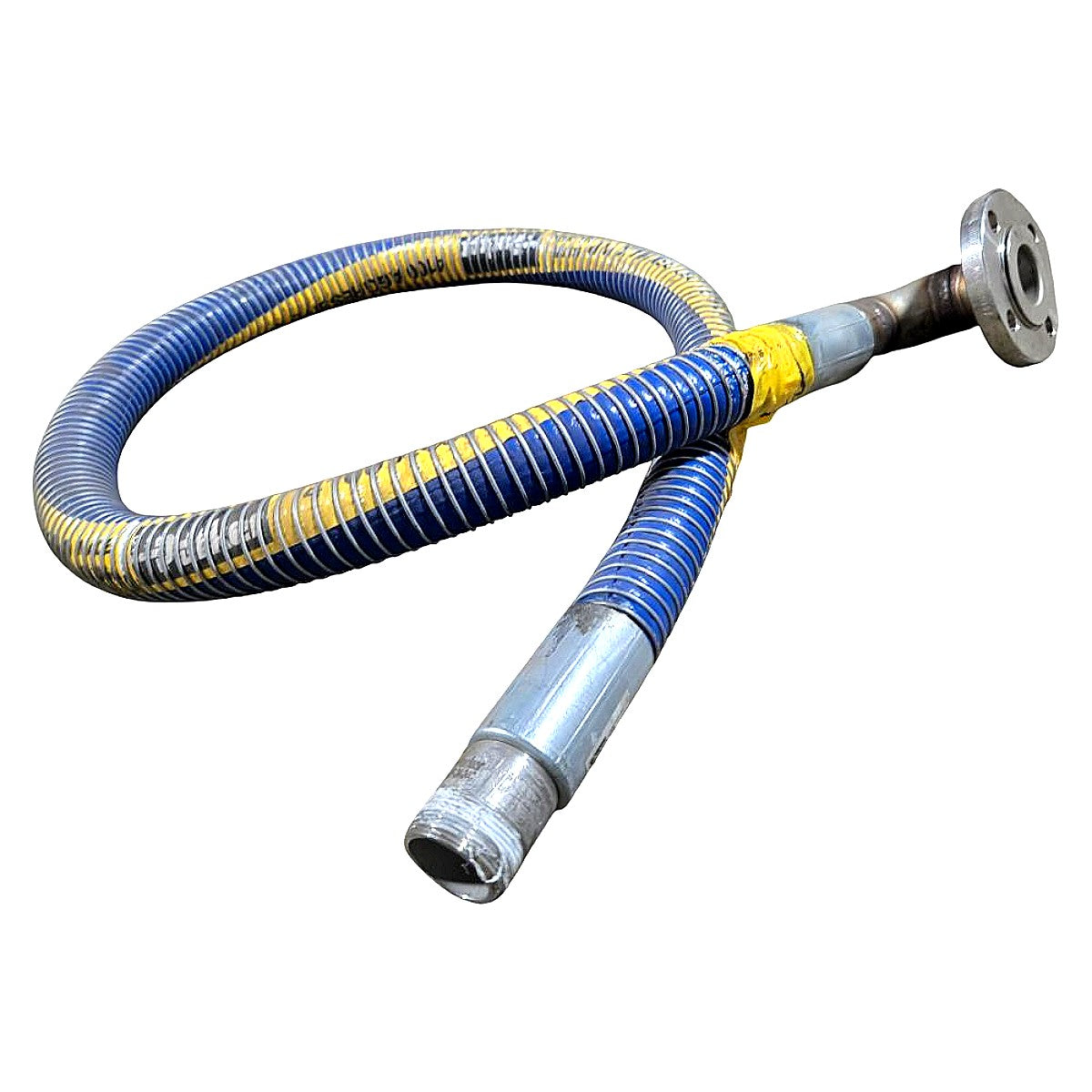

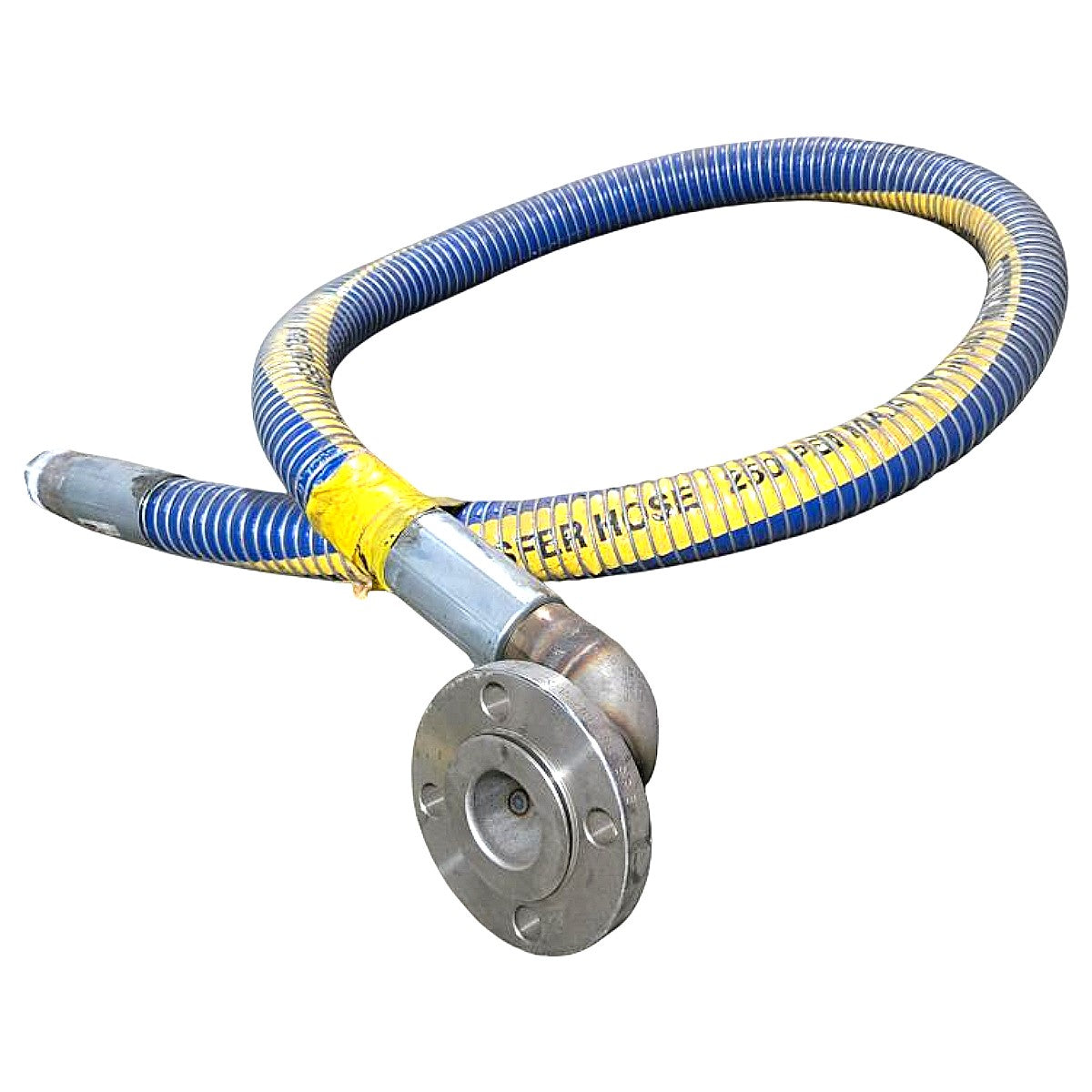

This is a new Parker Hannifin 4100SGBL-1500 "Aggresschem" series chemical transfer hose assembly, 1.5-inch nominal bore by approximately 7 feet in length, rated to 250 PSI maximum working pressure as clearly printed on the hose body. The hose features a blue PVC/polyurethane outer cover with integral yellow stripe, a wire helix reinforcement for full-vacuum suction and pressure service, and a smooth bore inner tube resistant to a broad range of aggressive chemicals including acids, caustics, and solvents. One end is fitted with a male NPT pipe coupler (galvanized iron) and the other end terminates in a 90° elbow to a stainless steel flat-face flange fitting, as visible in the photos; this mixed-end configuration makes the assembly suitable for tank-to-pipe transfer, chemical loading/unloading, and plant process piping connections. The Aggresschem series is built to convey corrosive industrial chemicals and complies with applicable Parker suction/discharge hose standards for flexible chemical transfer service.
Product Specifications
| Brand | Parker Hannifin |
| Part Number | 4100SGBL-1500 |
| Series | Aggresschem 4100SGBL |
| Nominal Bore (ID) | 1.5 in (1-1/2 in) |
| Hose Length | 7 ft (approx 84 in) |
| Max Working Pressure | 250 PSI |
| Cover Color | Blue w/ Yellow stripe |
| Reinforcement | Wire helix (suction/discharge) |
| Inner Tube Material | Smooth bore chemical-resistant PVC/polyurethane |
| End Fitting 1 | Male NPT coupler, galvanized iron |
| End Fitting 2 | 90° elbow w/ SS flat-face flange |
| Condition | New |
| Application | Aggressive chemical transfer, suction & discharge |
