Parker 4F-C4L-1-SS 1/4 in FNPT Stainless Steel Instrumentation Check Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

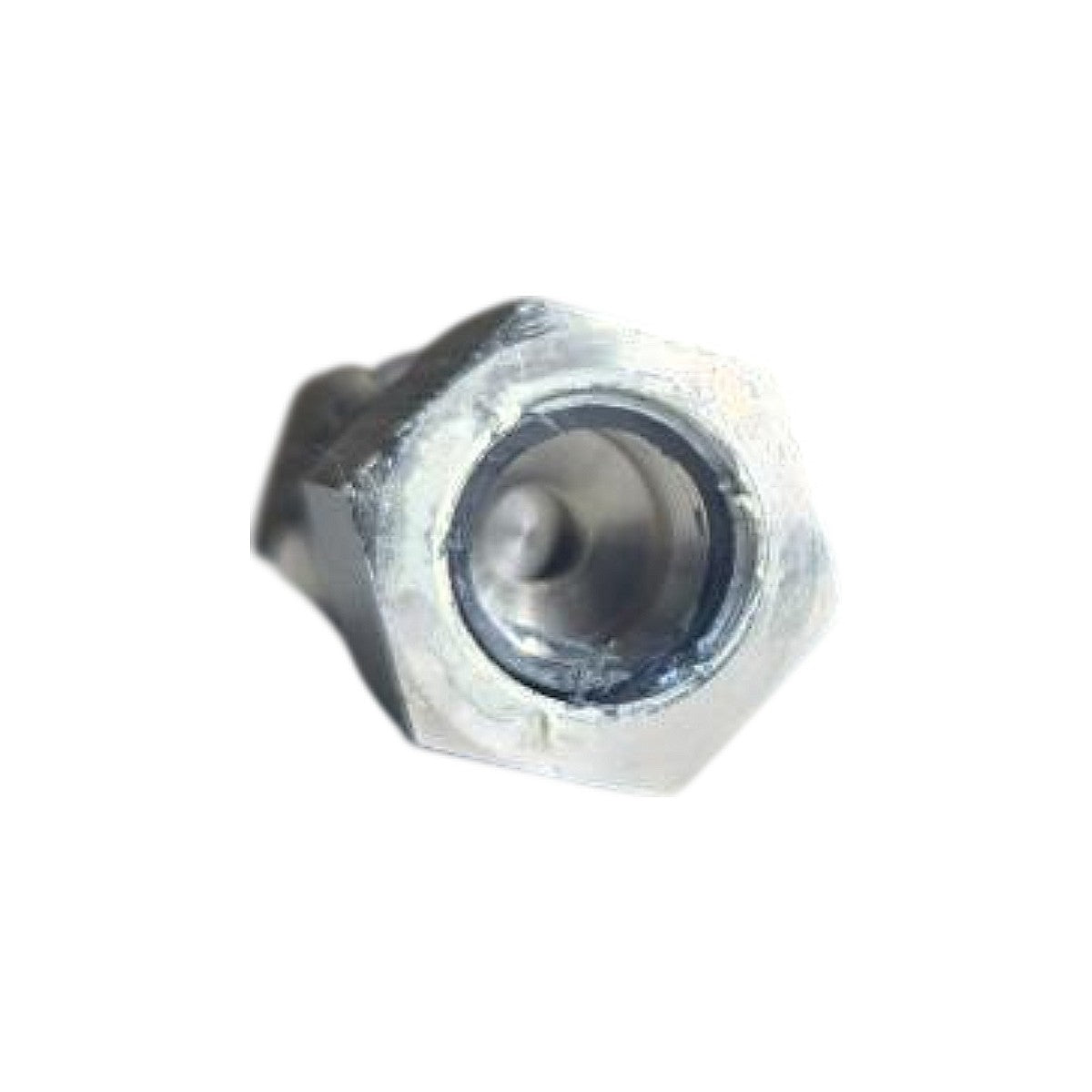

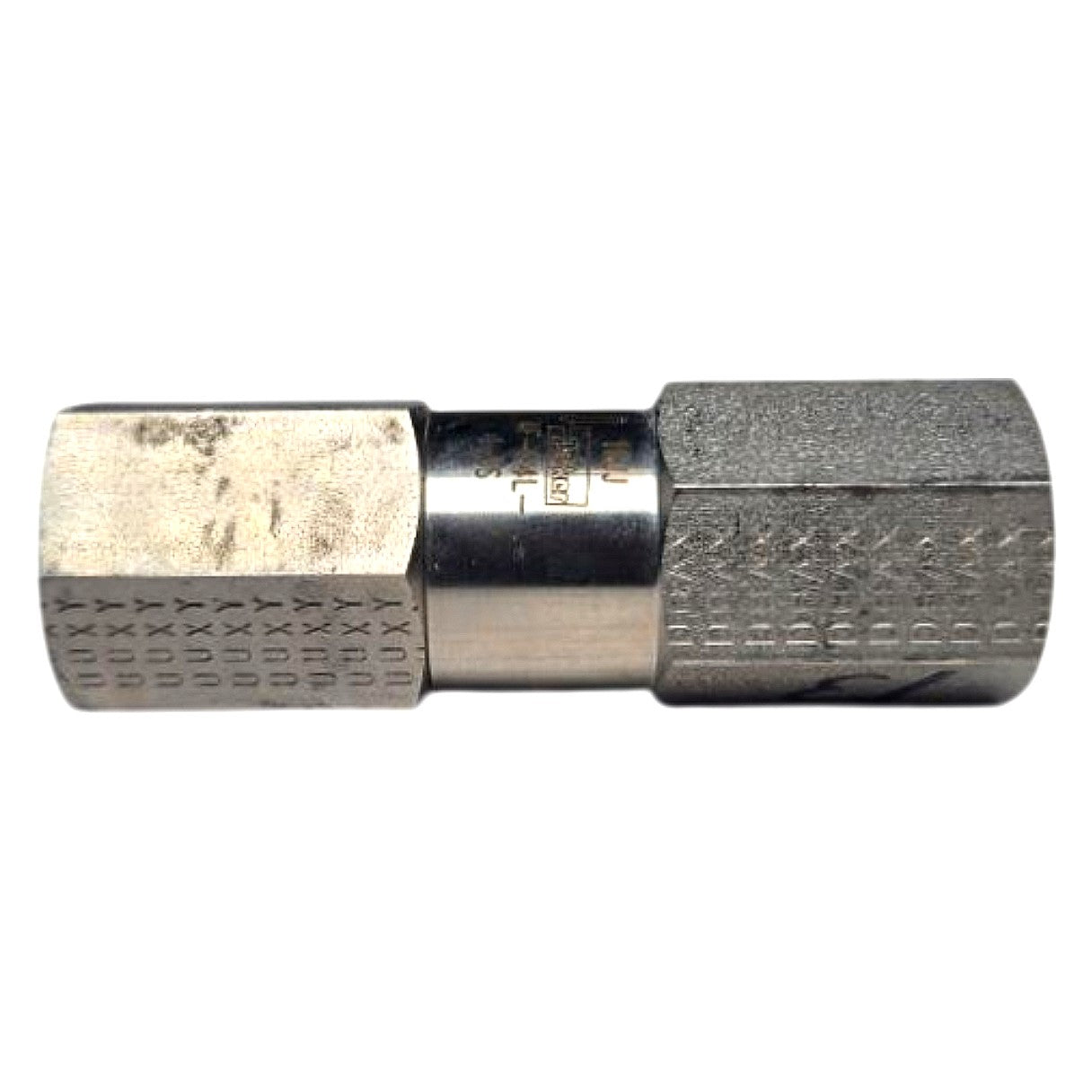

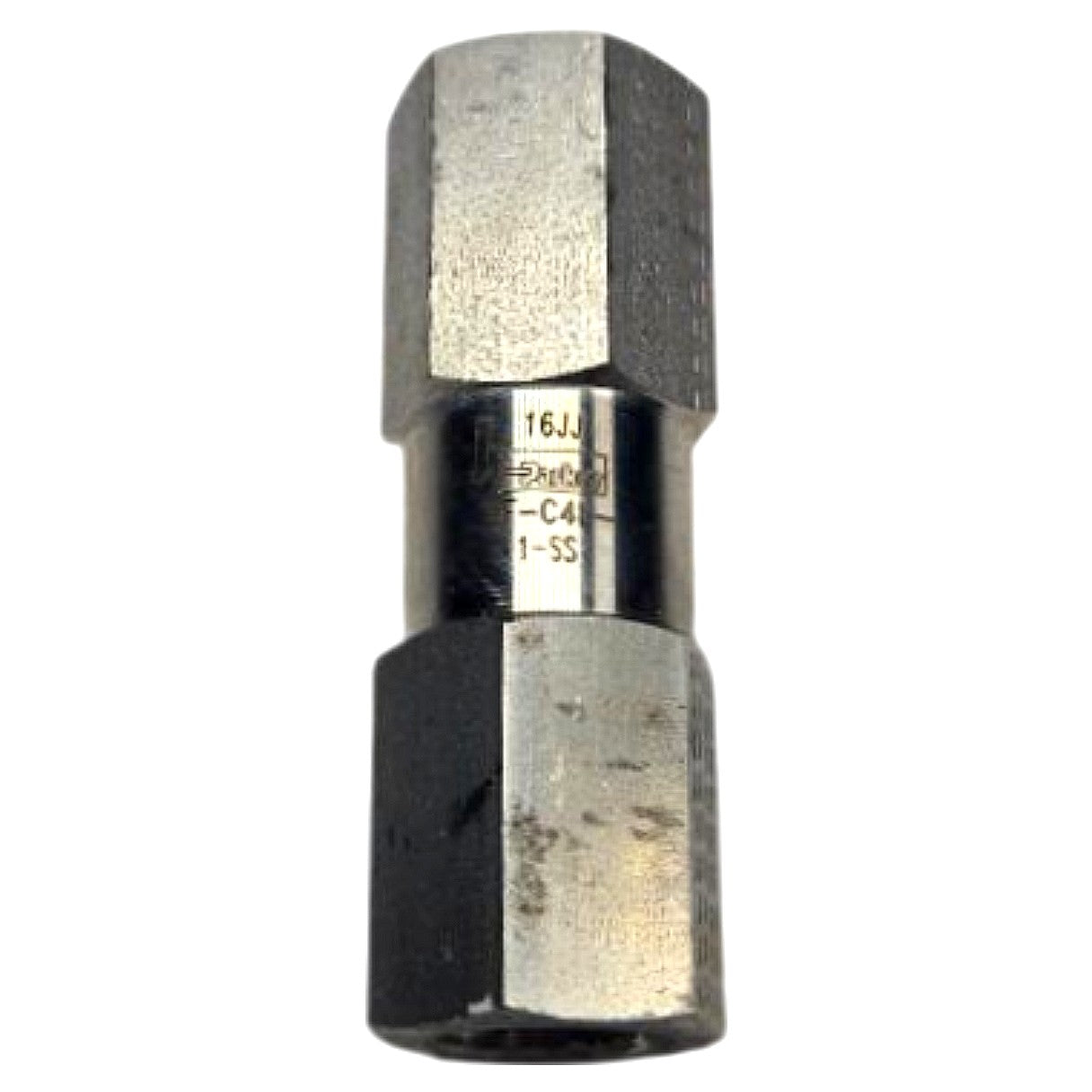

The Parker 4F-C4L-1-SS is a new, stainless steel inline instrumentation check valve from Parker's Instrumentation Products Division (USA), part number confirmed on both the body markings and OEM box visible in the photos. Decoding the part number: "4F" = 1/4 in female NPT (FNPT) connections on both inlet and outlet; "C4L" = check valve, 4 (1/4 in) port size, low-cracking-pressure poppet design; "1" = 1 psig nominal cracking pressure; "SS" = 316 stainless steel body and internals. The poppet-style mechanism provides bubble-tight shutoff with low cracking pressure, making it suitable for gas and liquid instrumentation service including process analyzers, sampling systems, and instrument tubing manifolds where backflow prevention and corrosion resistance are required. The FNPT × FNPT end connections accept standard 1/4 in NPT male fittings on both ends, and the compact hex-body design allows inline installation with a wrench. Country of origin is USA per box label.
Product Specifications
| Brand | Parker |
| Part Number (MPN) | 4F-C4L-1-SS |
| Valve Type | Check Valve, Poppet |
| Body Style | Inline |
| Port Size | 1/4 in |
| Inlet Connection | 1/4 in FNPT |
| Outlet Connection | 1/4 in FNPT |
| Body Material | 316 Stainless Steel |
| Cracking Pressure | 1 psig |
| Media | Compatible fluids and gases |
| Series / Code | 16JJ (visible on body) |
| Country of Origin | USA |
| Condition | New |
| Manufacturer Division | Parker Instrumentation Products Division |
