Parker D100P3 38158432 110/120V AC 10W Solenoid Valve Coil
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

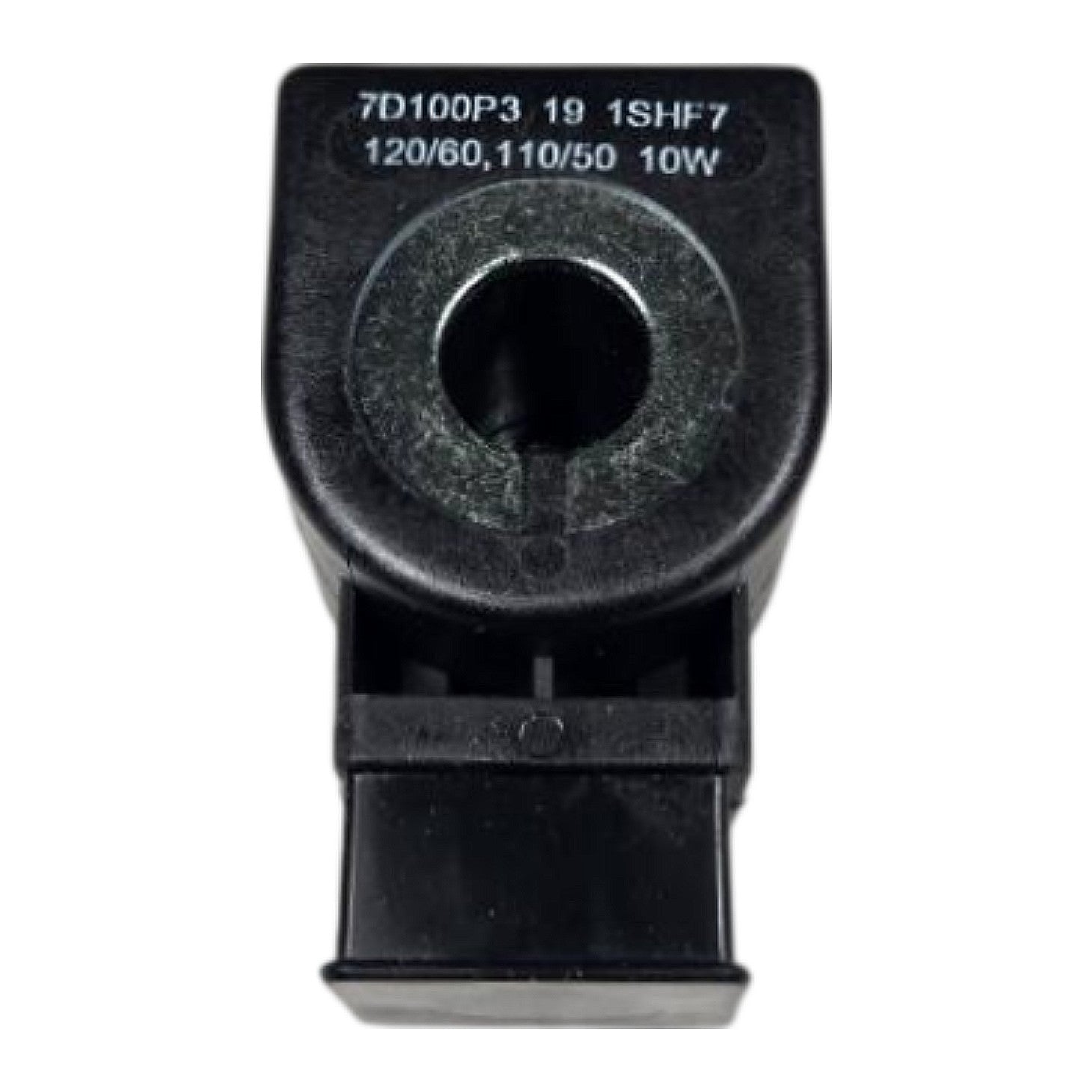

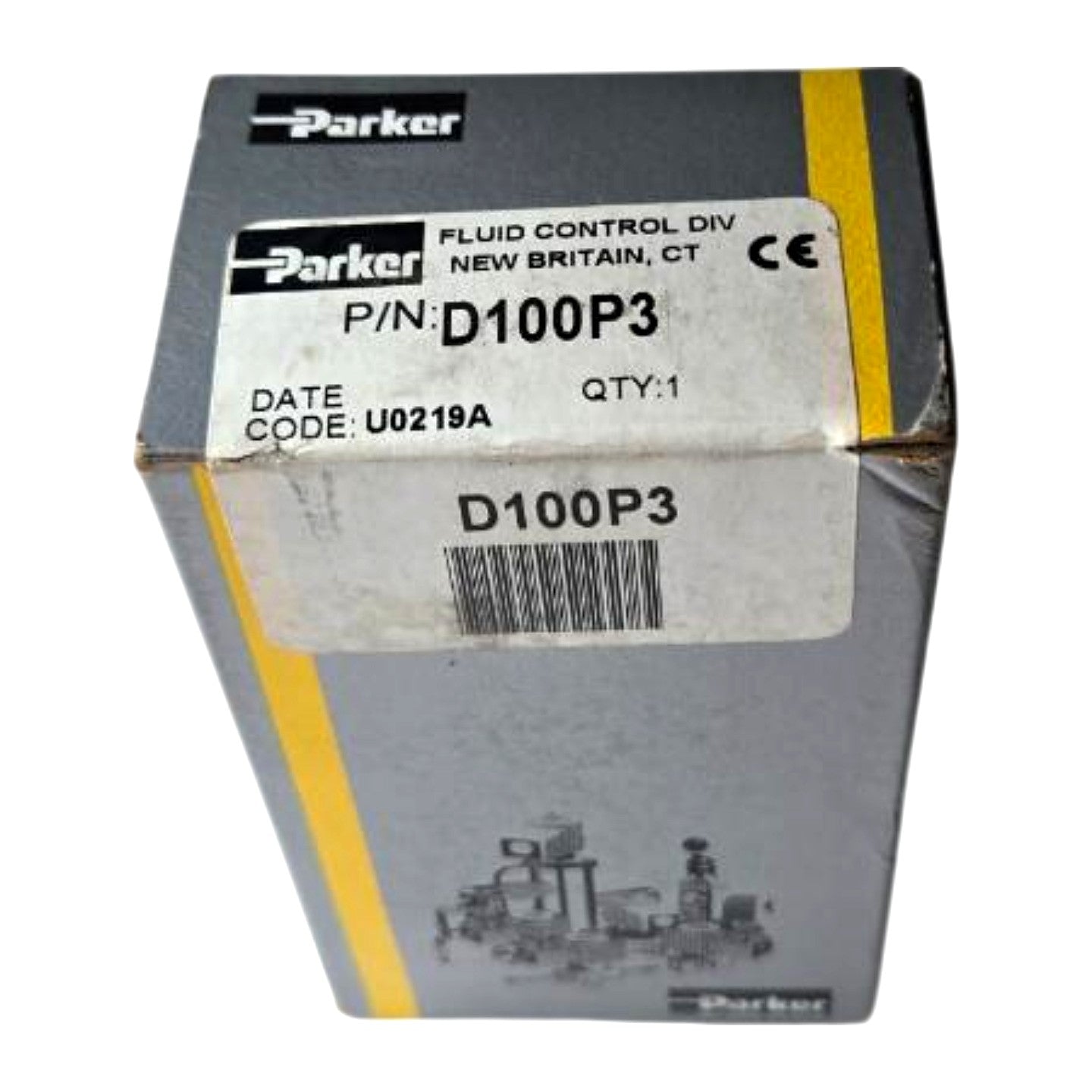

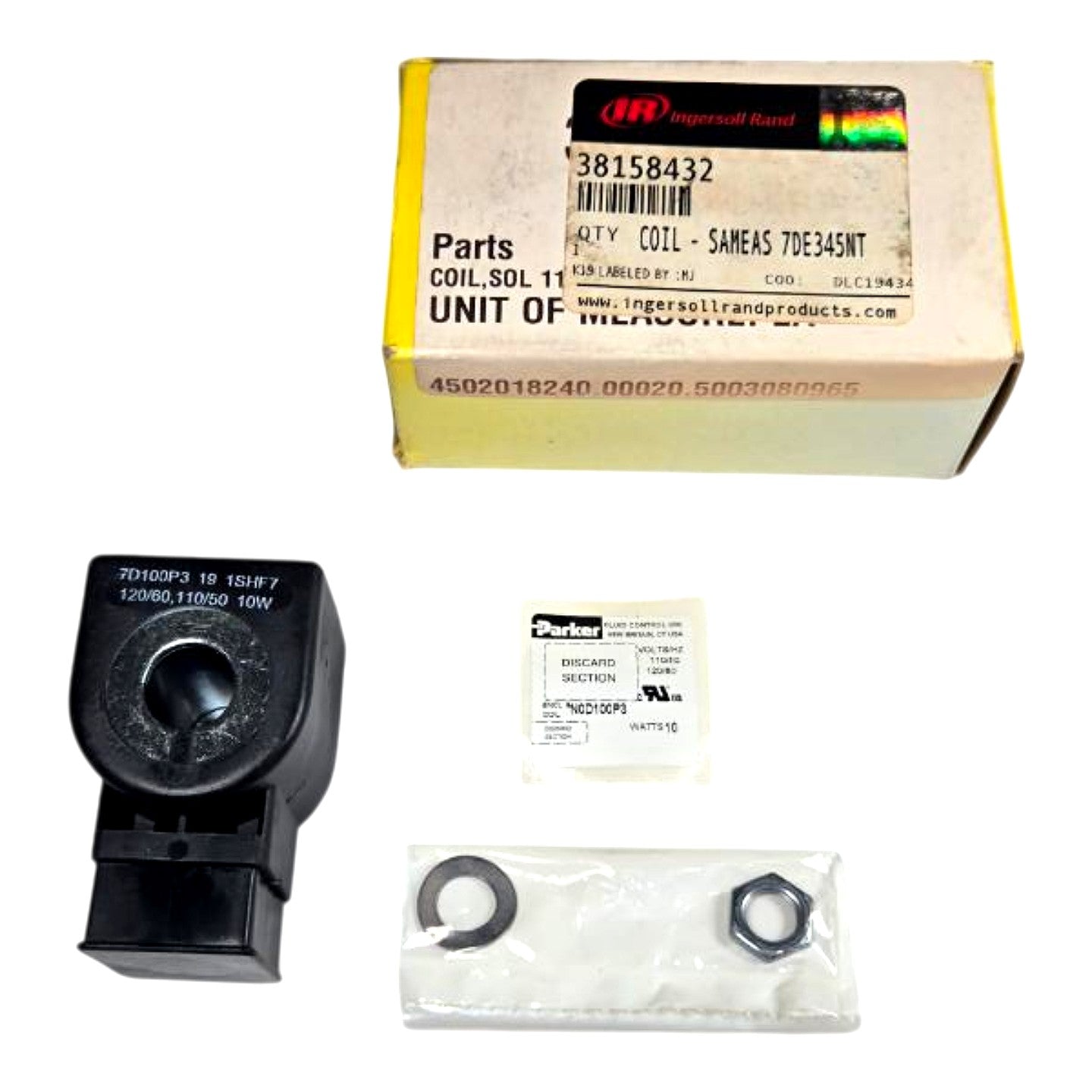

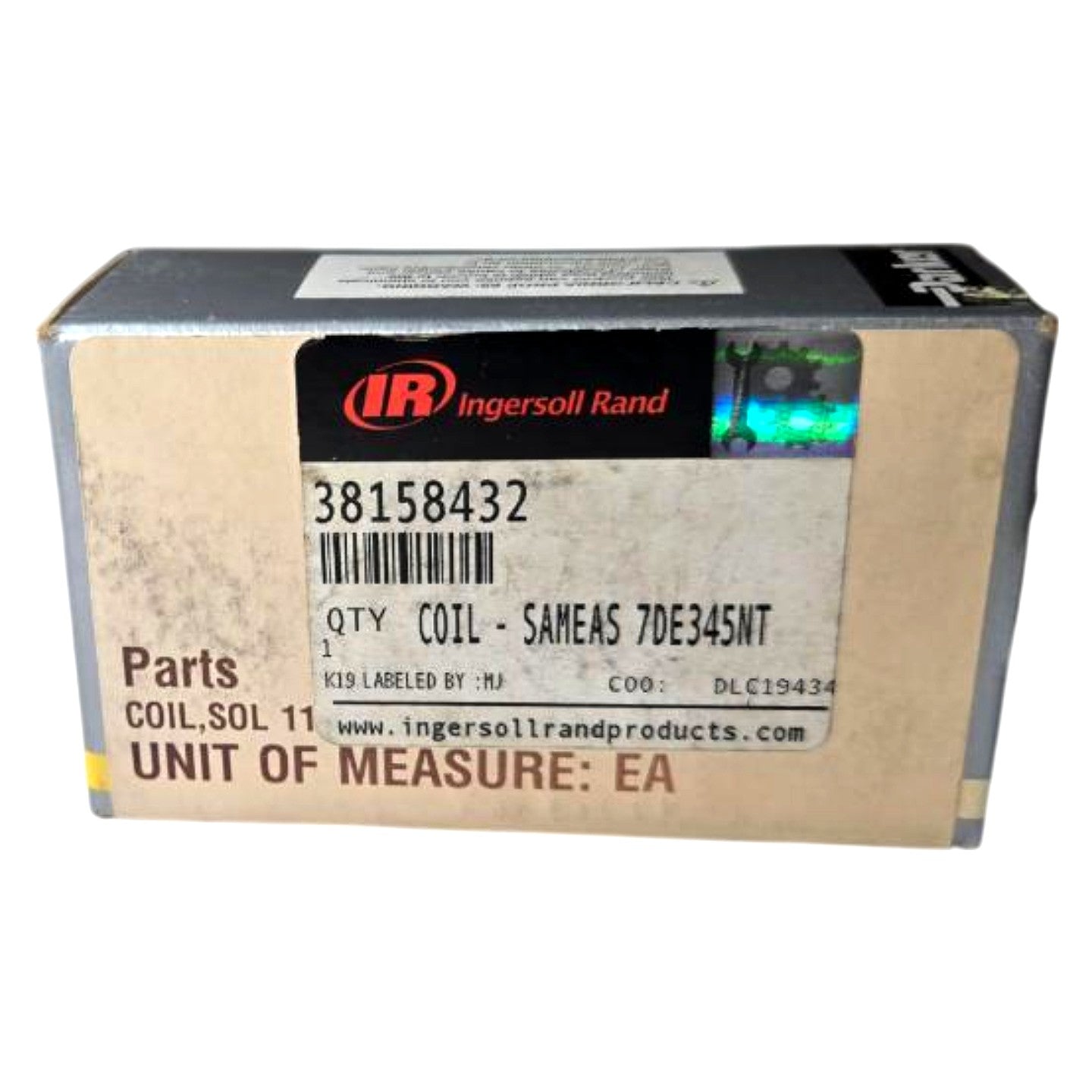

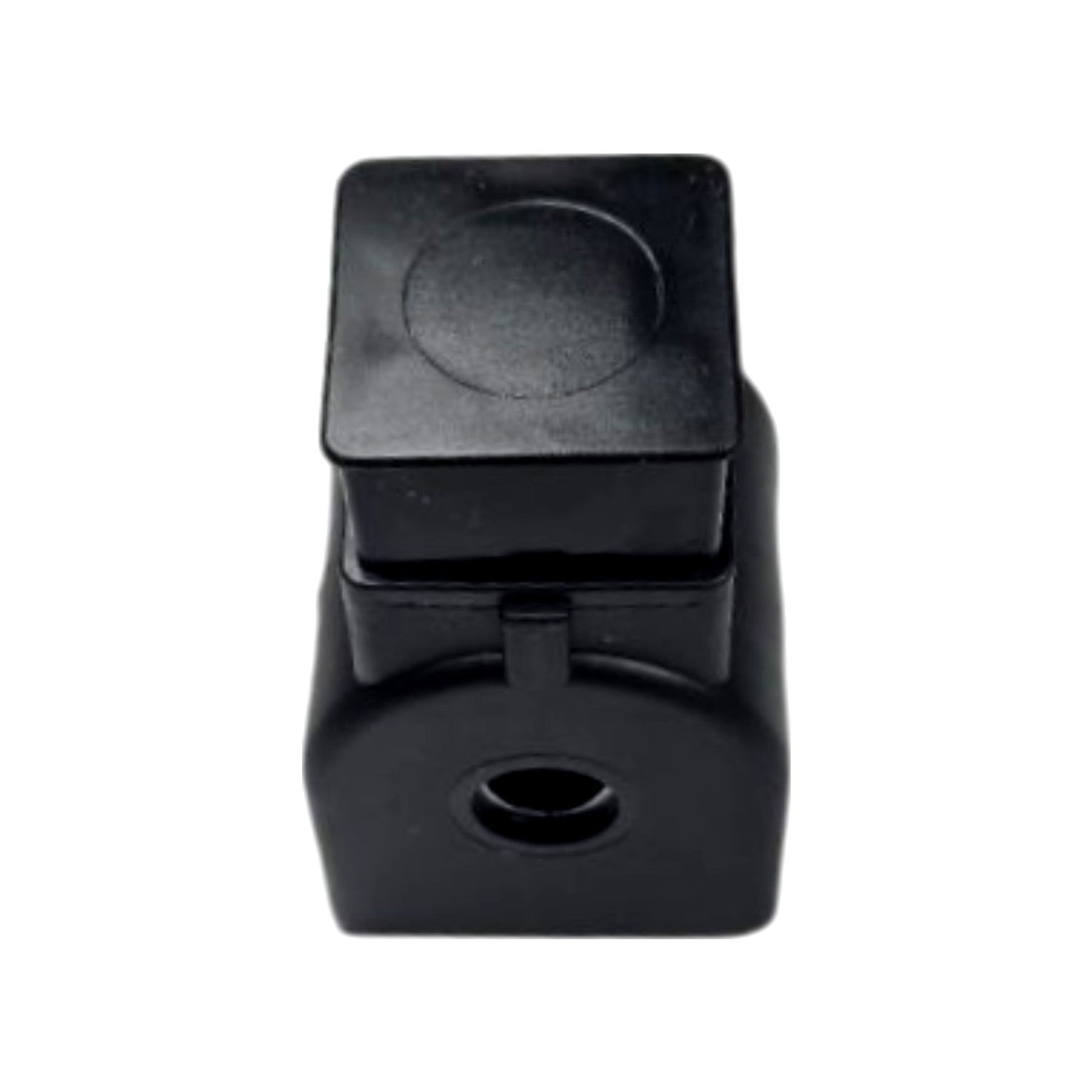

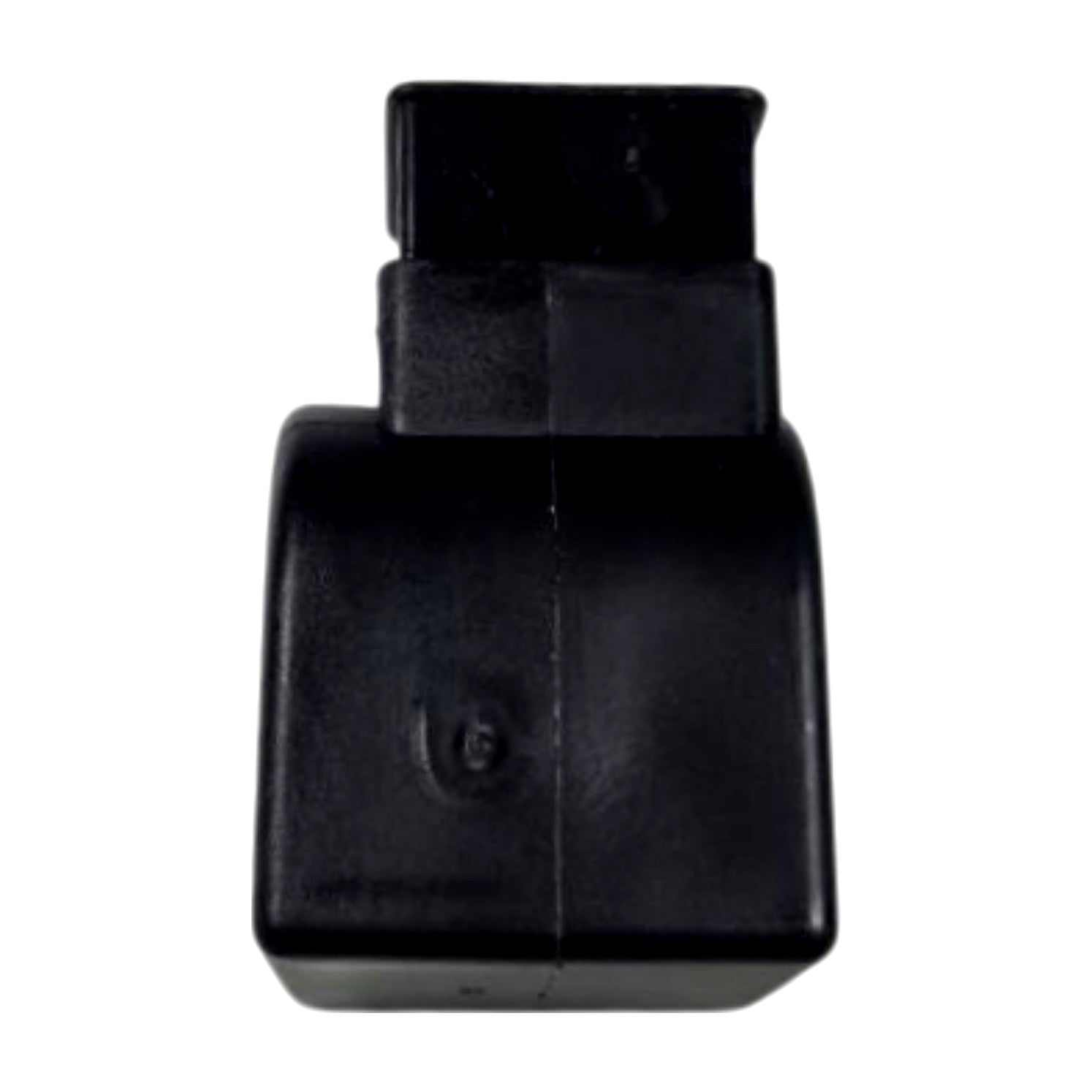

This is a new Parker Fluid Control Division D100P3 solenoid valve coil (Ingersoll Rand P/N 38158432, also cross-referenced as 7DE345NT), manufactured at Parker's New Britain, CT facility. The coil operates on 120V AC at 60 Hz or 110V AC at 50 Hz and draws 10 watts, with a Class F (155°C) encapsulated construction in a black overmolded housing with a DIN-style integral connector (Form B / C DIN 43650 plug). The central bore accepts the valve operator/stem of compatible Parker D-series solenoid valves, and the coil body markings confirm part code 7D100P3, date code 19 (2019), and enclosure class 1SHF7. This coil is an OEM-specified replacement used in Ingersoll Rand pneumatic/compressed air systems and is directly interchangeable with the Parker 7DE345NT coil; it ships with the original Parker box, mounting hardware (lock washer and hex nut), and instruction card.
Product Specifications
| Manufacturer | Parker Fluid Control Division |
| Parker Part Number | D100P3 |
| Coil Body Marking | 7D100P3 |
| Ingersoll Rand Part Number | 38158432 |
| Cross-Reference / OEM Part | 7DE345NT |
| Voltage (AC) | 120V/60Hz, 110V/50Hz |
| Power Consumption | 10W |
| Current Type | AC |
| Connector Type | DIN 43650 Form B integral plug |
| Enclosure Class | 1SHF7 |
| Date Code | U0219A (2019) |
| Condition | New in original Parker box |
| Manufacturer Location | New Britain, CT, USA |
| Includes | Coil, lock washer, hex nut, instruction card |
