Parker Skinner 7321GBN64N00N0D1D2P3 2-Way NC Brass 1-1/4in NPT Solenoid Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

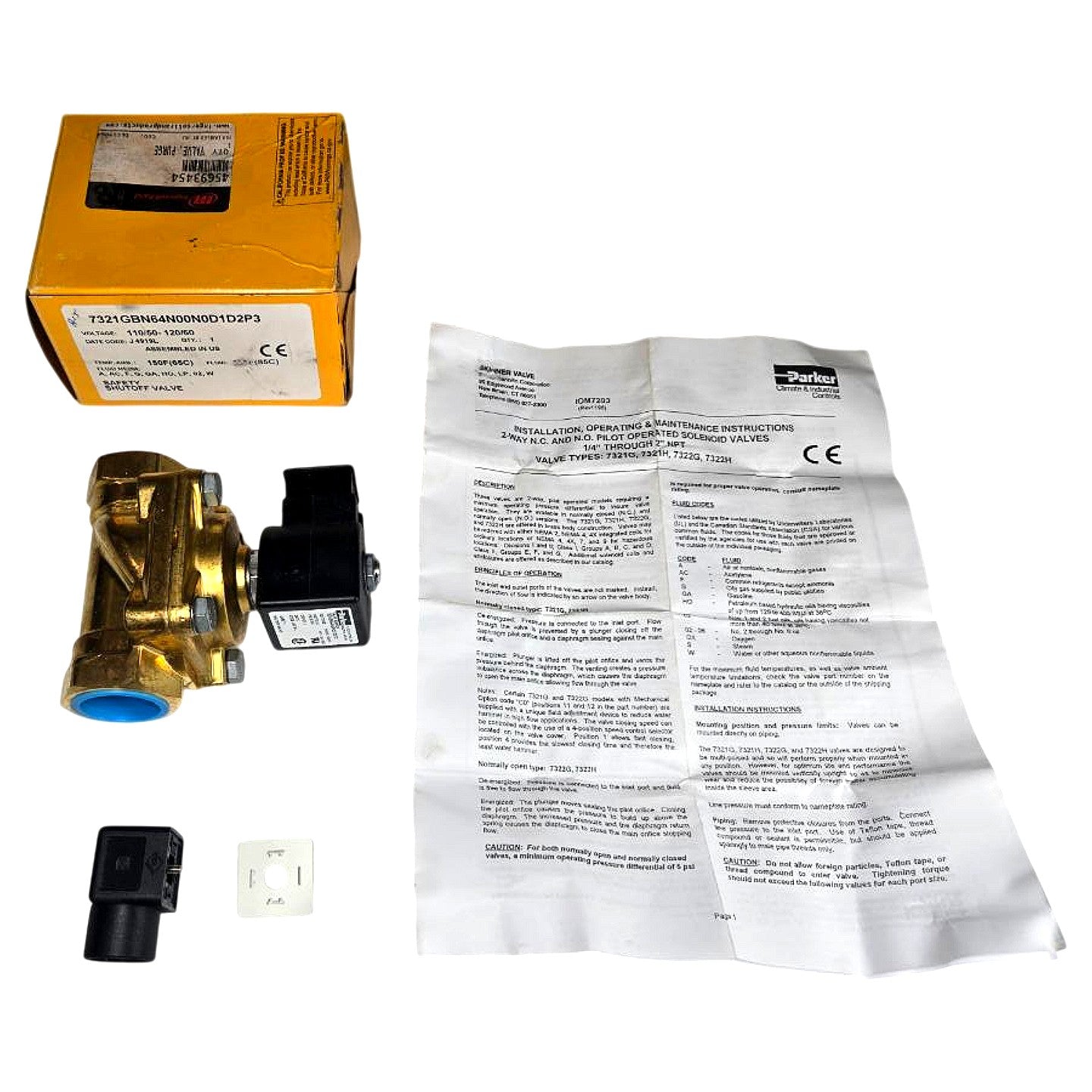

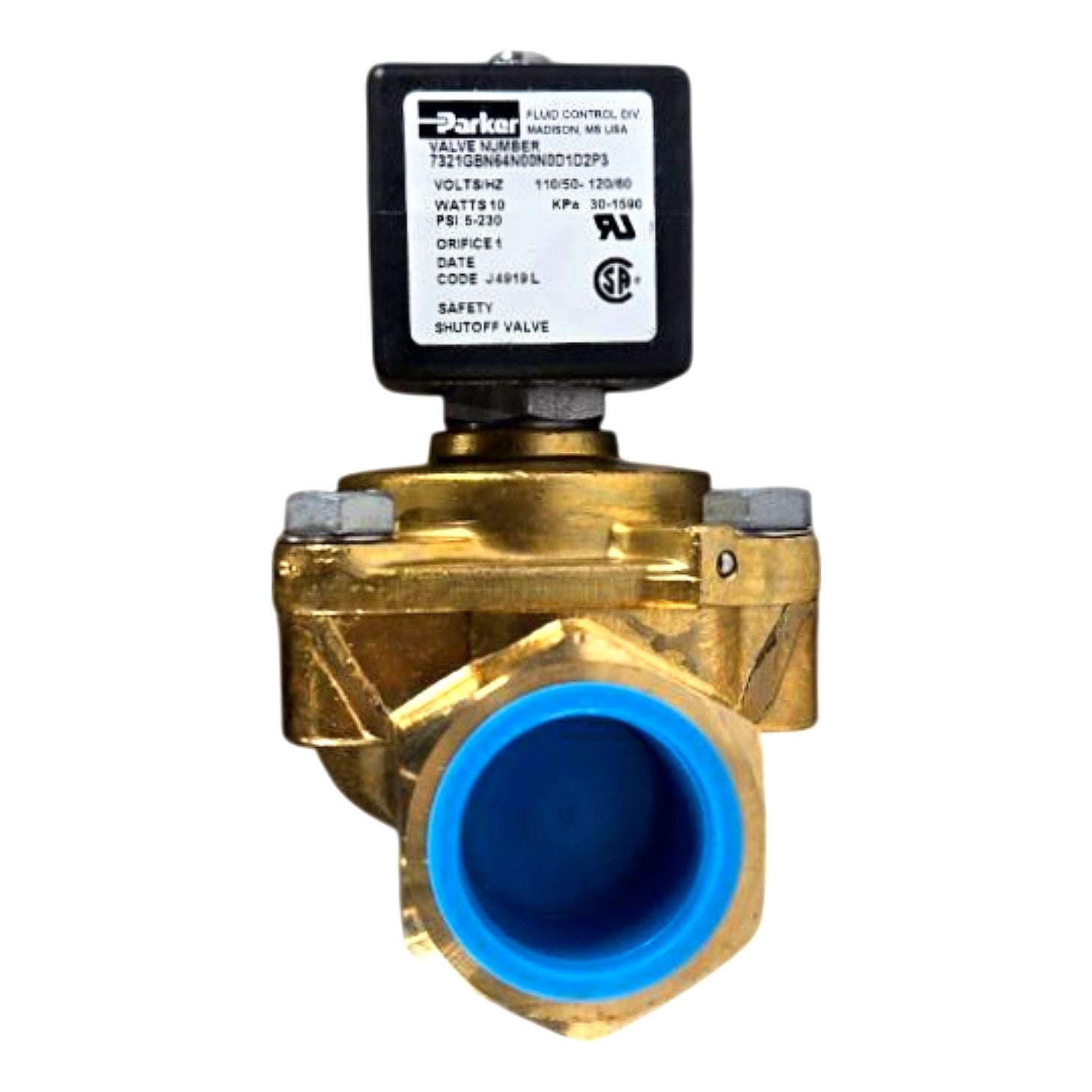

This is a new Parker Skinner 7321GBN64N00N0D1D2P3 two-way, normally closed (N.C.), pilot-operated diaphragm solenoid valve with a brass body, rated for 110/120V AC at 50/60 Hz and 10 watts, designed for safety shutoff service. Per the nameplate and box label visible in the photos, the operating pressure range is 5–230 PSI (30–1590 kPa) and the orifice is size 1; the valve requires a minimum 5 PSI differential pressure to open, which is characteristic of the 7321G series pilot-operated design. The 1-1/4 in NPT (N64 position in part number) brass body is UL and CSA listed, suitable for use with air, water, gas (natural/LP), oil, and other compatible fluids per the Parker Skinner 7321G series fluid media codes encoded in the part number. Listed as an Ingersoll Rand OEM replacement (Ingersoll Rand part number 45693454), this valve is a direct-fit safety shutoff component for compatible compressor and industrial fluid control systems, and ships new in the original Parker/Skinner orange box with installation instructions.
Product Specifications
| Brand | Parker Skinner |
| Manufacturer Part Number (MPN) | 7321GBN64N00N0D1D2P3 |
| OEM / Cross Reference Part # | Ingersoll Rand 45693454 |
| Valve Series | 7321G |
| Valve Type | 2-Way Pilot-Operated Diaphragm Solenoid Valve |
| Normally Closed / Open | Normally Closed (N.C.) |
| Body Material | Brass |
| Port Size | 1-1/4 in NPT |
| Voltage | 110/120V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 10 W |
| Pressure Range | 5–230 PSI (30–1590 kPa) |
| Orifice Size Code | 1 |
| Min. Operating Pressure Differential | 5 PSI |
| Enclosure / Coil Type | General Purpose (D1D2 — watertight/conduit) |
| Certifications | UL Listed, CSA Listed, CE Marked |
| Application | Safety Shutoff Valve |
| Condition | New in original Parker/Skinner box |
