Parlec BT30-32EROS236 BT30 ER32 2.36in Projection Collet Chuck
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

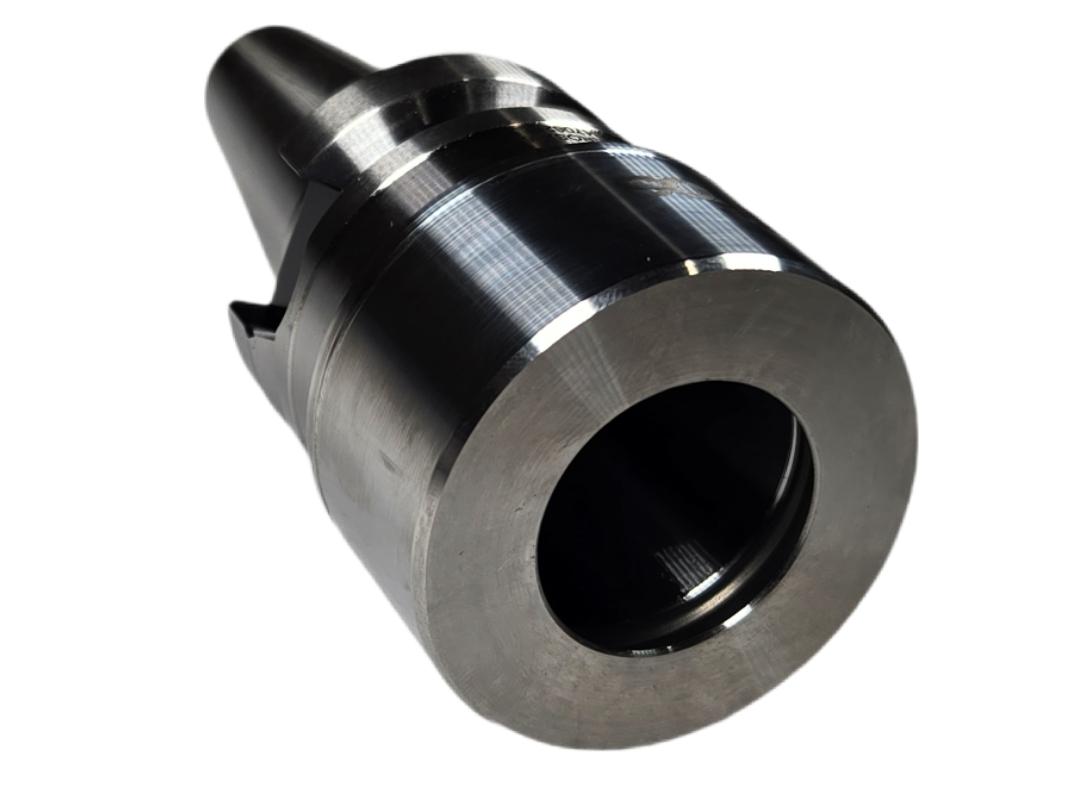

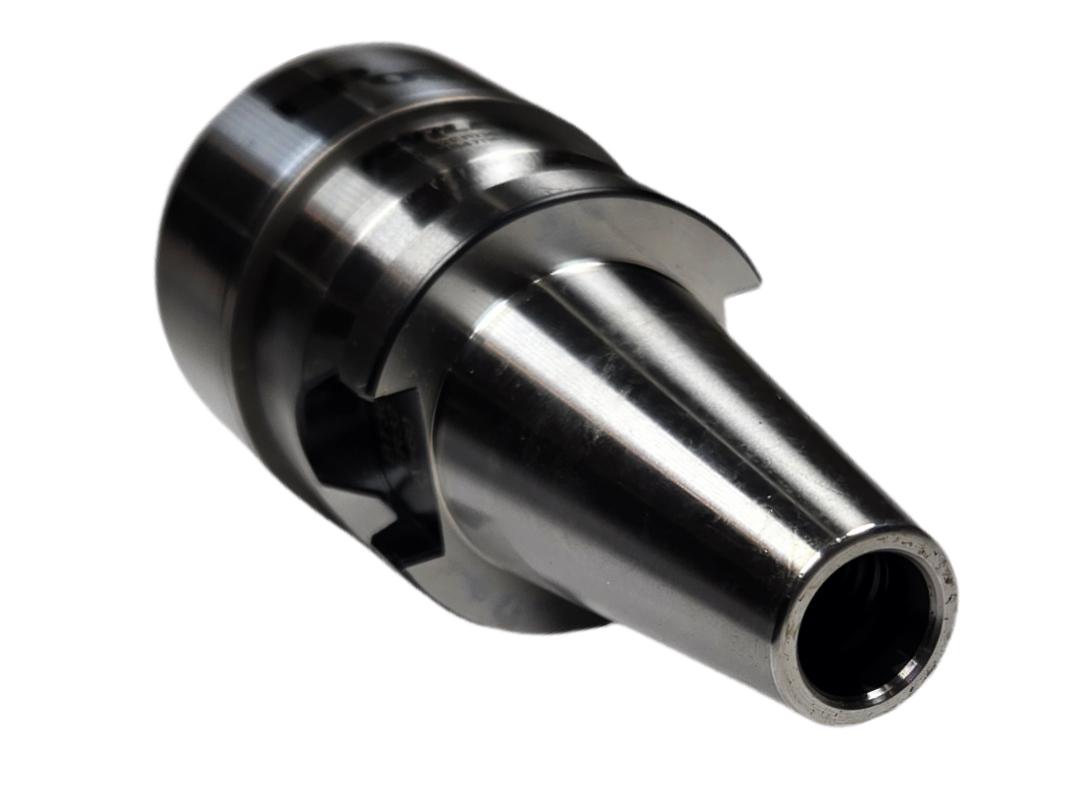

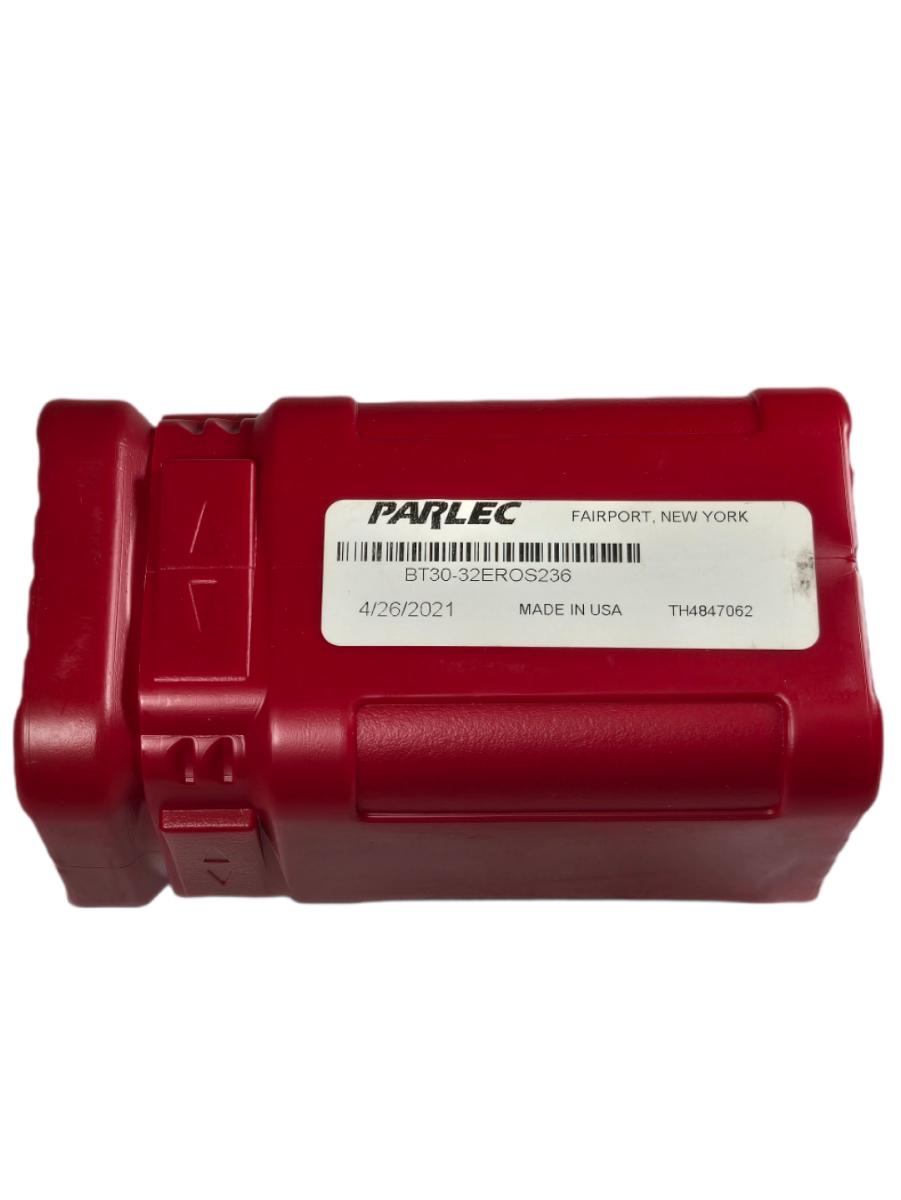

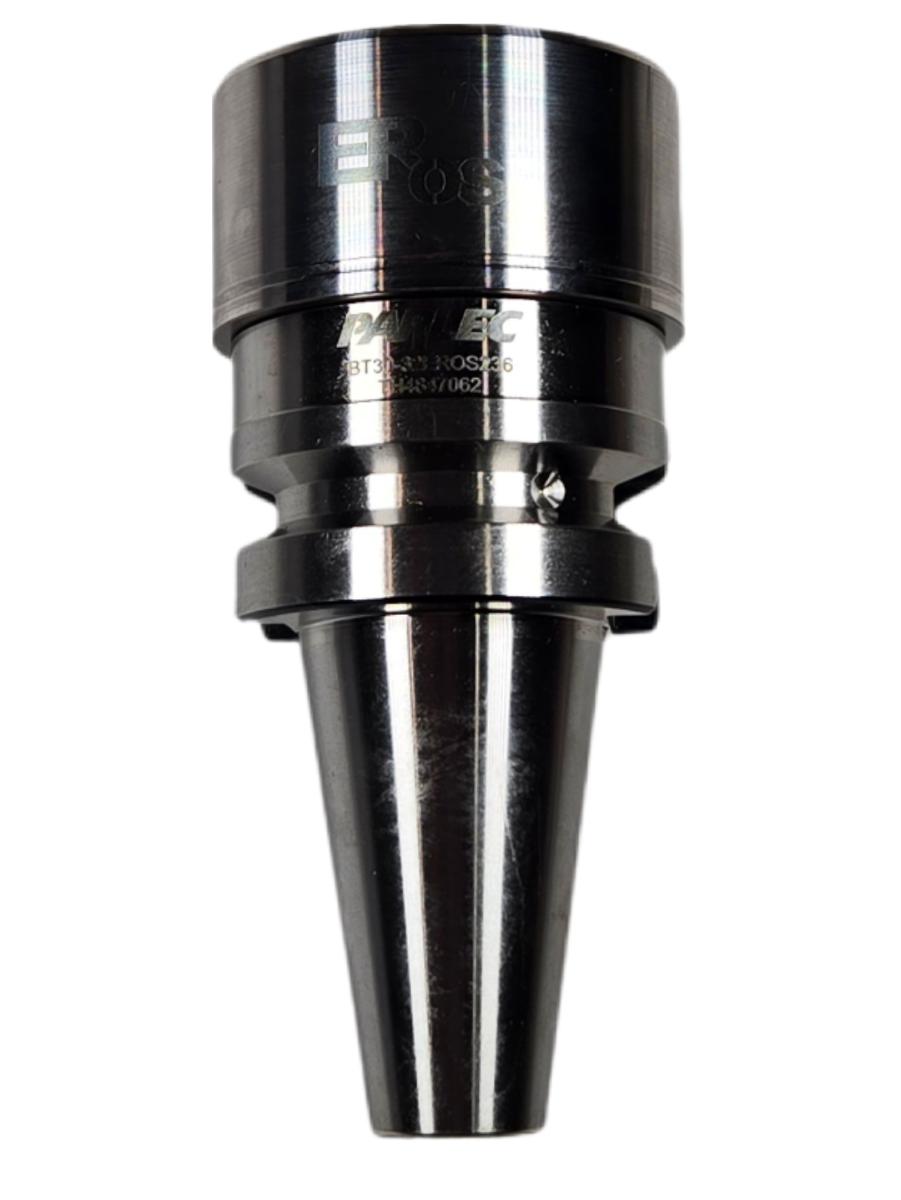

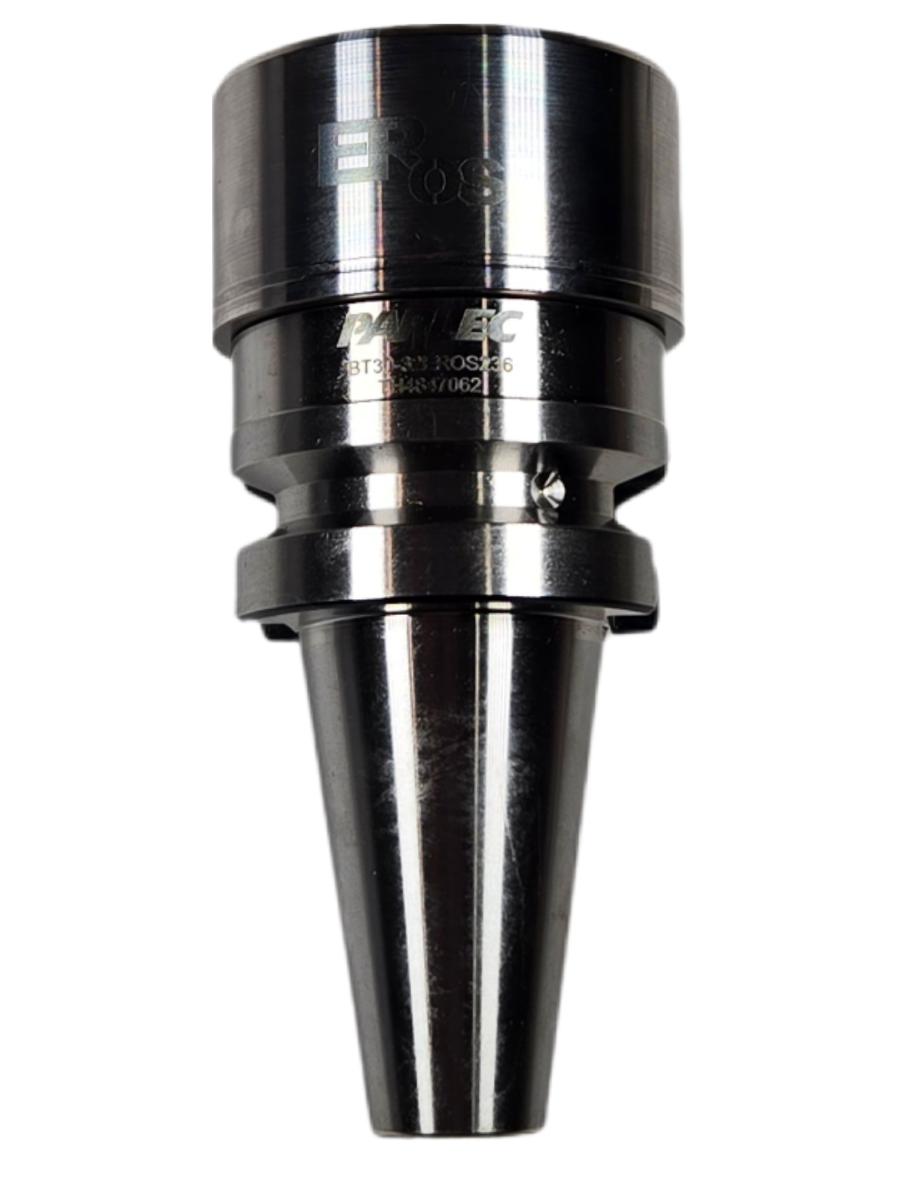

The Parlec BT30-32EROS236 is a new, USA-made BT30 taper shank ER32 collet chuck manufactured by Parlec in Fairport, New York (date-coded 4/26/2021, serial TH4847062). The BT30 shank conforms to the JIS B 6339 standard 7:24 taper used on vertical and horizontal machining centers, and the ER32 collet pocket accepts the full ER32 collet range covering 0.054 in (1.0 mm) through 0.7812 in (20 mm) tool shank diameters. Gauge-line projection (A dimension) is 2.36 in (60 mm) as stamped on the body, and the chuck is dynamically balanced to G2.5 at 20,000 RPM for use on high-speed machining centers. Through-coolant capability is built in, allowing coolant delivery directly to the cutting tool via compatible ER32 sealed collets. The body carries Parlec's black oxide/nitride surface treatment and ships in the original red Parlec protective case.
Product Specifications
| Brand | Parlec |
| MPN | BT30-32EROS236 |
| Country of Origin | USA |
| Taper Shank | BT30 (JIS B 6339, 7:24 taper) |
| Collet System | ER32 |
| Collet Capacity Min | 0.054 in (1.0 mm) |
| Collet Capacity Max | 0.7812 in (20 mm) |

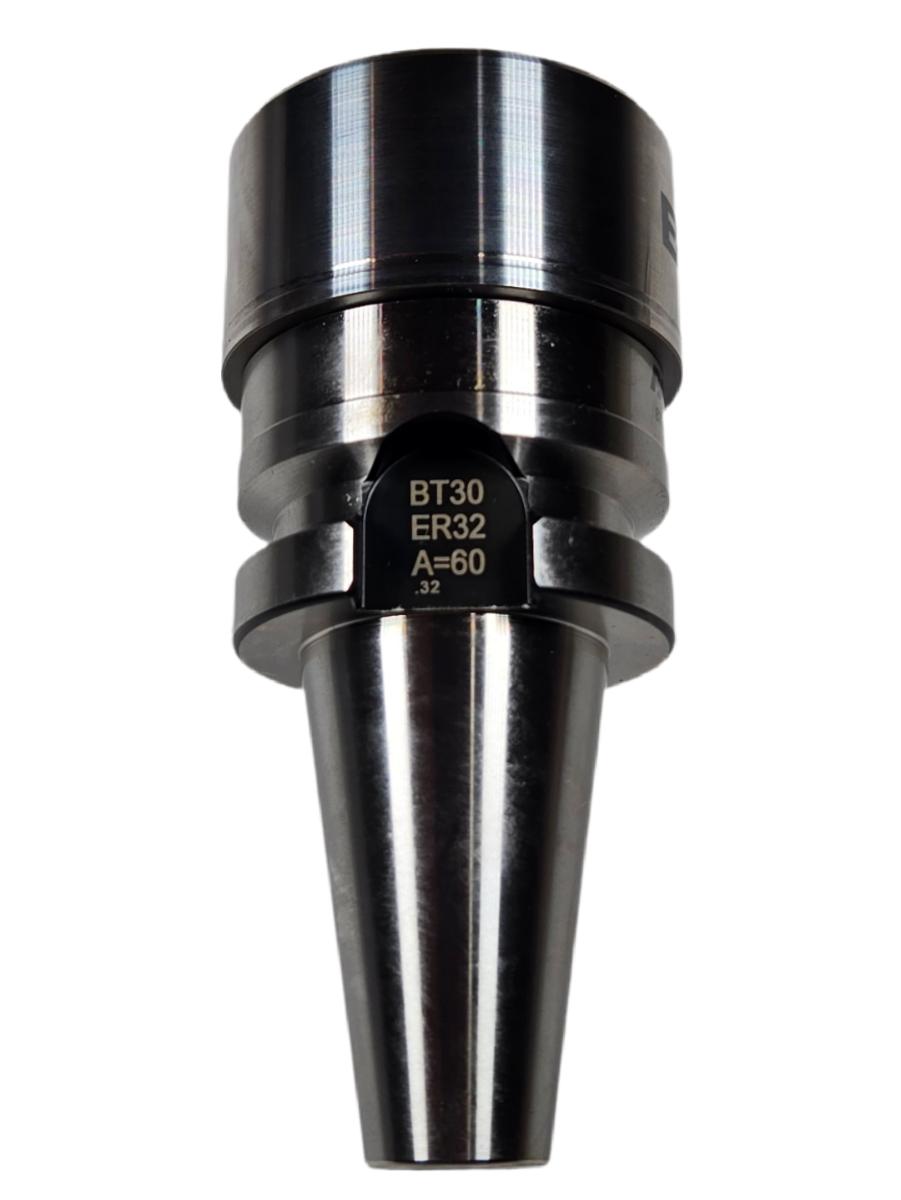

| Gauge Line Projection (A) | 2.36 in (60 mm) |
| Balance Rating | G2.5 at 20,000 RPM |
| Max RPM | 20,000 RPM |
| Through Coolant | Yes |
| Drive Style | Dual drive keys (V-flange) |
| Condition | New |
| Surface Treatment | Black oxide / nitride |
