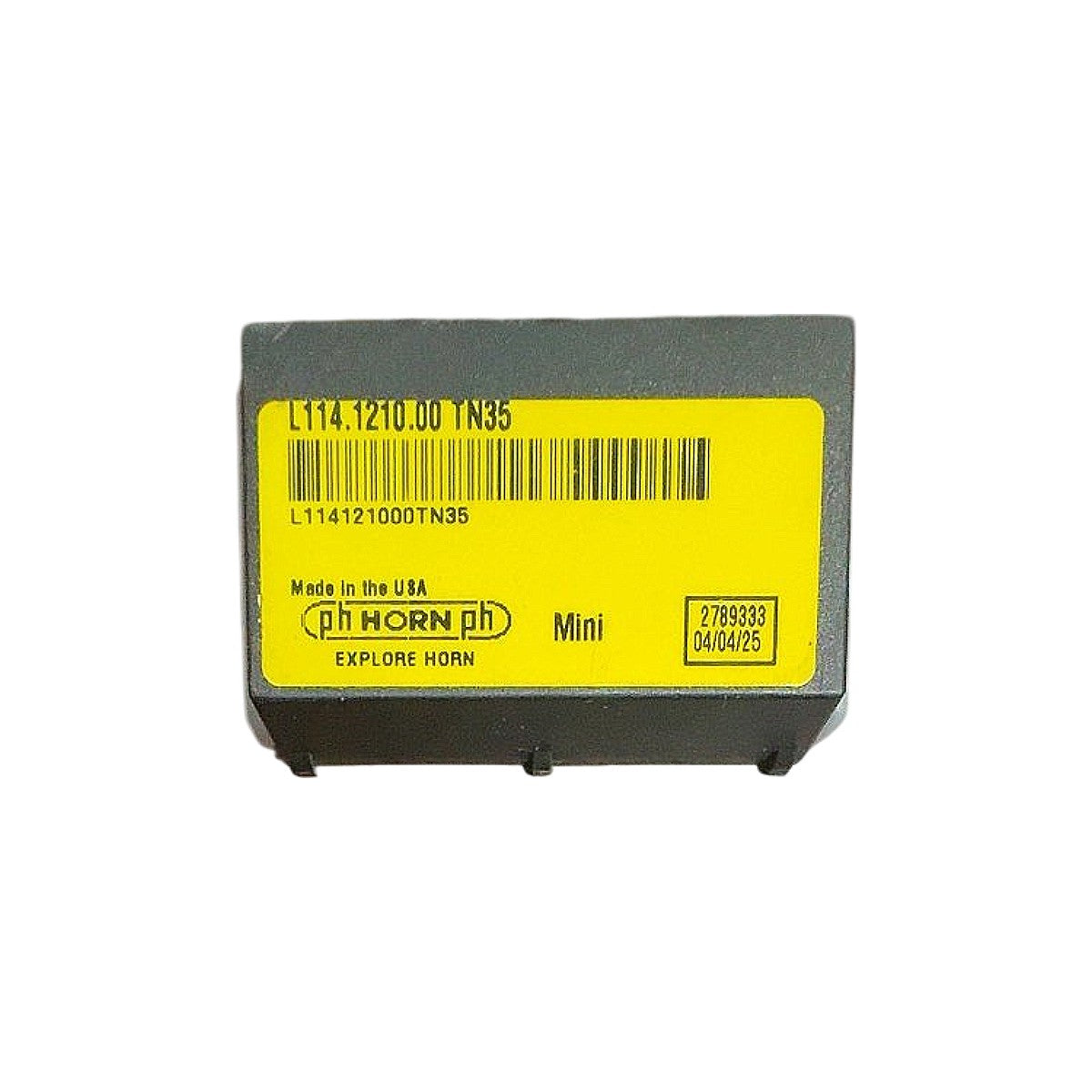

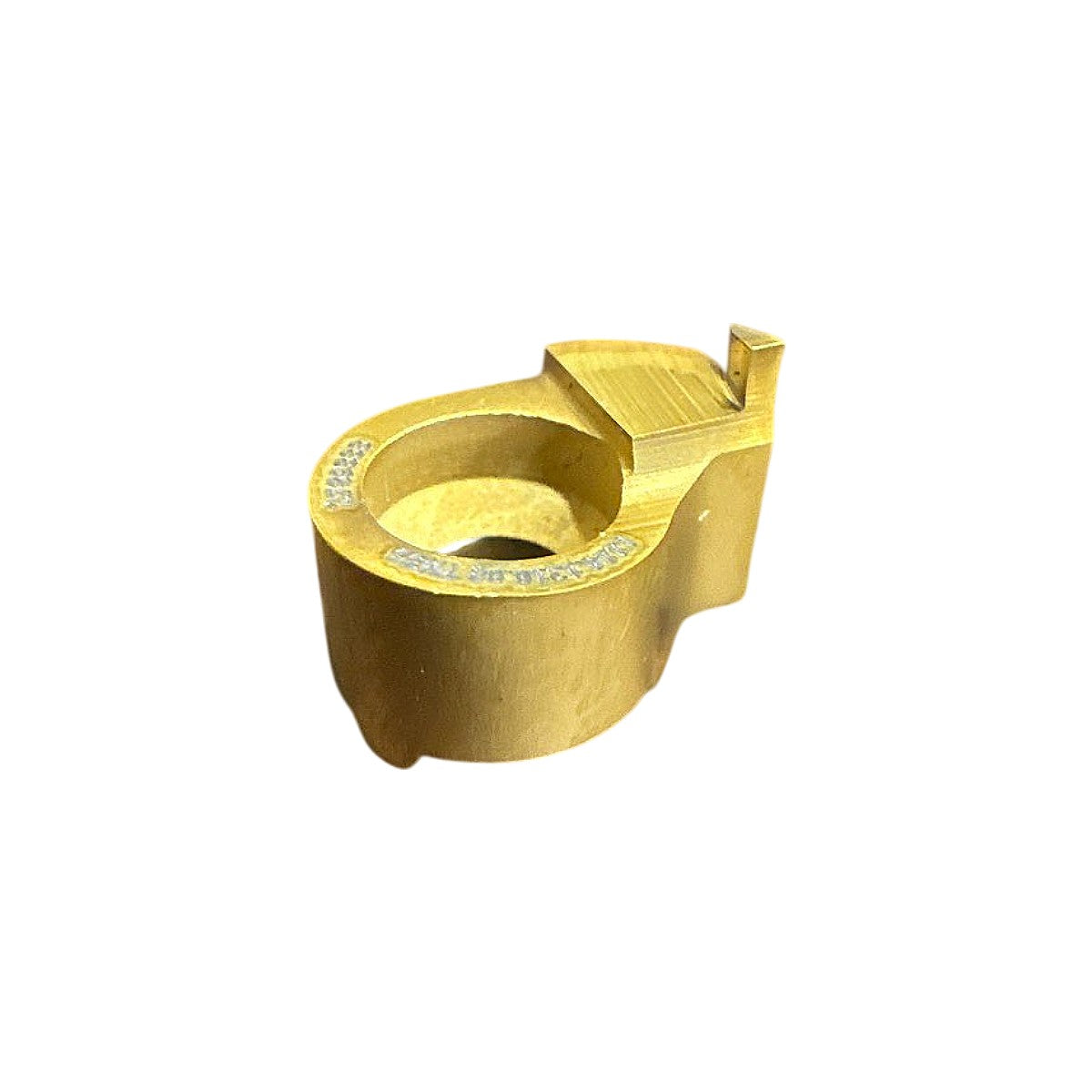

PH Horn L114.1210.00 TN35 Carbide Grooving Insert

The Horn L114.1210.00 TN35 is a new, solid carbide grooving insert belonging to Horn's System 114 Mini series, designed for small-part grooving, parting, and internal grooving operations on CNC lathes. The full part number decodes as follows: L114 = System 114 grooving system (Horn's Mini groove insert series); 12 = 1.2 mm groove width; 10 = 10 mm usable cutting depth; 00 = straight cutting edge (0° lead angle); TN35 = Horn's TN35 uncoated, ultra-fine grain carbide substrate optimized for non-ferrous materials including aluminum, copper alloys, brass, and plastics where a razor-sharp edge and built-up-edge resistance are paramount. The TN35 grade delivers an extremely sharp cutting edge without a coating, providing low cutting forces and excellent surface finishes on ductile non-ferrous workpieces. This insert is compatible with Horn System 114 Mini toolholders and boring bars designed for the L114 insert pocket, and is manufactured in the USA as indicated on the label.

Product Specifications
