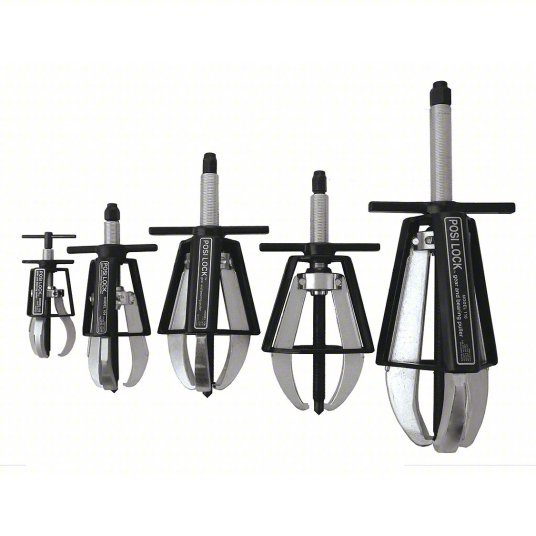

The Posi Lock PM5 is a new, 5-piece mechanical gear and bearing puller set assembled in the USA by Hydraulic Technologies USA LLC (Rockford, IL), covering jaw spreads from 1 inch to 12 inches with a maximum jaw reach of 9-11/16 inches and a jaw thickness of 0.35 inches. The set includes five individual pullers — PT103 (3-jaw, 3 in, 1-ton), PT104 (3-jaw, 4 in, 2-ton), PT106 (3-jaw, 6 in, 10-ton), PT110 (3-jaw, 10 in, 20-ton), and PT206 (2-jaw, 6 in, 5-ton) — providing coverage across a wide range of bearing, gear, and hub removal tasks in a single kit. Posi Lock pullers feature a self-energizing jaw design that tightens grip under load, reducing jaw slip during extraction, and the die-cast aluminum jaw construction keeps tool weight manageable across the full size range. This set is suited for maintenance, repair, and overhaul operations on motors, pumps, gearboxes, and agricultural or industrial machinery where multiple puller sizes are required.
Product Specifications
| Brand | Posi Lock (Hydraulic Technologies USA LLC) |
| Model Number | PM5 |
| Set Contents | 5 pullers: PT103, PT104, PT106, PT110, PT206 |
| Minimum Jaw Spread | 1 in |
| Maximum Jaw Spread | 12 in |
| Jaw Reach | 9-11/16 in |
| Jaw Thickness | 0.35 in |
| Number of Jaws per Puller | 3 |
| PT103 Capacity | 3 Jaw, 3 in, 1 Ton |
| PT104 Capacity | 3 Jaw, 4 in, 2 Ton |
| PT106 Capacity | 3 Jaw, 6 in, 10 Ton |
| PT110 Capacity | 3 Jaw, 10 in, 20 Ton |
| PT206 Capacity | 2 Jaw, 6 in, 5 Ton |
| Country of Assembly | USA (Rockford, IL) |
| Puller Type | Mechanical screw-type, self-centering jaw design |
| Condition | New |
