Precision Model 5 in Switchable Magnetic V-Block Machinist
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

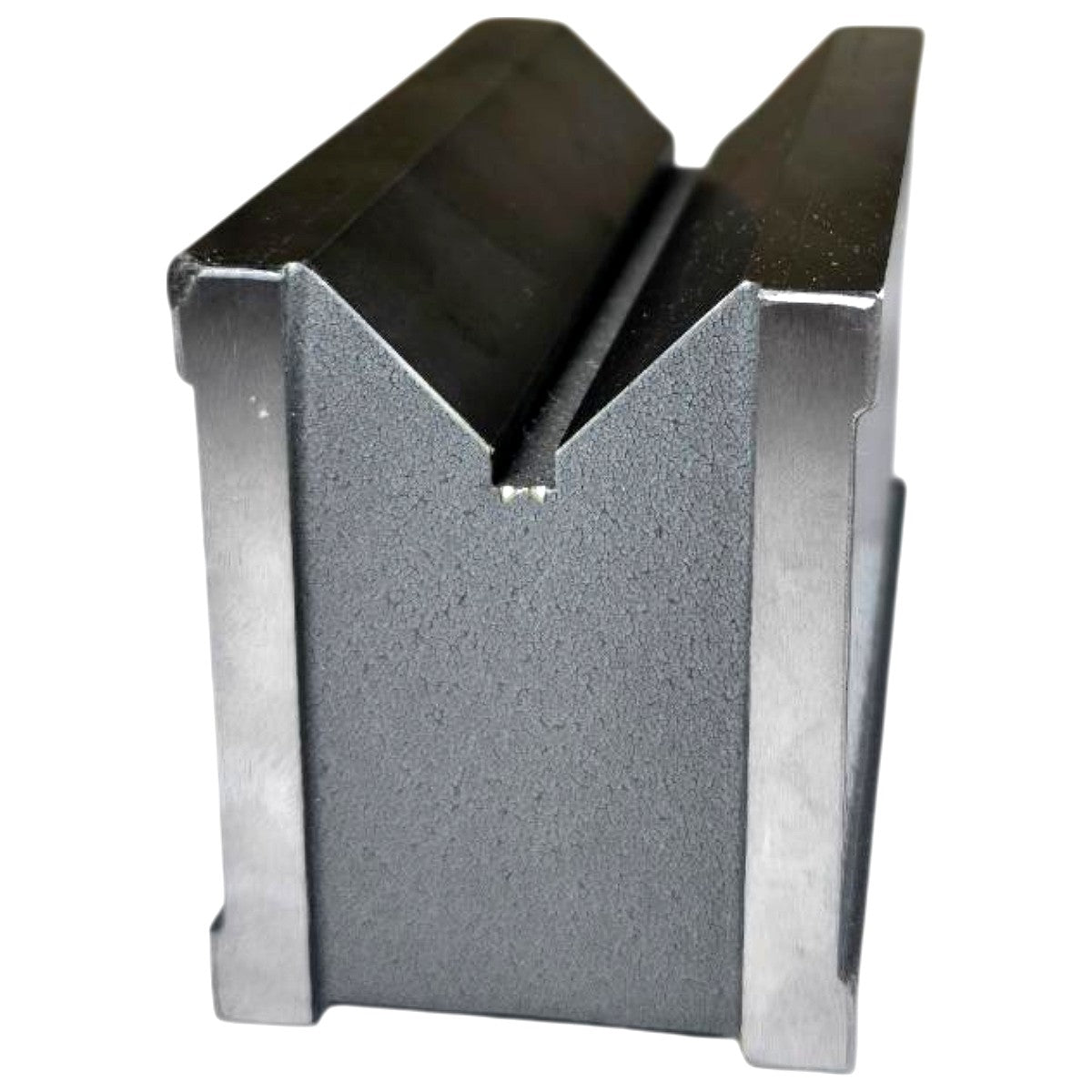

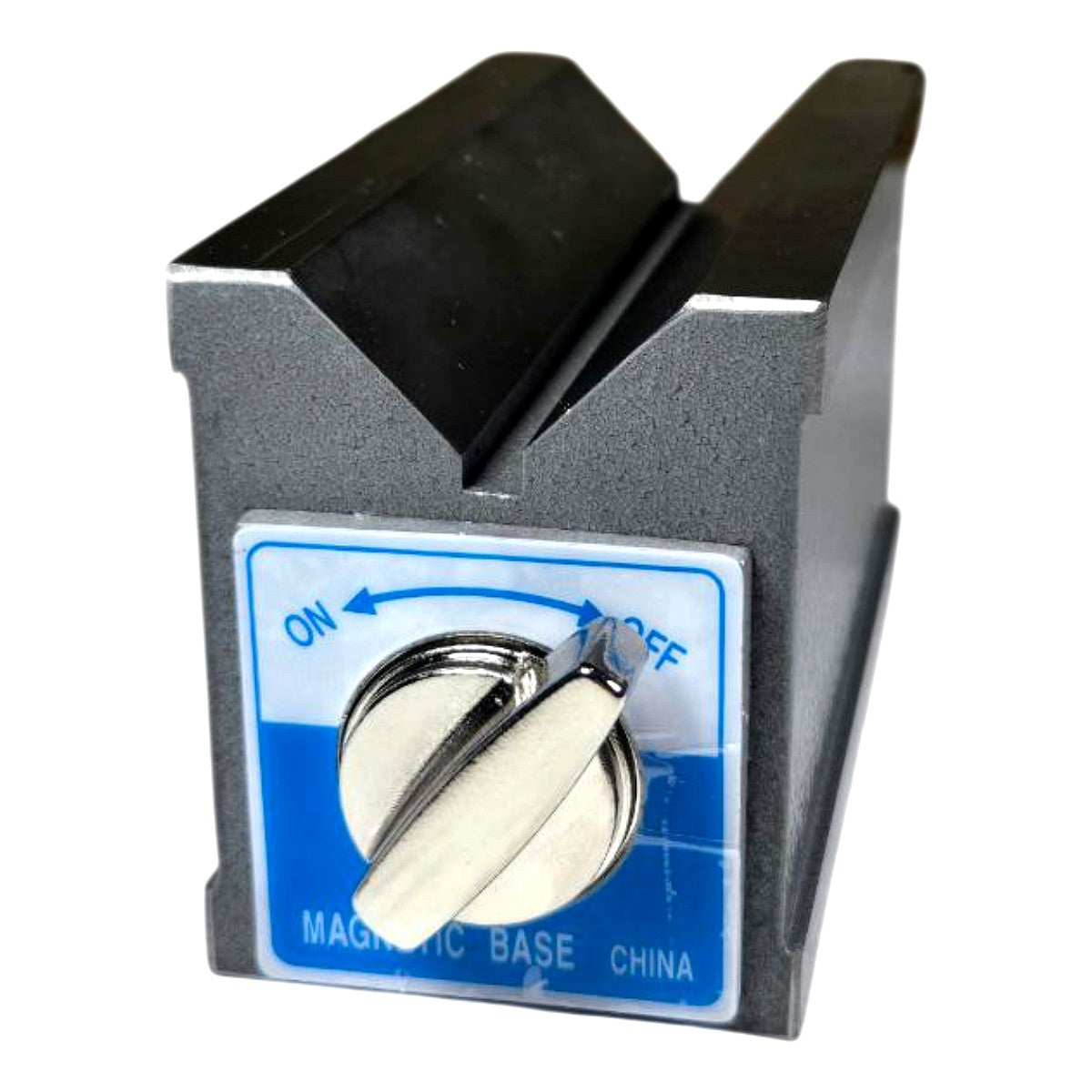

This new precision Model 5 switchable magnetic V-block is a cast iron workholding fixture with ground and lapped V-groove and base contact surfaces, designed to locate and hold cylindrical workpieces on magnetic chucks, surface plates, or ferrous machine tables. The integrated on/off rotary knob mechanism redirects the permanent magnet flux to engage or release the block from a ferrous surface without any external power source, allowing safe repositioning during setup. The V-groove runs the full length of the top face and accommodates round stock across a typical capacity range of approximately 5/8 in to 3-1/8 in diameter; the ground flat bottom provides a stable, magnetically activated mounting surface. Common applications include inspection setups, surface grinding workholding, cylindrical squareness checks, and layout work on steel surface plates. "Magnetic Base China" is clearly labeled on the front switch plate; no brand name or MPN is printed on the unit.
Product Specifications
| Body Material | Cast Iron |
| Contact Surfaces | Ground & Lapped |
| Magnet Type | Permanent magnet, switchable on/off |
| Switch Type | Rotary knob, on/off |
| V-Groove Orientation | Top face, full length |
| V-Groove Angle | 90° |
| Workpiece Capacity (approx.) | 5/8 in to 3-1/8 in dia (est.) |
| Overall Length (approx.) | 5 in (est.) |
| Mounting Base | Flat ground magnetic bottom |
| Country of Origin | China |
| Condition | New |
