Pro-Source 73915001 0.45HP 6000RPM 4-Vane Reversible Hub Air Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

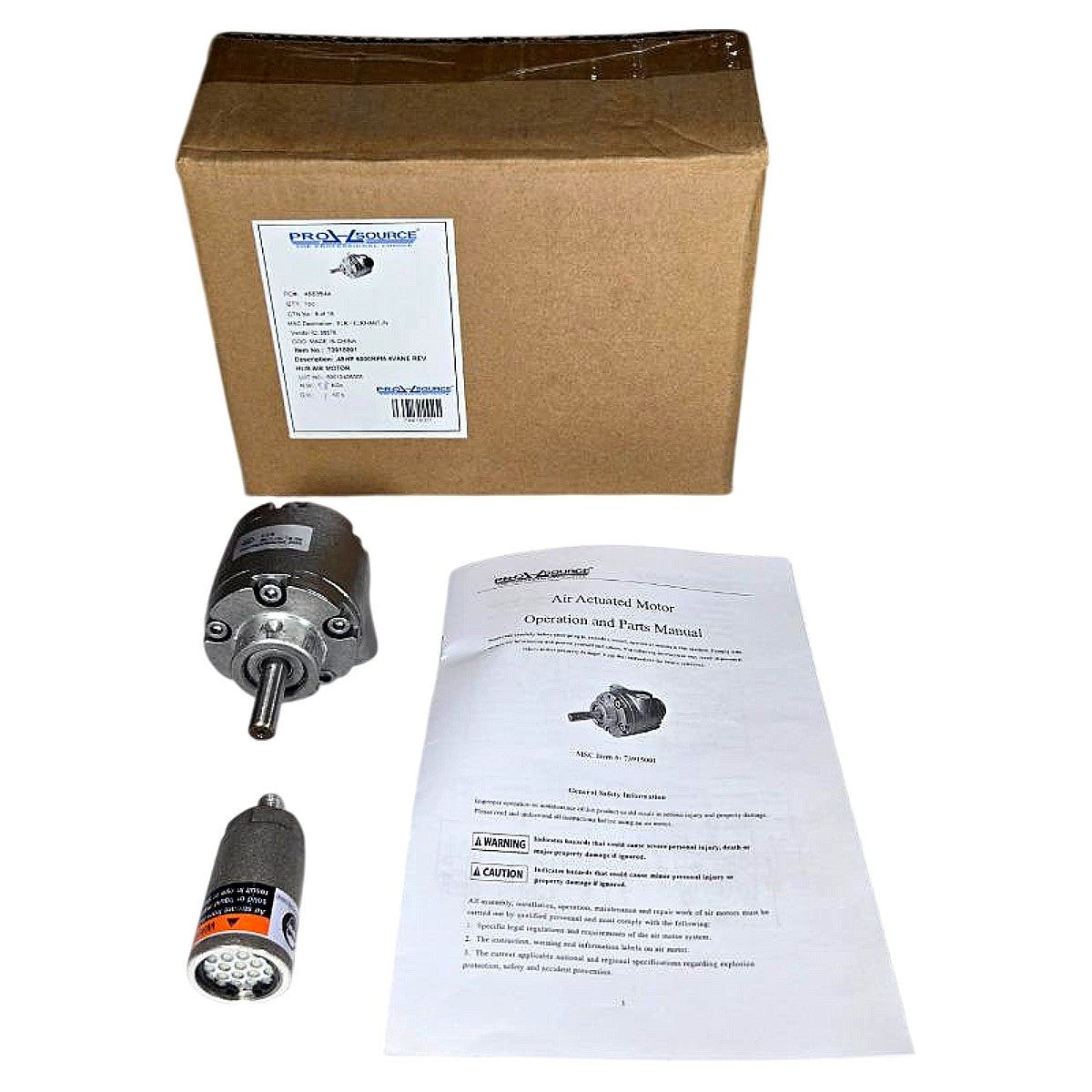

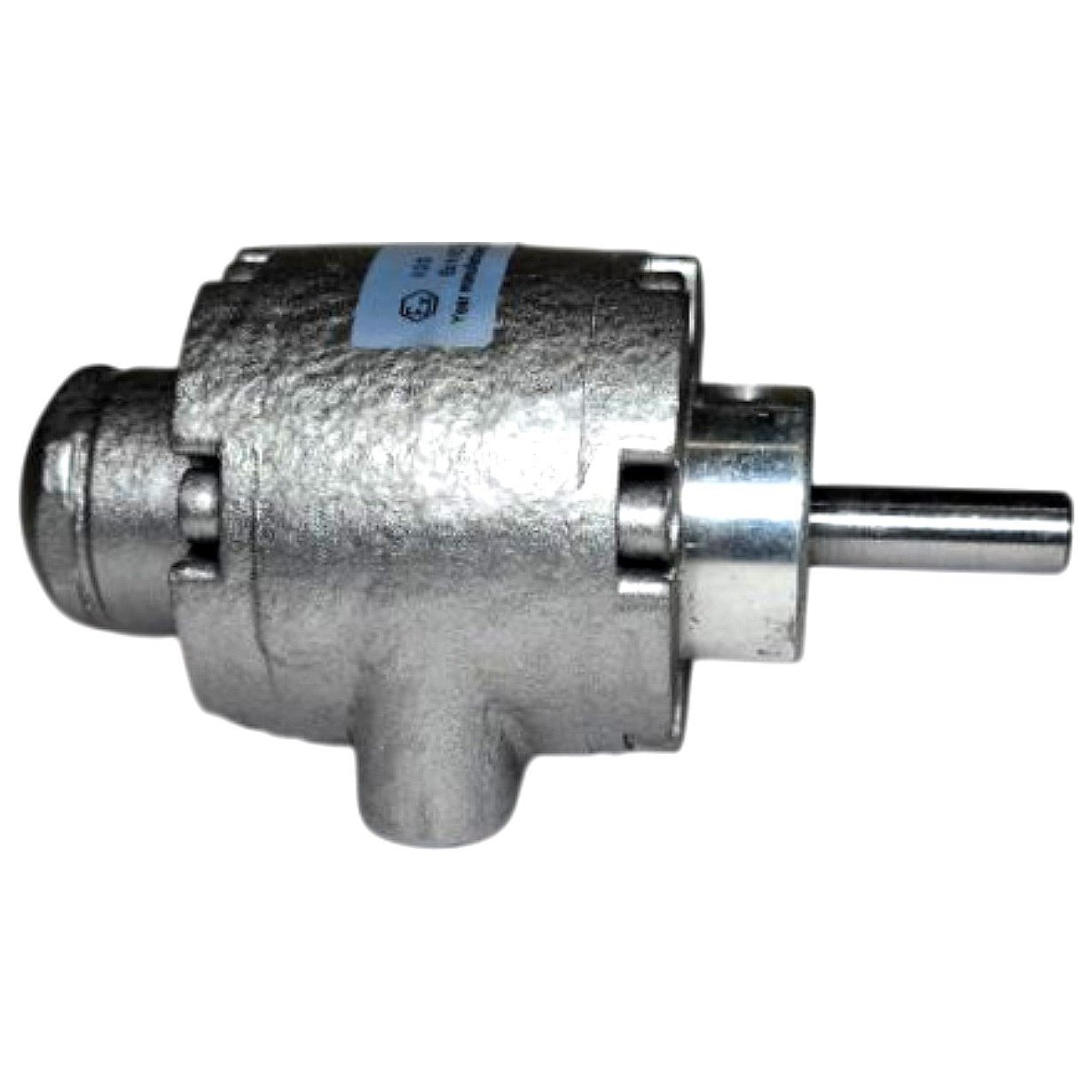

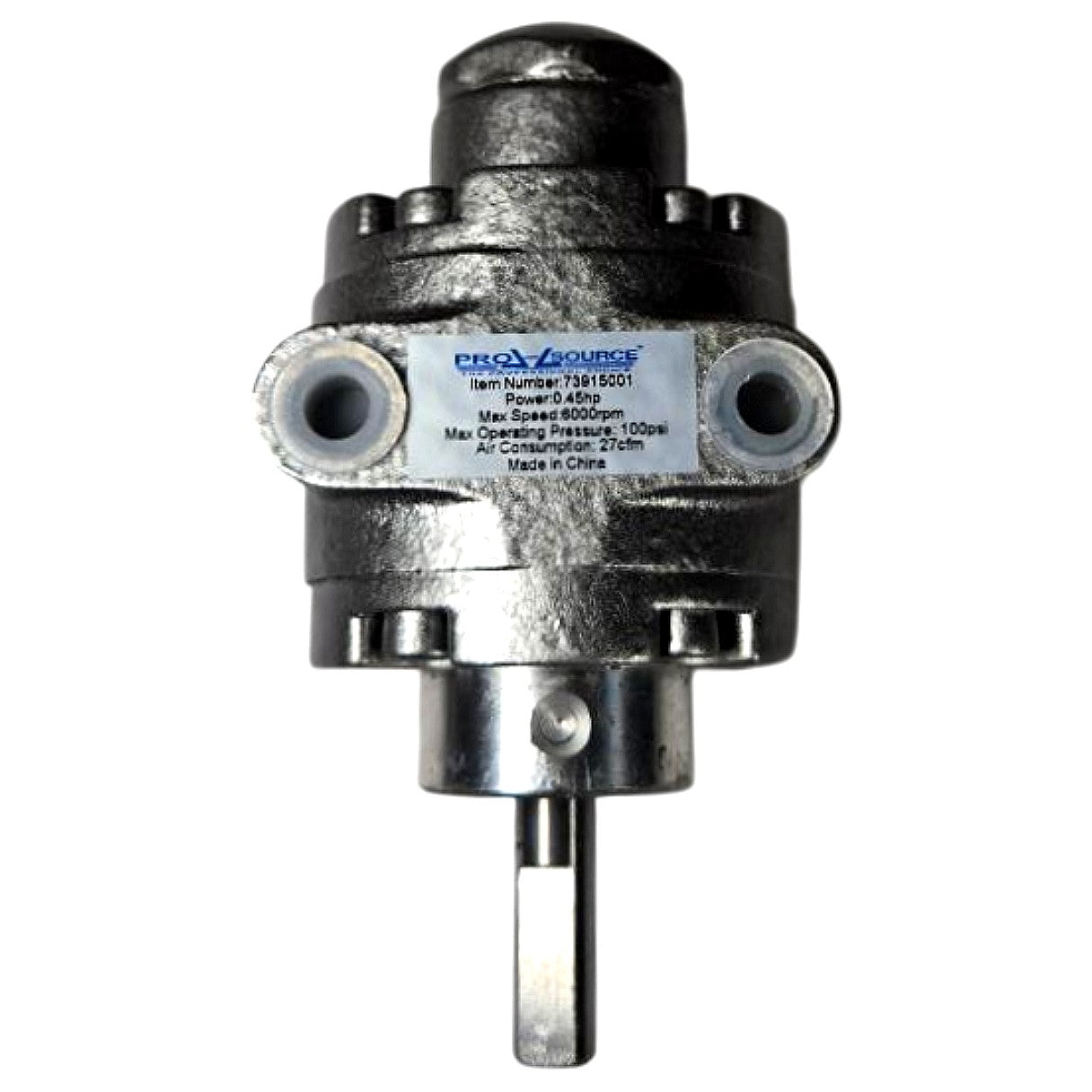

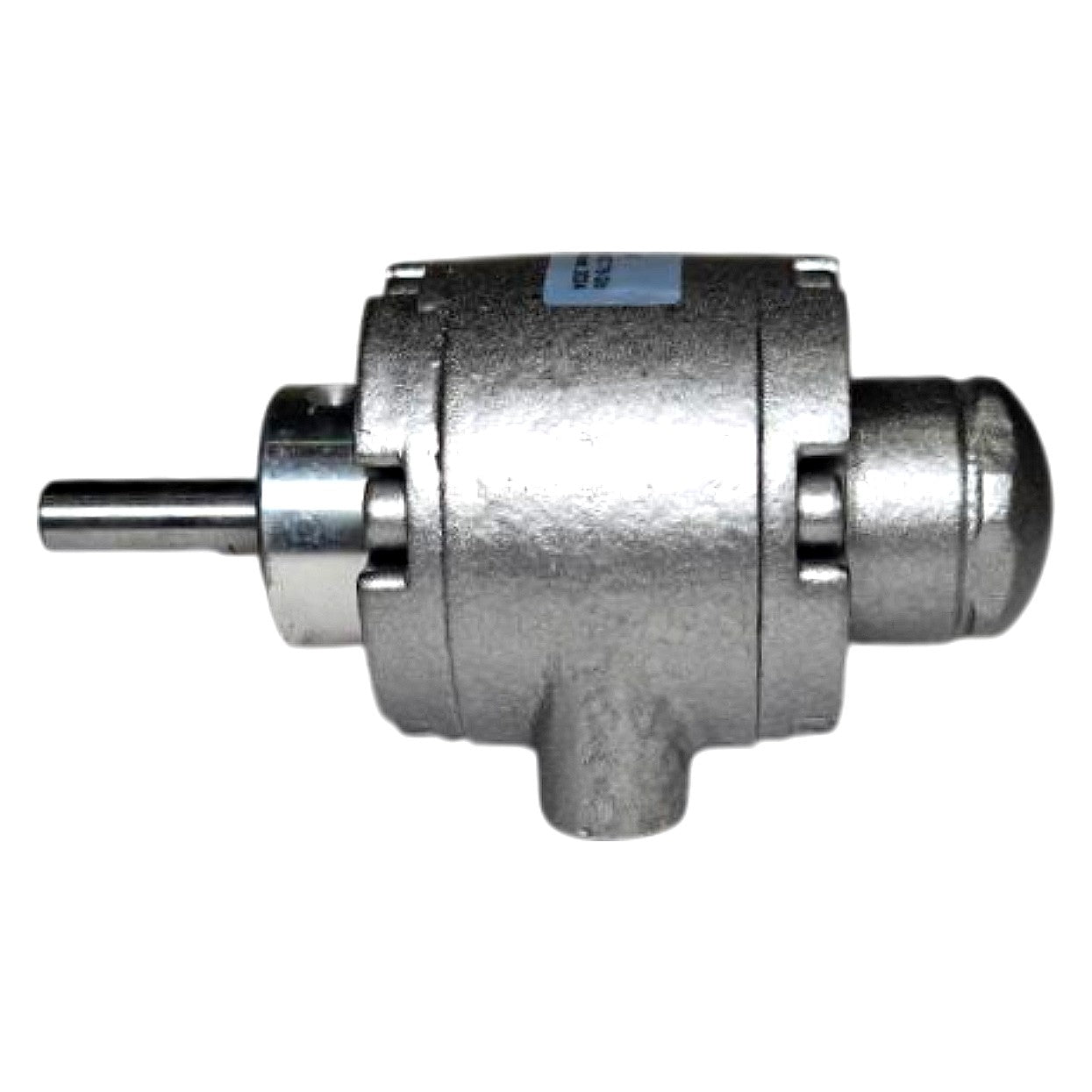

The Pro-Source 73915001 is a new 4-vane reversible hub-mount pneumatic air motor rated at 0.45 HP with a maximum free speed of 6,000 RPM. The motor operates on a maximum air supply pressure of 100 PSI and has a maximum air consumption of 27 CFM at full load; it features a die-cast aluminum housing with a smooth cylindrical profile and a single output shaft with a flat (hub) drive configuration suitable for direct coupling to driven equipment. The reversible design allows bi-directional rotation, making it suitable for applications such as automated assembly machinery, conveyor drives, agitators, and other pneumatic drive systems where spark-free, variable-speed operation is required. Two inlet/exhaust ports are visible on the motor body accommodating standard pneumatic fittings, and the unit ships complete with an operation and parts manual. Net weight per the carton label is 0.8 kg (approximately 1.76 lbs); gross shipping weight is 1.0 kg.
Product Specifications
| Brand | Pro-Source |
| Item Number / MPN | 73915001 |
| Motor Type | 4-Vane Pneumatic (Air) Motor |
| Power Output | 0.45 HP |
| Max Free Speed | 6000 RPM |
| Max Operating Pressure | 100 PSI |
| Air Consumption | 27 CFM |
| Rotation | Reversible (CW & CCW) |
| Mount Type | Hub Mount |
| Number of Vanes | 4 |
| Net Weight | 0.8 kg (1.76 lbs) |
| Gross Weight | 1.0 kg (2.2 lbs) |
| Country of Origin | China |
| Condition | New |
