Pro Source HX2AM-H-NCC 0.93 HP 3000 RPM 4-Vane Foot Mount Air Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

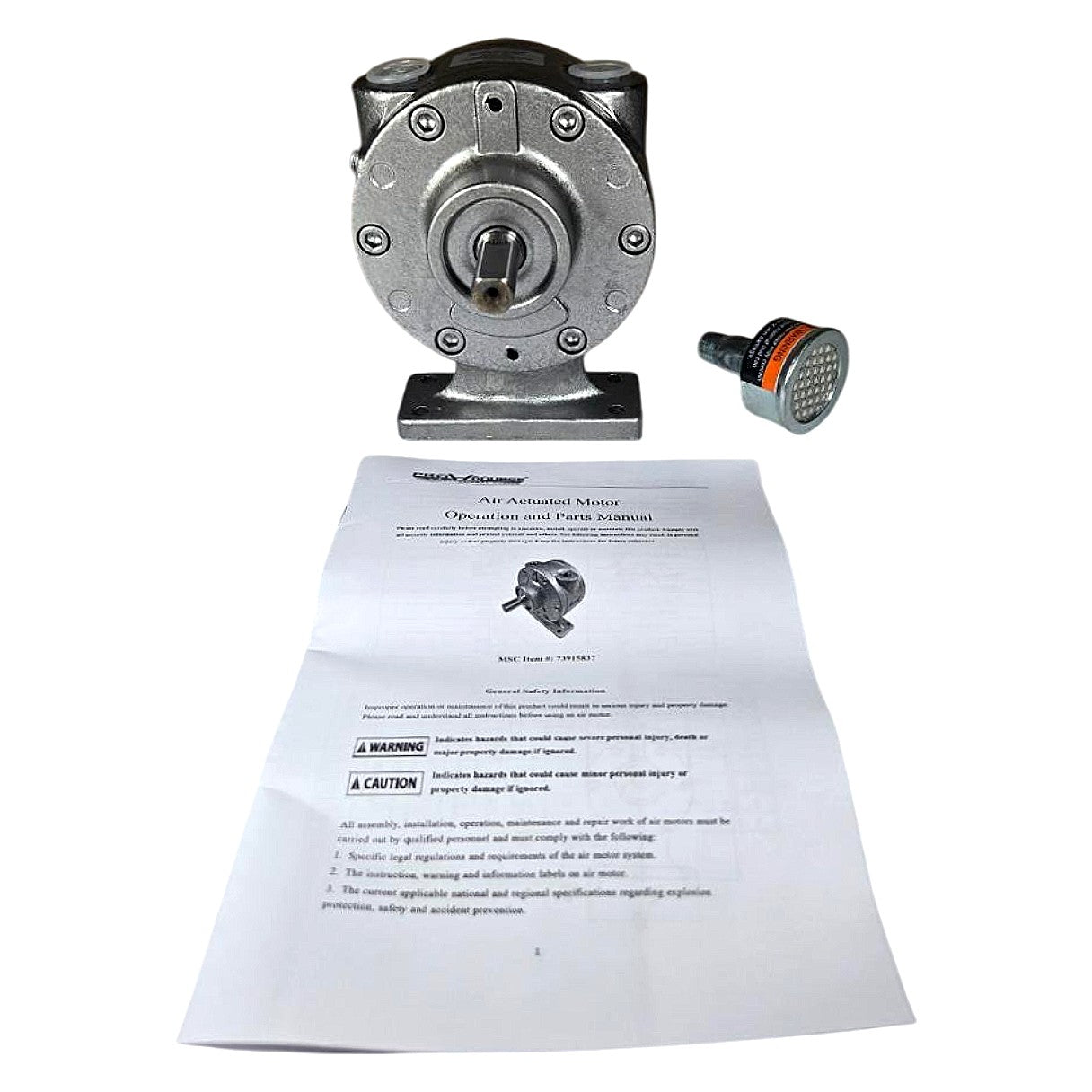

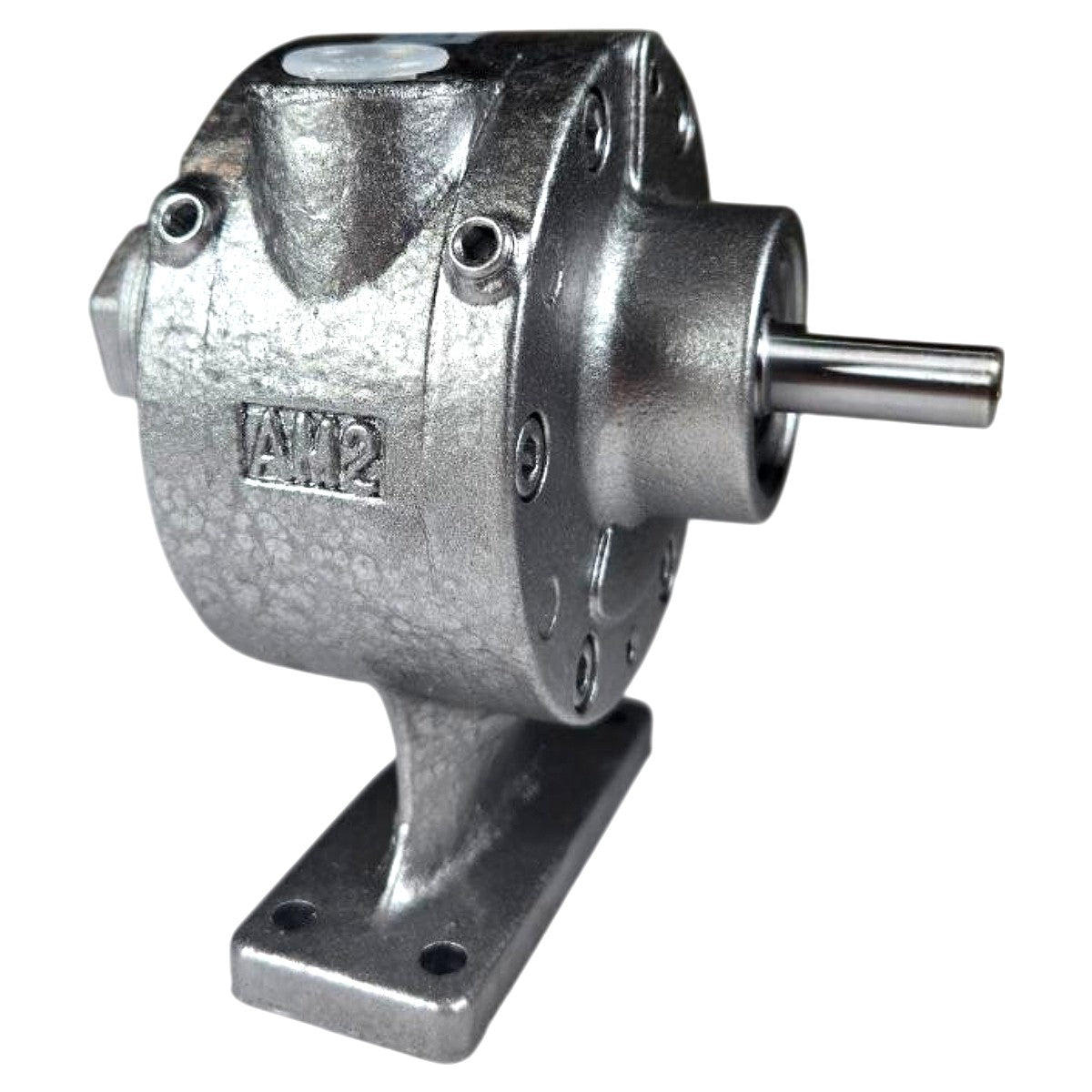

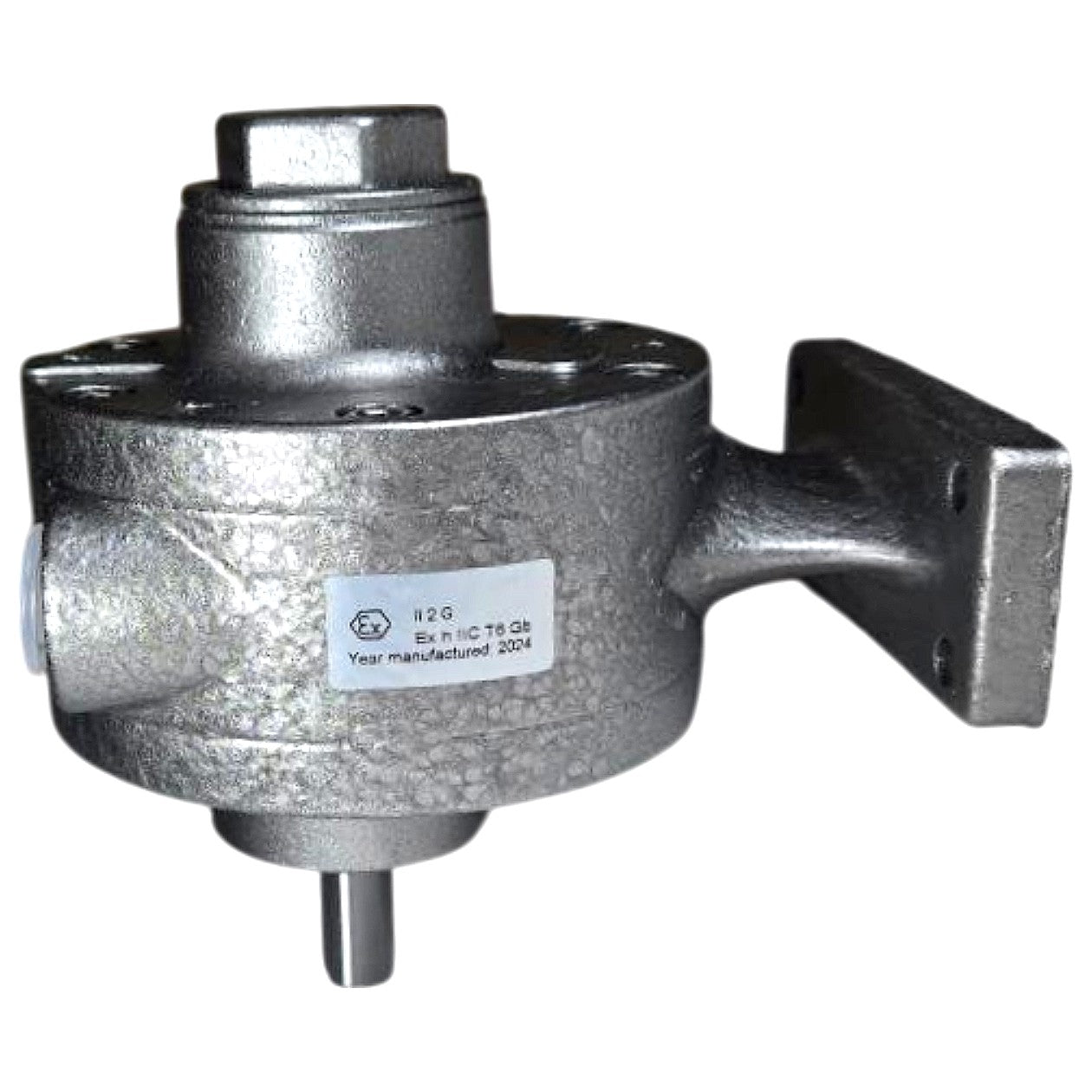

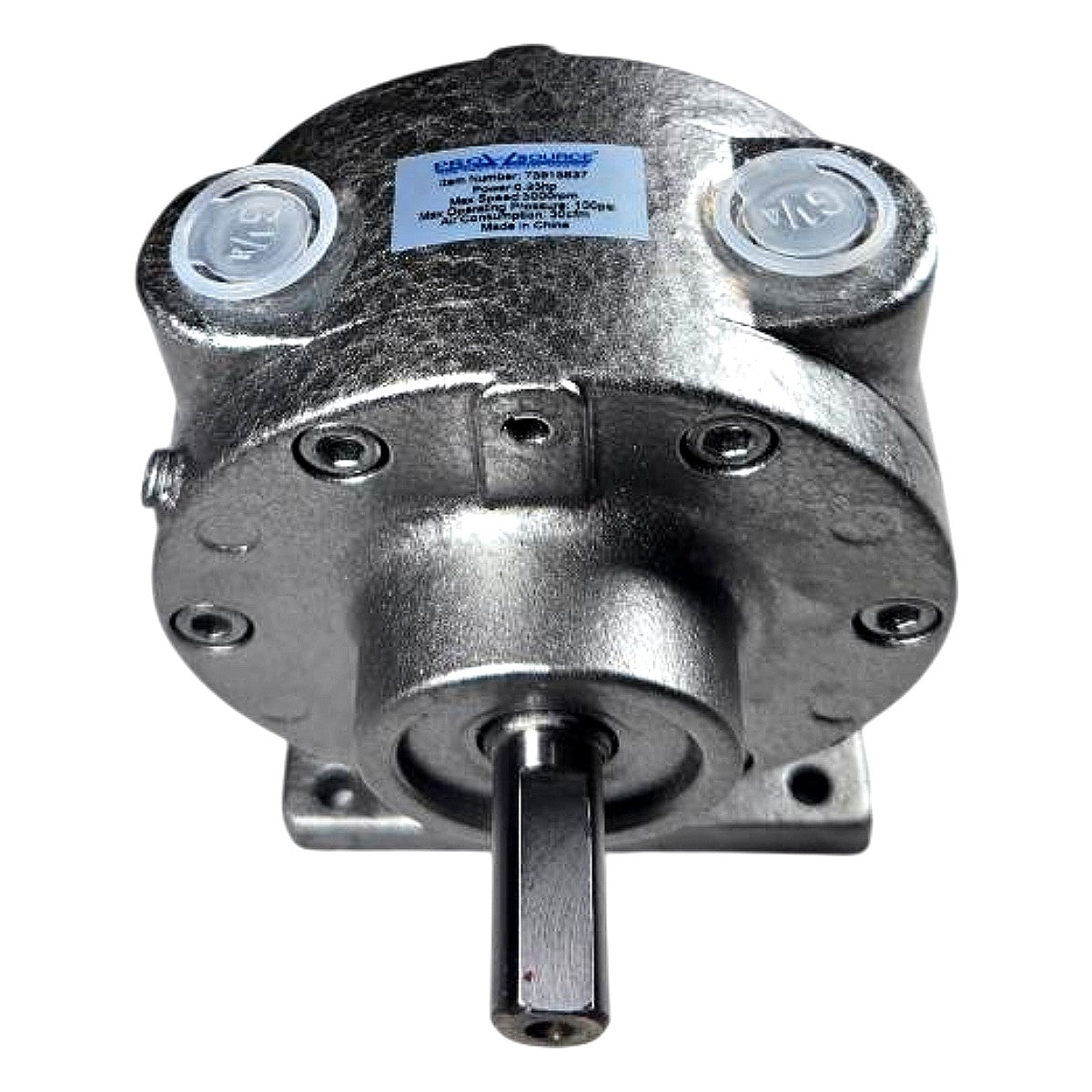

The Pro Source HX2AM-H-NCC is a new 4-vane, foot-mounted pneumatic air motor rated at 0.93 HP with a maximum free-running speed of 3,000 RPM. The motor features a cast aluminum housing with an integrated foot/base mount for direct surface or frame mounting, dual 1/4 NPT inlet/outlet ports visible on the top face, and a smooth steel output shaft with a threaded end for coupling or pulley attachment. Per the product label visible in the photos, maximum operating pressure is 100 PSI and air consumption is 30 CFM at rated conditions; the motor is designed for counterclockwise (CNTRCLK) rotation and carries ATEX classification II 2G Ex h IIC T6 Gb (manufactured 2024), making it suitable for use in Zone 1 hazardous (explosive atmosphere) environments. MSC Item No. 73915837 corresponds to this unit; the motor ships with a muffler/exhaust silencer and an operation & parts manual, and it is manufactured in China with a net weight of approximately 2.5 kg (5.5 lbs).
Product Specifications
| Brand | Pro Source |
| MPN | HX2AM-H-NCC |
| MSC Item No. | 73915837 |
| Motor Type | 4-Vane Air Motor |
| Horsepower | 0.93 HP |
| Max Speed (No Load) | 3000 RPM |
| Max Operating Pressure | 100 PSI |
| Air Consumption | 30 CFM |
| Rotation Direction | Counterclockwise (CNTRCLK) |
| Mounting Style | Foot Mount |
| Port Size | 1/4 NPT (inlet & outlet) |
| Housing Material | Cast Aluminum |
| ATEX Classification | II 2G Ex h IIC T6 Gb |
| Year Manufactured | 2024 |
| Net Weight | 2.5 kg (5.5 lbs) |
| Country of Origin | China |
| Includes | Muffler/silencer, operation & parts manual |
| Condition | New |
