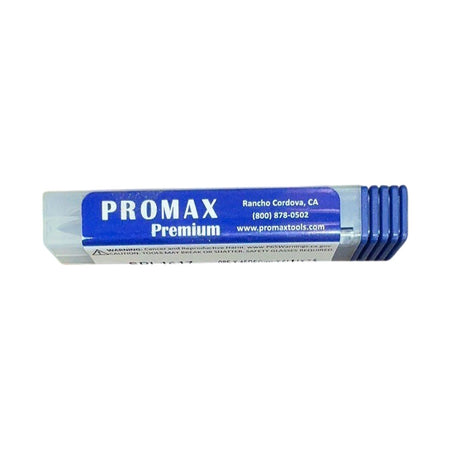

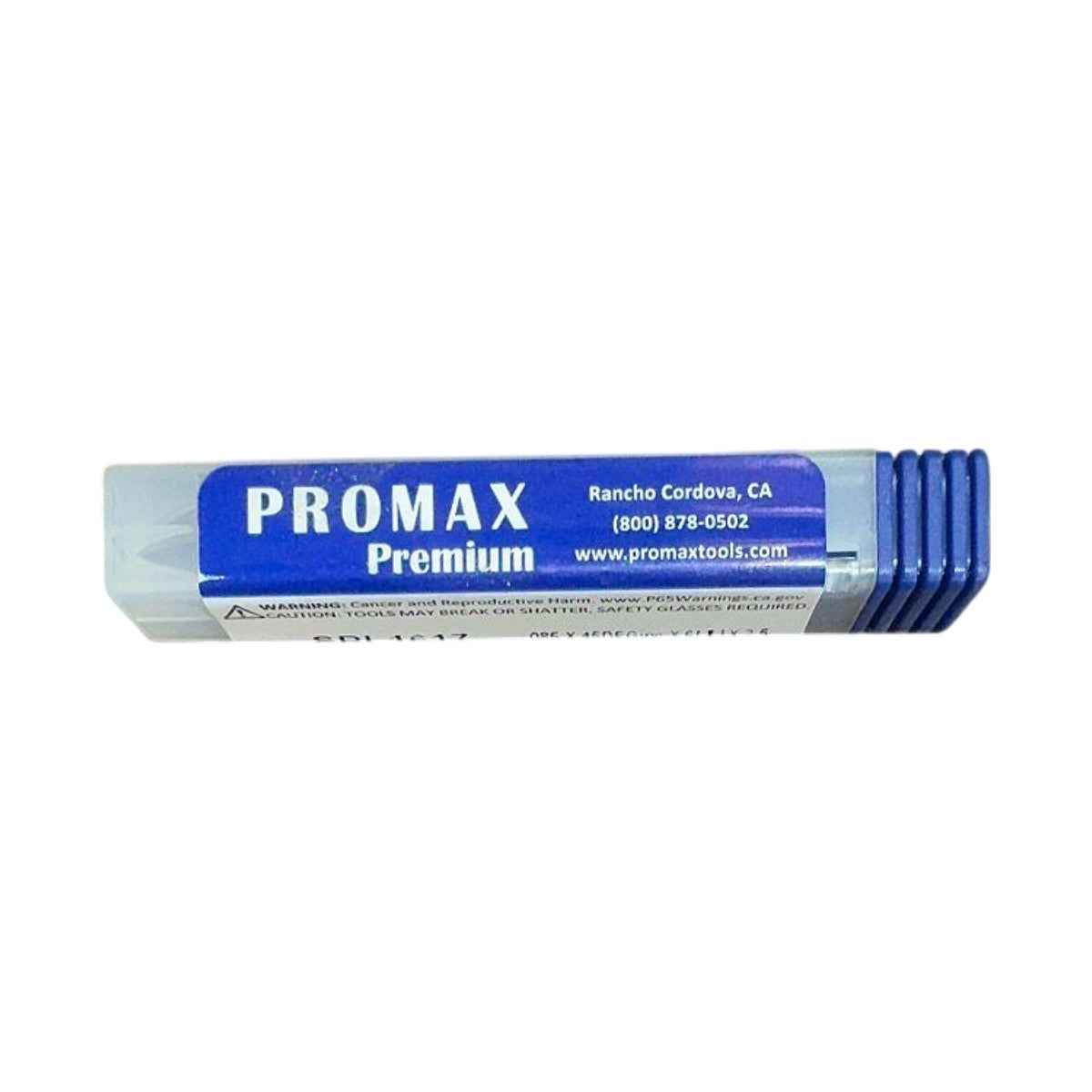

Promax SPL1617 .085 x 45° 3FL AlTiN Carbide Form Tool
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

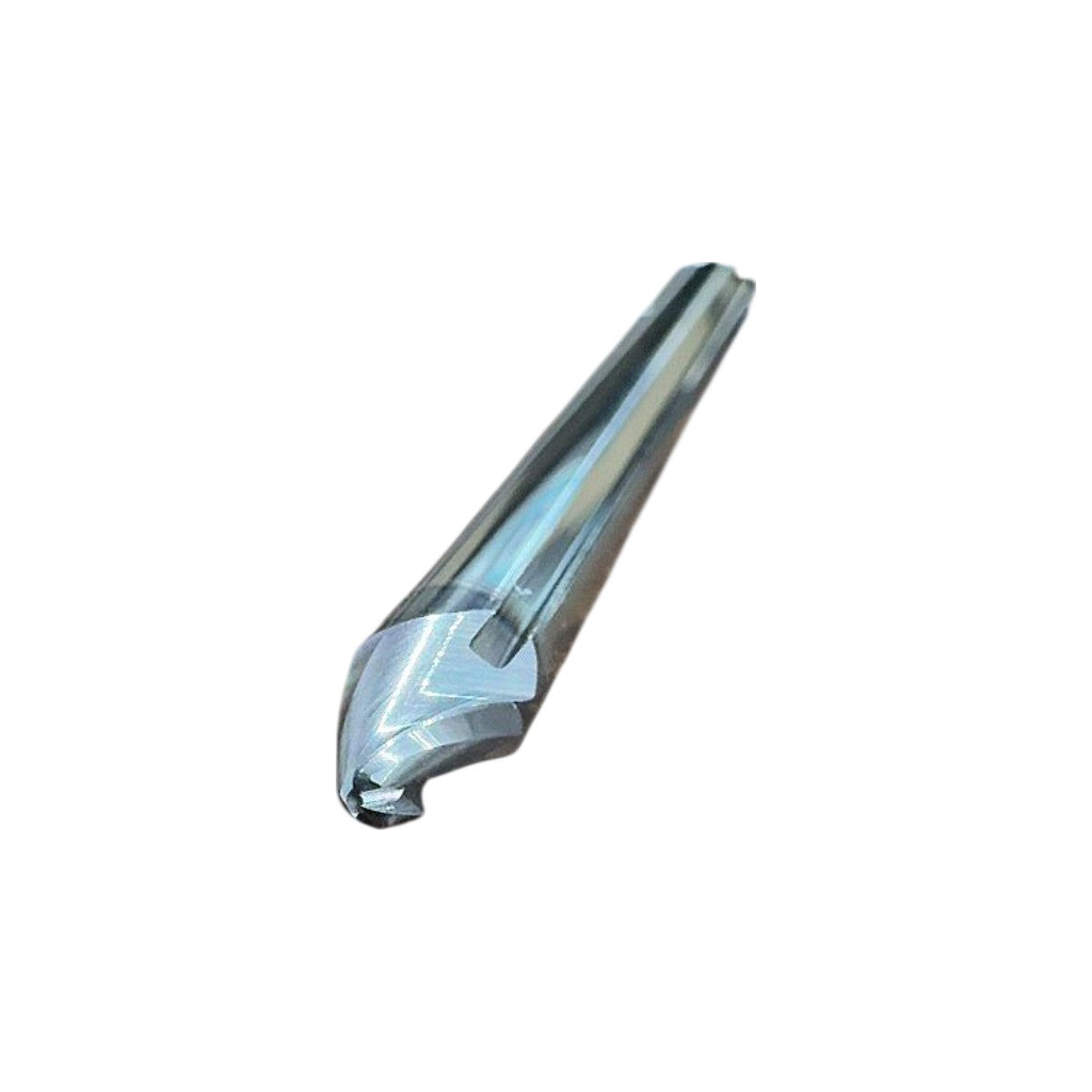

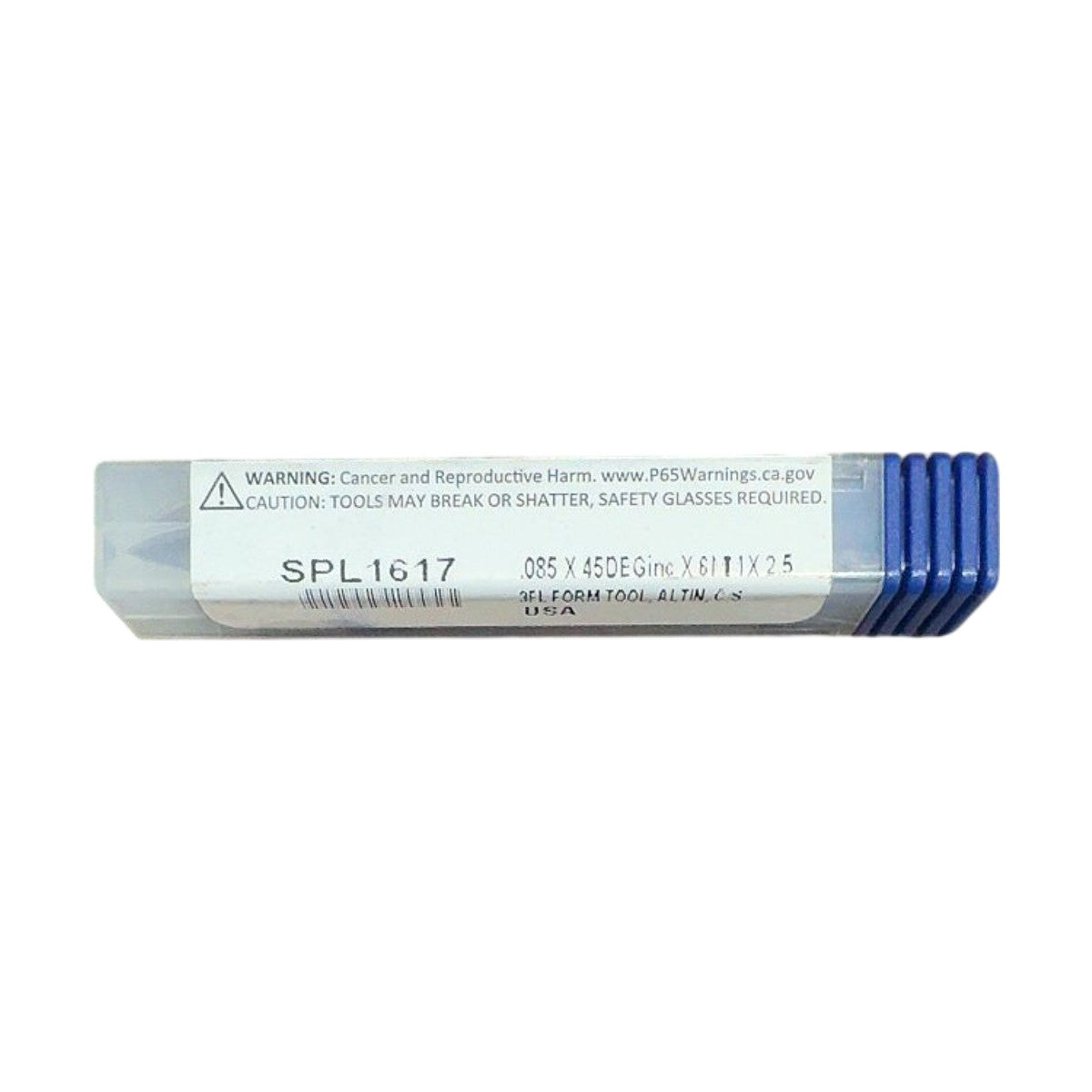

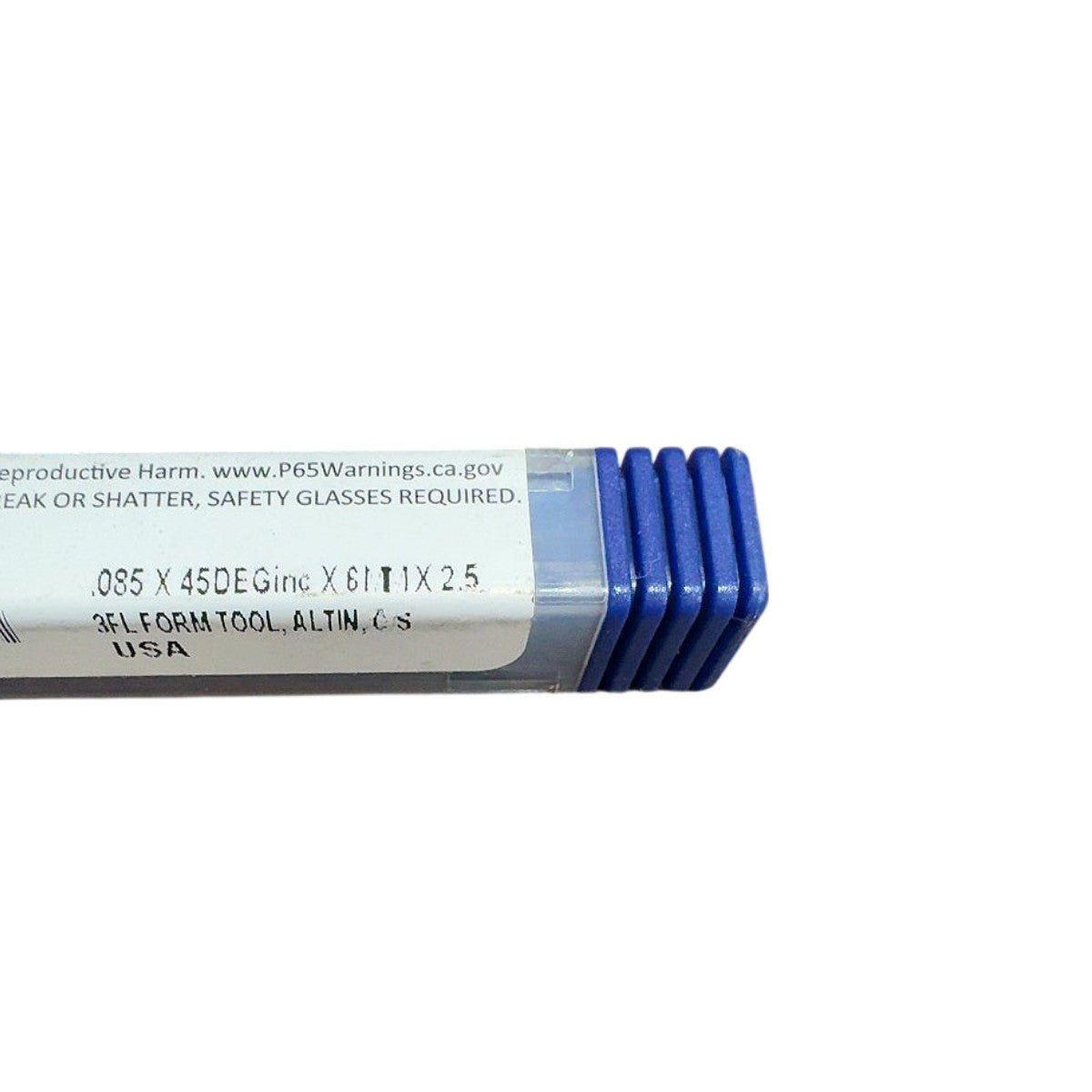

The Promax SPL1617 is a solid carbide 3-flute form tool ground to a .085-inch tip width with a 45-degree included angle, designed for producing consistent chamfers, bevels, or custom profiles in a single pass. The tool is coated with AlTiN (Aluminum Titanium Nitride), which provides high heat resistance and hardness (up to ~3,300 HV surface hardness) suitable for dry or semi-dry cutting of carbon steel, alloy steel, hardened steels, and cast iron. With a 1-inch overall length and a 2.5-inch total length (as encoded in the label designation .085 X 45DEG inc X 6[fl?] 1 X 2.5), the tool features a straight shank for use in standard collet chucks or milling machine spindles. Manufactured in the USA by Promax (Rancho Cordova, CA), this is a new, unused tool from the Promax Premium line, suited for CNC milling and multi-axis machining applications requiring repeatable form geometry.
Product Specifications
| Brand | Promax |
| MPN | SPL1617 |
| Product Line | Promax Premium |
| Tool Type | Solid Carbide Form Tool |
| Number of Flutes | 3 |
| Tip Width | 0.085 in |
| Included Angle | 45° |
| Overall Length (OAL) | 2.5 in |
| Cutting Length / LOC | 1 in |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Substrate | Solid Carbide |
| Country of Origin | USA |
| Condition | New |
