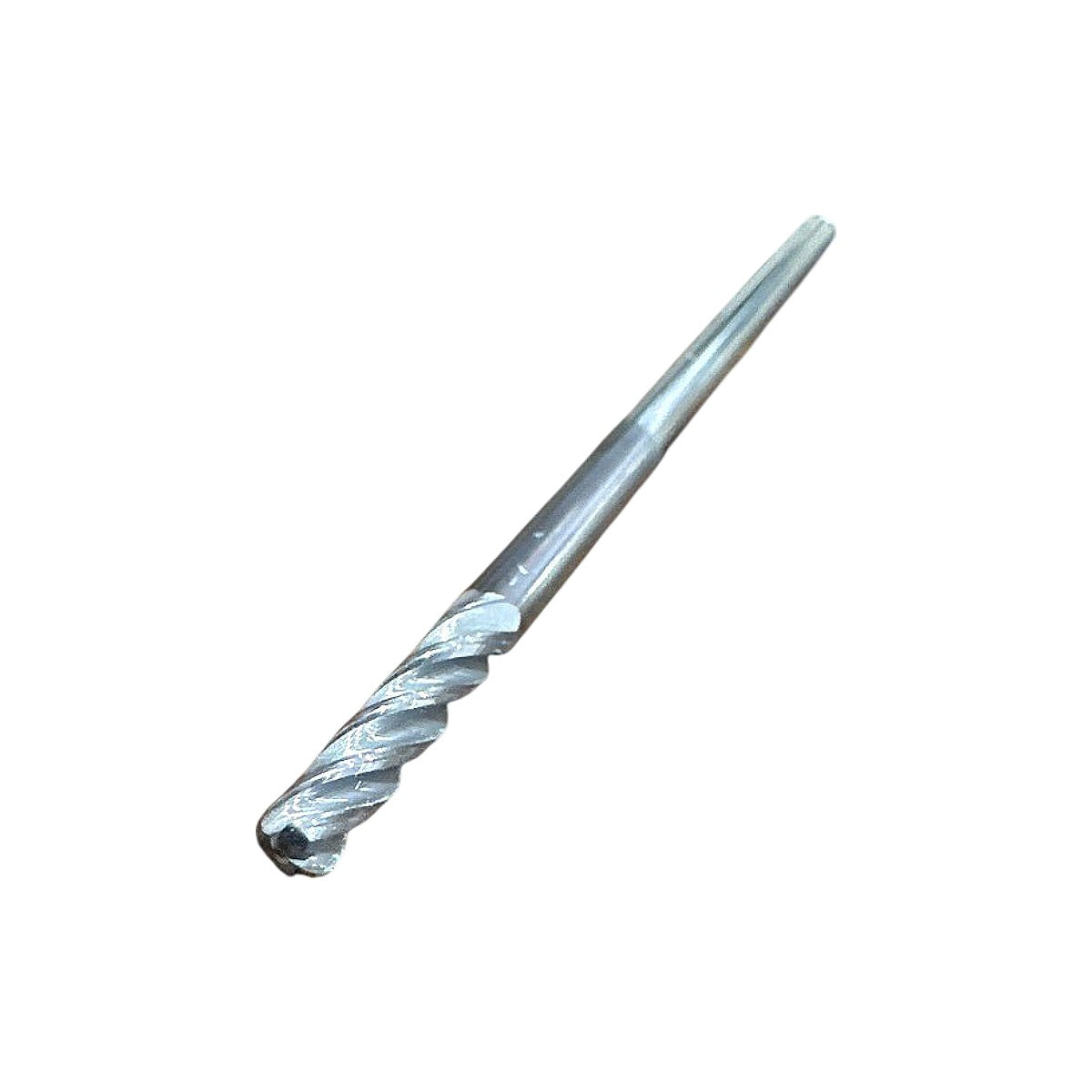

ProMax US007006 1/8x1/8x1/2x2-1/2 .030R 4FL PowerLayer Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ProMax US007006 is a new, USA-made 4-flute solid carbide corner-radius end mill with a 1/8 in cutting diameter, 1/8 in shank diameter, 1/2 in length of cut, and 2-1/2 in overall length, featuring a 0.030 in corner radius. It is coated with ProMax's proprietary PowerLayer multi-layer PVD coating, which delivers elevated heat and wear resistance for extended tool life in ferrous and non-ferrous machining applications. The 4-flute geometry provides a superior surface finish and increased material removal rates in finishing and semi-finishing passes; the 0.030 in corner radius reduces stress concentration at the cutting edge, extending tool life in hardened steels, stainless steels, and aerospace alloys. Compatible with standard 1/8 in ER or collet-style toolholders.
Product Specifications
| Brand | ProMax |
| MPN | US007006 |
| Cutting Diameter | 1/8 in (0.125 in) |
| Shank Diameter | 1/8 in (0.125 in) |
| Length of Cut (LOC) | 1/2 in (0.500 in) |
| Overall Length (OAL) | 2-1/2 in (2.500 in) |
| Corner Radius | 0.030 in |
| Number of Flutes | 4 |
| End Mill Type | Corner Radius End Mill |
| Coating | ProMax PowerLayer (multi-layer PVD) |
| Material | Solid Carbide |
| Shank Type | Straight (cylindrical) |
| Country of Origin | USA |
| Condition | New |
