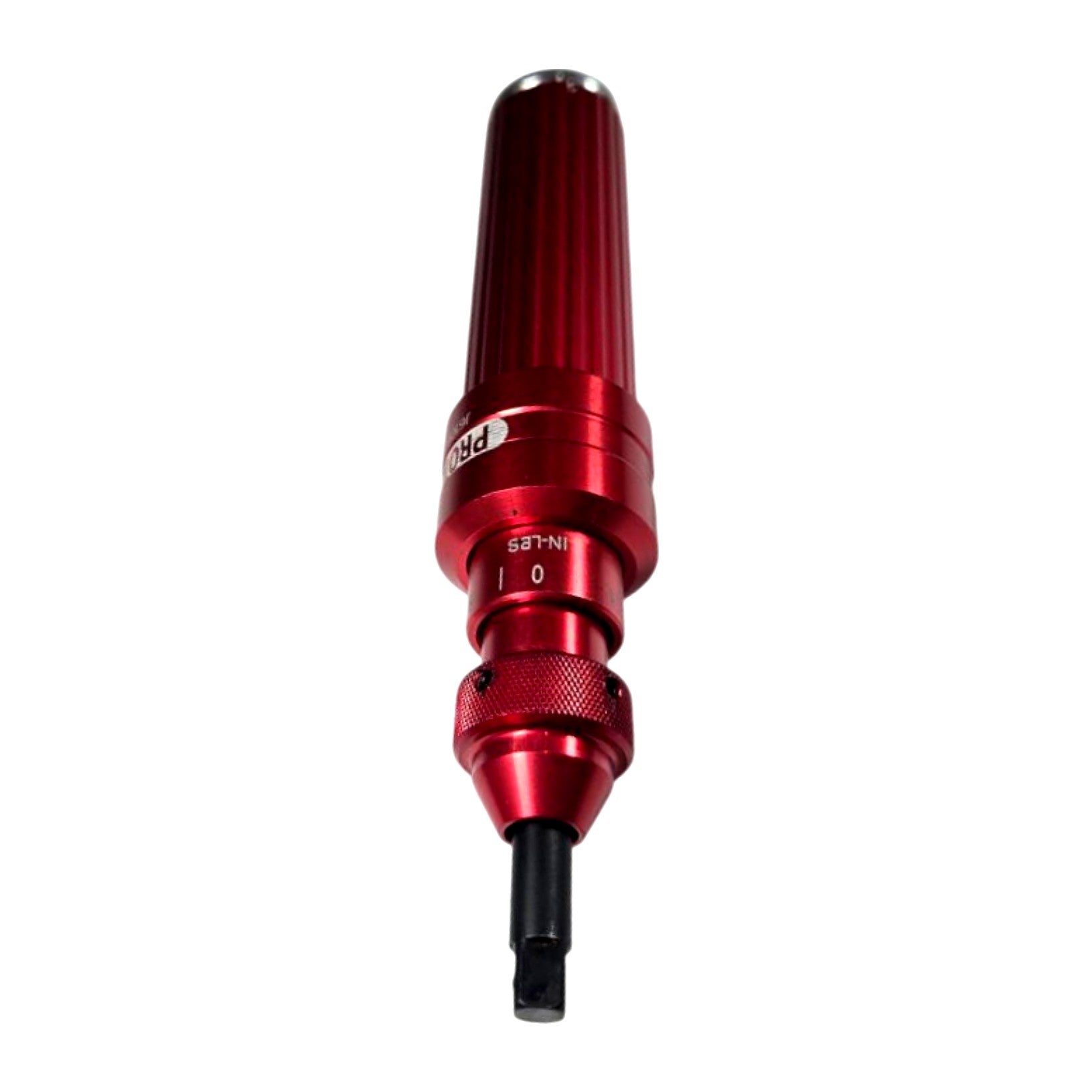

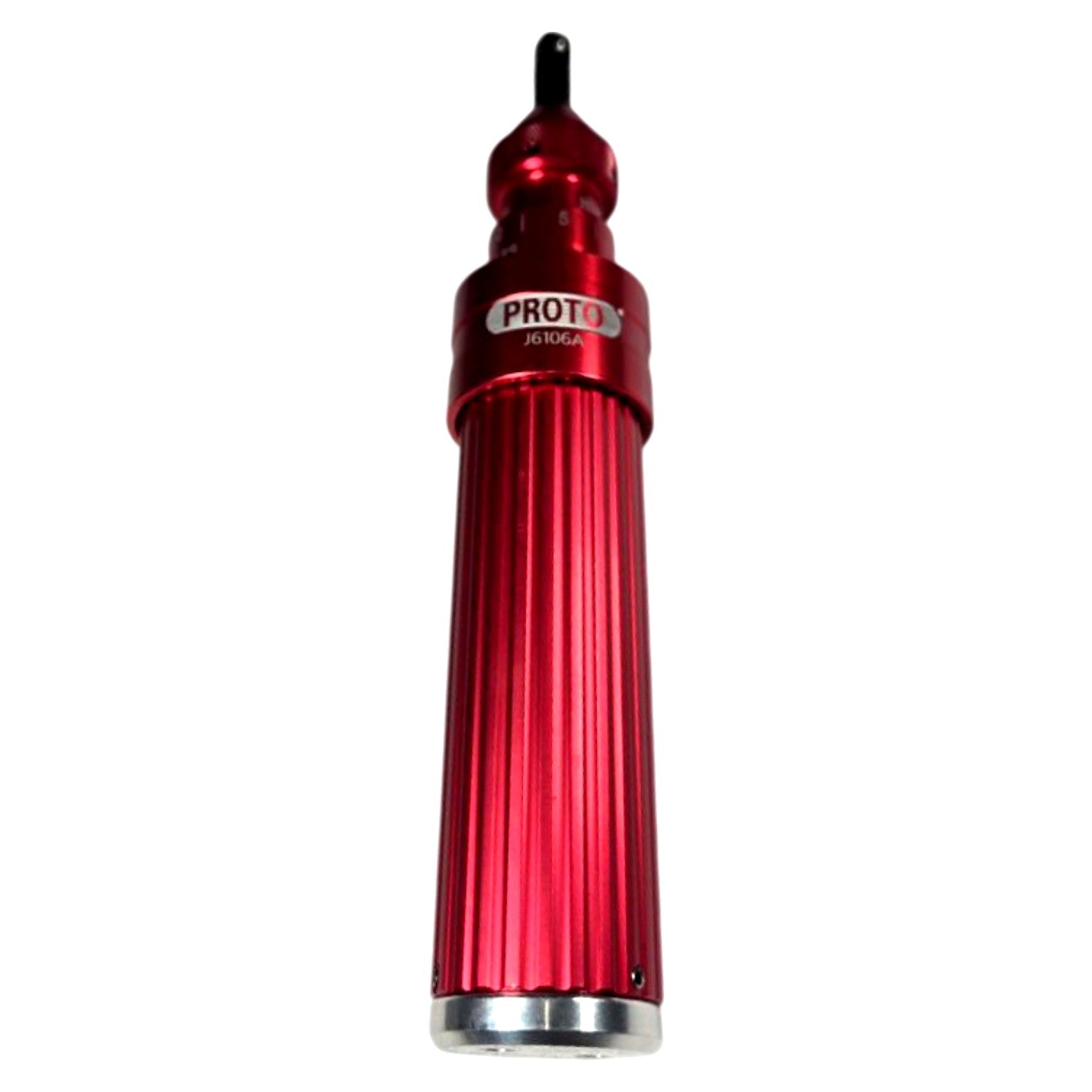

Proto J6106A 7-36 in/lb 1/4in Drive Preset Torque Screwdriver
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

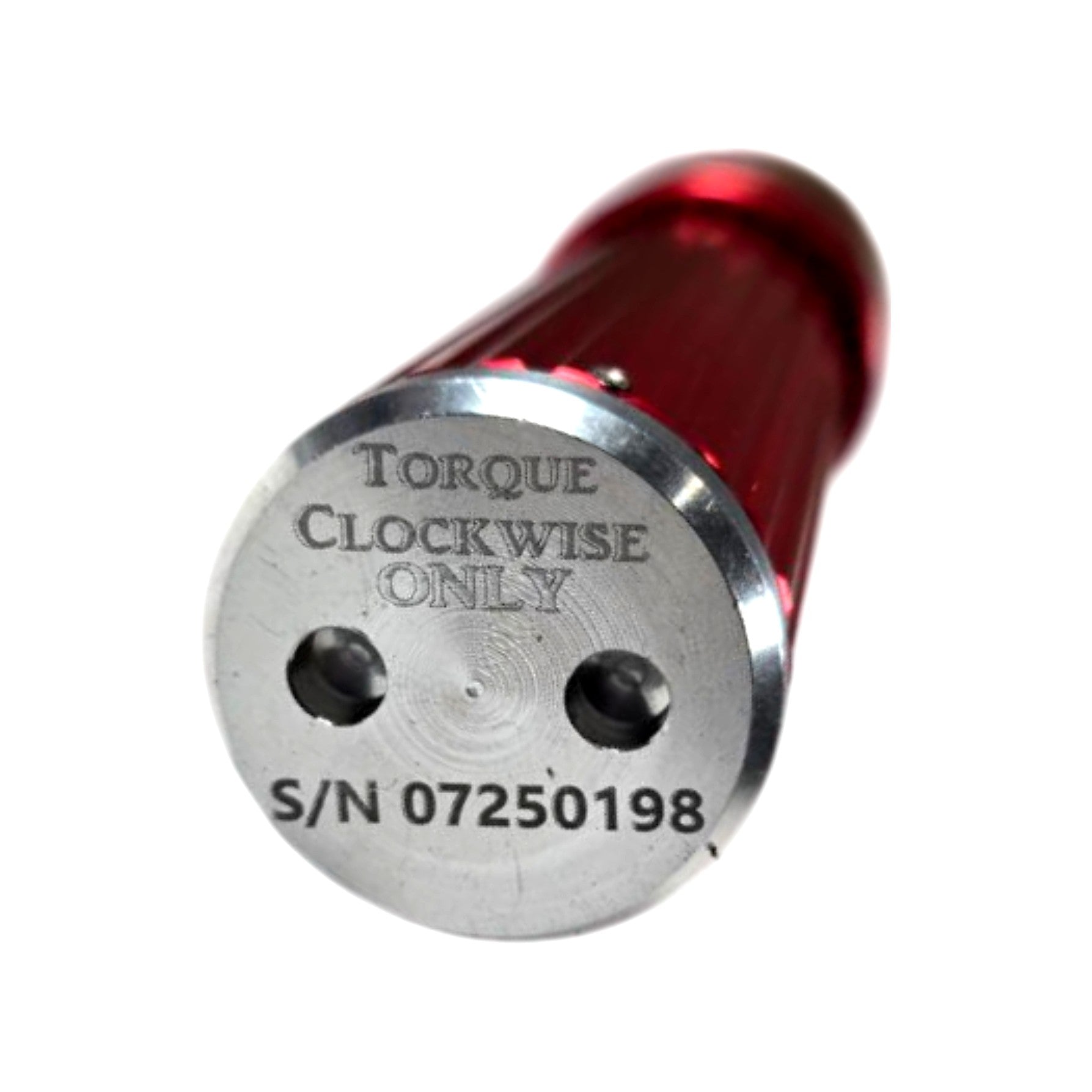

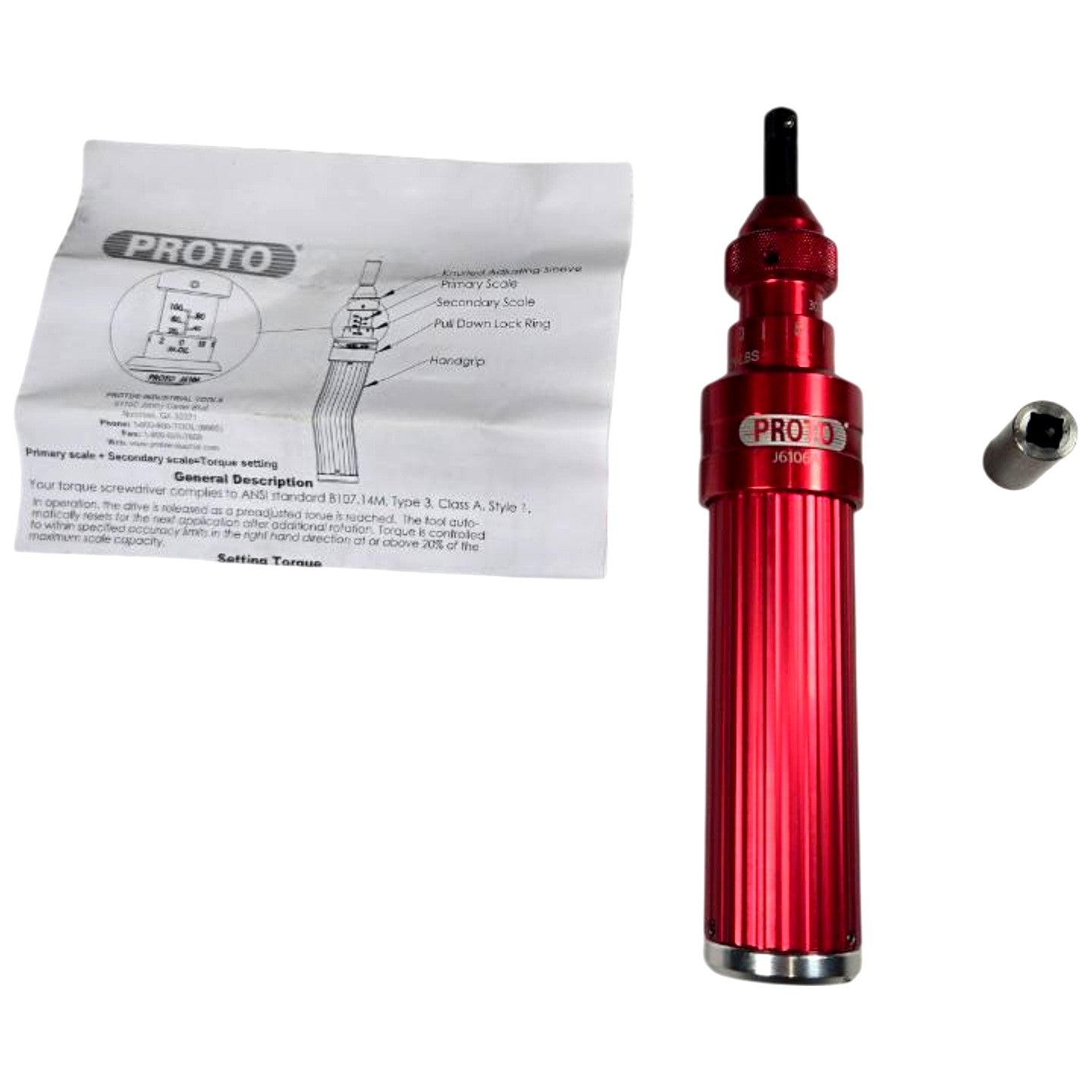

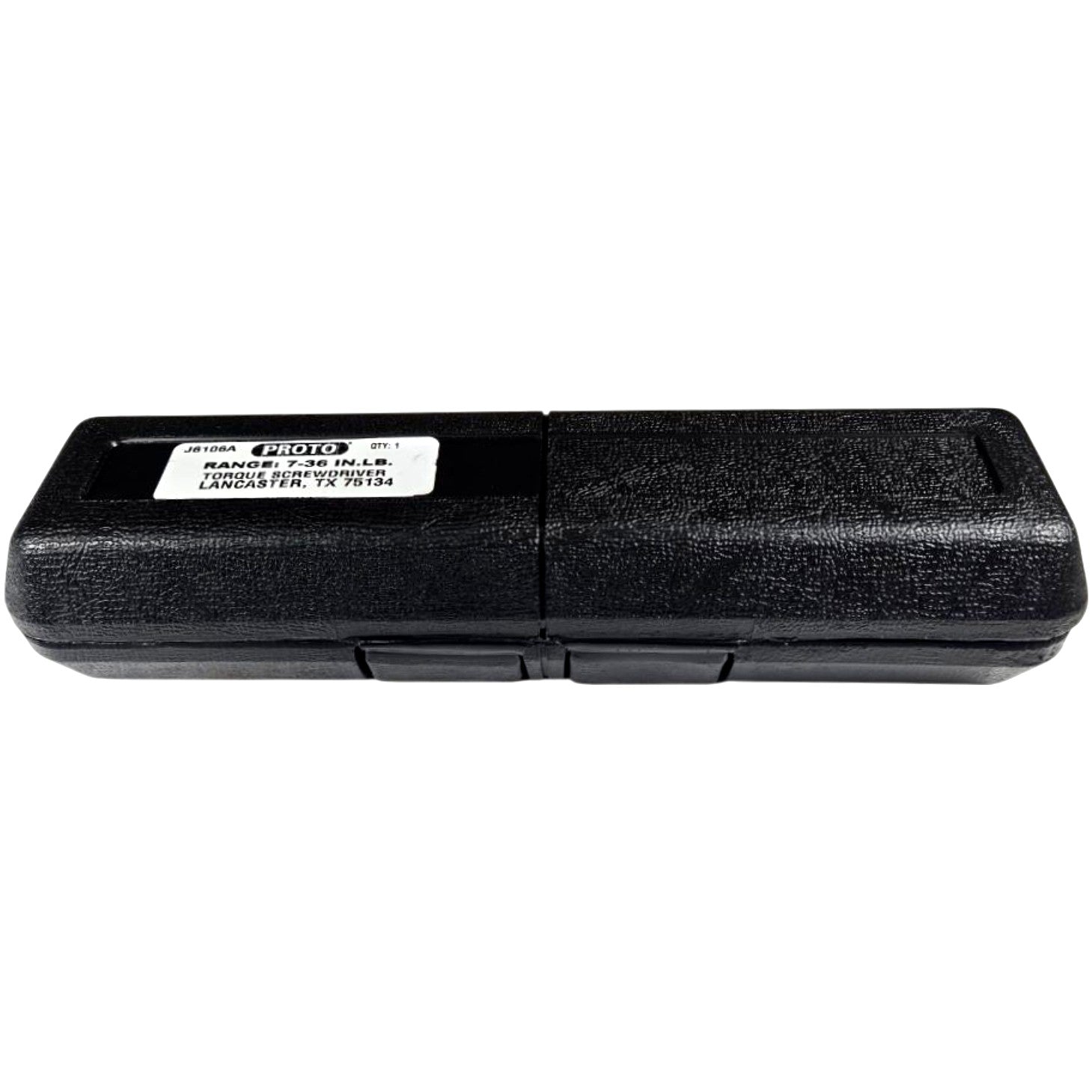

The Proto J6106A is a new, adjustable preset torque screwdriver with a 7–36 in/lb range, compliant with ANSI standard B107.14M, Type 3, Class A, Style 1 as stated on the included instruction sheet. The tool uses a slip-clutch mechanism that automatically releases drive when the preset torque is reached and auto-resets for the next application; torque is controlled clockwise only, as engraved on the butt cap, making it a unidirectional right-hand tool only. Setting is accomplished via a knurled adjusting sleeve with a primary scale and secondary scale combination (primary + secondary = torque setting), secured by a pull-down lock ring, and the 1/4 in hex drive accepts standard 1/4 in power bits. Overall length is 7-3/16 in, the body is anodized aluminum in red, and the tool ships with a hex socket adapter and protective plastic storage case; serial number 07250198 is stamped on the butt cap.
Product Specifications
| Brand | Proto |
| MPN | J6106A |
| Tool Type | Preset Slip-Clutch Torque Screwdriver |
| Torque Range | 7-36 in/lb |
| Drive Size | 1/4 in hex |
| Overall Length (OAL) | 7-3/16 in |
| Torque Direction | Clockwise only |
| ANSI Standard | B107.14M, Type 3, Class A, Style 1 |
| Scale Type | Primary + Secondary scale |
| Adjustment Method | Knurled adjusting sleeve w/ pull-down lock ring |
| Body Material | Anodized aluminum |
| Body Color | Red |
| Includes | Hex socket adapter, storage case, instruction sheet |
| Condition | New |
| Mechanism | Slip-clutch, auto-reset |
| Torque Units | in/lb (in-lbs) |
| Manufacturer Location | Lancaster, TX 75134 |
