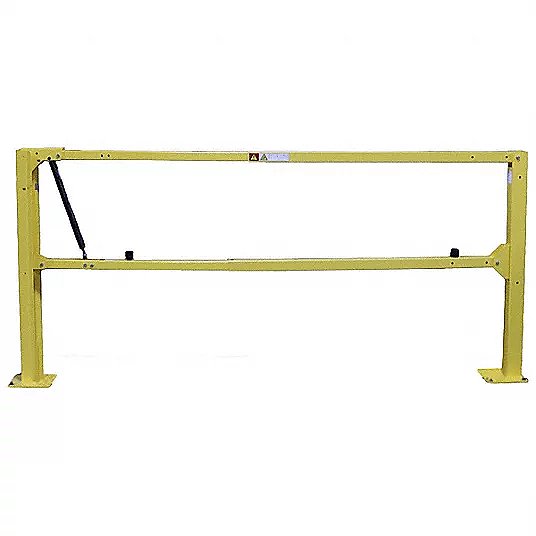

PS Safety Access ESG-96-PCY EdgeSafe Smart Gate 96in Vertical Swing Dock Gate

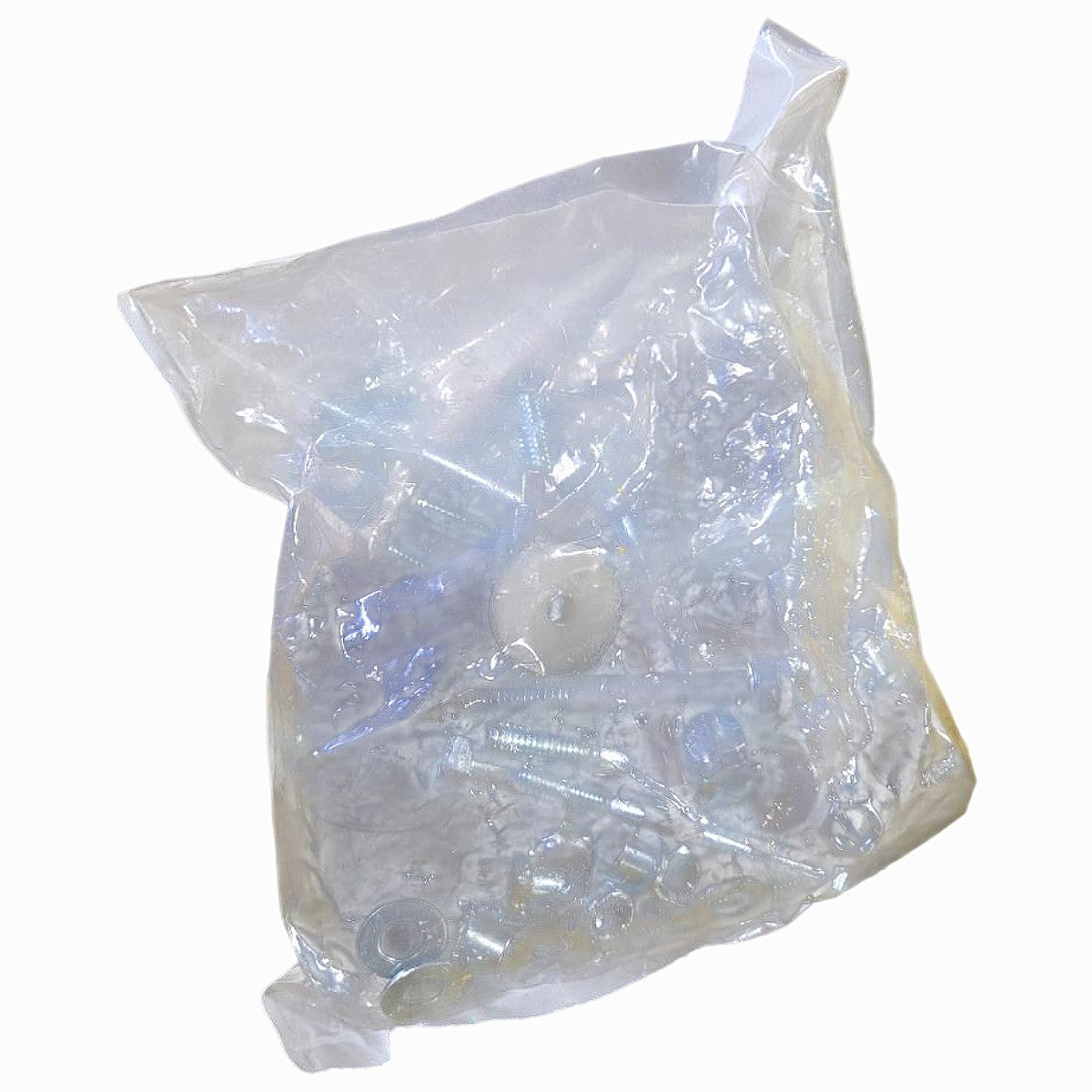

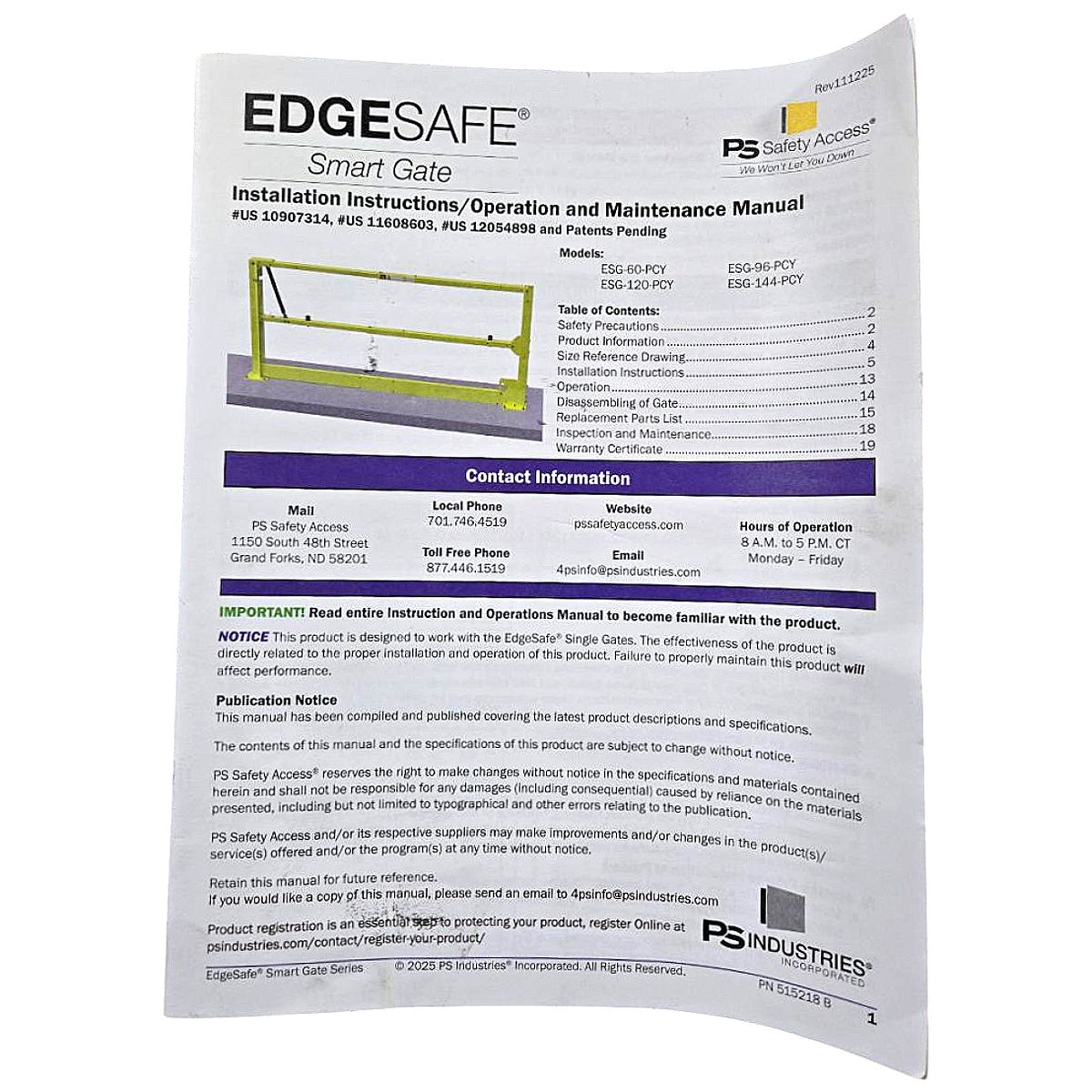

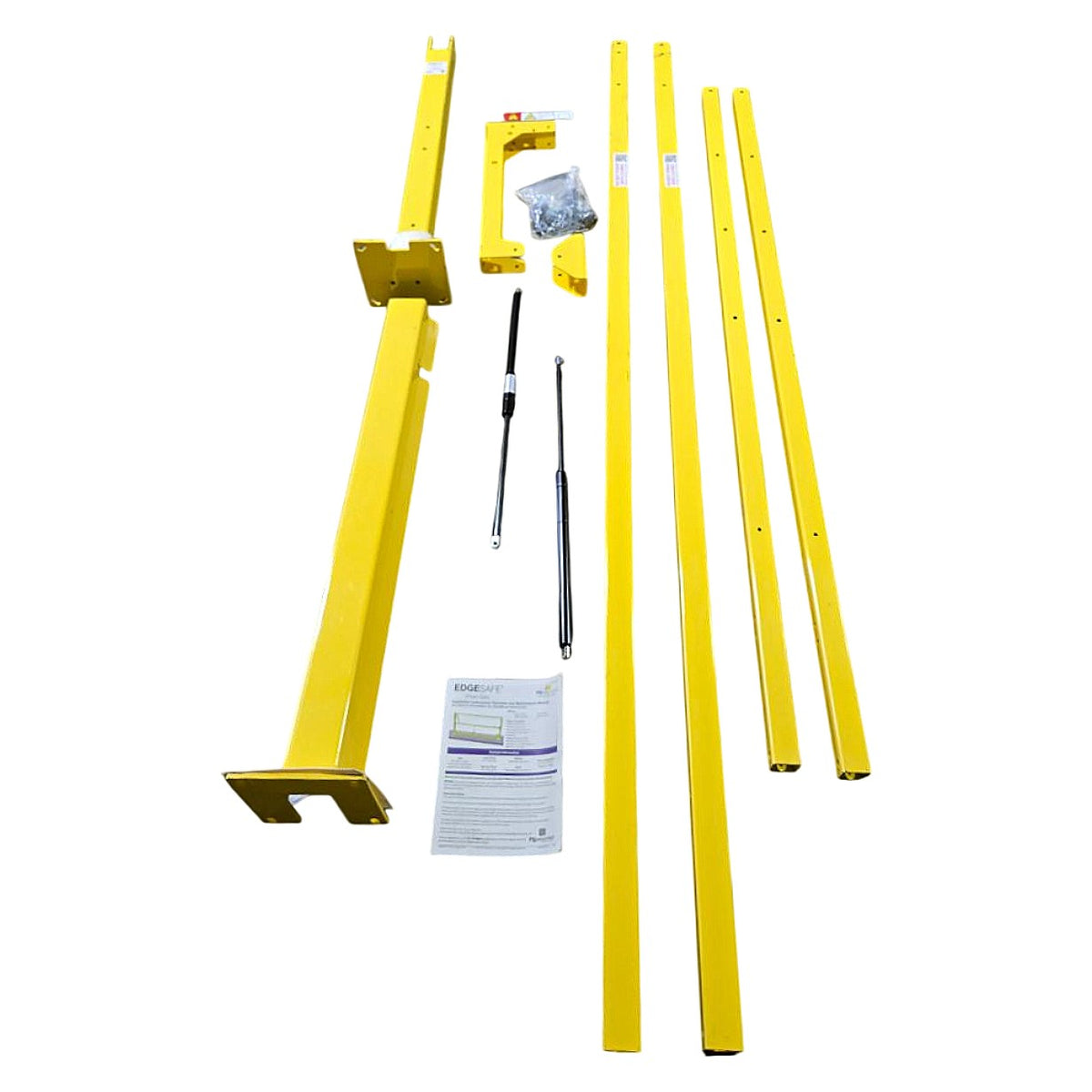

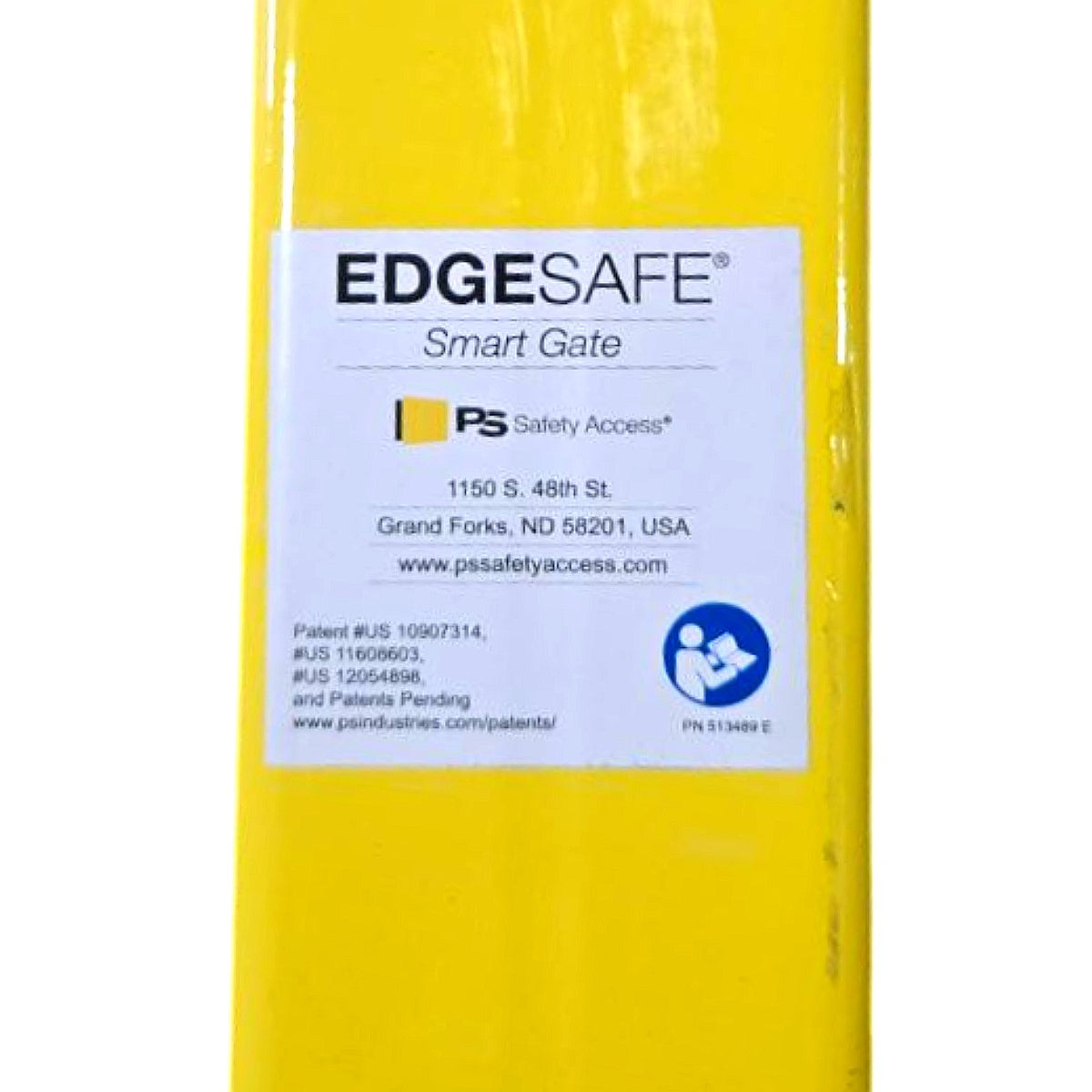

The PS Safety Access EdgeSafe Smart Gate ESG-96-PCY is a new, self-closing vertical-swing loading dock safety gate rated for personnel impact, designed to prevent falls at mezzanine edges, loading docks, and elevated platform openings. The gate frame is constructed from steel with a high-visibility yellow powder coat finish (PCY suffix) and operates via a gas-spring mechanism that automatically returns the gate to the closed/raised position after each pallet jack or forklift pass-through, requiring no manual re-latching. The 96-inch (8 ft) clear opening width is encoded in the model number (ESG-96), placing it in the largest single-span configuration of the ESG series, which also includes 60 in, 120 in, and 144 in models per the included instruction sheet. Hardware, mounting feet with anchor bolt provisions, and a full installation/operation manual (PS Industries PN 515218 B, Rev111225) are included in the kit; the gate bolts to the floor via base flanges and requires no electrical connections. Patents US 10907314, US 11608603, and US 12054898 are marked on the label, and the product is manufactured by PS Industries / PS Safety Access of Grand Forks, ND, USA (pssafetyaccess.com).

Product Specifications
