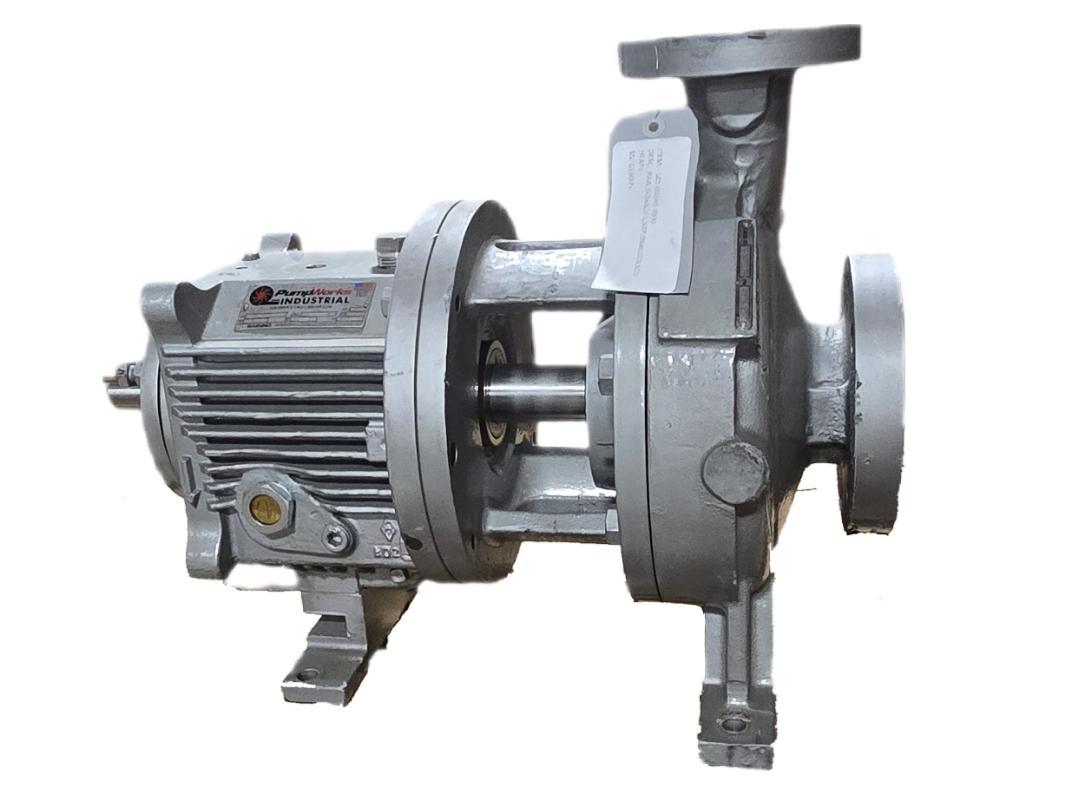

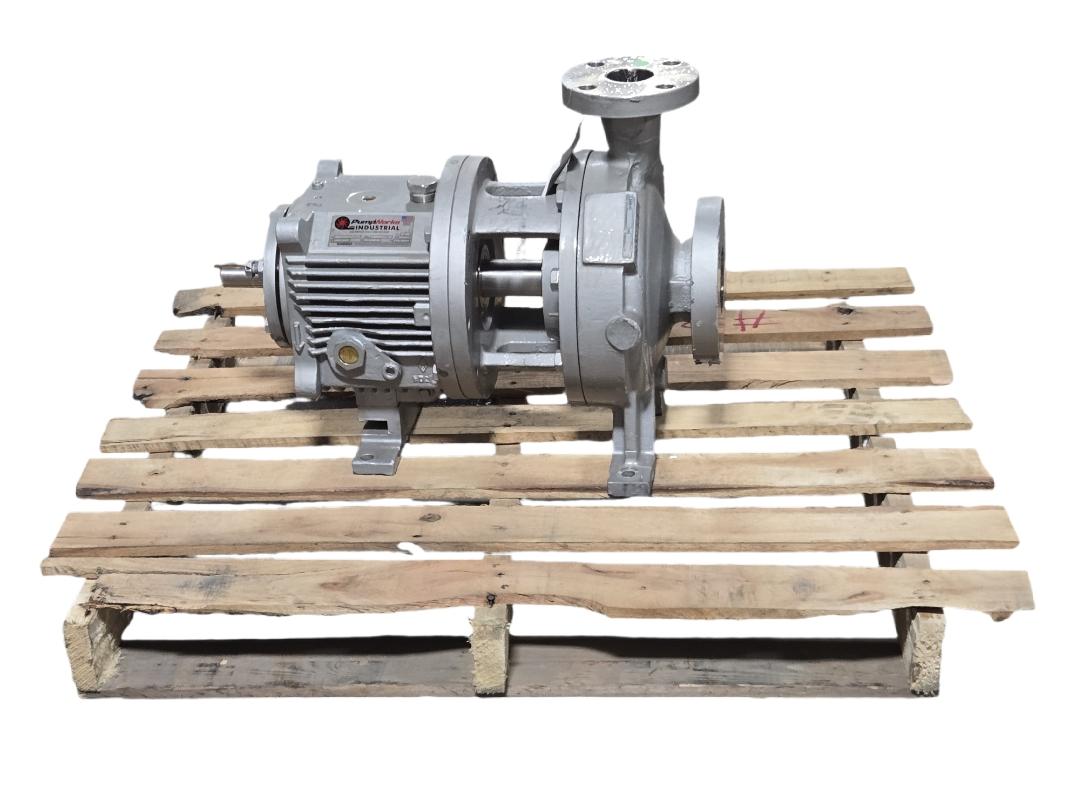

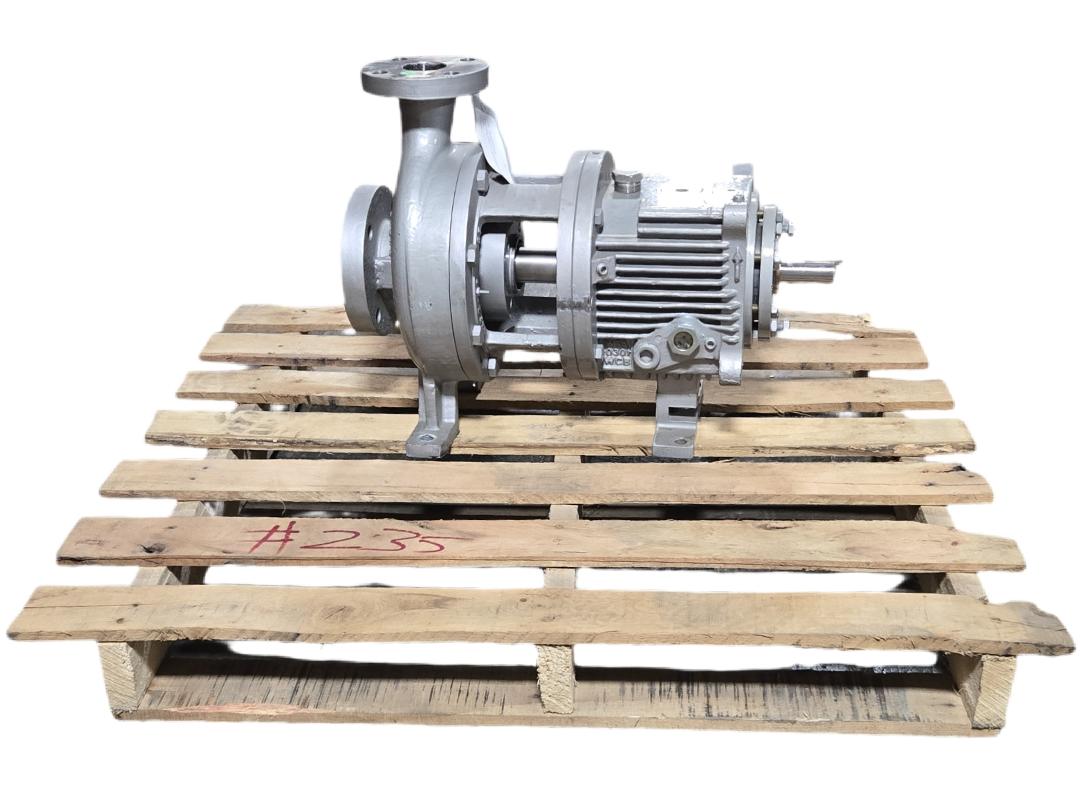

PumpWorks 101-00145-0000 PWA 2x3x8 ANSI B73.1 Centrifugal Process Pump

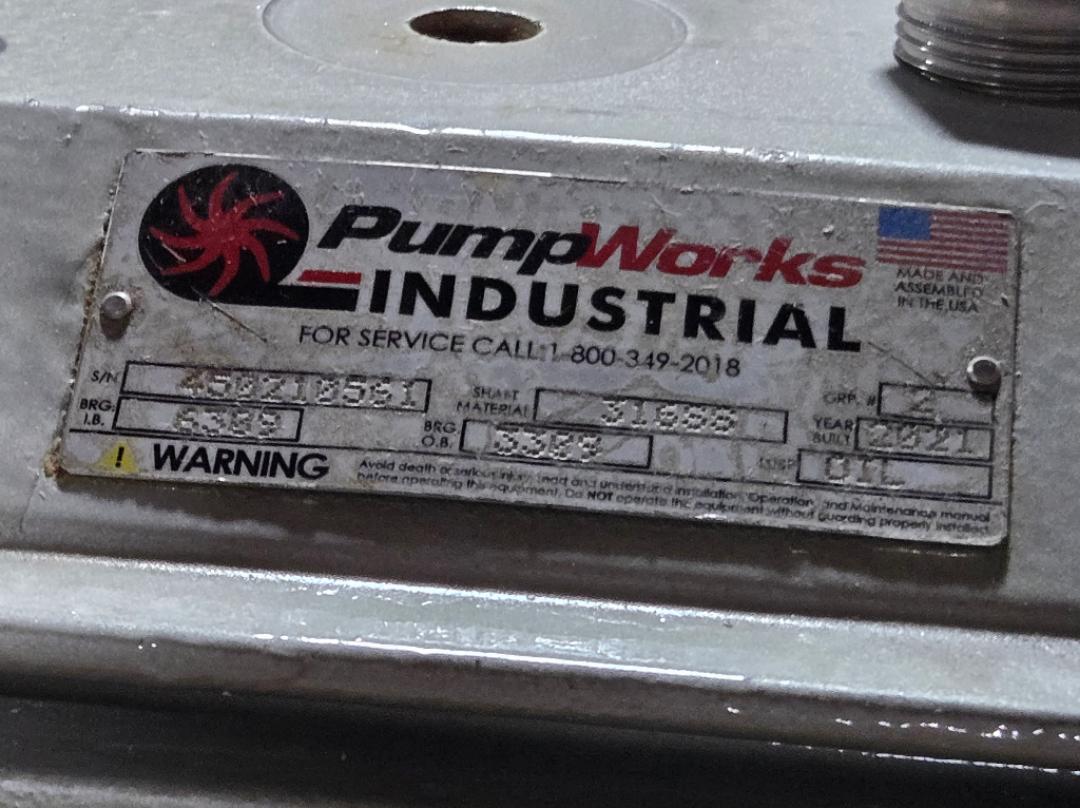

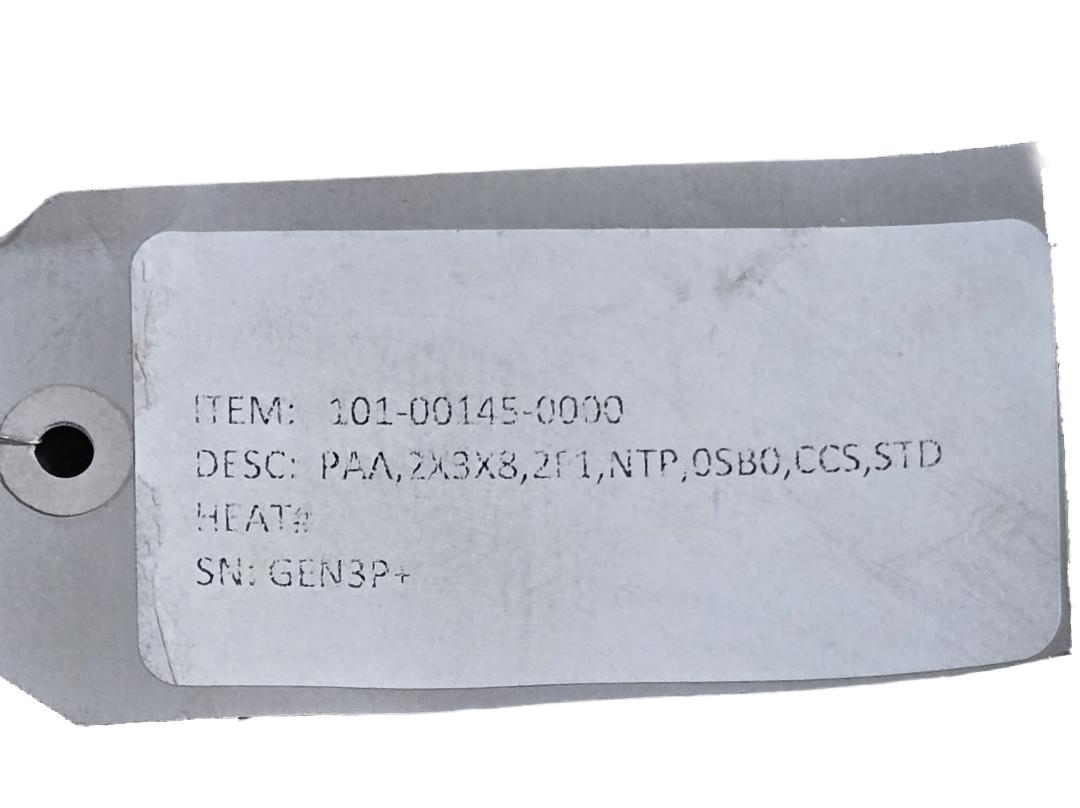

This is a new PumpWorks Industrial PWA Series centrifugal process pump, part number 101-00145-0000, manufactured in the USA in 2021 and built to ANSI/ASME B73.1 standards for horizontal end-suction process service. The pump is configured as size 2x3x8: 3-inch suction and 2-inch discharge with 150# flat-face flanged connections, an 8-inch maximum impeller diameter, and features a carbon steel (WCB) casing, 316 stainless steel shaft, threaded carbon steel impeller, standard bore cover, aramid fiber gasket, and a Teflon mechanical seal. Bearing lubrication is oil-bath type with ISOMAG magnetic bearing isolators on both inboard (bearing designation 6309) and outboard (bearing designation 6309) positions, shaft material confirmed as 316SS per the nameplate, and the unit carries Group 2 frame classification per ANSI B73.1. The pump assembly includes an integrated bearing frame with no seal flush taps and no throat bushing (0SB0, NTP configuration), making it suited for clean or mildly contaminated process fluids in chemical, petrochemical, and general industrial applications where ANSI B73.1 interchangeability is required.

Product Specifications
