Quick Tooling RW669-10M14.50305-KF RF2 Shank 10x16mm Lathe Knurling Tool
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

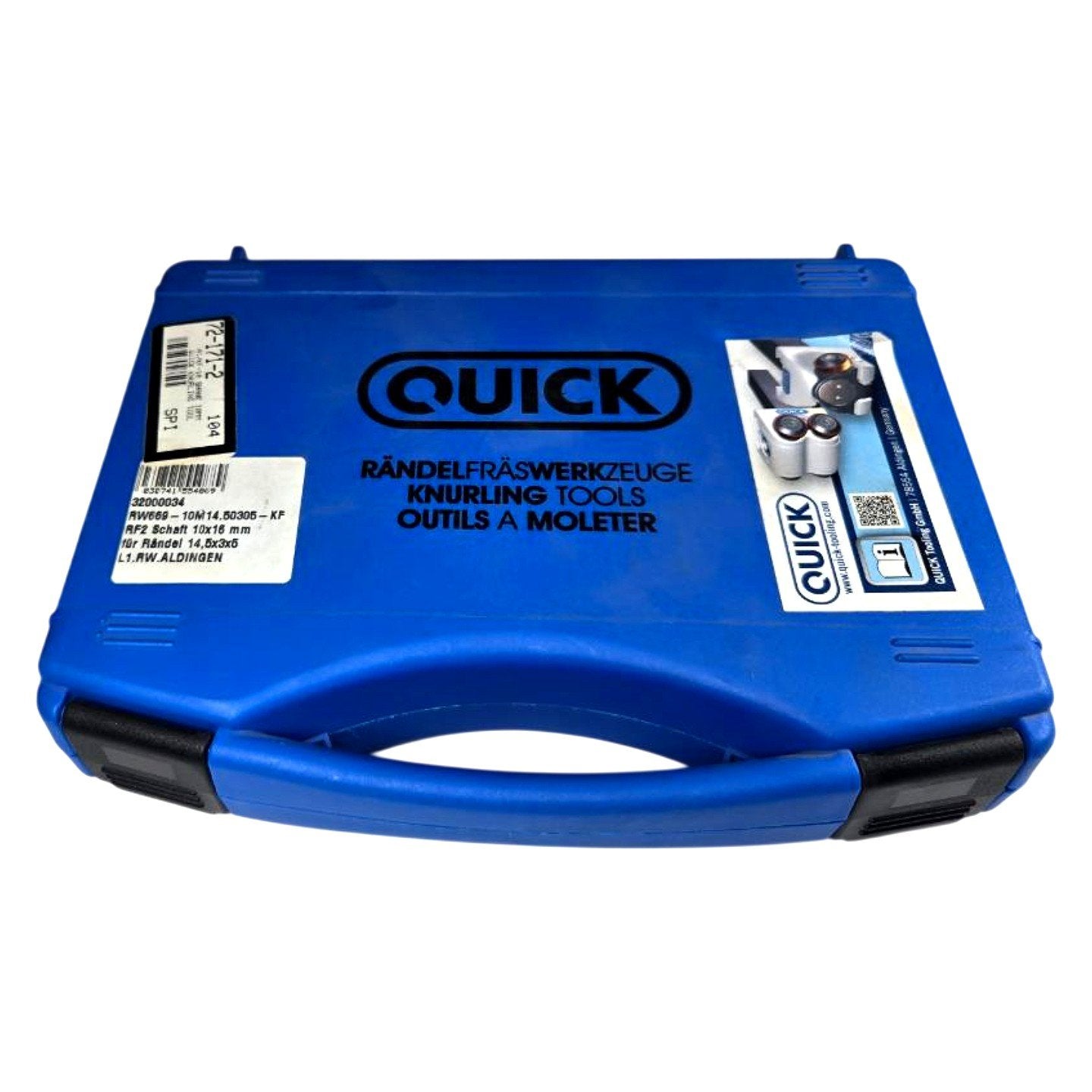

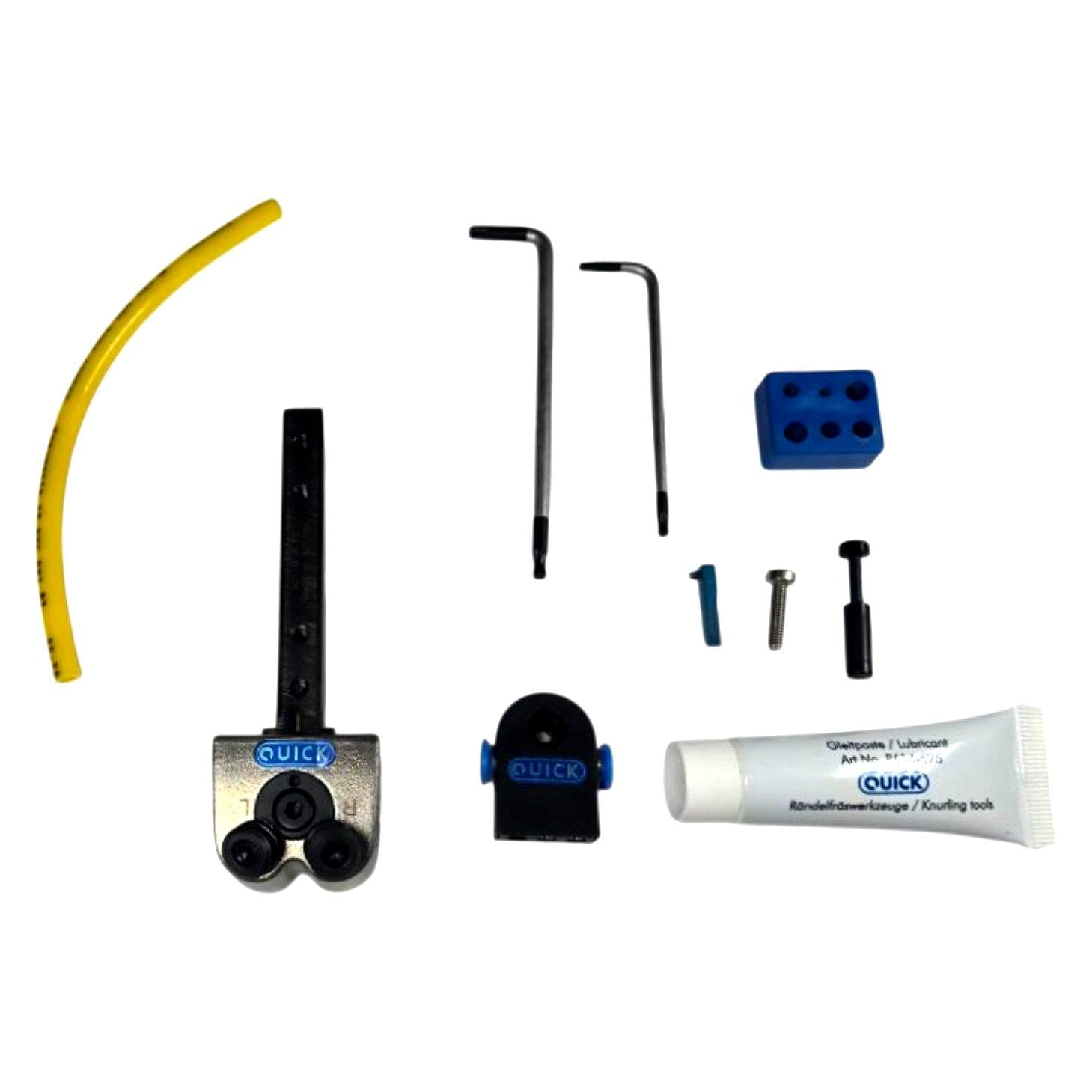

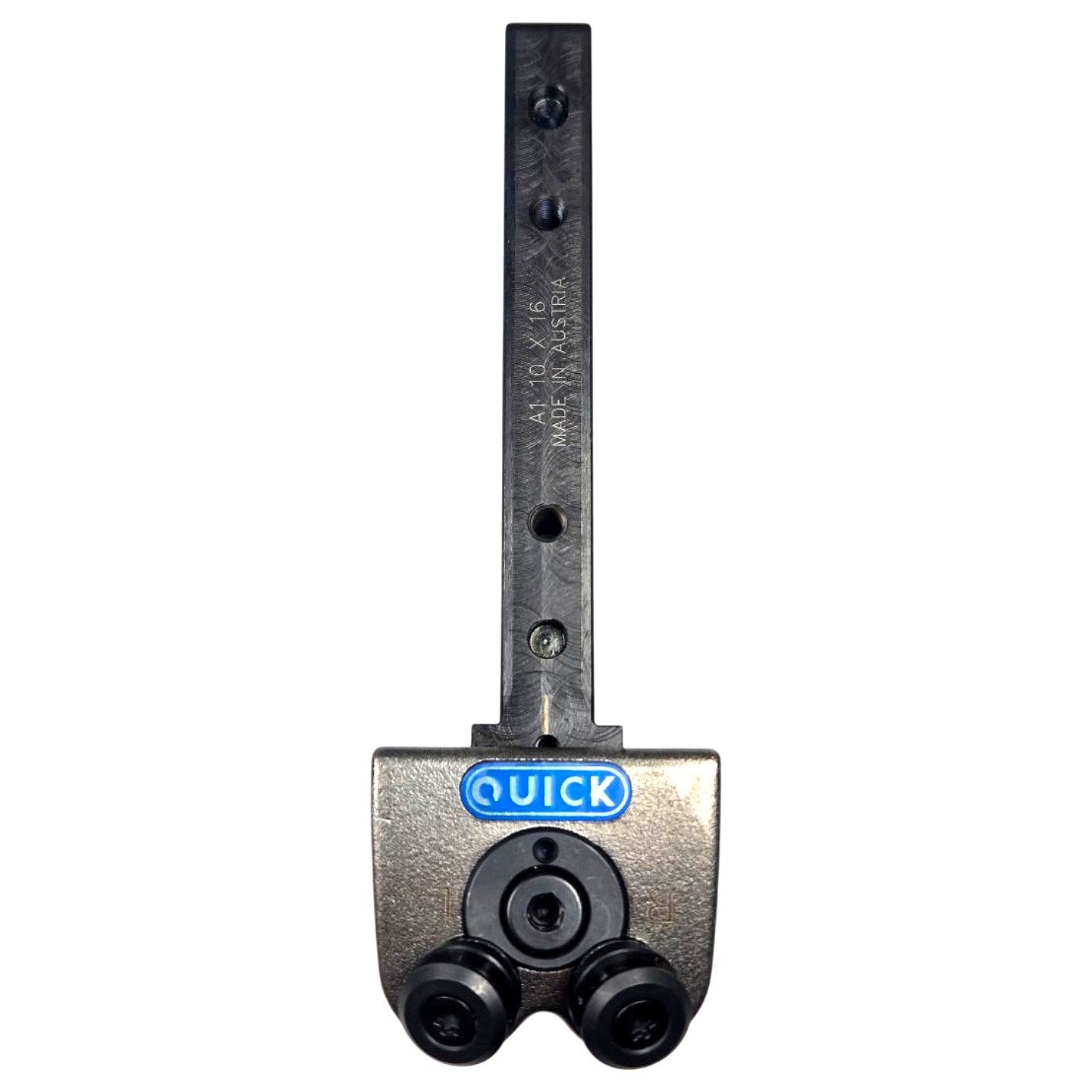

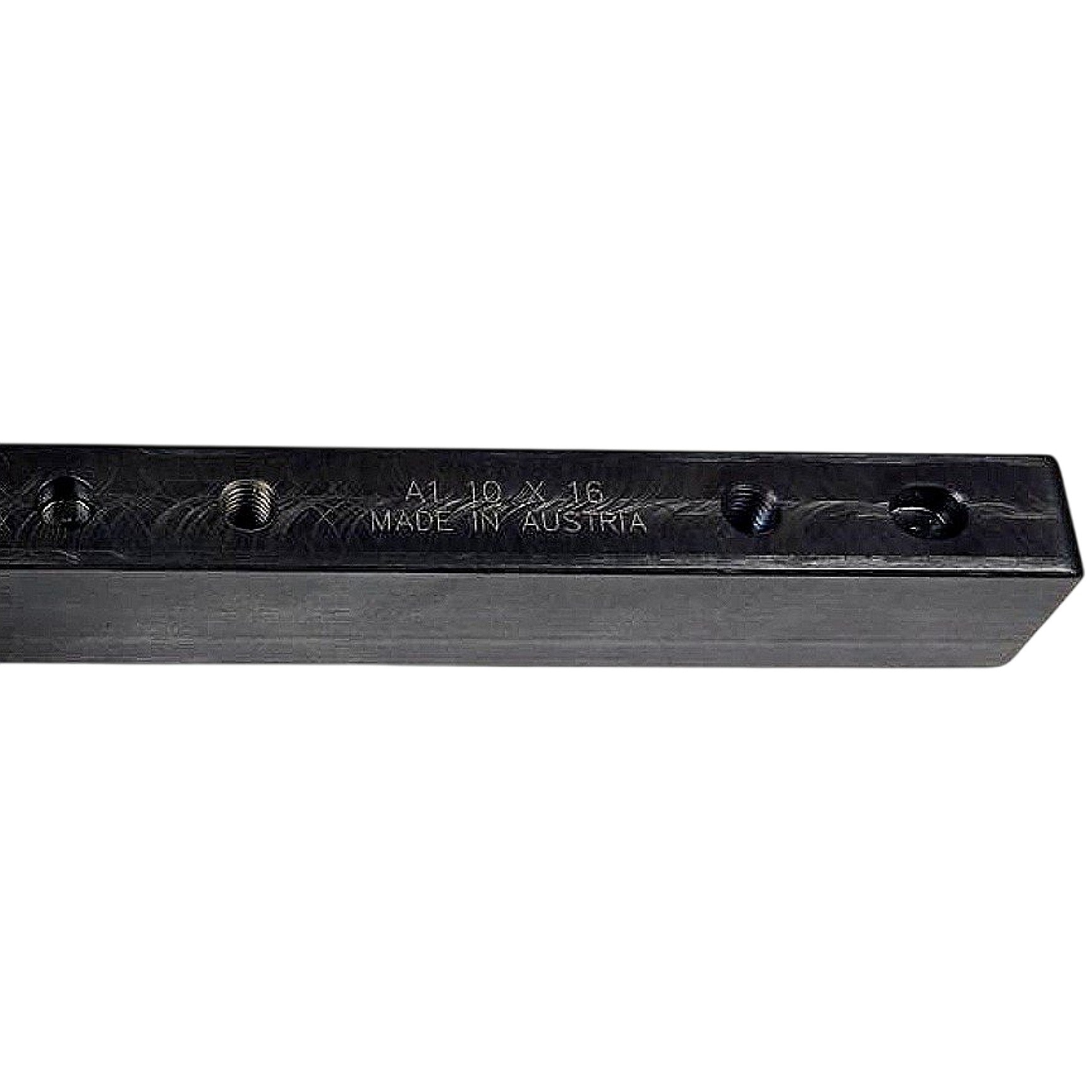

The Quick Tooling RW669-10M14.50305-KF is a new RF2-style bump knurling tool configured for a 10 x 16 mm rectangular shank, designed to produce KF (cross/diamond) knurl patterns on CNC and manual lathes. The tool body is Austrian-manufactured (stamped "A1 10 X 16 MADE IN AUSTRIA" on the shank) and uses Quick's dual-roller floating head system, which allows the knurling head to self-center on the workpiece for consistent pattern tracking without lateral loading on the spindle bearings. The included kit (part 32000034) contains the RF2 knurling head, a second spare head with blue roller wheels, two hex-key wrenches, mounting screws, a coolant tube, and Quick-branded lubricating paste (Gleitpaste), providing everything needed to mount and run the tool out of the box. The knurl wheels are sized for a 14.5 mm diameter pattern at 0.5 mm pitch (P = 0.5305 decoded from the model string), applicable to workpiece diameters that are multiples of the pitch to avoid pattern doubling. Compatible with Quick Tooling RF2-series replacement heads and wheel sets available separately.
Product Specifications
| Brand | Quick Tooling GmbH (QUICK) |
| Part Number | RW669-10M14.50305-KF |
| Shank Style | Rectangular (A1 profile) |
| Shank Width | 10 mm |
| Shank Height | 16 mm |
| Country of Manufacture | Austria |
| Knurling Head Series | RF2 (bump / form knurling) |
| Knurl Pattern | KF – Cross/Diamond (Kreuzrändelung) |
| Knurl Wheel Diameter | 14.5 mm |
| Knurl Pitch | 0.5 mm (P0.5) |
| Number of Knurl Wheels | 2 (dual-roller floating head) |
| Tool Body Material | Hardened alloy steel, oxide finish |
| Includes | RF2 head, spare head, 2x hex keys, screws, coolant tube, lubricant |
| Compatible Head Series | Quick RF2 replacement heads |
| Condition | New |
