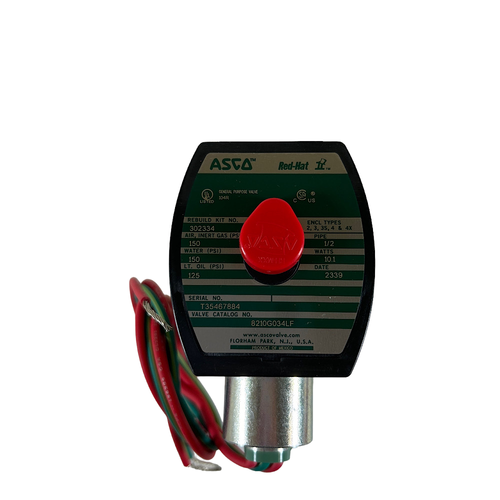

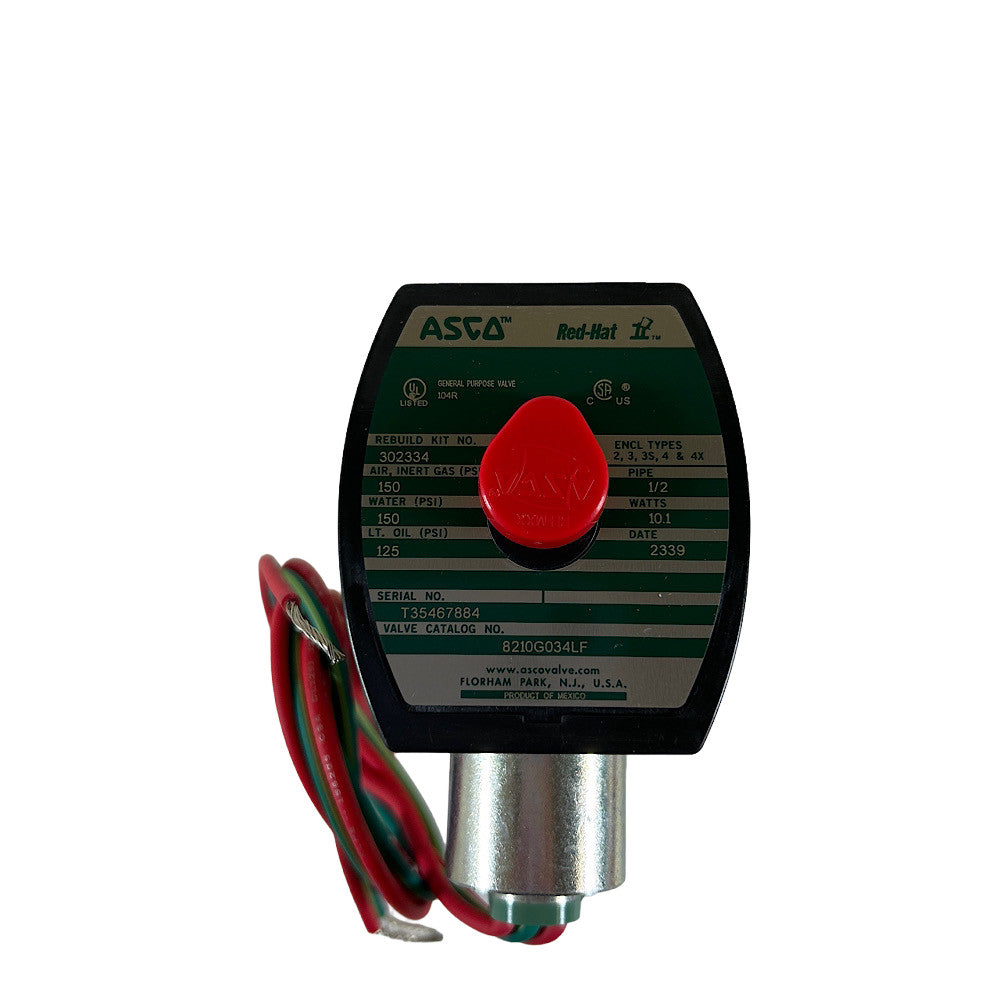

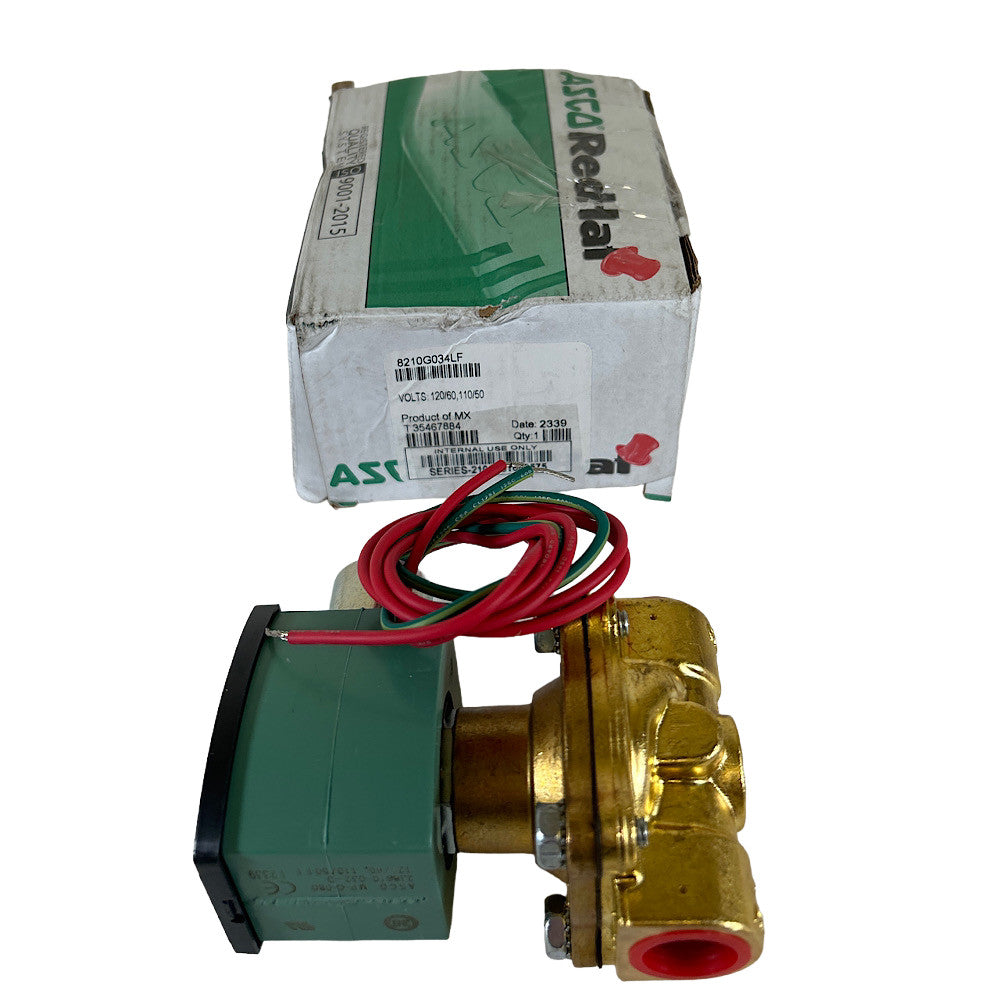

Redhat 8210G034LF 1/2" 110/120V 2-Way High Flow Vertical Solenoid Valve -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | Redhat |
| MPN | 8210G034LF |
| Valve Operation | Solenoid |
| Suitable Media | N/A |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Model | Solenoid Valve |
| For Media | Air; Inert Gases; Light Oil; Water |
| Valve Type | High Flow |
| Mounting Orientation | Vertical |
| Operation Type | Pilot Operated |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1/2" |
| Inlet & Outlet Connection Type | NPTF x NPTF |
| Voltage | 110V AC; 120V AC |
| Wattage | 10.1 W |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | 1/2" Conduit Hub |
| Coefficient of Volume (Cv) | 4 |
| Orifice Diameter | 5/8" |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 350 psi |
| Max. Fluid Temperature | 180 °F |
| Ambient Temperature | 14 °F to 140 °F |
| Response Time | 1 sec |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Overall Height | 4-3/8 in |
| Overall Length | 2-3/4 in |
| Overall Width | 2-5/16 in |
| Operating Environment | Indoor; Outdoor |
| IP Rating | IP66 |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Standards | UL Listed |
| Valve Configuration | Normally Open |
Redhat 8210G034LF 1/2″ 110/120V 2-Way High Flow Vertical Solenoid Valve
