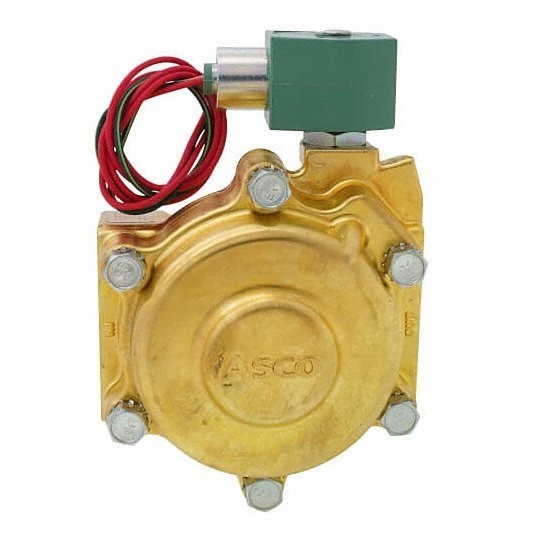

Redhat 8210G100 2" Pipe 110VAC/120VAC 6.1W 2-Way Normally Closed Solenoid Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Overall Height | 7-5/16 in |
| Operation Type | Pilot Operated |
| Response Time | 1 sec |
| Wattage | 6.1 W |
| Valve Ways | 2-Way |
| Valve Operation | Solenoid |
| MPN | 8210G100 |
| Electrical Connections | 1/2" Conduit Hub |
| Maximum Operating Pressure Differential - Steam | Not Rated |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Maximum Ambient Temperature | 140 °F |
| Maximum Operating Pressure Differential - Water | 125 psi |
| Unit Type | Unit |
| Includes Coil | Yes |
| Coefficient of Volume (Cv) | 43 |
| Voltage | 110V AC; 120V AC |
| Overall Width | 4-7/8 in |
| Outlet Connection Type | NPTF |
| Valve Positions | 2-Position |
| Seal Material | NBR |
| Coil Enclosure | Watertight |
| Unit Quantity | 1 |
| Operating Environment | Indoor; Outdoor |
| Maximum Operating Pressure Differential - Light Oil | 90 psi |
| Inlet Connection Type | NPTF |
| Includes Seal | Yes |
| Nominal Pipe Size | 2 in |
| Overall Length | 5-1/16 in |
| For Media | Air; Inert Gases; Light Oil; Water |
| Orifice Diameter | 1-3/4 in |
| Maximum Operating Pressure Differential - Air/Inert Gas | 150 psi |
| Standards | UL Listed |
| Minimum Operating Pressure Differential | 5 psi |
| Brand | Redhat |
| Maximum Fluid Temperature | 180 °F |
| Body Material | Brass |
| IP Rating | IP66 |
| Valve Type | High Flow |
| Frequency | 50 Hz; 60 Hz |
| Coil Insulation Class | F |
| Application | Air Compressors; Car Wash Equipment; Industrial Water Control; |
| Mounting Orientation | Vertical |
| Country of Origin | Mexico |
| Minimum Ambient Temperature | 14 °F |
