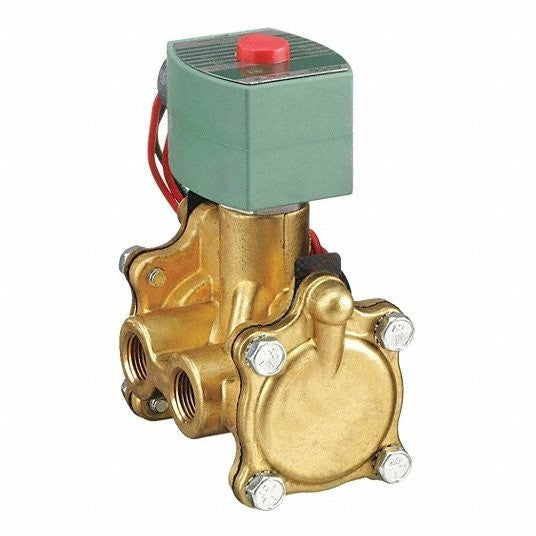

Redhat 8316G064120/60,110/50DA 1/2" NPT 110VAC/120VAC 60Hz 3-Way Solenoid Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Operation Type | Pilot Operated |
| Min Ambient Temperature | 32 °F |
| Wattage | 6.1W |
| Valve Ways | 3-Way |
| Valve Operation | Solenoid |
| MPN | 8316G064120/60,110/50DA |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Maximum Operating Pressure Differential - Water | 125 psi |
| Unit Type | Unit |
| Includes Coil | Yes |
| Coefficient of Volume (Cv) | 3.2 |
| Voltage | 110V AC; 120V AC |
| Max Ambient Temperature | 125 °F |
| Outlet Connection Type | NPT |
| Valve Positions | 2-Position |
| Seal Material | NBR |
| Coil Enclosure | Watertight Without Junction Box |
| Unit Quantity | 1 |
| Max Fluid Temperature | 180 °F |
| Inlet Connection Type | NPT |
| Includes Seal | Yes |
| Nominal Pipe Size | 1/2 in |
| For Media | Air; Inert Gases; Water |
| Orifice Diameter | 5/8 in |
| Maximum Operating Pressure Differential - Air/Inert Gas | 150 psi |
| Minimum Operating Pressure Differential | 10 psi |
| Brand | Redhat |
| Body Material | Brass |
| Valve Type | High Flow |
| Frequency | 60 Hz |
| Application | Controlling Air; Inert Gas; Liquids |
| Mounting Orientation | Horizontal or Vertical |
| Country of Origin | Mexico |
