Reed Instruments R9060 5-Step Steel Ultrasonic Thickness Gage Calibration Block
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

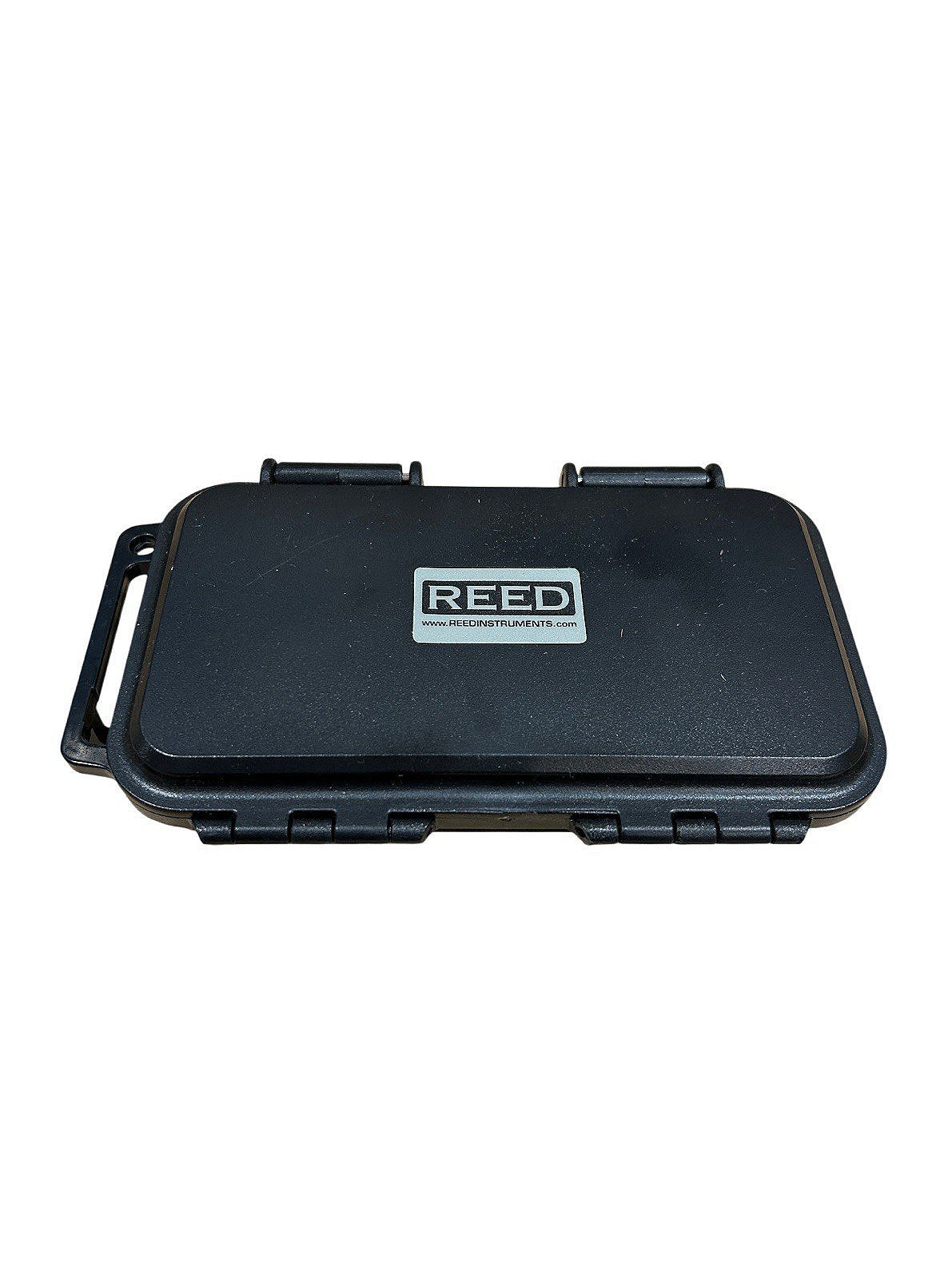

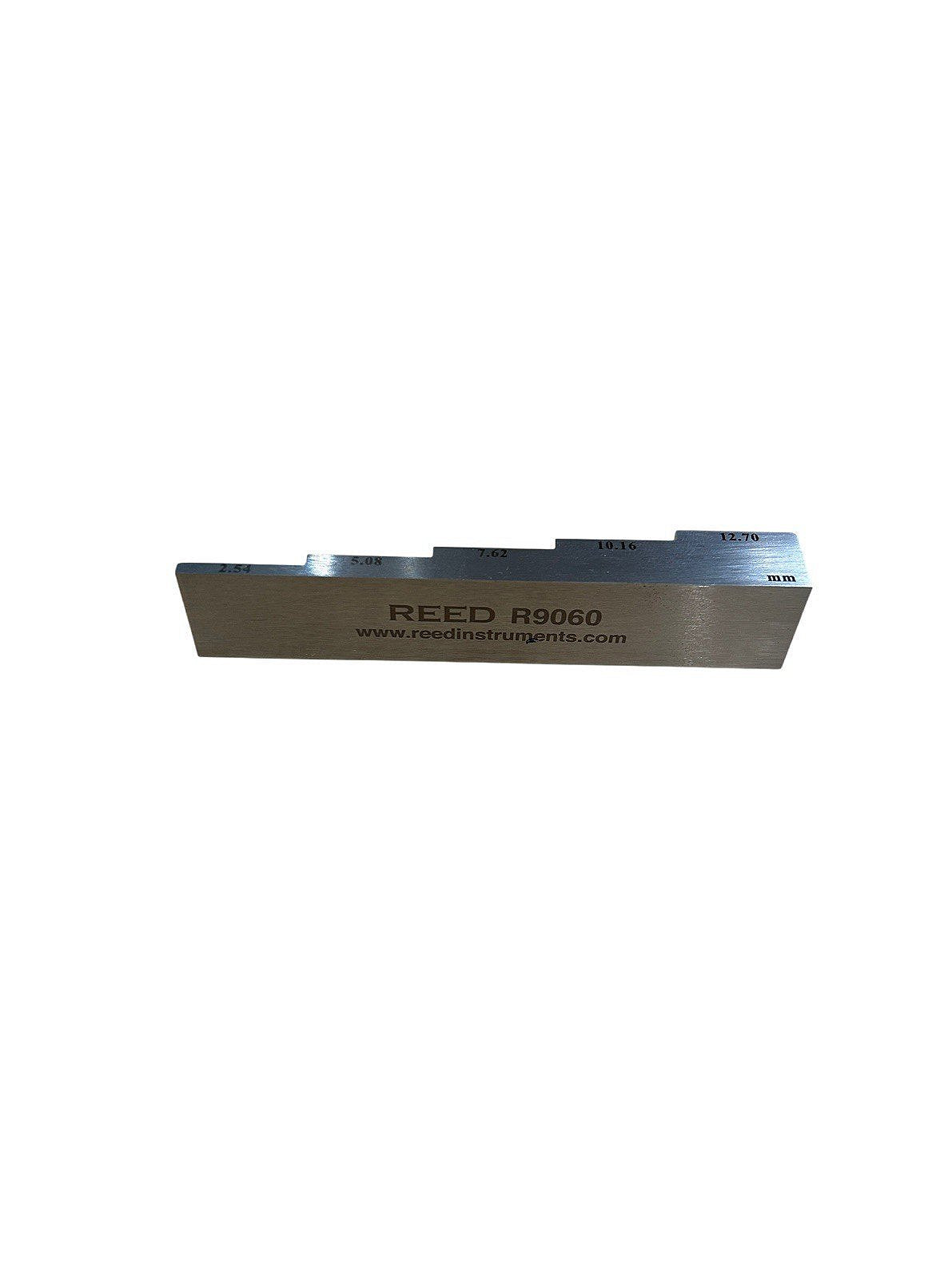

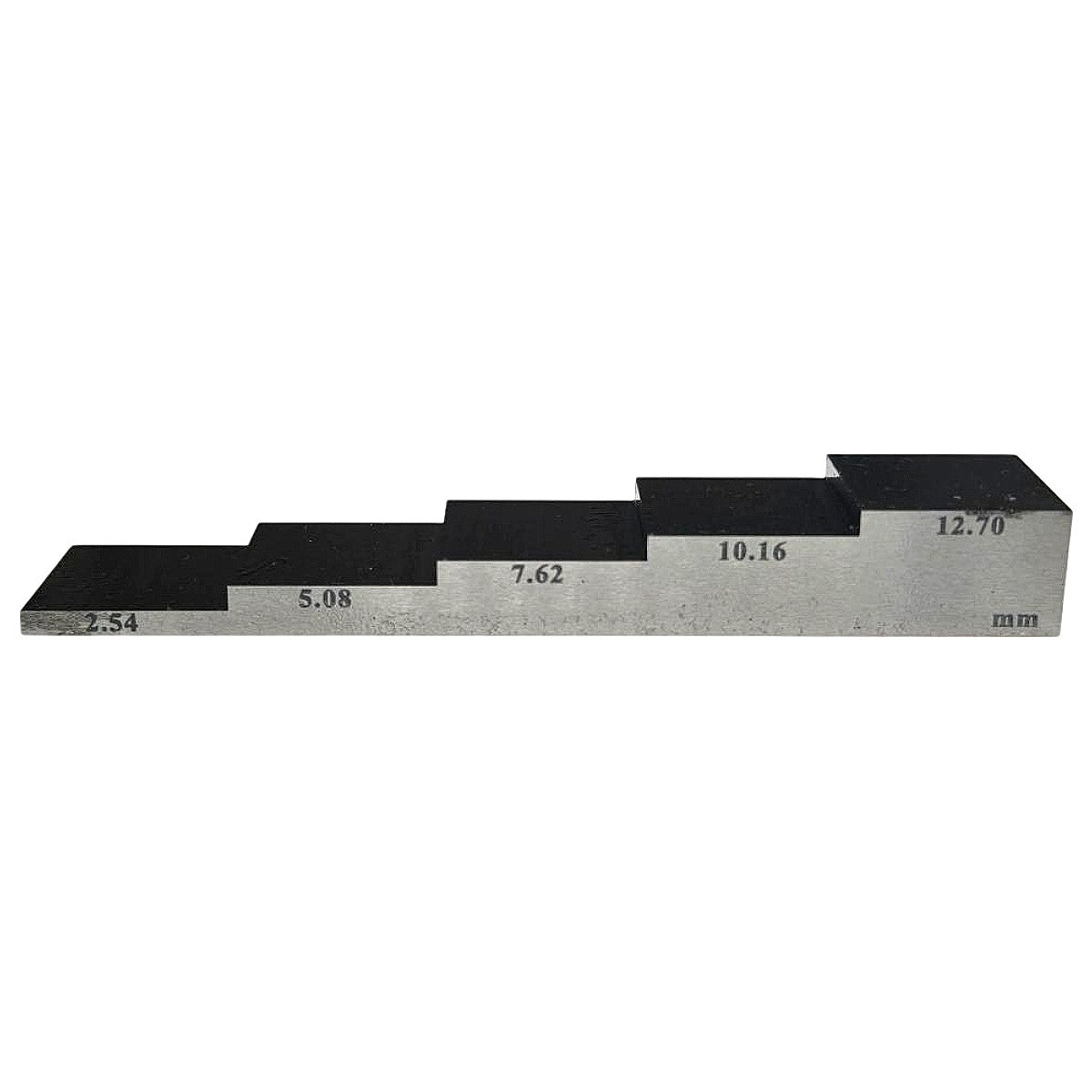

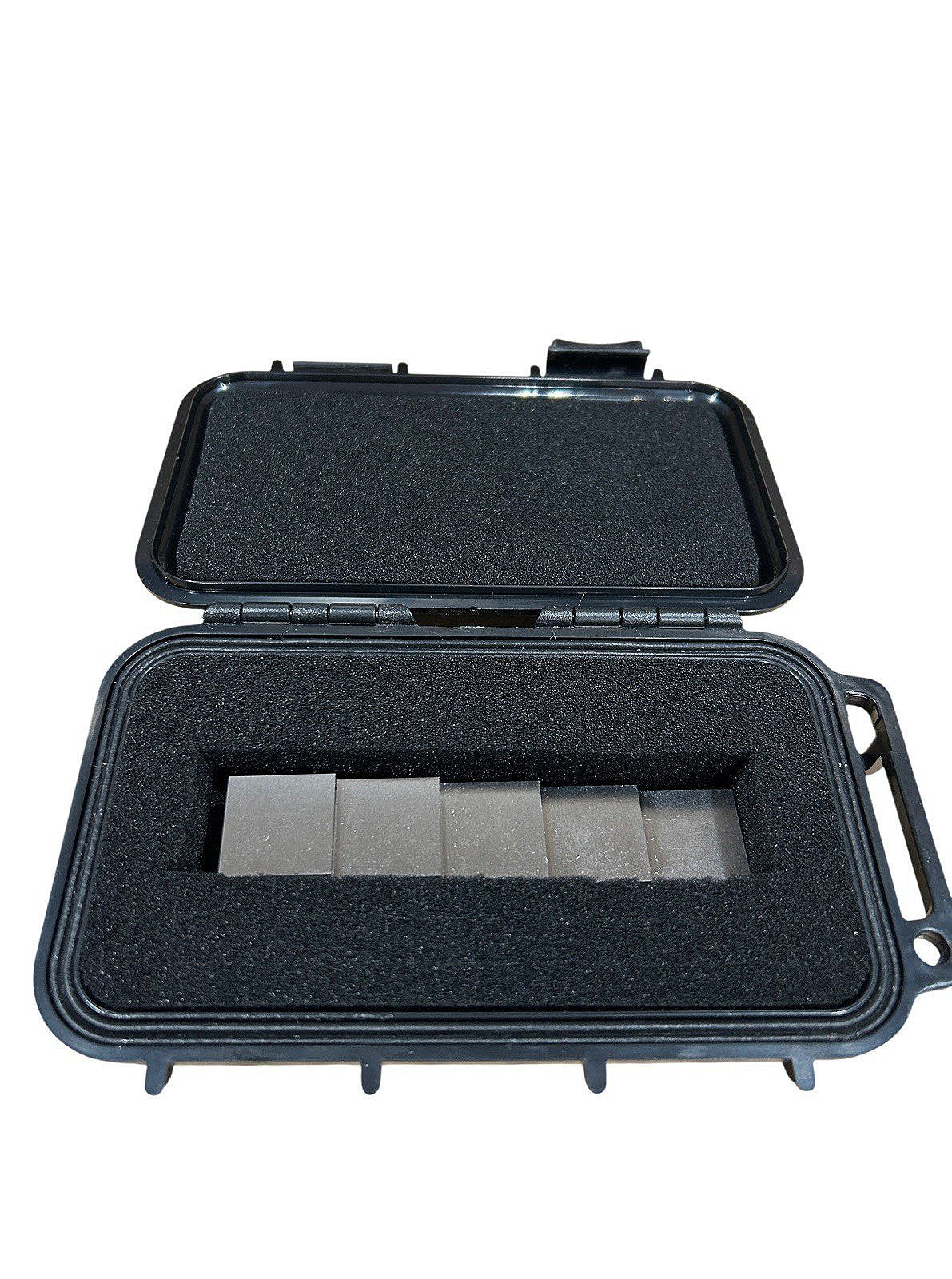

The Reed Instruments R9060 is a new 5-step steel calibration block designed for calibrating ultrasonic thickness gauges, providing five precision reference standards in a single monolithic steel block. Step thicknesses are 0.100 in (2.54 mm), 0.200 in (5.08 mm), 0.300 in (7.62 mm), 0.400 in (10.16 mm), and 0.500 in (12.70 mm), with each step value laser-engraved in both imperial (inch) and metric (mm) units directly on the block face for unambiguous reference in the field. The block is machined from steel and features a black-oxide finish on the step faces to aid transducer coupling visibility; it ships in a fitted foam-lined hard carrying case for protected storage and transport. Compatible with Reed Instruments ultrasonic thickness gauges and other brands requiring a steel step calibration standard; backed by a 1-year manufacturer warranty.
Product Specifications
| Brand | Reed Instruments |
| Model / MPN | R9060 |
| Product Type | 5-Step Calibration Block |
| Block Material | Steel |
| Number of Steps | 5 |
| Step 1 Thickness | 0.100 in (2.54 mm) |
| Step 2 Thickness | 0.200 in (5.08 mm) |
| Step 3 Thickness | 0.300 in (7.62 mm) |
| Step 4 Thickness | 0.400 in (10.16 mm) |
| Step 5 Thickness | 0.500 in (12.70 mm) |
| Unit of Measure | Imperial (in) and Metric (mm) |
| Surface Finish | Black oxide on step faces |
| Compatible Instrument | Ultrasonic Thickness Gage |
| Includes | Foam-lined hard carrying case |
| Warranty | 1 Year |
| Condition | New |
