Reelcraft 81075 OLP 1 75ft 3/8in 300PSI Spring Return Hose Reel
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

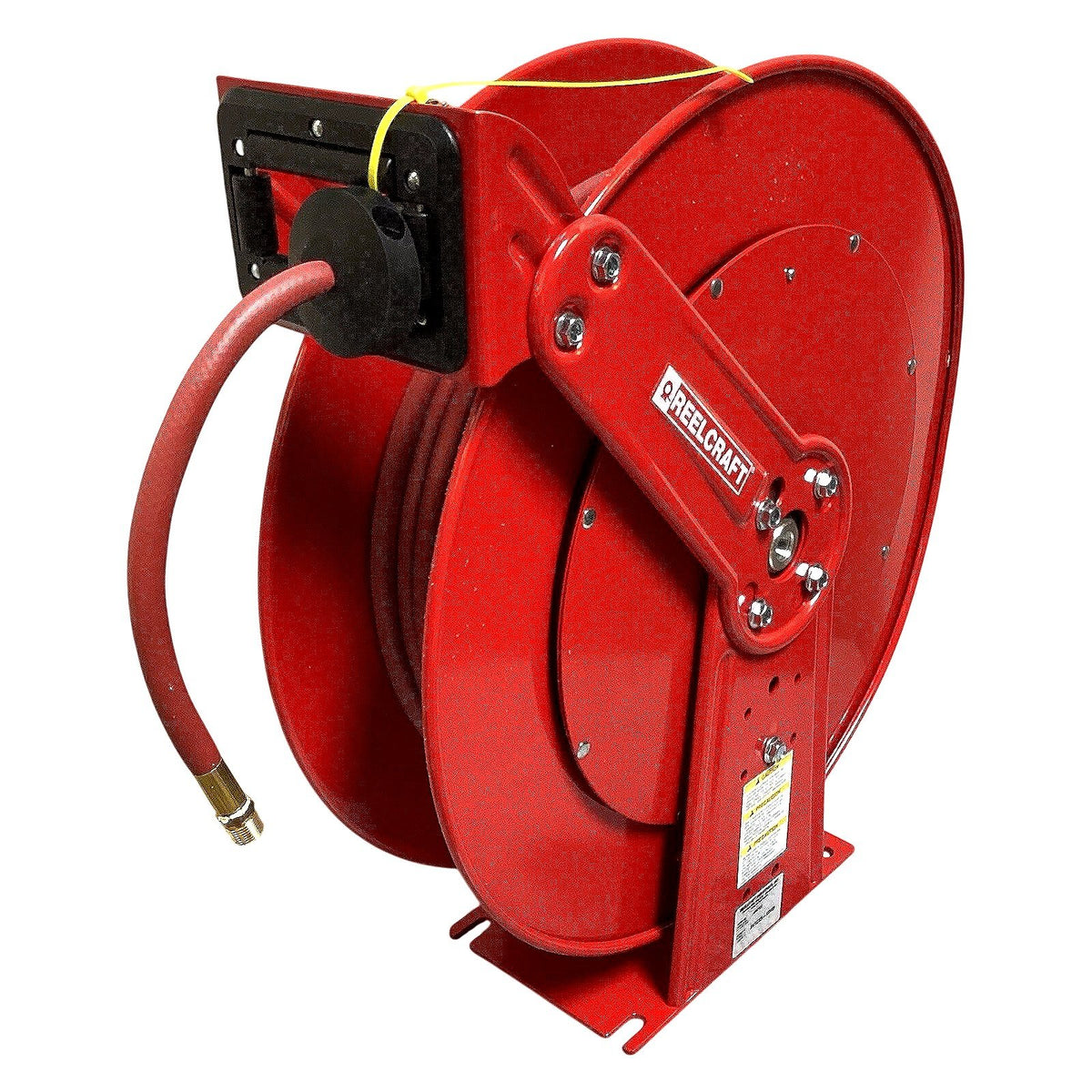

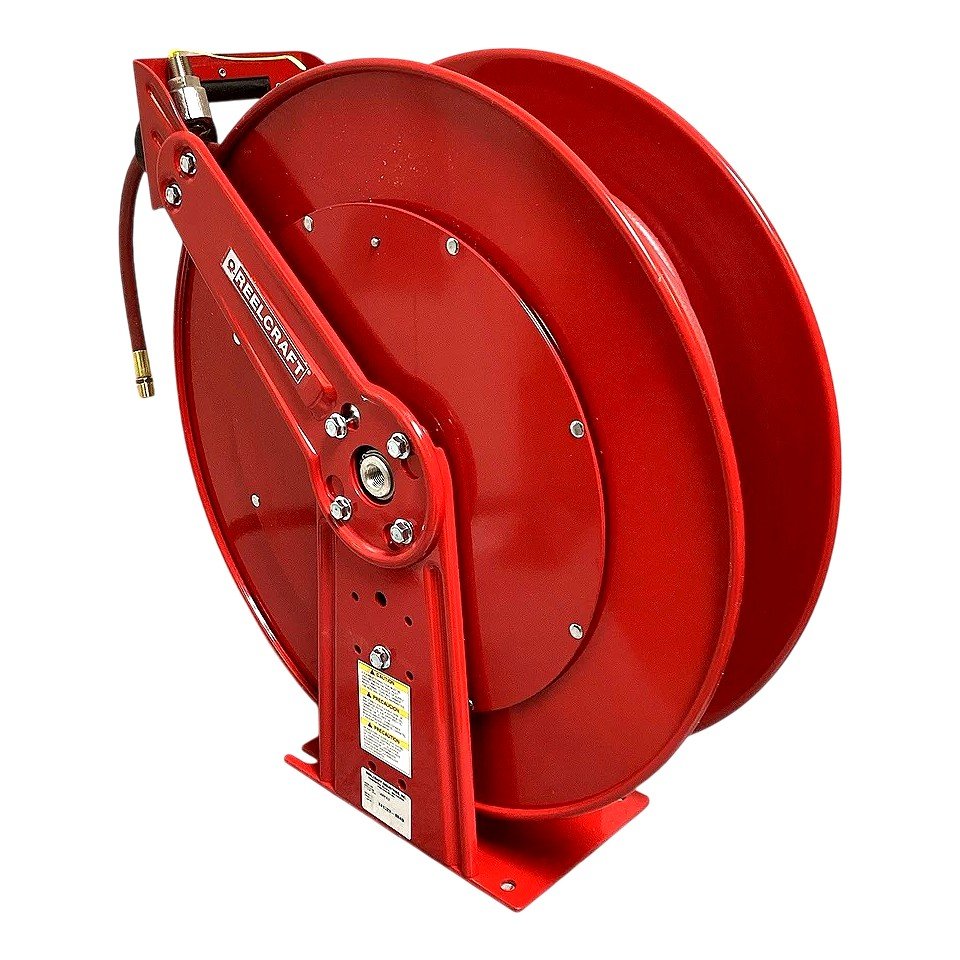

The Reelcraft 81075 OLP 1 is a new, heavy-duty spring-driven retractable hose reel designed for oil/petroleum service, rated for 75 ft of 3/8 in I.D. hose at a maximum working pressure of 300 PSI. Decoding the model number: "8" denotes the Series 8 heavy-duty frame (large-diameter steel discs, heavy-gauge steel construction with a durable red powder-coat finish); "1075" encodes 1-hose configuration, 3/8 in I.D. bore, and 75 ft hose capacity; "OL" designates oil/petroleum-compatible hose and wetted materials; "P" indicates a spring-powered (auto-retract) mechanism; "1" specifies a single-outlet configuration with a 3/8 in MNPT inlet swivel and 3/8 in MNPT outlet fitting. The heavy-duty Series 8 frame features an adjustable spring motor with ratchet-lock positioning, a precision-machined brass swivel joint for leak-free rotation, and base/wall/ceiling mounting capability. This reel ships with the hose pre-installed and is suitable for lubrication, oil dispensing, and fluid transfer applications in automotive shops, fleet maintenance bays, and industrial facilities.
Product Specifications
| Brand | Reelcraft |
| Model Number | 81075 OLP 1 |
| Series | Series 8 Heavy Duty |
| Hose Inside Diameter | 3/8 in |
| Hose Length | 75 ft |
| Max Working Pressure | 300 PSI |
| Inlet Connection | 3/8 in MNPT |
| Outlet Connection | 3/8 in MNPT |
| Fluid Type | Oil / Petroleum |
| Retraction Type | Spring-driven auto-retract |
| Number of Outlets | 1 |
| Frame Material | Heavy-gauge steel |
| Finish | Red powder coat |
| Mounting | Base, wall, or ceiling (multi-position) |
| Swivel Joint Material | Brass |
| Condition | New |
| Made In | USA (Columbia City, IN) |
