Renishaw A-1371-0270-01 TP20 Standard Force Module CMM Probe

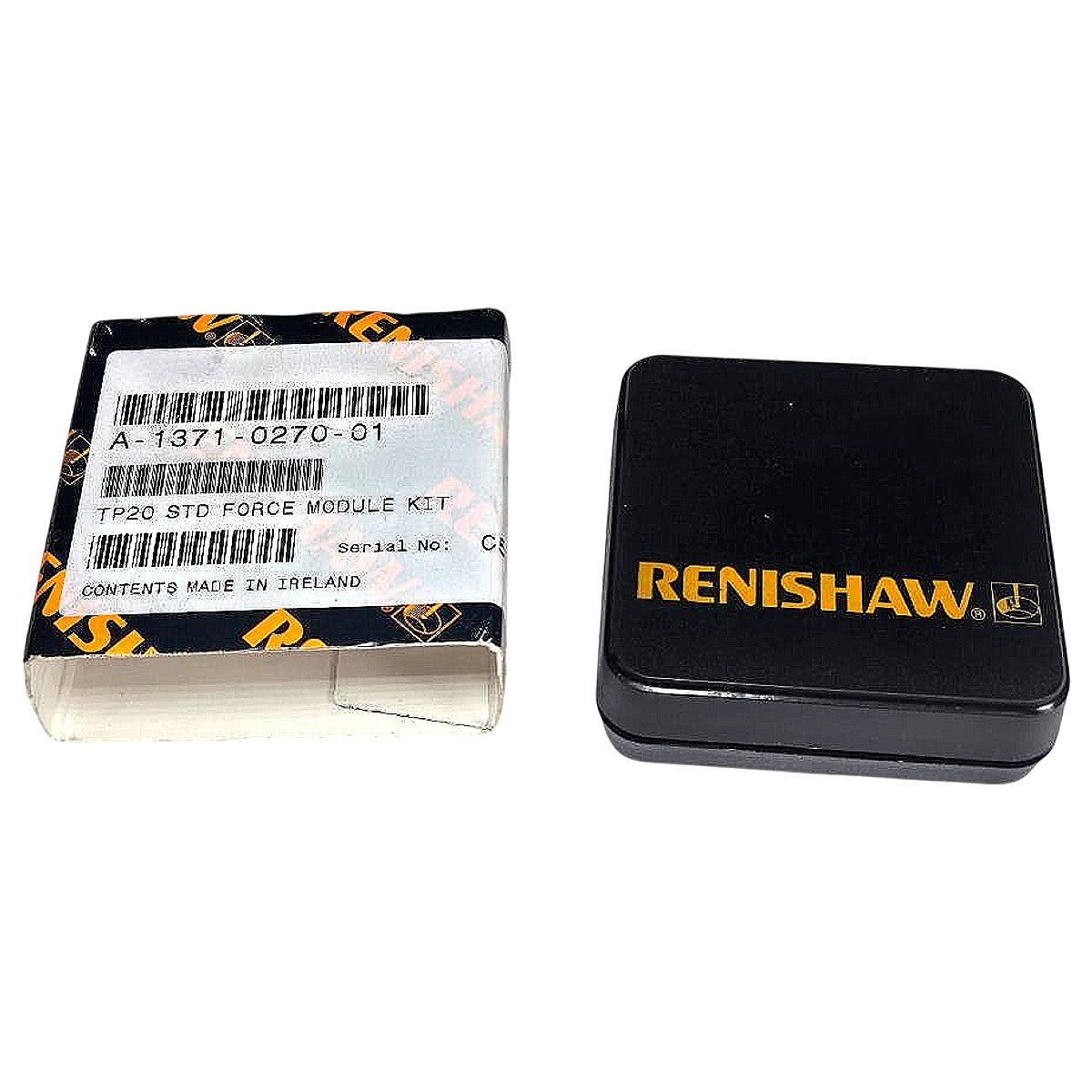

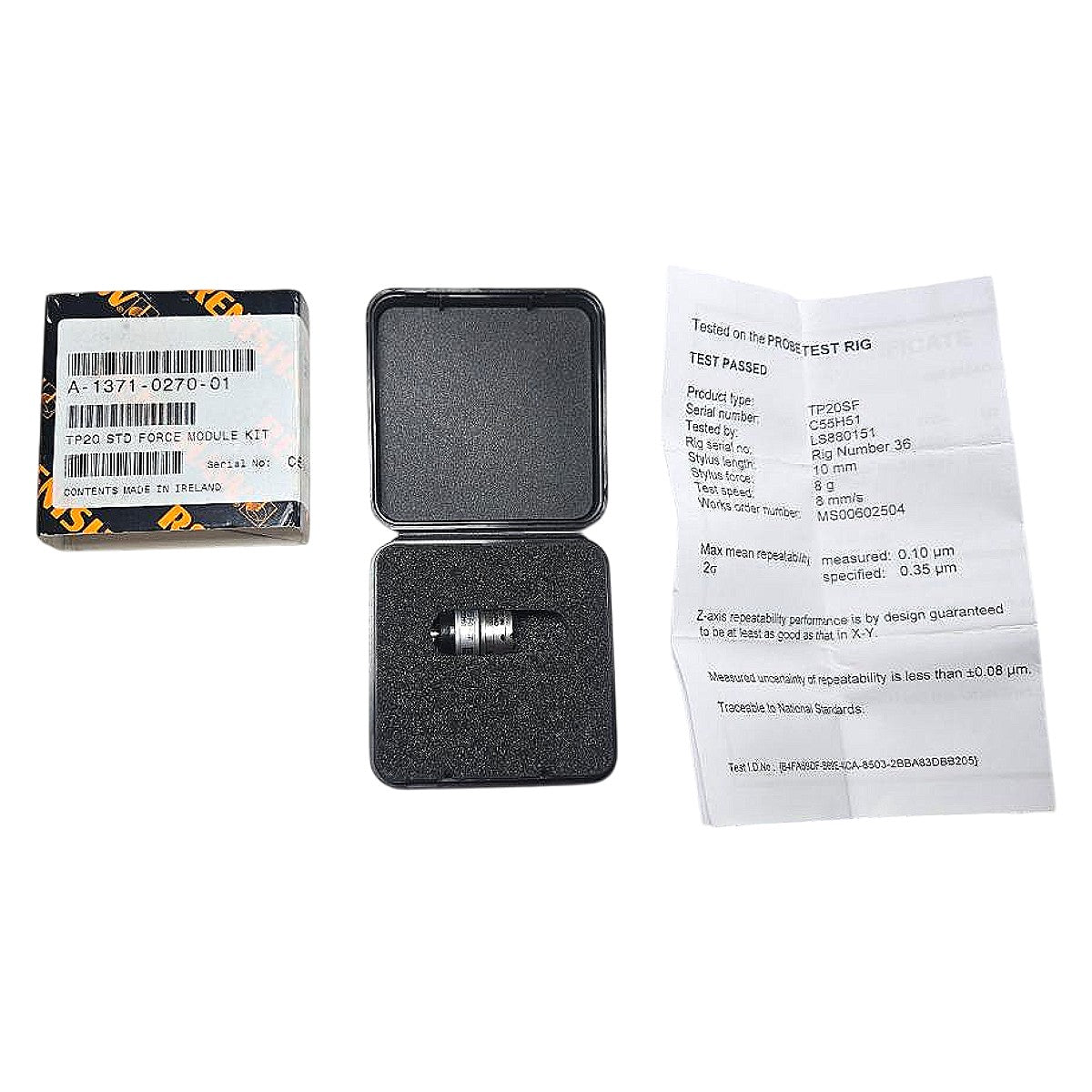

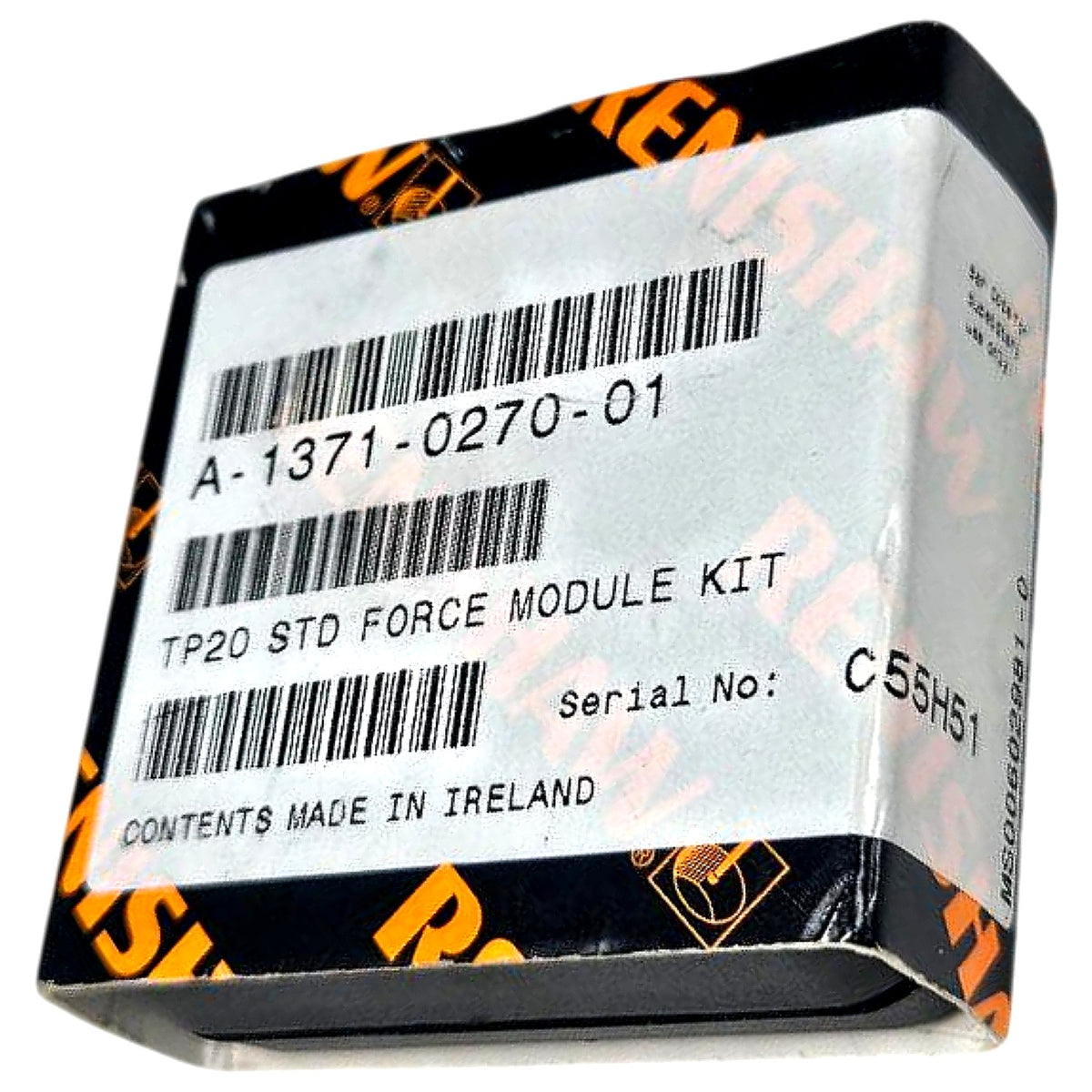

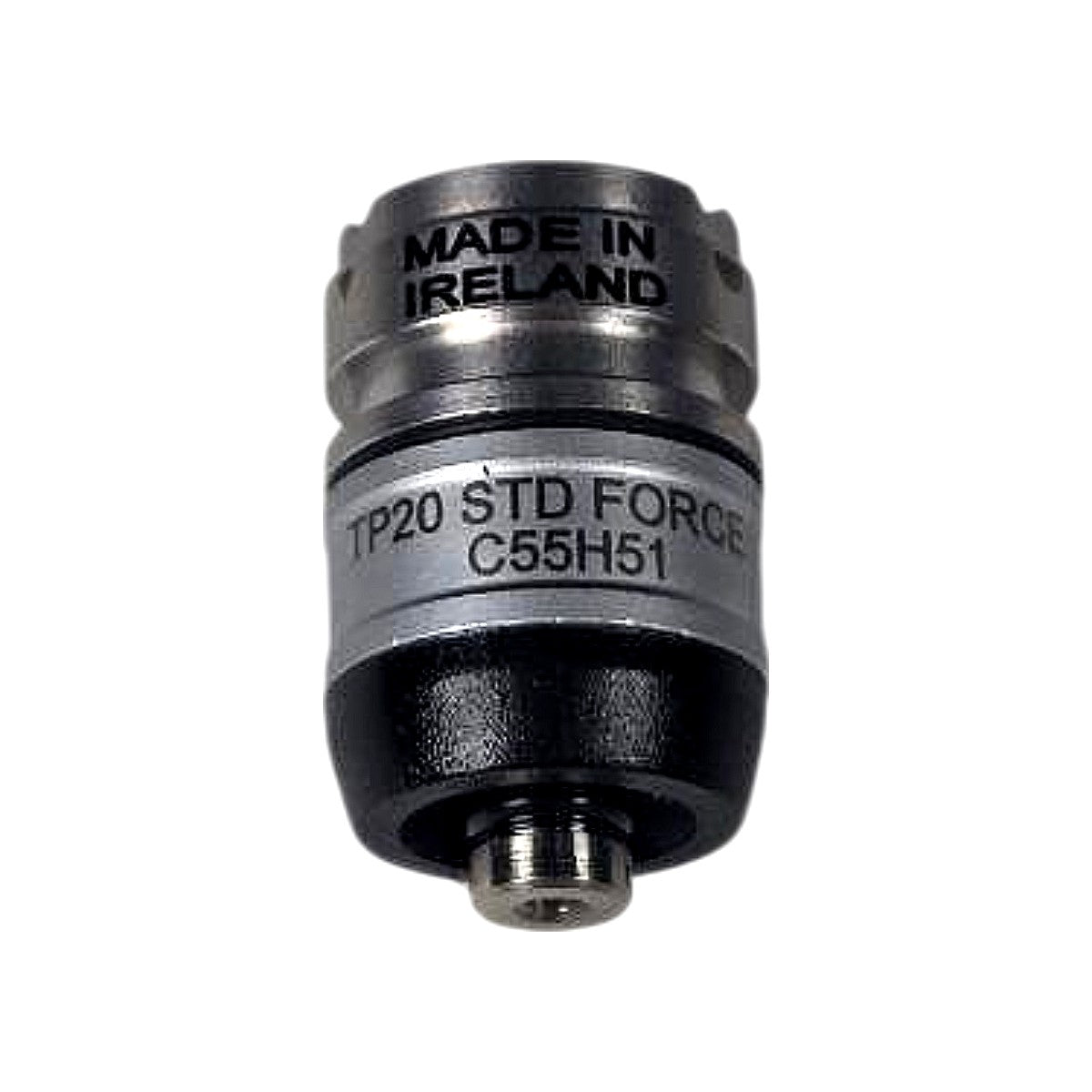

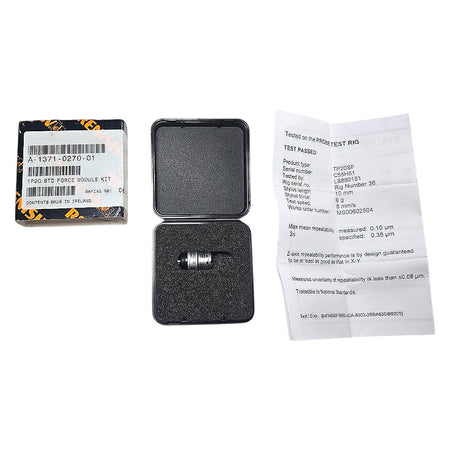

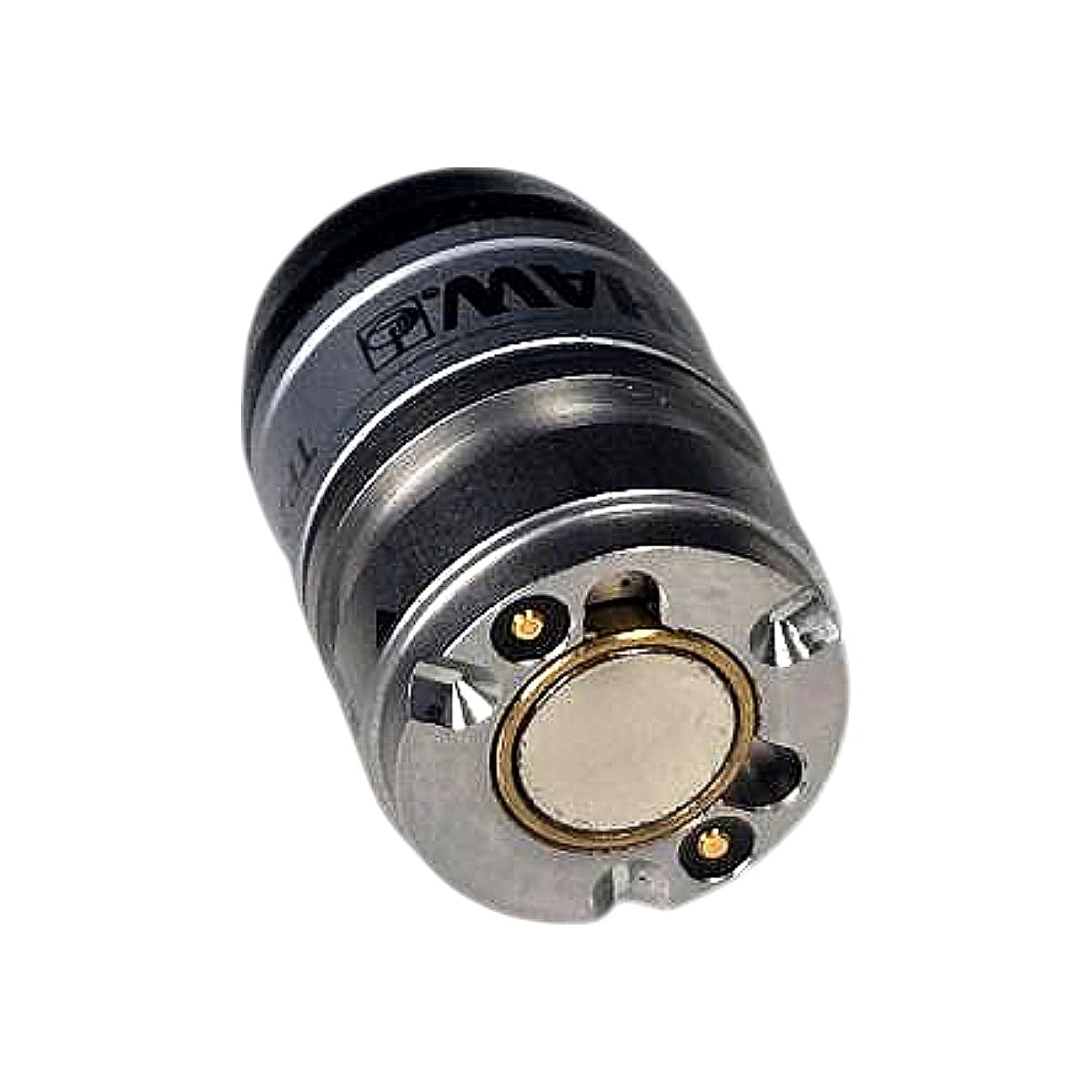

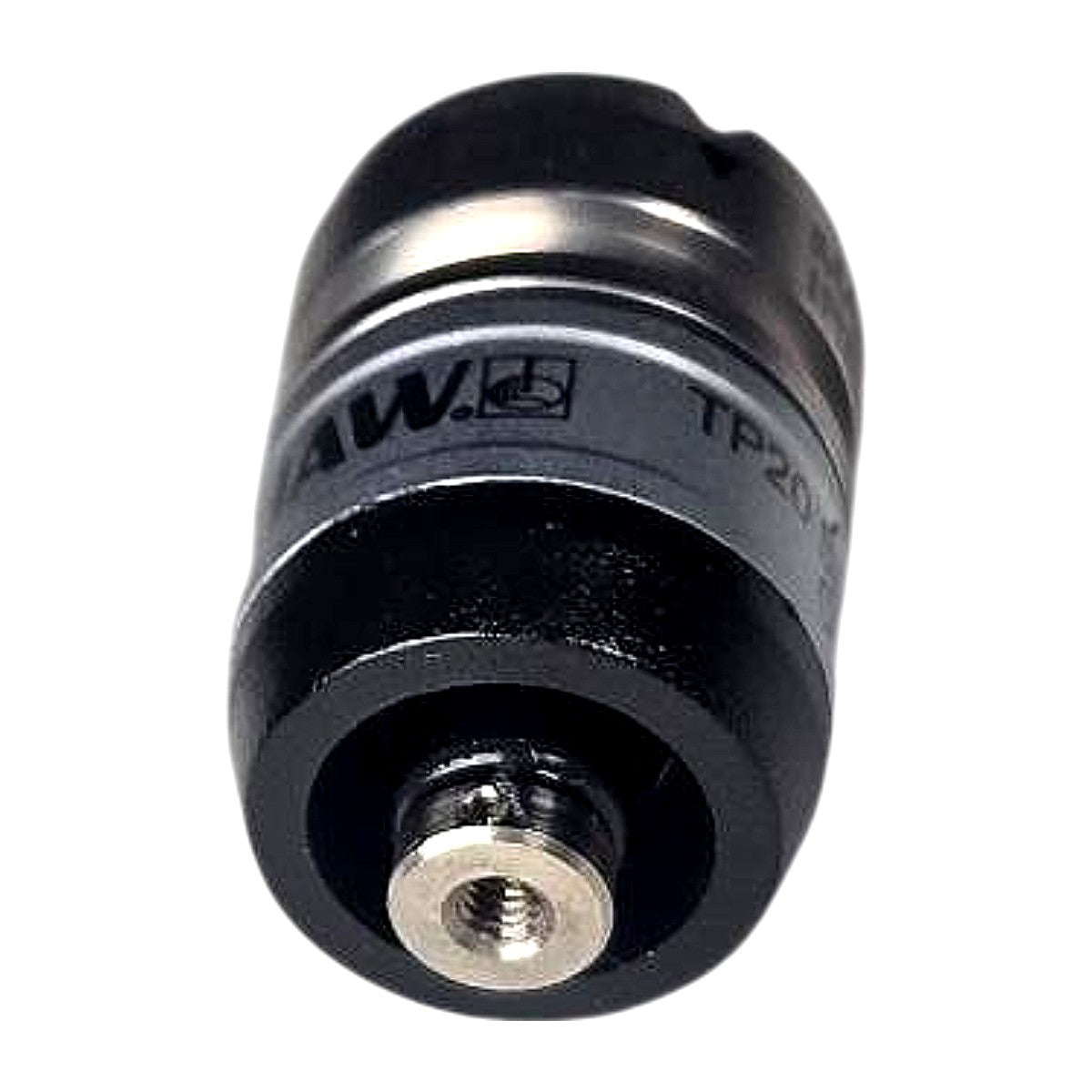

The Renishaw A-1371-0270-01 is a new TP20 Standard Force (STD Force) interchangeable module kit for the Renishaw TP20 non-contact, kinematic touch-trigger CMM probe family; the module is the sensing element that houses the stylus mount and spring mechanism, and swaps tool-free into the TP20 body via the bayonet-style autojoint without removing the probe from the CMM head. The standard-force spring configuration applies 8 g stylus force and is rated for use with styli up to 10 mm in length (as confirmed on the included Renishaw factory test certificate, serial no. C55H51), delivering a measured 2σ max mean repeatability of 0.10 µm against a specified limit of 0.35 µm — traceable to national standards. The module interfaces with the TP20 body through the three-point kinematic seat and three gold-plated electrical contacts visible on the rear face, and accepts any M2 stylus thread; it is compatible with all TP20 probe bodies and is suited for CMMs running Renishaw UCC, MODUS, or third-party controllers that support the TP20 protocol. Supplied in the original Renishaw black clam-shell storage tin with factory test certificate; contents made in Ireland. Product Specifications Brand Renishaw MPN A-1371-0270 Product Type TP20 Standard Force Module Kit Serial Number C55H51 Compatible Probe Body Renishaw TP20 Force Configuration Standard Force Stylus Force 8 g Max Stylus Length (tested) 10 mm Stylus Thread M2 Max Mean Repeatability (2σ, measured) 0.10 µm Max Mean Repeatability (2σ, specified) 0.35 µm Repeatability Uncertainty Test Speed 8 mm/s Module Interface Kinematic bayonet autojoint w/ 3-contact electrical Country of Origin Ireland Traceability Traceable to National Standards
