Ridgid 12-R 3/8 NPT HS/SS Pipe Threading Die Head
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

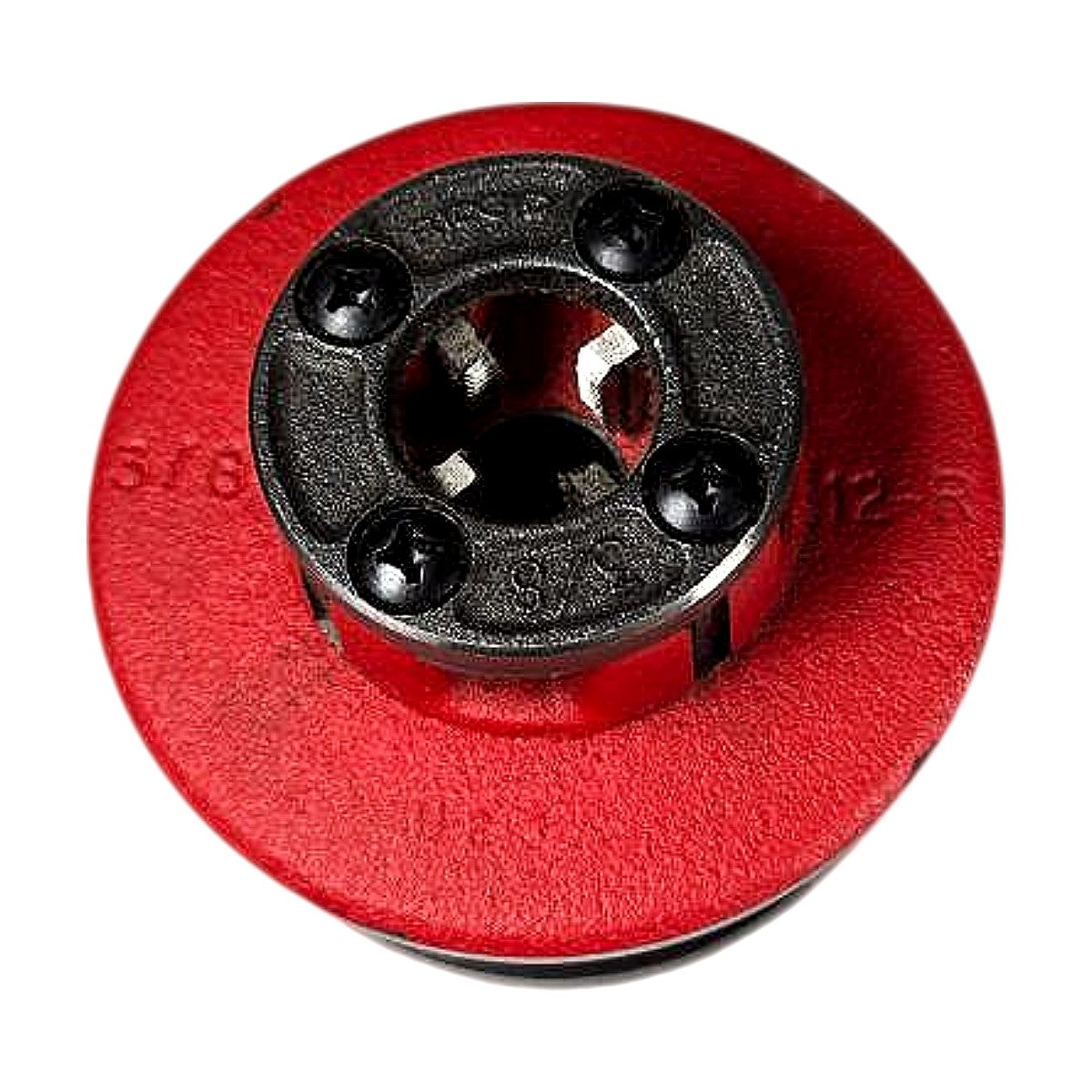

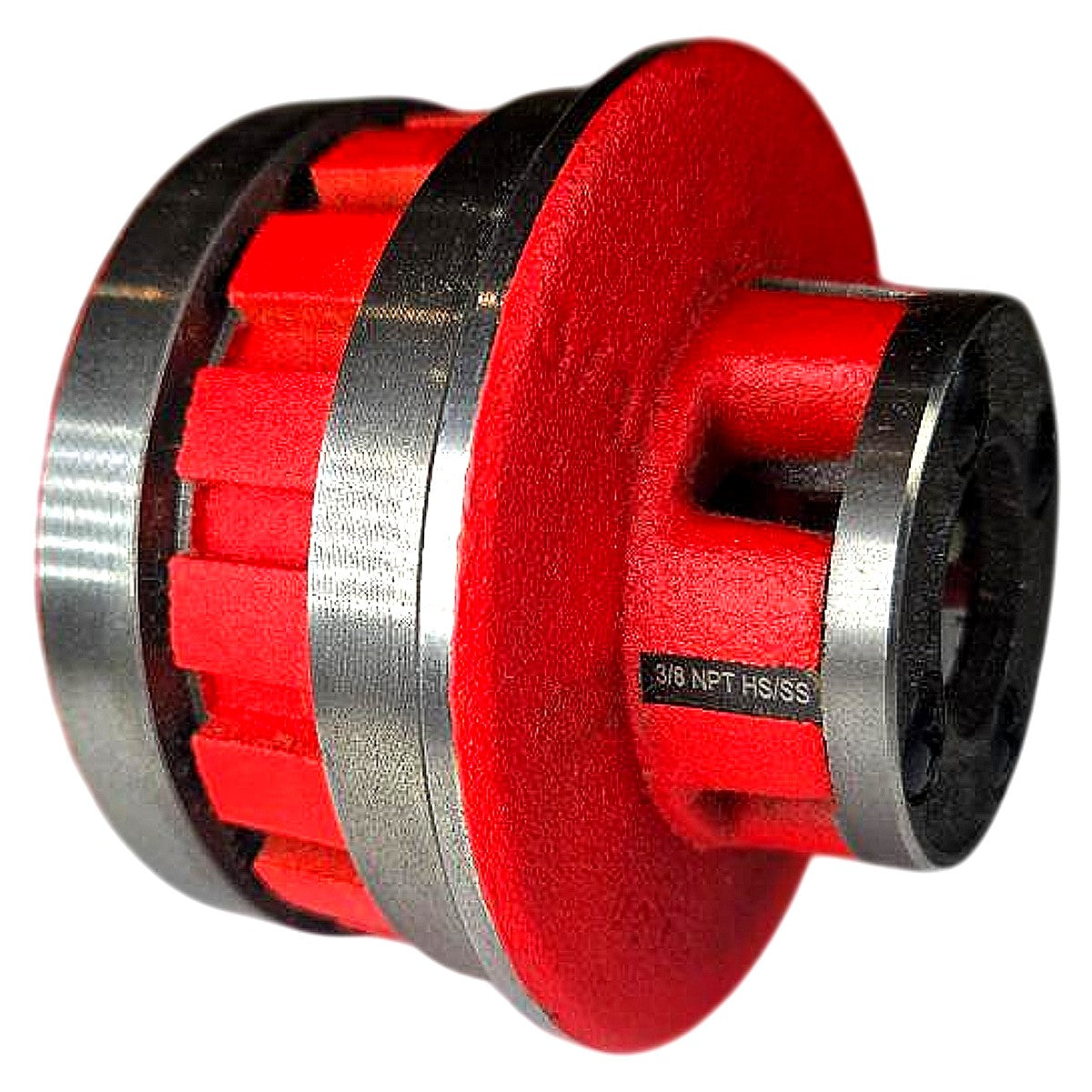

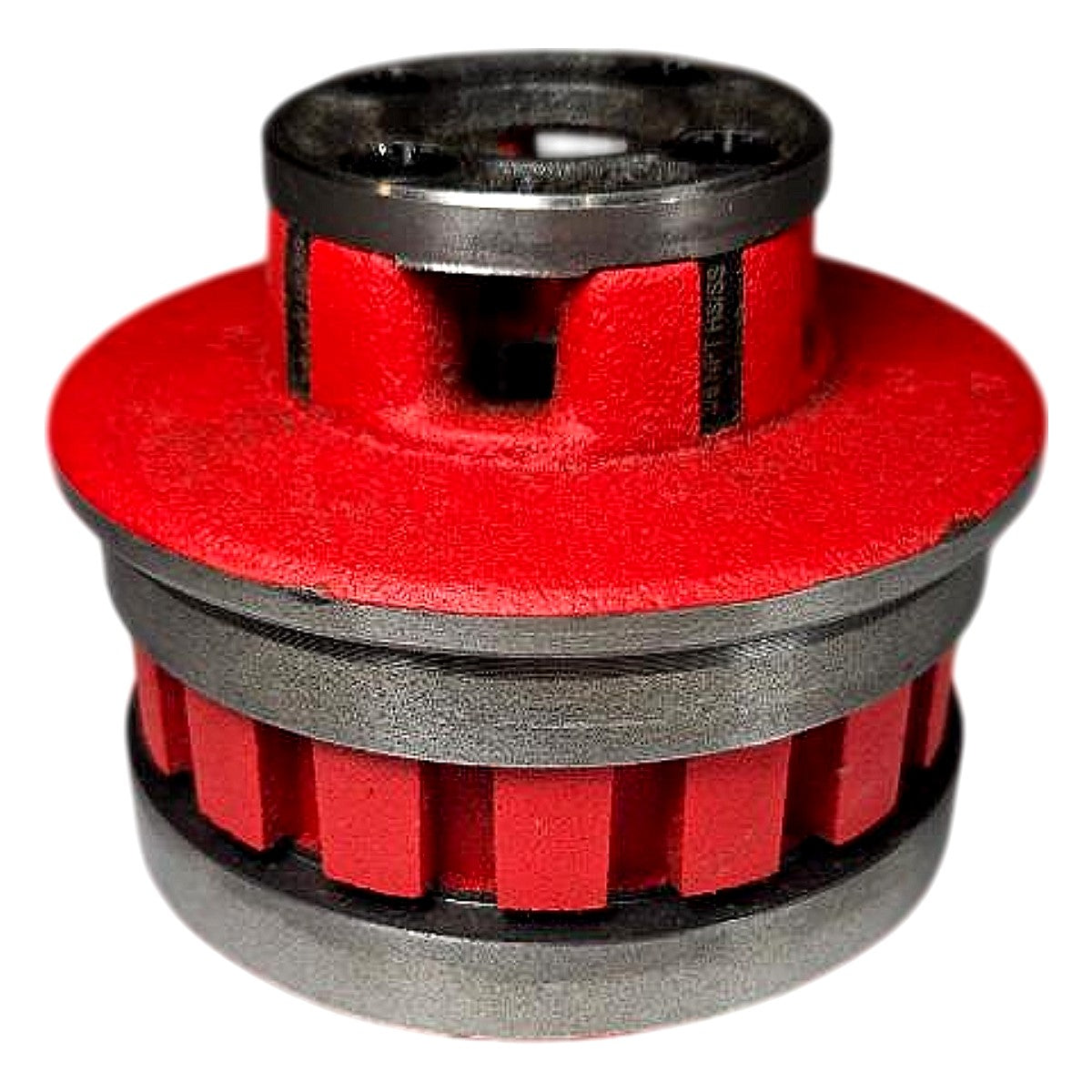

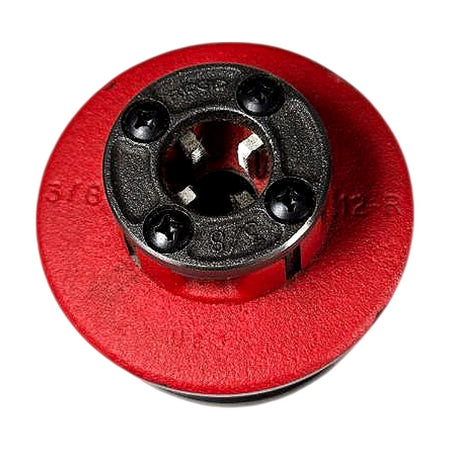

This is a Ridgid 12-R die head for cutting 3/8 in NPT (National Pipe Taper) threads, confirmed by the "3/8 NPT HS/SS" label clearly visible on the die head body in the photos. The "HS/SS" designation indicates the die set is ground for use on High Speed (HS) steel pipe as well as Stainless Steel (SS), making it suitable for threading Schedule 40/80 carbon steel, stainless steel, and similar alloy pipe. The 12-R die head is compatible with Ridgid 12-R ratchet threaders, No. 00-R, No. 11-R, No. 30, No. 31, No. 111-R, No. 141, and No. 161 power threading machines that accept the 12-R head. The four-jaw die arrangement with the self-opening ratchet mechanism allows threading pipe to NPT taper specification (3/4 in taper per foot on the diameter) in a single pass. Listed as new — other condition, the head retains its original red-painted cast iron body and machined steel die carrier ring with no visible wear or damage to the cutting dies.
Product Specifications
| Brand | Ridgid |
| Model | 12-R |
| Thread Size | 3/8 in NPT |
| Thread Standard | NPT (National Pipe Taper) |
| Taper | 3/4 in per ft on diameter |
| Die Grade | HS/SS (High Speed Steel & Stainless Steel) |
| Number of Dies | 4 |
| Compatible Threaders | Ridgid 00-R, 11-R, 12-R, 30, 31, 111-R, 141, 161 |
| Body Material | Cast iron w/ machined steel die carrier |
| Condition | New — other |
